IslandPath Analysis: Synechococcus sp. JA-3-3Ab

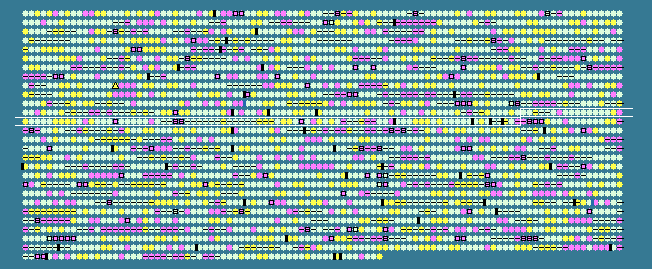

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1184	 63.15	0	1255463..1256599	-	378	86605926	gcvT	CYA_1242	-	glycine cleavage system aminomethyltransferase T
1185	 60.23	0	1256666..1257100	+	144	86605927	gloA	CYA_1244	-	lactoylglutathione lyase
1186	 66.76	+1	1257125..1258216	-	363	86605928	-	CYA_1245	-	TonB family protein
1187	 61.04	0	1258476..1258955	+	159	86605929	-	CYA_1246	-	glyoxalase family protein
1188	 63.29	0	1258973..1259830	+	285	86605930	-	CYA_1247	-	hypothetical protein
1189	 62.97	0	1260709..1261710	+	333	86605931	menC	CYA_1249	-	O-succinylbenzoate synthase
1190	 56.20	0	1263140..1263502	+	120	86605933	-	CYA_1251	-	hypothetical protein
1191	 61.05	0	1263499..1264620	-	373	86605934	-	CYA_1250	-	putative methyl-accepting chemotaxis protein
1192	 59.30	0	1264886..1266106	-	406	86605935	-	CYA_1252	-	GAF domain-containing protein
1193	 60.91	0	1266259..1266936	+	225	86605936	pth	CYA_1253	-	peptidyl-tRNA hydrolase
1194	 61.99	0	1266981..1268219	-	412	86605937	-	CYA_1254	-	hypothetical protein
1195	 58.82	0	1268403..1269422	-	339	86605938	-	CYA_1255	-	hypothetical protein
1196	 62.36	0	1270024..1272645	-	873	86605939	leuS	CYA_1256	-	leucyl-tRNA synthetase
1197	 59.03	0	1272774..1273664	-	296	86605940	petH	CYA_1257	-	ferredoxin--NADP reductase
1198	 58.43	0	1273982..1274989	+	335	86605941	prk	CYA_1258	-	phosphoribulokinase
1199	 64.21	0	1275064..1275795	+	243	86605942	pgl	CYA_1259	-	6-phosphogluconolactonase
1200	 53.22	-1	1275911..1276081	+	56	86605943	-	CYA_1260	-	hypothetical protein
1201	 64.14	0	1277778..1278923	+	381	86605944	-	CYA_1262	-	hypothetical protein
1202	 59.57	0	1279028..1279534	+	168	86605945	-	CYA_1263	-	hypothetical protein
1203	 61.62	0	1279684..1280436	+	250	86605946	minC	CYA_1264	-	septum formation inhibitor
1204	 59.73	0	1280433..1281239	+	268	86605947	minD	CYA_1265	-	septum site-determining protein MinD
1205	 61.98	0	1281330..1281692	+	120	86605948	minE	CYA_1266	-	cell division topological specificity factor MinE
1206	 64.06	0	1281926..1284115	+	729	86605949	-	CYA_1268	-	monovalent cation:proton antiporter-2 (CPA2) family protein
1207	 64.06	0	1284112..1284456	-	114	86605950	-	CYA_1267	-	hypothetical protein
1208	 67.81	+1	1284501..1285112	-	203	86605951	-	CYA_1269	-	hypothetical protein
1209	 64.89	+1	1285137..1286150	-	337	86605952	holB	CYA_1270	-	DNA polymerase III subunit delta'
1210	 60.62	0	1286275..1286754	-	159	86605953	accB	CYA_1271	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1211	 56.45	0	1286822..1287379	-	185	86605954	efp	CYA_1272	-	elongation factor P
1212	 65.06	+1	1287416..1288099	-	227	86605955	-	CYA_1273	-	glycoprotease family protein
1213	 58.78	0	1288198..1289262	+	354	86605956	psbA-1	CYA_1274	-	photosystem II protein D1
1214	 61.74	0	1289332..1289757	-	141	86605957	-	CYA_1275	-	hypothetical protein
1215	 63.33	0	1289747..1289896	+	49	86605958	-	CYA_1276	-	hypothetical protein
1216	 45.68	-2	1290363..1291310	-	315	86605961	-	CYA_1279	-	ISSoc4, transposase orfAB
1217	 58.54	0	1291390..1291635	+	81	86605962	-	CYA_1281	-	hypothetical protein
1218	 61.47	0	1291474..1291935	-	153	86605963	-	CYA_1280	-	TatC family protein, truncation
1219	 61.86	0	1292098..1293303	-	401	86605964	-	CYA_1282	-	polar amino acid ABC transporter permease
1220	 61.81	0	1293307..1294479	-	390	86605965	-	CYA_1283	-	polar amino acid ABC transporter permease
1221	 60.02	0	1294588..1295625	-	345	86605966	-	CYA_1284	-	polar amino acid ABC transporter amino acid-binding protein
1222	 55.89	0	1295889..1296677	+	262	86605967	-	CYA_1285	-	polar amino acid ABC transporter ATP-binding protein
1223	 61.48	0	1296686..1297534	-	282	86605968	-	CYA_1286	-	hypothetical protein
1224	 56.94	0	1297563..1297778	+	71	86605969	-	CYA_1287	-	hypothetical protein
1225	 62.65	0	1299385..1300230	+	281	86605970	trpA-2	CYA_1290	-	tryptophan synthase subunit alpha
1226	 45.68	-2	1300215..1300781	-	188	86605971	-	CYA_1289	-	ISSoc4, transposase orfB
1227	 46.12	-2	1300763..1301161	-	132	86605972	-	CYA_1291	-	ISSoc4, transposase orfA
1228	 58.92	0	1301241..1301537	+	98	86605973	-	CYA_1292	-	hypothetical protein
1229	 59.81	0	1301518..1304331	+	937	86605974	-	CYA_1293	-	putative type III restriction-modification system, res subunit
1230	 59.72	0	1304681..1305313	+	210	86605975	-	CYA_1294	-	anaerobic ribonucleotide reductase activating protein
1231	 60.35	0	1305333..1305617	-	94	86605976	-	CYA_1295	-	hypothetical protein
1232	 57.96	0	1305857..1306660	+	267	86605977	-	CYA_1296	-	stomatin/podocin/band 7/nephrosis.2/SPFH (stomatin) family protein
1233	 59.53	0	1306701..1307639	+	312	86605978	-	CYA_1297	-	HflC/HflK family protein
1234	 64.68	+1	1307640..1308344	-	234	86605979	-	CYA_1298	-	ComF family protein
1235	 60.05	0	1308542..1308949	+	135	86605980	rpsL	CYA_1299	-	30S ribosomal protein S12
1236	 60.93	0	1308993..1309463	+	156	86605981	rpsG	CYA_1300	-	30S ribosomal protein S7
1237	 59.63	0	1309620..1311752	+	710	86605982	fusA	CYA_1301	-	elongation factor G
1238	 61.06	0	1311775..1313004	+	409	86605983	tuf	CYA_1302	-	elongation factor Tu
1239	 56.92	0	1313098..1313415	+	105	86605984	rpsJ	CYA_1303	-	30S ribosomal protein S10
1240	 64.40	0	1313462..1314343	+	293	86605985	dapB	CYA_1305	-	dihydrodipicolinate reductase
1241	 66.23	+1	1314340..1315251	-	303	86605986	-	CYA_1304	-	methylenetetrahydrofolate reductase family protein
1242	 66.27	+1	1315337..1316857	-	506	86605987	-	CYA_1306	-	hypothetical protein
1243	 62.70	0	1317026..1317757	-	243	86605988	-	CYA_1307	-	hypothetical protein
1244	 65.79	+1	1318030..1319391	-	453	86605989	-	CYA_1308	-	oxidoreductase, FAD-dependent
1245	 67.88	+1	1319466..1319630	-	54	86605990	-	CYA_1309	-	hypothetical protein
1246	 58.88	0	1319891..1320673	-	260	86605991	tatC	CYA_1310	-	Sec-independent protein translocase TatC
1247	 45.87	-2	1321050..1321982	+	310	86605992	-	CYA_1311	-	ISSoc4, transposase orfAB
1248	 58.57	0	1322087..1322407	-	106	86605993	-	CYA_1312	-	nucleotidyltransferase domain-containing protein
1249	 56.46	0	1322404..1322736	-	110	90296795	-	CYA_1313	-	putative DNA methyltransferase
1250	 67.11	+1	1326864..1329119	-	751	86605994	-	CYA_1316	-	DNA internalization competence protein
1251	 58.80	0	1329550..1329765	+	71	86605995	-	CYA_1317	-	hypothetical protein
1252	 66.90	+1	1329842..1330684	+	280	86605996	gspO	CYA_1318	-	prepilin peptidase
1253	 62.68	0	1330745..1334707	-	1320	86605997	chlH	CYA_1319	-	magnesium chelatase
1254	 56.54	0	1336315..1338645	-	776	86605998	pcrA	CYA_1321	-	ATP-dependent DNA helicase PcrA
1255	 57.30	0	1338793..1339422	+	209	86605999	-	CYA_1322	-	hypothetical protein
1256	 61.09	0	1339537..1340181	+	214	86606000	-	CYA_1323	-	hypothetical protein
1257	 65.62	+1	1340188..1341045	-	285	86606001	dapF	CYA_1324	-	diaminopimelate epimerase
1258	 53.79	-1	1341084..1341215	-	43	86606002	psbN	CYA_1325	-	photosystem II reaction center protein N
1259	 55.88	0	1341406..1341609	+	67	86606003	psbH	CYA_1326	-	photosystem II reaction center protein H
1260	 63.47	0	1341633..1342853	-	406	86606004	argJ	CYA_1327	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1261	 61.59	0	1343098..1343904	+	268	86606005	-	CYA_1328	-	ABC transporter, ATP-binding protein
1262	 56.52	0	1344208..1345005	+	265	86606006	-	CYA_1329	-	ABC transporter, permease protein
1263	 61.01	0	1345253..1345906	-	217	86606007	-	CYA_1331	-	Crp/FNR family transcriptional regulator
1264	 59.41	0	1346103..1347674	-	523	86606008	-	CYA_1332	-	hypothetical protein
1265	 61.40	0	1347730..1348299	-	189	86606009	-	CYA_1333	-	hypothetical protein
1266	 64.77	+1	1348335..1349336	-	333	86606010	-	CYA_1334	-	zinc-binding dehydrogenase family oxidoreductase
1267	 64.58	0	1349497..1349640	+	47	86606011	-	CYA_1335	-	hypothetical protein
1268	 65.49	+1	1349640..1350317	+	225	86606012	-	CYA_1336	-	hypothetical protein
1269	 59.52	0	1350319..1350822	-	167	86606013	apcB-1	CYA_1337	-	allophycocyanin, beta subunit
1270	 65.00	+1	1351048..1351947	-	299	86606014	truB	CYA_1338	-	tRNA pseudouridine synthase B
1271	 63.28	0	1352022..1353053	+	343	86606015	-	CYA_1339	-	hypothetical protein
1272	 59.44	0	1353066..1354061	-	331	86606016	trpS	CYA_1340	-	tryptophanyl-tRNA synthetase
1273	 62.50	0	1354154..1354489	+	111	86606017	-	CYA_1341	-	hypothetical protein
1274	 58.62	0	1354567..1355088	+	173	86606018	ycf3	CYA_1342	-	photosystem I assembly protein Ycf3
1275	 57.14	0	1355156..1355449	+	97	86606019	gatC	CYA_1343	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
1276	 62.36	0	1356160..1358178	-	672	86606020	tynA	CYA_1346	-	tyramine oxidase
1277	 65.91	+1	1358712..1358843	-	43	86606021	-	CYA_1347	-	hypothetical protein
1278	 59.30	0	1359018..1361663	+	881	86606022	-	CYA_1349	-	sensory box histidine kinase
1279	 61.52	0	1361894..1362340	+	148	86606023	-	CYA_1350	-	hypothetical protein
1280	 63.38	0	1362669..1362881	-	70	86606024	-	CYA_1351	-	hypothetical protein
1281	 65.12	+1	1363311..1364600	-	429	86606025	folC	CYA_1353	-	folylpolyglutamate synthase
1282	 60.98	0	1364668..1366251	-	527	86606026	serA	CYA_1354	-	D-3-phosphoglycerate dehydrogenase
1283	 56.36	0	1366455..1366745	-	96	86606027	-	CYA_1355	-	hypothetical protein
60.19	MEAN

4.44	STD DEV
