IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

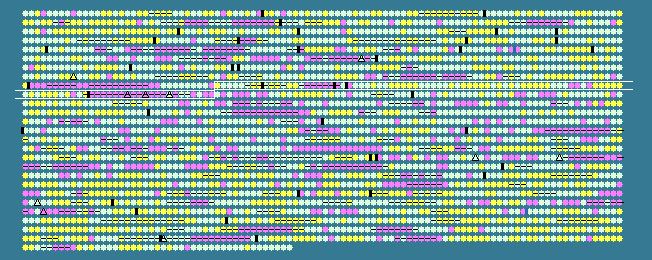

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
833	 63.48	0	814057..814872	-	271	78212389	-	Syncc9605_0845	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
834	 62.70	0	815055..816164	-	369	78212390	-	Syncc9605_0846	-	cell division protein FtsZ
835	 62.37	0	816282..817118	-	278	78212391	-	Syncc9605_0847	-	cell division protein FtsQ
836	 61.31	0	817115..817525	-	136	78212392	-	Syncc9605_0848	-	hypothetical protein
837	 60.11	0	817549..818601	-	350	78212393	-	Syncc9605_0849	-	D-alanine--D-alanine ligase
838	 62.15	0	818653..820047	-	464	78212394	-	Syncc9605_0850	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
839	 65.05	0	820098..821210	+	370	78212395	-	Syncc9605_0851	-	hypothetical protein
840	 66.30	+1	821210..822292	+	360	78212396	-	Syncc9605_0852	-	hypothetical protein
841	 62.05	0	822453..822842	+	129	78212397	-	Syncc9605_0853	-	hypothetical protein
842	 65.18	0	822842..824119	+	425	78212398	-	Syncc9605_0854	-	cytosine deaminase
843	 65.56	0	824138..825487	+	449	78212399	-	Syncc9605_0855	-	hypothetical protein
844	 62.64	0	825491..826036	-	181	78212400	-	Syncc9605_0856	-	hypothetical protein
845	 64.03	0	826033..827247	-	404	78212401	-	Syncc9605_0857	-	FolC bifunctional protein
846	 63.68	0	827248..828552	-	434	78212402	-	Syncc9605_0858	-	acetylornithine aminotransferase
847	 58.63	0	828661..828909	+	82	78212403	-	Syncc9605_0859	-	hypothetical protein
848	 49.67	-1	830270..830728	+	152	78212404	-	Syncc9605_0860	-	hypothetical protein
849	 40.55	-2	831149..831439	-	96	78212405	-	Syncc9605_0861	-	hypothetical protein
850	 45.75	-2	832432..832737	-	101	78212406	-	Syncc9605_0862	-	hypothetical protein
851	 45.87	-2	834383..834709	-	108	78212407	-	Syncc9605_0863	-	hypothetical protein
852	 51.22	-1	834947..835192	-	81	78212408	-	Syncc9605_0864	-	hypothetical protein
853	 52.89	-1	835706..836830	-	374	78212409	-	Syncc9605_0865	-	hypothetical protein
854	 61.44	0	837232..838533	-	433	78212410	-	Syncc9605_0866	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
855	 47.79	-1	838801..839049	+	82	78212411	-	Syncc9605_0867	-	hypothetical protein
856	 62.00	0	839157..839906	+	249	78212412	-	Syncc9605_0868	-	tRNA/rRNA methyltransferase (SpoU)
857	 61.40	0	839903..841345	+	480	78212413	-	Syncc9605_0869	-	dihydrolipoamide dehydrogenase
858	 60.59	0	841386..842273	+	295	78212414	trpC	Syncc9605_0870	-	indole-3-glycerol-phosphate synthase
859	 65.32	0	842327..842995	+	222	78212415	-	Syncc9605_0871	-	hypothetical protein
860	 61.26	0	842978..843310	-	110	78212416	-	Syncc9605_0872	-	peptidase S26 family protein
861	 61.18	0	843361..843834	-	157	78212417	-	Syncc9605_0873	-	putative nickel-containing superoxide dismutase precursor (NISOD)
862	 63.17	0	843877..844476	-	199	78212418	-	Syncc9605_0874	-	peptidylprolyl isomerase
863	 63.64	0	844528..844857	-	109	78212419	-	Syncc9605_0875	-	hypothetical protein
864	 66.81	+1	844911..846326	+	471	78212420	-	Syncc9605_0876	-	apolipoprotein N-acyltransferase
865	 64.41	0	846278..847429	-	383	78212421	trmU	Syncc9605_0877	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
866	 64.90	0	847481..849004	+	507	78212422	-	Syncc9605_0878	-	hypothetical protein
867	 60.06	0	849184..850122	+	312	78212423	-	Syncc9605_0879	-	type II alternative sigma-70 family RNA polymerase sigma factor
868	 61.44	0	850168..851277	-	369	78212424	-	Syncc9605_0880	-	pyruvate dehydrogenase (lipoamide)
869	 61.85	0	851355..853346	+	663	78212425	-	Syncc9605_0881	-	hypothetical protein
870	 62.14	0	853415..854893	+	492	78212426	-	Syncc9605_0882	-	signal recognition particle subunit FFH/SRP54 (srp54)
871	 62.25	0	854972..855379	+	135	161353764	rpsP	Syncc9605_0883	-	30S ribosomal protein S16
872	 63.76	0	855388..856383	+	331	78212428	-	Syncc9605_0884	-	PhoH-like phosphate starvation-inducible protein
873	 60.66	0	856452..857183	+	243	78212429	-	Syncc9605_0885	-	hypothetical protein
874	 64.37	0	857270..857791	-	173	78212430	-	Syncc9605_0886	-	hypothetical protein
875	 63.68	0	857867..858802	+	311	78212431	era	Syncc9605_0887	-	GTP-binding protein Era
876	 63.79	0	858841..859743	+	300	78212432	-	Syncc9605_0888	-	hypothetical protein
877	 62.99	0	859765..860226	+	153	78212433	-	Syncc9605_0889	-	hypothetical protein
878	 64.84	0	860233..861438	+	401	78212434	-	Syncc9605_0890	-	tRNA (Guanine37-N(1)-) methyltransferase
879	 61.45	0	861442..861882	+	146	78212435	-	Syncc9605_0891	-	hypothetical protein
880	 64.89	0	861879..862553	+	224	78212436	-	Syncc9605_0892	-	putative circadian phase modifier CpmA
881	 60.87	0	862558..862695	-	45	78212437	-	Syncc9605_0893	-	hypothetical protein
882	 63.12	0	862815..863774	-	319	78212438	-	Syncc9605_0894	-	hypothetical protein
883	 62.10	0	863793..864011	-	72	78212439	-	Syncc9605_0895	-	thiamine biosynthesis protein ThiS
884	 64.97	0	864015..865073	-	352	78212440	-	Syncc9605_0896	-	thiamine-phosphate pyrophosphorylase
885	 66.67	+1	865208..866149	-	313	78212441	-	Syncc9605_0897	-	FMN adenylyltransferase / riboflavin kinase
886	 63.28	0	866204..866764	+	186	78212442	-	Syncc9605_0898	-	hypothetical protein
887	 64.81	0	866749..867558	-	269	78212443	-	Syncc9605_0899	-	exopolyphosphatase / 3'-nucleotidase / 5'-nucleotidase
888	 64.78	0	867630..868637	+	335	78212444	-	Syncc9605_0900	-	phenylalanyl-tRNA synthetase, alpha subunit
889	 56.54	0	868749..869360	+	203	78212445	-	Syncc9605_0901	-	hypothetical protein
890	 58.52	0	869387..870307	-	306	78212446	-	Syncc9605_0902	-	hypothetical protein
891	 56.99	0	870355..872349	-	664	78212447	-	Syncc9605_0903	-	NHL repeat-containing protein
892	 44.17	-2	872445..872684	-	79	78212448	-	Syncc9605_0904	-	hypothetical protein
893	 51.90	-1	872881..873909	+	342	78212449	-	Syncc9605_0905	-	neuromedin U
894	 55.98	0	876876..878429	+	517	78212450	-	Syncc9605_0910	-	hypothetical protein
895	 53.74	0	879816..880805	-	329	78212451	-	Syncc9605_0913	-	hypothetical protein
896	 64.47	0	880986..881894	+	302	78212452	ppnK	Syncc9605_0914	-	inorganic polyphosphate/ATP-NAD kinase
897	 63.57	0	881891..882568	+	225	78212453	-	Syncc9605_0915	-	two component transcriptional regulator
898	 65.54	0	882575..883018	+	147	78212454	-	Syncc9605_0916	-	hypothetical protein
899	 67.62	+1	883026..884285	-	419	78212455	-	Syncc9605_0917	-	putative precorrin-6y methylase
900	 63.79	0	884318..885256	+	312	78212456	-	Syncc9605_0918	-	hypothetical protein
901	 60.91	0	885387..885629	+	80	78212457	-	Syncc9605_0919	-	hypothetical protein
902	 64.11	0	885709..888207	+	832	78212458	-	Syncc9605_0920	-	hypothetical protein
903	 62.30	0	888524..889096	+	190	78212459	-	Syncc9605_0921	-	hypothetical protein
904	 69.05	+1	889111..890160	+	349	78212460	-	Syncc9605_0922	-	diaminohydroxyphosphoribosylaminopyrimidine deaminase / 5-amino-6-(5-phosphoribosylamino)uracil reductase
905	 63.24	0	890163..890891	-	242	78212461	-	Syncc9605_0923	-	hypothetical protein
906	 63.47	0	890940..891596	-	218	78212462	-	Syncc9605_0924	-	hypothetical protein
907	 61.44	0	891681..893555	+	624	78212463	-	Syncc9605_0925	-	FtsH-2 peptidase
908	 63.11	0	893601..894557	+	318	78212464	-	Syncc9605_0926	-	ornithine carbamoyltransferase
909	 55.45	0	894575..894877	+	100	78212465	-	Syncc9605_0927	-	hypothetical protein
910	 62.22	0	894889..895113	+	74	78212466	-	Syncc9605_0928	-	hypothetical protein
911	 64.10	0	895181..895804	+	207	78212467	-	Syncc9605_0929	-	LexA repressor
912	 53.66	0	896620..896865	+	81	78212468	-	Syncc9605_0930	-	hypothetical protein
913	 50.68	-1	896862..897818	+	318	78212469	-	Syncc9605_0931	-	hypothetical protein
914	 53.60	0	897879..898559	+	226	78212470	-	Syncc9605_0932	-	hypothetical protein
915	 51.75	-1	898829..899485	+	218	78212471	-	Syncc9605_0933	-	hypothetical protein
916	 55.13	0	899552..900097	+	181	78212472	-	Syncc9605_0934	-	hypothetical protein
917	 51.44	-1	900562..900804	-	80	78212473	-	Syncc9605_0935	-	hypothetical protein
918	 51.08	-1	900783..901289	-	168	78212474	-	Syncc9605_0936	-	phage integrase family protein
919	 55.17	0	902235..902495	+	86	78212475	-	Syncc9605_0937	-	hypothetical protein
920	 55.26	0	902492..902938	+	148	78212476	-	Syncc9605_0938	-	hypothetical protein
921	 54.27	0	903558..904799	-	413	78212477	-	Syncc9605_0939	-	phage integrase family protein
922	 51.49	-1	904879..905181	-	100	78212478	-	Syncc9605_0940	-	hypothetical protein
923	 55.56	0	905297..905539	+	80	78212479	-	Syncc9605_0941	-	hypothetical protein
924	 54.35	0	905903..906868	+	321	78212480	-	Syncc9605_0942	-	hypothetical protein
925	 55.97	0	908947..909582	-	211	78212481	-	Syncc9605_0945	-	phage integrase family protein
926	 49.21	-1	909830..910081	+	83	78212482	-	Syncc9605_0946	-	hypothetical protein
927	 57.31	0	910081..910497	+	138	78212483	-	Syncc9605_0947	-	hypothetical protein
928	 56.76	0	911278..911721	+	147	78212484	-	Syncc9605_0948	-	hypothetical protein
929	 55.42	0	912231..912479	-	82	78212485	-	Syncc9605_0949	-	hypothetical protein
930	 56.82	0	912626..913072	-	148	78212486	-	Syncc9605_0950	-	hypothetical protein
931	 52.61	-1	913888..914136	+	82	78212487	-	Syncc9605_0951	-	hypothetical protein
932	 55.64	0	914330..914728	-	132	78212488	-	Syncc9605_0952	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
