IslandPath Analysis: Synechococcus sp. CC9605

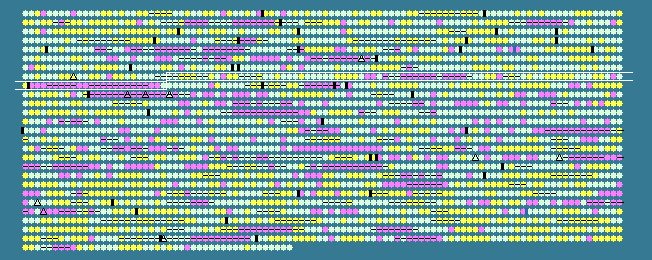

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
725	 62.35	0	700535..701206	-	223	78212281	-	Syncc9605_0733	-	phosphoribosylanthranilate isomerase
726	 62.19	0	701269..702519	+	416	78212282	-	Syncc9605_0734	-	hypothetical protein
727	 65.09	0	702477..703175	-	232	78212283	-	Syncc9605_0735	-	protein ligase
728	 65.62	0	703221..703988	+	255	78212284	-	Syncc9605_0736	-	hypothetical protein
729	 64.54	0	703998..704468	-	156	78212285	-	Syncc9605_0737	-	hypothetical protein
730	 58.77	0	704543..704656	+	37	78212286	psaM	Syncc9605_0738	-	photosystem I reaction center subunit XII
731	 58.09	0	704796..705098	+	100	78212287	-	Syncc9605_0739	-	hypothetical protein
732	 62.99	0	705168..706118	+	316	78212288	-	Syncc9605_0740	-	protochlorophyllide oxidoreductase
733	 58.25	0	706181..707071	-	296	78212289	chlL	Syncc9605_0741	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
734	 54.11	0	709534..710943	-	469	78212290	-	Syncc9605_0745	-	amine oxidase (flavin-containing)
735	 64.00	0	711237..712811	-	524	78212291	-	Syncc9605_0746	-	light-independent protochlorophyllide reductase subunit B
736	 65.41	0	712816..714093	-	425	78212292	-	Syncc9605_0747	-	light-independent protochlorophyllide reductase subunit N
737	 61.90	0	714207..714584	-	125	78212293	-	Syncc9605_0748	-	hypothetical protein
738	 62.09	0	714703..715488	+	261	78212294	-	Syncc9605_0749	-	hypothetical protein
739	 61.39	0	715508..716113	-	201	78212295	-	Syncc9605_0750	-	Ham1 protein-like
740	 64.74	0	716443..716754	+	103	78212296	-	Syncc9605_0751	-	carboxysome shell peptide, CsoS1
741	 60.52	0	716826..718241	+	471	78212297	rbcL	Syncc9605_0752	-	ribulose bisophosphate carboxylase
742	 59.65	0	718301..718642	+	113	78212298	-	Syncc9605_0753	-	ribulose 1,5-bisphosphate carboxylase small subunit
743	 65.40	0	718744..721104	+	786	78212299	-	Syncc9605_0754	-	putative carboxysome structural peptide CsoS2
744	 62.08	0	721112..722857	+	581	78212300	-	Syncc9605_0755	-	putative carboxysome shell polypeptide CsoS3
745	 62.82	0	722860..723171	+	103	78212301	-	Syncc9605_0756	-	putative carboxysome peptide A
746	 60.32	0	723171..723422	+	83	78212302	-	Syncc9605_0757	-	putative carboxysome peptide B
747	 66.85	+1	723476..724012	+	178	78212303	-	Syncc9605_0758	-	carbon dioxide concentrating mechanism protein CcmK
748	 61.03	0	724124..725968	+	614	78212304	-	Syncc9605_0759	-	NAD(P)H-quinone oxidoreductase subunit F
749	 62.24	0	725979..727469	+	496	78212305	-	Syncc9605_0760	-	proton-translocating NADH-quinone oxidoreductase, chain M
750	 61.05	0	727466..728605	+	379	78212306	-	Syncc9605_0761	-	CO2 hydration protein
751	 59.13	0	728640..728891	+	83	78212307	-	Syncc9605_0762	-	hypothetical protein
752	 61.04	0	728875..729780	+	301	78212308	-	Syncc9605_0763	-	ATPase
753	 64.96	0	729734..730960	-	408	78212309	-	Syncc9605_0764	-	chloride channel
754	 63.75	0	730957..731196	-	79	78212310	-	Syncc9605_0765	-	hypothetical protein
755	 64.60	0	731193..732689	-	498	78212311	-	Syncc9605_0766	-	cobyric acid synthase
756	 64.86	0	732686..733129	-	147	78212312	-	Syncc9605_0767	-	hypothetical protein
757	 59.10	0	733128..733682	+	184	78212313	-	Syncc9605_0768	-	maf protein
758	 55.46	0	733747..734433	-	228	78212314	-	Syncc9605_0769	-	putative integral membrane protein
759	 55.67	0	734897..737152	+	751	78212315	-	Syncc9605_0770	-	hypothetical protein
760	 61.81	0	737205..737780	-	191	78212316	-	Syncc9605_0771	-	hypothetical protein
761	 47.48	-1	738200..738715	+	171	78212317	-	Syncc9605_0772	-	hypothetical protein
762	 57.74	0	739050..739217	+	55	78212318	-	Syncc9605_0773	-	hypothetical protein
763	 57.03	0	739405..739653	+	82	78212319	-	Syncc9605_0774	-	hypothetical protein
764	 50.00	-1	739838..740017	-	59	78212320	-	Syncc9605_0775	-	hypothetical protein
765	 39.77	-2	740581..740844	+	87	78212321	-	Syncc9605_0776	-	hypothetical protein
766	 44.92	-2	740997..741419	+	140	78212322	-	Syncc9605_0777	-	hypothetical protein
767	 47.72	-1	741807..742682	-	291	78212323	-	Syncc9605_0778	-	hypothetical protein
768	 47.27	-1	743211..743906	-	231	78212324	-	Syncc9605_0779	-	ATPase involved in chromosome partitioning-like
769	 54.36	0	744035..744229	-	64	78212325	-	Syncc9605_0780	-	hypothetical protein
770	 58.26	0	744609..744953	+	114	78212326	-	Syncc9605_0781	-	nuclease (SNase-like)
771	 50.18	-1	745424..746266	+	280	78212327	-	Syncc9605_0782	-	hypothetical protein
772	 40.91	-2	747565..747828	+	87	78212328	-	Syncc9605_0783	-	hypothetical protein
773	 54.92	0	749331..750854	-	507	78212329	-	Syncc9605_0785	-	DNA-directed RNA polymerase
774	 51.54	-1	750996..751967	-	323	78212330	-	Syncc9605_0786	-	hypothetical protein
775	 61.74	0	752484..753092	-	202	78212331	rpsD	Syncc9605_0787	-	30S ribosomal protein S4
776	 59.14	0	753169..753447	+	92	78212332	-	Syncc9605_0788	-	hypothetical protein
777	 61.17	0	753447..753719	+	90	78212333	-	Syncc9605_0789	-	ribonucleotide reductase (class II)
778	 64.74	0	753755..755260	+	501	78212334	murE	Syncc9605_0790	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
779	 64.61	0	755294..756460	-	388	78212335	-	Syncc9605_0791	-	putative L-cysteine/cystine lyase
780	 54.50	0	757162..757884	-	240	78212336	-	Syncc9605_0792	-	hypothetical protein
781	 60.99	0	758071..758757	+	228	78212337	-	Syncc9605_0793	-	hypothetical protein
782	 62.96	0	758785..760836	-	683	78212338	-	Syncc9605_0794	-	cellulose synthase (UDP-forming)
783	 61.11	0	760815..760976	-	53	78212339	-	Syncc9605_0795	-	hypothetical protein
784	 60.16	0	761102..761347	-	81	78212340	-	Syncc9605_0796	-	NifU-like protein
785	 64.52	0	761398..762936	+	512	78212341	-	Syncc9605_0797	-	malate:quinone oxidoreductase
786	 61.16	0	762940..763266	-	108	78212342	-	Syncc9605_0798	-	SMR family multidrug efflux transporter
787	 58.54	0	763332..765152	+	606	78212343	-	Syncc9605_0799	-	GTP-binding protein LepA
788	 64.60	0	765394..766266	+	290	78212344	-	Syncc9605_0800	-	putative ABC transporter, oligopeptides
789	 62.96	0	766286..766501	+	71	78212345	-	Syncc9605_0801	-	hypothetical protein
790	 63.77	0	766741..767430	-	229	78212346	-	Syncc9605_0802	-	tRNA (guanosine-2'-O-)-methyltransferase
791	 63.59	0	767471..767893	+	140	78212347	-	Syncc9605_0803	-	methylated-DNA--protein-cysteine methyltransferase
792	 63.68	0	767897..769234	+	445	78212348	-	Syncc9605_0804	-	sun protein
793	 59.96	0	769244..771286	-	680	78212349	-	Syncc9605_0805	-	penicillin-binding protein 1A
794	 60.90	0	771283..772236	-	317	78212350	-	Syncc9605_0806	-	bacteriochlorophyll/chlorophyll a synthase
795	 60.65	0	772248..772463	-	71	78212351	-	Syncc9605_0807	-	hypothetical protein
796	 64.20	0	772520..773290	+	256	78212352	-	Syncc9605_0808	-	imidazole glycerol phosphate synthase subunit HisF
797	 67.52	+1	773287..773988	+	233	78212353	-	Syncc9605_0809	-	demethylmenaquinone methyltransferase
798	 59.83	0	774068..774418	+	116	78212354	-	Syncc9605_0810	-	hypothetical protein
799	 41.59	-2	774489..775142	-	217	78212355	-	Syncc9605_0811	-	hypothetical protein
800	 61.50	0	775570..776460	+	296	78212356	glyQ	Syncc9605_0812	-	glycyl-tRNA synthetase subunit alpha
801	 65.65	0	776587..778362	+	591	78212357	-	Syncc9605_0813	-	ComEC/Rec2-related protein
802	 46.14	-2	779590..780198	-	202	78212358	-	Syncc9605_0814	-	hypothetical protein
803	 48.34	-1	780710..782875	+	721	78212359	-	Syncc9605_0815	-	glycogen debranching protein GlgX
804	 47.78	-1	782927..785086	+	719	78212360	-	Syncc9605_0816	-	hypothetical protein
805	 40.74	-2	785163..786566	+	467	78212361	-	Syncc9605_0817	-	hypothetical protein
806	 42.27	-2	786568..788211	-	547	78212362	-	Syncc9605_0818	-	hypothetical protein
807	 44.29	-2	788453..789319	+	288	78212363	-	Syncc9605_0819	-	hypothetical protein
808	 45.08	-2	789329..791098	+	589	78212364	-	Syncc9605_0820	-	thiamine pyrophosphate-requiring enzyme
809	 41.28	-2	791194..792174	-	326	78212365	-	Syncc9605_0821	-	hypothetical protein
810	 39.83	-2	792293..792754	+	153	78212366	-	Syncc9605_0822	-	hypothetical protein
811	 43.89	-2	792866..793585	+	239	78212367	-	Syncc9605_0823	-	ethyl tert-butyl ether degradation EthD
812	 41.39	-2	793638..795089	+	483	78212368	-	Syncc9605_0824	-	ankyrin
813	 42.51	-2	795134..795580	+	148	78212369	-	Syncc9605_0825	-	hypothetical protein
814	 43.67	-2	795607..797115	+	502	78212370	-	Syncc9605_0826	-	cholesterol oxidase
815	 42.69	-2	797172..797609	+	145	78212371	-	Syncc9605_0827	-	hypothetical protein
816	 46.01	-2	797795..798559	+	254	78212372	-	Syncc9605_0828	-	hypothetical protein
817	 38.01	-2	798556..799431	+	291	78212373	-	Syncc9605_0829	-	hypothetical protein
818	 38.85	-2	799456..800361	+	301	78212374	-	Syncc9605_0830	-	proline-specific peptidase
819	 41.03	-2	800339..801196	+	285	78212375	-	Syncc9605_0831	-	hypothetical protein
820	 40.10	-2	801232..801807	+	191	78212376	-	Syncc9605_0832	-	hypothetical protein
821	 44.22	-2	801951..803585	-	544	78212377	-	Syncc9605_0833	-	porin
822	 46.29	-2	803701..804804	-	367	78212378	-	Syncc9605_0834	-	hypothetical protein
823	 55.19	0	804994..805263	-	89	78212379	-	Syncc9605_0835	-	hypothetical protein
824	 60.00	0	805326..806555	+	409	78212380	-	Syncc9605_0836	-	glycosyltransferase
59.39	MEAN

6.29	STD DEV
