IslandPath Analysis: Synechococcus sp. CC9605

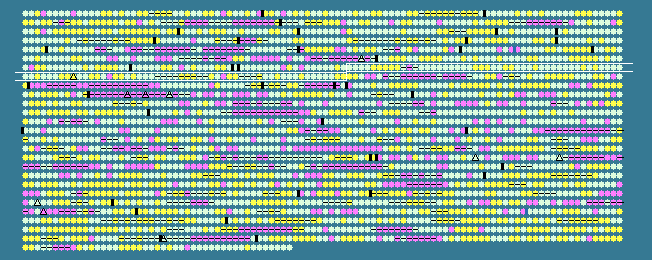

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
655	 60.90	0	634075..634941	-	288	78212211	-	Syncc9605_0661	-	exodeoxyribonuclease III
656	 62.10	0	635030..635248	+	72	78212212	-	Syncc9605_0662	-	hypothetical protein
657	 62.52	0	635214..635816	-	200	78212213	-	Syncc9605_0663	-	hypothetical protein
658	 61.33	0	636065..636739	+	224	78212214	-	Syncc9605_0664	-	hypothetical protein
659	 66.36	+1	636739..637386	+	215	78212215	-	Syncc9605_0665	-	hypothetical protein
660	 65.29	0	637428..638591	+	387	78212216	-	Syncc9605_0666	-	hypothetical protein
661	 65.03	0	638591..639505	+	304	78212217	-	Syncc9605_0667	-	hypothetical protein
662	 63.79	0	639540..640511	+	323	78212218	-	Syncc9605_0668	-	serine/threonine specific protein phosphatase
663	 64.00	0	640488..642098	-	536	78212219	-	Syncc9605_0669	-	putative iron ABC transporter
664	 62.56	0	642247..643317	+	356	78212220	-	Syncc9605_0670	-	ATPase
665	 54.10	0	643366..643548	-	60	78212221	-	Syncc9605_0671	-	hypothetical protein
666	 58.60	0	643566..644705	-	379	78212222	-	Syncc9605_0672	-	hypothetical protein
667	 57.39	0	644725..645015	-	96	78212223	phhB	Syncc9605_0673	-	pterin-4-alpha-carbinolamine dehydratase
668	 61.97	0	645058..645675	-	205	78212224	-	Syncc9605_0674	-	hypothetical protein
669	 62.25	0	645728..646135	+	135	78212225	-	Syncc9605_0675	-	hypothetical protein
670	 60.70	0	646659..648167	+	502	78212226	-	Syncc9605_0676	-	thermostable carboxypeptidase 1
671	 56.29	0	648230..648817	+	195	78212227	-	Syncc9605_0677	-	inorganic diphosphatase
672	 61.30	0	649043..649582	+	179	78212228	-	Syncc9605_0678	-	hypothetical protein
673	 61.53	0	649583..650536	-	317	78212229	hemC	Syncc9605_0679	-	porphobilinogen deaminase
674	 61.32	0	650674..651141	+	155	78212230	-	Syncc9605_0680	-	hypothetical protein
675	 57.11	0	651331..652638	-	435	78212231	-	Syncc9605_0681	-	RNA polymerase sigma factor RpoD
676	 64.62	0	653009..655258	+	749	78212232	-	Syncc9605_0682	-	replication restart DNA helicase PriA
677	 66.19	+1	655259..656317	-	352	78212233	-	Syncc9605_0683	-	hypothetical protein
678	 64.51	0	656321..657202	-	293	78212234	-	Syncc9605_0684	-	acetylglutamate kinase
679	 61.69	0	657206..657748	-	180	78212235	-	Syncc9605_0685	-	hypothetical protein
680	 59.79	0	657818..658006	+	62	78212236	-	Syncc9605_0686	-	hypothetical protein
681	 64.27	0	658036..658494	-	152	78212237	-	Syncc9605_0687	-	hypothetical protein
682	 64.39	0	658524..659315	+	263	78212238	-	Syncc9605_0688	-	precorrin-6A reductase
683	 62.31	0	659332..659652	+	106	78212239	-	Syncc9605_0689	-	putative divalent cation tolerance protein
684	 61.85	0	659621..660637	-	338	78212240	-	Syncc9605_0690	-	carbohydrate kinase PfkB family
685	 60.38	0	660679..661998	-	439	78212241	-	Syncc9605_0691	-	adenylosuccinate synthetase
686	 63.62	0	662084..662509	-	141	78212242	-	Syncc9605_0692	-	photosystem II Psb27 protein
687	 61.00	0	662534..664315	-	593	78212243	-	Syncc9605_0693	-	prolyl-tRNA synthetase
688	 56.56	0	664463..664927	+	154	78212244	-	Syncc9605_0694	-	hypothetical protein
689	 56.86	0	665216..665725	+	169	78212245	-	Syncc9605_0695	-	inorganic diphosphatase
690	 59.65	0	665756..666154	+	132	78212246	-	Syncc9605_0696	-	ferredoxin (2Fe-2S)
691	 57.30	0	666158..666520	+	120	78212247	-	Syncc9605_0697	-	hypothetical protein
692	 60.36	0	666483..667988	-	501	78212248	-	Syncc9605_0698	-	hypothetical protein
693	 59.04	0	668025..668732	+	235	78212249	-	Syncc9605_0699	-	peptidase S26A, signal peptidase I
694	 64.45	0	668722..669987	-	421	78212250	-	Syncc9605_0700	-	dihydroorotase
695	 62.75	0	669992..671320	-	442	78212251	-	Syncc9605_0701	-	putative alpha-ribazole-5'-P phosphatase
696	 65.80	+1	671397..672659	+	420	78212252	-	Syncc9605_0702	-	membrane associated protease
697	 62.58	0	672663..673151	+	162	78212253	-	Syncc9605_0703	-	hypothetical protein
698	 61.52	0	673151..674956	+	601	78212254	-	Syncc9605_0704	-	peptidoglycan glycosyltransferase
699	 56.86	0	675005..676177	+	390	78212255	-	Syncc9605_0705	-	transaldolase/EF-hand domain-containing protein
700	 58.85	0	676192..676575	+	127	78212256	-	Syncc9605_0706	-	cyclic nucleotide-binding domain-containing protein
701	 60.13	0	676639..678030	+	463	78212257	-	Syncc9605_0707	-	hypothetical protein
702	 62.15	0	678084..679565	+	493	78212258	-	Syncc9605_0708	-	deoxyribodipyrimidine photo-lyase type I
703	 63.84	0	679562..680695	-	377	78212259	-	Syncc9605_0709	-	geranylgeranyl reductase
704	 60.29	0	680704..681252	-	182	78212260	frr	Syncc9605_0710	-	ribosome recycling factor
705	 60.92	0	681292..682005	-	237	78212261	pyrH	Syncc9605_0711	-	uridylate kinase
706	 61.54	0	682089..682283	+	64	78212262	-	Syncc9605_0712	-	hypothetical protein
707	 63.21	0	682302..682967	-	221	78212263	-	Syncc9605_0713	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
708	 65.95	+1	682990..683685	-	231	78212264	-	Syncc9605_0714	-	methyltransferase
709	 67.10	+1	683657..684811	-	384	78212265	-	Syncc9605_0715	-	phage integrase family protein
710	 59.78	0	684884..686059	+	391	78212266	hemH	Syncc9605_0716	-	ferrochelatase
711	 62.61	0	686179..687903	+	574	78212267	-	Syncc9605_0717	-	acetolactate synthase 3 catalytic subunit
712	 63.51	0	687900..688247	+	115	78212268	-	Syncc9605_0718	-	hypothetical protein
713	 65.04	0	688231..688476	+	81	78212269	-	Syncc9605_0719	-	hypothetical protein
714	 62.79	0	689723..691399	+	558	78212270	-	Syncc9605_0722	-	hypothetical protein
715	 50.69	-1	691531..692181	-	216	78212271	-	Syncc9605_0723	-	hypothetical protein
716	 65.53	0	692226..693014	-	262	78212272	-	Syncc9605_0724	-	hypothetical protein
717	 65.31	0	693026..693910	-	294	78212273	-	Syncc9605_0725	-	hypothetical protein
718	 62.43	0	693907..695181	-	424	78212274	-	Syncc9605_0726	-	SSU ribosomal protein S1P
719	 63.11	0	695229..696071	+	280	78212275	-	Syncc9605_0727	-	creatininase
720	 56.11	0	696148..696867	+	239	78212276	-	Syncc9605_0728	-	hypothetical protein
721	 59.08	0	696982..698022	+	346	78212277	-	Syncc9605_0729	-	hypothetical protein
722	 59.90	0	698043..699032	+	329	78212278	-	Syncc9605_0730	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
723	 59.32	0	699057..699764	+	235	78212279	-	Syncc9605_0731	-	short chain dehydrogenase
724	 59.60	0	699774..700523	+	249	78212280	-	Syncc9605_0732	-	GTP cyclohydrolase
725	 62.35	0	700535..701206	-	223	78212281	-	Syncc9605_0733	-	phosphoribosylanthranilate isomerase
726	 62.19	0	701269..702519	+	416	78212282	-	Syncc9605_0734	-	hypothetical protein
727	 65.09	0	702477..703175	-	232	78212283	-	Syncc9605_0735	-	protein ligase
728	 65.62	0	703221..703988	+	255	78212284	-	Syncc9605_0736	-	hypothetical protein
729	 64.54	0	703998..704468	-	156	78212285	-	Syncc9605_0737	-	hypothetical protein
730	 58.77	0	704543..704656	+	37	78212286	psaM	Syncc9605_0738	-	photosystem I reaction center subunit XII
731	 58.09	0	704796..705098	+	100	78212287	-	Syncc9605_0739	-	hypothetical protein
732	 62.99	0	705168..706118	+	316	78212288	-	Syncc9605_0740	-	protochlorophyllide oxidoreductase
733	 58.25	0	706181..707071	-	296	78212289	chlL	Syncc9605_0741	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
734	 54.11	0	709534..710943	-	469	78212290	-	Syncc9605_0745	-	amine oxidase (flavin-containing)
735	 64.00	0	711237..712811	-	524	78212291	-	Syncc9605_0746	-	light-independent protochlorophyllide reductase subunit B
736	 65.41	0	712816..714093	-	425	78212292	-	Syncc9605_0747	-	light-independent protochlorophyllide reductase subunit N
737	 61.90	0	714207..714584	-	125	78212293	-	Syncc9605_0748	-	hypothetical protein
738	 62.09	0	714703..715488	+	261	78212294	-	Syncc9605_0749	-	hypothetical protein
739	 61.39	0	715508..716113	-	201	78212295	-	Syncc9605_0750	-	Ham1 protein-like
740	 64.74	0	716443..716754	+	103	78212296	-	Syncc9605_0751	-	carboxysome shell peptide, CsoS1
741	 60.52	0	716826..718241	+	471	78212297	rbcL	Syncc9605_0752	-	ribulose bisophosphate carboxylase
742	 59.65	0	718301..718642	+	113	78212298	-	Syncc9605_0753	-	ribulose 1,5-bisphosphate carboxylase small subunit
743	 65.40	0	718744..721104	+	786	78212299	-	Syncc9605_0754	-	putative carboxysome structural peptide CsoS2
744	 62.08	0	721112..722857	+	581	78212300	-	Syncc9605_0755	-	putative carboxysome shell polypeptide CsoS3
745	 62.82	0	722860..723171	+	103	78212301	-	Syncc9605_0756	-	putative carboxysome peptide A
746	 60.32	0	723171..723422	+	83	78212302	-	Syncc9605_0757	-	putative carboxysome peptide B
747	 66.85	+1	723476..724012	+	178	78212303	-	Syncc9605_0758	-	carbon dioxide concentrating mechanism protein CcmK
748	 61.03	0	724124..725968	+	614	78212304	-	Syncc9605_0759	-	NAD(P)H-quinone oxidoreductase subunit F
749	 62.24	0	725979..727469	+	496	78212305	-	Syncc9605_0760	-	proton-translocating NADH-quinone oxidoreductase, chain M
750	 61.05	0	727466..728605	+	379	78212306	-	Syncc9605_0761	-	CO2 hydration protein
751	 59.13	0	728640..728891	+	83	78212307	-	Syncc9605_0762	-	hypothetical protein
752	 61.04	0	728875..729780	+	301	78212308	-	Syncc9605_0763	-	ATPase
753	 64.96	0	729734..730960	-	408	78212309	-	Syncc9605_0764	-	chloride channel
754	 63.75	0	730957..731196	-	79	78212310	-	Syncc9605_0765	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
