IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

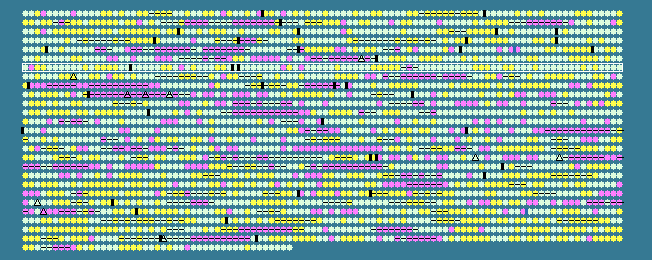

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
601	 56.95	0	587127..588794	-	555	78212157	-	Syncc9605_0607	-	cytochrome-c oxidase
602	 54.75	0	588796..589626	-	276	78212158	-	Syncc9605_0608	-	cytochrome c oxidase subunit II
603	 64.51	0	589828..590754	+	308	78212159	-	Syncc9605_0609	-	putative cytochrome c oxidase assembly protein
604	 63.31	0	590747..591730	+	327	78212160	-	Syncc9605_0610	-	protoheme IX farnesyltransferase
605	 61.05	0	591781..592794	+	337	78212161	-	Syncc9605_0611	-	ATPase
606	 59.42	0	592804..593658	+	284	78212162	-	Syncc9605_0612	-	putative multidrug efflux ABC transporter
607	 57.38	0	593663..594211	+	182	78212163	-	Syncc9605_0613	-	hypothetical protein
608	 62.17	0	594217..594906	+	229	78212164	-	Syncc9605_0614	-	N-acetylmannosamine-6-phosphate 2-epimerase
609	 61.96	0	594907..596586	-	559	78212165	groEL	Syncc9605_0615	-	chaperonin GroEL
610	 61.58	0	596718..596894	+	58	78212166	-	Syncc9605_0616	-	hypothetical protein
611	 63.02	0	596904..597698	-	264	78212167	-	Syncc9605_0617	-	3-oxoacyl-[acyl-carrier-protein] reductase
612	 61.08	0	597704..598759	-	351	78212168	-	Syncc9605_0618	-	VIC family potassium channel protein
613	 65.11	0	598771..599604	-	277	78212169	-	Syncc9605_0619	-	hypothetical protein
614	 64.02	0	599716..600357	+	213	78212170	ispD	Syncc9605_0620	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
615	 65.54	0	600341..601225	-	294	78212171	-	Syncc9605_0621	-	hypothetical protein
616	 63.89	0	601225..602124	-	299	78212172	ubiA	Syncc9605_0622	-	prenyltransferase
617	 60.87	0	602206..603843	+	545	78212173	-	Syncc9605_0623	-	exopolyphosphatase
618	 60.93	0	603827..604645	-	272	78212174	-	Syncc9605_0624	-	XRE family transcriptional regulator
619	 61.02	0	604845..605606	-	253	78212175	-	Syncc9605_0625	-	precorrin-4 C11-methyltransferase
620	 59.27	0	605603..606481	-	292	78212176	-	Syncc9605_0626	-	prolipoprotein diacylglyceryl transferase
621	 59.23	0	606487..607467	-	326	78212177	-	Syncc9605_0627	-	apocytochrome f
622	 61.64	0	607458..607994	-	178	78212178	-	Syncc9605_0628	-	cytochrome b6-f complex iron-sulfur subunit
623	 58.51	0	608042..608458	+	138	78212179	-	Syncc9605_0629	-	hypothetical protein
624	 63.93	0	608439..609242	-	267	78212180	-	Syncc9605_0630	-	Sec-independent protein translocase TatC
625	 64.64	0	609269..610948	-	559	78212181	-	Syncc9605_0631	-	secreted protein MPB70 precursor-like
626	 61.83	0	611035..611592	+	185	78212182	-	Syncc9605_0632	-	guanylate kinase
627	 55.56	0	611708..611824	-	38	78212183	-	Syncc9605_0633	-	photosystem I reaction center subunit IX
628	 60.17	0	611857..612333	-	158	78212184	-	Syncc9605_0634	-	photosystem I reaction center subunit III (PsaF)
629	 63.22	0	612411..613484	+	357	78212185	-	Syncc9605_0635	-	O-sialoglycoprotein endopeptidase
630	 59.80	0	613500..613703	+	67	78212186	-	Syncc9605_0636	-	high light inducible protein
631	 62.31	0	613704..614942	-	412	78212187	-	Syncc9605_0637	-	twitching motility protein
632	 61.90	0	614993..616105	+	370	78212188	-	Syncc9605_0638	-	UDP-N-acetylglucosamine 2-epimerase
633	 64.01	0	616074..616676	+	200	78212189	-	Syncc9605_0639	-	hypothetical protein
634	 63.43	0	616911..618176	+	421	78212190	-	Syncc9605_0640	-	CPA1 family Na+/H+ antiporter
635	 61.23	0	618120..619553	-	477	78212191	gltX	Syncc9605_0641	-	glutamyl-tRNA synthetase
636	 58.56	0	619863..620084	-	73	78212192	-	Syncc9605_0642	-	hypothetical protein
637	 59.96	0	620222..620698	-	158	78212193	rplS	Syncc9605_0643	-	50S ribosomal protein L19
638	 56.25	0	620724..621011	-	95	78212194	-	Syncc9605_0644	-	hypothetical protein
639	 59.57	0	621065..621910	+	281	78212195	-	Syncc9605_0645	-	methionine aminopeptidase
640	 62.60	0	621891..622628	-	245	78212196	-	Syncc9605_0646	-	short chain dehydrogenase
641	 60.16	0	622665..623033	+	122	78212197	-	Syncc9605_0647	-	hypothetical protein
642	 59.86	0	623042..624157	+	371	78212198	-	Syncc9605_0648	-	hypothetical protein
643	 56.61	0	624174..624710	+	178	78212199	-	Syncc9605_0649	-	hypothetical protein
644	 52.44	-1	624851..626797	-	648	78212200	-	Syncc9605_0650	-	dipeptidyl aminopeptidase/acylaminoacyl-peptidase-like
645	 64.41	0	626950..627348	-	132	78212201	-	Syncc9605_0651	-	hypothetical protein
646	 56.02	0	627458..627955	+	165	78212202	-	Syncc9605_0652	-	nucleotide-binding protein
647	 50.10	-1	628107..629096	+	329	78212203	-	Syncc9605_0653	-	hypothetical protein
648	 59.61	0	629120..629374	-	84	78212204	-	Syncc9605_0654	-	hypothetical protein
649	 60.34	0	629392..629802	+	136	78212205	-	Syncc9605_0655	-	phosphoribosyltransferase family protein
650	 57.11	0	629802..630272	+	156	78212206	-	Syncc9605_0656	-	hypothetical protein
651	 59.17	0	630390..630776	-	128	78212207	-	Syncc9605_0657	-	cytidine deaminase
652	 57.10	0	630739..631083	-	114	78212208	-	Syncc9605_0658	-	hypothetical protein
653	 63.17	0	631179..632465	-	428	78212209	-	Syncc9605_0659	-	glutamate-1-semialdehyde aminotransferase
654	 62.74	0	632617..634068	+	483	78212210	-	Syncc9605_0660	-	putative glycolate oxidase subunit GlcD
655	 60.90	0	634075..634941	-	288	78212211	-	Syncc9605_0661	-	exodeoxyribonuclease III
656	 62.10	0	635030..635248	+	72	78212212	-	Syncc9605_0662	-	hypothetical protein
657	 62.52	0	635214..635816	-	200	78212213	-	Syncc9605_0663	-	hypothetical protein
658	 61.33	0	636065..636739	+	224	78212214	-	Syncc9605_0664	-	hypothetical protein
659	 66.36	+1	636739..637386	+	215	78212215	-	Syncc9605_0665	-	hypothetical protein
660	 65.29	0	637428..638591	+	387	78212216	-	Syncc9605_0666	-	hypothetical protein
661	 65.03	0	638591..639505	+	304	78212217	-	Syncc9605_0667	-	hypothetical protein
662	 63.79	0	639540..640511	+	323	78212218	-	Syncc9605_0668	-	serine/threonine specific protein phosphatase
663	 64.00	0	640488..642098	-	536	78212219	-	Syncc9605_0669	-	putative iron ABC transporter
664	 62.56	0	642247..643317	+	356	78212220	-	Syncc9605_0670	-	ATPase
665	 54.10	0	643366..643548	-	60	78212221	-	Syncc9605_0671	-	hypothetical protein
666	 58.60	0	643566..644705	-	379	78212222	-	Syncc9605_0672	-	hypothetical protein
667	 57.39	0	644725..645015	-	96	78212223	phhB	Syncc9605_0673	-	pterin-4-alpha-carbinolamine dehydratase
668	 61.97	0	645058..645675	-	205	78212224	-	Syncc9605_0674	-	hypothetical protein
669	 62.25	0	645728..646135	+	135	78212225	-	Syncc9605_0675	-	hypothetical protein
670	 60.70	0	646659..648167	+	502	78212226	-	Syncc9605_0676	-	thermostable carboxypeptidase 1
671	 56.29	0	648230..648817	+	195	78212227	-	Syncc9605_0677	-	inorganic diphosphatase
672	 61.30	0	649043..649582	+	179	78212228	-	Syncc9605_0678	-	hypothetical protein
673	 61.53	0	649583..650536	-	317	78212229	hemC	Syncc9605_0679	-	porphobilinogen deaminase
674	 61.32	0	650674..651141	+	155	78212230	-	Syncc9605_0680	-	hypothetical protein
675	 57.11	0	651331..652638	-	435	78212231	-	Syncc9605_0681	-	RNA polymerase sigma factor RpoD
676	 64.62	0	653009..655258	+	749	78212232	-	Syncc9605_0682	-	replication restart DNA helicase PriA
677	 66.19	+1	655259..656317	-	352	78212233	-	Syncc9605_0683	-	hypothetical protein
678	 64.51	0	656321..657202	-	293	78212234	-	Syncc9605_0684	-	acetylglutamate kinase
679	 61.69	0	657206..657748	-	180	78212235	-	Syncc9605_0685	-	hypothetical protein
680	 59.79	0	657818..658006	+	62	78212236	-	Syncc9605_0686	-	hypothetical protein
681	 64.27	0	658036..658494	-	152	78212237	-	Syncc9605_0687	-	hypothetical protein
682	 64.39	0	658524..659315	+	263	78212238	-	Syncc9605_0688	-	precorrin-6A reductase
683	 62.31	0	659332..659652	+	106	78212239	-	Syncc9605_0689	-	putative divalent cation tolerance protein
684	 61.85	0	659621..660637	-	338	78212240	-	Syncc9605_0690	-	carbohydrate kinase PfkB family
685	 60.38	0	660679..661998	-	439	78212241	-	Syncc9605_0691	-	adenylosuccinate synthetase
686	 63.62	0	662084..662509	-	141	78212242	-	Syncc9605_0692	-	photosystem II Psb27 protein
687	 61.00	0	662534..664315	-	593	78212243	-	Syncc9605_0693	-	prolyl-tRNA synthetase
688	 56.56	0	664463..664927	+	154	78212244	-	Syncc9605_0694	-	hypothetical protein
689	 56.86	0	665216..665725	+	169	78212245	-	Syncc9605_0695	-	inorganic diphosphatase
690	 59.65	0	665756..666154	+	132	78212246	-	Syncc9605_0696	-	ferredoxin (2Fe-2S)
691	 57.30	0	666158..666520	+	120	78212247	-	Syncc9605_0697	-	hypothetical protein
692	 60.36	0	666483..667988	-	501	78212248	-	Syncc9605_0698	-	hypothetical protein
693	 59.04	0	668025..668732	+	235	78212249	-	Syncc9605_0699	-	peptidase S26A, signal peptidase I
694	 64.45	0	668722..669987	-	421	78212250	-	Syncc9605_0700	-	dihydroorotase
695	 62.75	0	669992..671320	-	442	78212251	-	Syncc9605_0701	-	putative alpha-ribazole-5'-P phosphatase
696	 65.80	+1	671397..672659	+	420	78212252	-	Syncc9605_0702	-	membrane associated protease
697	 62.58	0	672663..673151	+	162	78212253	-	Syncc9605_0703	-	hypothetical protein
698	 61.52	0	673151..674956	+	601	78212254	-	Syncc9605_0704	-	peptidoglycan glycosyltransferase
699	 56.86	0	675005..676177	+	390	78212255	-	Syncc9605_0705	-	transaldolase/EF-hand domain-containing protein
700	 58.85	0	676192..676575	+	127	78212256	-	Syncc9605_0706	-	cyclic nucleotide-binding domain-containing protein
59.39	MEAN

6.29	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
