IslandPath Analysis: Synechococcus sp. CC9605

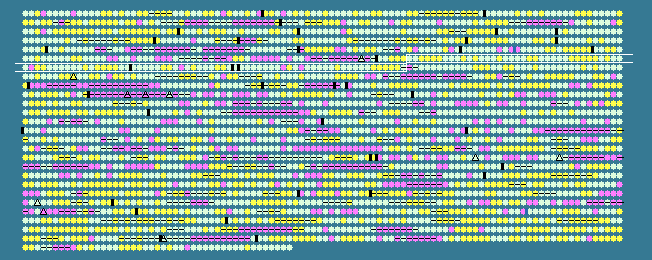

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
565	 61.39	0	556691..556993	-	100	78212121	rpsN	Syncc9605_0571	-	30S ribosomal protein S14
566	 62.60	0	557051..558133	-	360	78212122	-	Syncc9605_0572	-	peptidase M50, putative membrane-associated zinc metallopeptidase
567	 63.38	0	558158..559435	-	425	78212123	-	Syncc9605_0573	-	seryl-tRNA synthetase
568	 63.58	0	559478..559639	-	53	78212124	-	Syncc9605_0574	-	hypothetical protein
569	 64.65	0	559718..561208	-	496	78212125	-	Syncc9605_0575	-	ATPase
570	 63.50	0	561205..561741	-	178	78212126	-	Syncc9605_0576	-	hypothetical protein
571	 58.27	0	561738..562868	-	376	78212127	-	Syncc9605_0577	-	putative inner membrane protein translocase component YidC
572	 61.76	0	562925..563332	-	135	78212128	-	Syncc9605_0578	-	hypothetical protein
573	 59.43	0	563329..563715	-	128	78212129	-	Syncc9605_0579	-	ribonuclease P protein component of ribozyme
574	 69.57	+1	563777..563914	-	45	78212130	rpmH	Syncc9605_0580	-	50S ribosomal protein L34
575	 58.85	0	563961..564536	-	191	78212131	-	Syncc9605_0581	-	hypothetical protein
576	 64.32	0	564612..564995	-	127	78212132	-	Syncc9605_0582	-	chorismate mutase
577	 61.19	0	564992..565813	-	273	78212133	-	Syncc9605_0583	-	signal peptide peptidase A
578	 61.78	0	565858..566799	+	313	78212134	-	Syncc9605_0584	-	SMR family transporter PecM
579	 62.52	0	566796..567905	+	369	78212135	-	Syncc9605_0585	-	putative UDP-glucose:tetrahydrobiopterin glucosyltransferase
580	 63.57	0	567880..569721	+	613	78212136	-	Syncc9605_0586	-	hypothetical protein
581	 61.69	0	569725..570246	-	173	78212137	-	Syncc9605_0587	-	hypothetical protein
582	 61.24	0	570311..571084	+	257	78212138	-	Syncc9605_0588	-	membrane-associated 30 kD protein-like
583	 57.44	0	571132..571467	+	111	78212139	-	Syncc9605_0589	-	thioredoxin
584	 61.38	0	571454..572644	+	396	78212140	-	Syncc9605_0590	-	aminotransferase
585	 65.03	0	572628..573419	+	263	78212141	-	Syncc9605_0591	-	biotin--acetyl-CoA-carboxylase ligase
586	 64.66	0	573493..574341	+	282	78212142	-	Syncc9605_0592	-	M23/M37 familypeptidase
587	 58.59	0	574372..574965	-	197	78212143	-	Syncc9605_0593	-	two component transcriptional regulator
588	 59.43	0	575018..575404	-	128	78212144	-	Syncc9605_0594	-	response regulator receiver domain-containing protein
589	 60.99	0	575424..576110	-	228	78212145	-	Syncc9605_0595	-	ATPase
590	 59.62	0	576115..577746	-	543	78212146	-	Syncc9605_0596	-	NAD(P)H-quinone oxidoreductase subunit 2
591	 62.19	0	577798..580497	+	899	78212147	-	Syncc9605_0597	-	DNA topoisomerase I
592	 65.50	0	580497..580925	+	142	78212148	-	Syncc9605_0598	-	hypothetical protein
593	 63.30	0	580922..581575	+	217	78212149	-	Syncc9605_0599	-	hypothetical protein
594	 64.75	0	581547..582746	+	399	78212150	-	Syncc9605_0600	-	hypothetical protein
595	 65.98	+1	582743..583756	+	337	78212151	-	Syncc9605_0601	-	twin-arginine translocation pathway signal
596	 64.17	0	583730..584851	-	373	78212152	-	Syncc9605_0602	-	oxidoreductase
597	 62.66	0	584848..585396	-	182	78212153	-	Syncc9605_0603	-	hypothetical protein
598	 64.42	0	585446..586114	+	222	78212154	-	Syncc9605_0604	-	riboflavin synthase subunit alpha
599	 62.37	0	586099..586470	-	123	78212155	-	Syncc9605_0605	-	transcriptional regulator AbrB
600	 59.74	0	586525..587130	-	201	78212156	-	Syncc9605_0606	-	cytochrome c oxidase subunit III
601	 56.95	0	587127..588794	-	555	78212157	-	Syncc9605_0607	-	cytochrome-c oxidase
602	 54.75	0	588796..589626	-	276	78212158	-	Syncc9605_0608	-	cytochrome c oxidase subunit II
603	 64.51	0	589828..590754	+	308	78212159	-	Syncc9605_0609	-	putative cytochrome c oxidase assembly protein
604	 63.31	0	590747..591730	+	327	78212160	-	Syncc9605_0610	-	protoheme IX farnesyltransferase
605	 61.05	0	591781..592794	+	337	78212161	-	Syncc9605_0611	-	ATPase
606	 59.42	0	592804..593658	+	284	78212162	-	Syncc9605_0612	-	putative multidrug efflux ABC transporter
607	 57.38	0	593663..594211	+	182	78212163	-	Syncc9605_0613	-	hypothetical protein
608	 62.17	0	594217..594906	+	229	78212164	-	Syncc9605_0614	-	N-acetylmannosamine-6-phosphate 2-epimerase
609	 61.96	0	594907..596586	-	559	78212165	groEL	Syncc9605_0615	-	chaperonin GroEL
610	 61.58	0	596718..596894	+	58	78212166	-	Syncc9605_0616	-	hypothetical protein
611	 63.02	0	596904..597698	-	264	78212167	-	Syncc9605_0617	-	3-oxoacyl-[acyl-carrier-protein] reductase
612	 61.08	0	597704..598759	-	351	78212168	-	Syncc9605_0618	-	VIC family potassium channel protein
613	 65.11	0	598771..599604	-	277	78212169	-	Syncc9605_0619	-	hypothetical protein
614	 64.02	0	599716..600357	+	213	78212170	ispD	Syncc9605_0620	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
615	 65.54	0	600341..601225	-	294	78212171	-	Syncc9605_0621	-	hypothetical protein
616	 63.89	0	601225..602124	-	299	78212172	ubiA	Syncc9605_0622	-	prenyltransferase
617	 60.87	0	602206..603843	+	545	78212173	-	Syncc9605_0623	-	exopolyphosphatase
618	 60.93	0	603827..604645	-	272	78212174	-	Syncc9605_0624	-	XRE family transcriptional regulator
619	 61.02	0	604845..605606	-	253	78212175	-	Syncc9605_0625	-	precorrin-4 C11-methyltransferase
620	 59.27	0	605603..606481	-	292	78212176	-	Syncc9605_0626	-	prolipoprotein diacylglyceryl transferase
621	 59.23	0	606487..607467	-	326	78212177	-	Syncc9605_0627	-	apocytochrome f
622	 61.64	0	607458..607994	-	178	78212178	-	Syncc9605_0628	-	cytochrome b6-f complex iron-sulfur subunit
623	 58.51	0	608042..608458	+	138	78212179	-	Syncc9605_0629	-	hypothetical protein
624	 63.93	0	608439..609242	-	267	78212180	-	Syncc9605_0630	-	Sec-independent protein translocase TatC
625	 64.64	0	609269..610948	-	559	78212181	-	Syncc9605_0631	-	secreted protein MPB70 precursor-like
626	 61.83	0	611035..611592	+	185	78212182	-	Syncc9605_0632	-	guanylate kinase
627	 55.56	0	611708..611824	-	38	78212183	-	Syncc9605_0633	-	photosystem I reaction center subunit IX
628	 60.17	0	611857..612333	-	158	78212184	-	Syncc9605_0634	-	photosystem I reaction center subunit III (PsaF)
629	 63.22	0	612411..613484	+	357	78212185	-	Syncc9605_0635	-	O-sialoglycoprotein endopeptidase
630	 59.80	0	613500..613703	+	67	78212186	-	Syncc9605_0636	-	high light inducible protein
631	 62.31	0	613704..614942	-	412	78212187	-	Syncc9605_0637	-	twitching motility protein
632	 61.90	0	614993..616105	+	370	78212188	-	Syncc9605_0638	-	UDP-N-acetylglucosamine 2-epimerase
633	 64.01	0	616074..616676	+	200	78212189	-	Syncc9605_0639	-	hypothetical protein
634	 63.43	0	616911..618176	+	421	78212190	-	Syncc9605_0640	-	CPA1 family Na+/H+ antiporter
635	 61.23	0	618120..619553	-	477	78212191	gltX	Syncc9605_0641	-	glutamyl-tRNA synthetase
636	 58.56	0	619863..620084	-	73	78212192	-	Syncc9605_0642	-	hypothetical protein
637	 59.96	0	620222..620698	-	158	78212193	rplS	Syncc9605_0643	-	50S ribosomal protein L19
638	 56.25	0	620724..621011	-	95	78212194	-	Syncc9605_0644	-	hypothetical protein
639	 59.57	0	621065..621910	+	281	78212195	-	Syncc9605_0645	-	methionine aminopeptidase
640	 62.60	0	621891..622628	-	245	78212196	-	Syncc9605_0646	-	short chain dehydrogenase
641	 60.16	0	622665..623033	+	122	78212197	-	Syncc9605_0647	-	hypothetical protein
642	 59.86	0	623042..624157	+	371	78212198	-	Syncc9605_0648	-	hypothetical protein
643	 56.61	0	624174..624710	+	178	78212199	-	Syncc9605_0649	-	hypothetical protein
644	 52.44	-1	624851..626797	-	648	78212200	-	Syncc9605_0650	-	dipeptidyl aminopeptidase/acylaminoacyl-peptidase-like
645	 64.41	0	626950..627348	-	132	78212201	-	Syncc9605_0651	-	hypothetical protein
646	 56.02	0	627458..627955	+	165	78212202	-	Syncc9605_0652	-	nucleotide-binding protein
647	 50.10	-1	628107..629096	+	329	78212203	-	Syncc9605_0653	-	hypothetical protein
648	 59.61	0	629120..629374	-	84	78212204	-	Syncc9605_0654	-	hypothetical protein
649	 60.34	0	629392..629802	+	136	78212205	-	Syncc9605_0655	-	phosphoribosyltransferase family protein
650	 57.11	0	629802..630272	+	156	78212206	-	Syncc9605_0656	-	hypothetical protein
651	 59.17	0	630390..630776	-	128	78212207	-	Syncc9605_0657	-	cytidine deaminase
652	 57.10	0	630739..631083	-	114	78212208	-	Syncc9605_0658	-	hypothetical protein
653	 63.17	0	631179..632465	-	428	78212209	-	Syncc9605_0659	-	glutamate-1-semialdehyde aminotransferase
654	 62.74	0	632617..634068	+	483	78212210	-	Syncc9605_0660	-	putative glycolate oxidase subunit GlcD
655	 60.90	0	634075..634941	-	288	78212211	-	Syncc9605_0661	-	exodeoxyribonuclease III
656	 62.10	0	635030..635248	+	72	78212212	-	Syncc9605_0662	-	hypothetical protein
657	 62.52	0	635214..635816	-	200	78212213	-	Syncc9605_0663	-	hypothetical protein
658	 61.33	0	636065..636739	+	224	78212214	-	Syncc9605_0664	-	hypothetical protein
659	 66.36	+1	636739..637386	+	215	78212215	-	Syncc9605_0665	-	hypothetical protein
660	 65.29	0	637428..638591	+	387	78212216	-	Syncc9605_0666	-	hypothetical protein
661	 65.03	0	638591..639505	+	304	78212217	-	Syncc9605_0667	-	hypothetical protein
662	 63.79	0	639540..640511	+	323	78212218	-	Syncc9605_0668	-	serine/threonine specific protein phosphatase
663	 64.00	0	640488..642098	-	536	78212219	-	Syncc9605_0669	-	putative iron ABC transporter
664	 62.56	0	642247..643317	+	356	78212220	-	Syncc9605_0670	-	ATPase
59.39	MEAN

6.29	STD DEV
