IslandPath Analysis: Synechococcus sp. CC9605

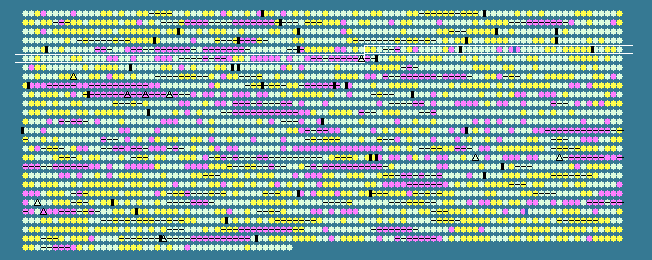

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
458	 64.81	0	453783..455021	-	412	78212015	-	Syncc9605_0465	-	carbohydrate kinase
459	 63.83	0	455026..456261	-	411	78212016	-	Syncc9605_0466	-	S-adenosylmethionine synthetase
460	 62.02	0	456285..457058	-	257	78212017	-	Syncc9605_0467	-	HAD family hydrolase
461	 60.03	0	457064..458224	-	386	78212018	-	Syncc9605_0468	-	30S ribosomal protein S1
462	 56.16	0	458312..458806	-	164	78212019	-	Syncc9605_0469	-	transcriptional regulator NrdR
463	 53.12	0	459008..459103	-	31	109150032	psbT	Syncc9605_0469a	-	photosystem II reaction center protein T
464	 59.68	0	459125..460684	-	519	78212020	-	Syncc9605_0470	-	photosystem II chlorophyll-binding protein CP47
465	 63.94	0	460867..461343	+	158	78212021	-	Syncc9605_0471	-	ferredoxin (2Fe-2S)
466	 54.29	0	461403..461507	+	34	78212022	-	Syncc9605_0472	-	photosystem II reaction center M protein
467	 59.25	0	461509..462357	-	282	78212023	-	Syncc9605_0473	-	hypothetical protein
468	 62.47	0	462440..462844	+	134	78212024	-	Syncc9605_0474	-	hypothetical protein
469	 62.54	0	462955..463971	+	338	78212025	-	Syncc9605_0475	-	Smf family DNA processing protein
470	 62.80	0	463950..464855	+	301	78212026	-	Syncc9605_0476	-	HemK family modification methylase
471	 65.17	0	464884..465483	+	199	78212027	-	Syncc9605_0477	-	hypothetical protein
472	 54.60	0	465480..465653	+	57	78212028	-	Syncc9605_0478	-	hypothetical protein
473	 58.71	0	465725..465925	-	66	78212029	-	Syncc9605_0479	-	LuxR family transcriptional regulator
474	 60.52	0	465976..466284	-	102	78212030	-	Syncc9605_0480	-	cell division topological specificity factor MinE
475	 61.25	0	466289..467101	-	270	78212031	-	Syncc9605_0481	-	septum site-determining protein MinD
476	 61.03	0	467157..467795	-	212	78212032	-	Syncc9605_0482	-	septum site-determining protein MinC
477	 61.93	0	467803..469068	-	421	78212033	-	Syncc9605_0483	-	metal dependent phosphohydrolase
478	 60.76	0	469065..470249	-	394	78212034	-	Syncc9605_0484	-	carboxyl-terminal protease
479	 56.16	0	470410..471066	+	218	78212035	-	Syncc9605_0485	-	cytochrome b6
480	 55.69	0	471106..471588	+	160	78212036	-	Syncc9605_0486	-	cytochrome b6-f complex subunit IV
481	 58.02	0	471664..473121	-	485	78212037	-	Syncc9605_0487	-	putative neutral invertase-like protein
482	 54.46	0	473134..473469	-	111	78212038	-	Syncc9605_0488	-	hypothetical protein
483	 47.01	-1	479259..480011	-	250	78212039	-	Syncc9605_0489	-	2,3-diketo-5-methylthio-1-phosphopentane phosphatase
484	 55.95	0	480008..480595	-	195	78212040	-	Syncc9605_0490	-	methylthioribulose-1-phosphate dehydratase
485	 62.33	0	480676..481689	+	337	78212041	-	Syncc9605_0491	-	translation initiation factor 2B subunit I
486	 59.50	0	481680..482516	-	278	78212042	-	Syncc9605_0492	-	formamidopyrimidine-DNA glycosylase / DNA-(apurinic or apyrimidinic site) lyase
487	 59.05	0	482522..482731	-	69	78212043	-	Syncc9605_0493	-	photosystem I reaction center subunit IV
488	 63.13	0	482773..483876	+	367	78212044	-	Syncc9605_0494	-	hypothetical protein
489	 66.67	+1	483994..485406	+	470	78212045	-	Syncc9605_0495	-	ATP-dependent DNA helicase RecQ
490	 62.03	0	485413..486426	-	337	78212046	-	Syncc9605_0496	-	peptidoglycan-binding LysM
491	 63.99	0	486526..487905	-	459	78212047	-	Syncc9605_0497	-	putative aldehyde dehydrogenase
492	 63.18	0	487960..489621	+	553	78212048	-	Syncc9605_0498	-	alpha amylase domain-containing protein
493	 66.60	+1	489564..491141	-	525	78212049	-	Syncc9605_0499	-	glycerol-3-phosphate oxidase
494	 66.80	+1	491134..492639	-	501	78212050	-	Syncc9605_0500	-	putative glycerol kinase
495	 62.96	0	492691..494121	+	476	78212051	-	Syncc9605_0501	-	alpha amylase domain-containing protein
496	 61.45	0	494401..494841	+	146	78212052	-	Syncc9605_0502	-	3-dehydroquinate dehydratase
497	 62.03	0	494838..495527	+	229	78212053	-	Syncc9605_0503	-	tRNA-(MS(2)IO(6)A)-hydroxylase-like
498	 63.09	0	495515..497191	-	558	78212054	-	Syncc9605_0504	-	putative sulfate transporter
499	 62.96	0	497198..497602	-	134	78212055	-	Syncc9605_0505	-	hypothetical protein
500	 61.53	0	497713..498705	+	330	78212056	-	Syncc9605_0506	-	heat shock protein DnaJ-like
501	 60.58	0	498745..499746	+	333	78212057	-	Syncc9605_0507	-	delta-aminolevulinic acid dehydratase
502	 59.90	0	499751..500149	+	132	78212058	-	Syncc9605_0508	-	ring-cleaving dioxygenase
503	 65.04	0	500151..502550	+	799	78212059	-	Syncc9605_0509	-	MutS2 family protein
504	 57.34	0	502573..503751	-	392	78212060	-	Syncc9605_0510	-	ATPase
505	 61.31	0	503810..504799	+	329	78212061	obgE	Syncc9605_0511	-	GTPase ObgE
506	 56.28	0	504893..505075	+	60	78212062	-	Syncc9605_0512	-	hypothetical protein
507	 56.62	0	505106..505324	-	72	78212063	-	Syncc9605_0513	-	hypothetical protein
508	 60.88	0	505463..507364	-	633	78212064	-	Syncc9605_0514	-	ATPase
509	 62.91	0	507361..507999	-	212	78212065	-	Syncc9605_0515	-	hypothetical protein
510	 65.74	+1	507996..508970	-	324	78212066	-	Syncc9605_0516	-	putative glutathione S-transferase
511	 61.86	0	509041..509955	+	304	78212067	-	Syncc9605_0517	-	aspartoacylase
512	 59.33	0	509952..510278	-	108	78212068	-	Syncc9605_0518	-	hypothetical protein
513	 59.72	0	510640..511719	+	359	78212069	-	Syncc9605_0519	-	photosystem q(b) protein
514	 56.95	0	512008..513654	+	548	78212070	-	Syncc9605_0520	-	acetolactate synthase
515	 45.83	-2	513856..514239	-	127	78212071	-	Syncc9605_0521	-	carboxymuconolactone decarboxylase family protein
516	 46.77	-2	514684..514869	-	61	78212072	-	Syncc9605_0522	-	hypothetical protein
517	 56.70	0	514936..515928	-	330	78212073	-	Syncc9605_0523	-	hypothetical protein
518	 57.86	0	515909..516703	-	264	78212074	-	Syncc9605_0524	-	SPFH domain-containing protein/band 7 family protein
519	 53.76	0	516807..517085	-	92	78212075	-	Syncc9605_0525	-	hypothetical protein
520	 59.18	0	517644..517937	+	97	78212076	-	Syncc9605_0526	-	hypothetical protein
521	 57.58	0	517944..518240	-	98	78212077	-	Syncc9605_0527	-	hypothetical protein
522	 56.98	0	518321..518836	+	171	78212078	-	Syncc9605_0528	-	hypothetical protein
523	 50.44	-1	519337..519564	+	75	78212079	-	Syncc9605_0529	-	hypothetical protein
524	 55.21	0	519660..519851	+	63	78212080	-	Syncc9605_0530	-	hypothetical protein
525	 53.46	0	519891..520208	+	105	78212081	-	Syncc9605_0531	-	hypothetical protein
526	 56.72	0	520343..520744	+	133	78212082	-	Syncc9605_0532	-	hypothetical protein
527	 58.80	0	520776..520991	-	71	78212083	-	Syncc9605_0533	-	hypothetical protein
528	 59.45	0	521393..521683	+	96	78212084	-	Syncc9605_0534	-	hypothetical protein
529	 57.14	0	522048..522278	+	76	78212085	-	Syncc9605_0535	-	hypothetical protein
530	 60.22	0	522278..522463	+	61	78212086	-	Syncc9605_0536	-	hypothetical protein
531	 54.73	0	523595..523795	+	66	78212087	-	Syncc9605_0537	-	hypothetical protein
532	 58.90	0	525654..525872	-	72	78212088	-	Syncc9605_0538	-	hypothetical protein
533	 55.46	0	526279..526635	+	118	78212089	-	Syncc9605_0539	-	hypothetical protein
534	 55.21	0	526696..527079	+	127	78212090	-	Syncc9605_0540	-	hypothetical protein
535	 52.78	-1	527232..527771	+	179	78212091	-	Syncc9605_0541	-	hypothetical protein
536	 64.87	0	527869..528369	-	166	78212092	-	Syncc9605_0542	-	hypothetical protein
537	 64.65	0	528315..529007	-	230	78212093	-	Syncc9605_0543	-	hypothetical protein
538	 61.51	0	529106..529357	-	83	78212094	-	Syncc9605_0544	-	hypothetical protein
539	 41.75	-2	529410..529718	+	102	78212095	-	Syncc9605_0545	-	hypothetical protein
540	 44.79	-2	529824..530111	-	95	78212096	-	Syncc9605_0546	-	hypothetical protein
541	 50.18	-1	530355..530633	-	92	78212097	-	Syncc9605_0547	-	hypothetical protein
542	 52.25	-1	531643..531975	-	110	78212098	-	Syncc9605_0548	-	hypothetical protein
543	 53.08	-1	532040..532429	+	129	78212099	-	Syncc9605_0549	-	hypothetical protein
544	 58.12	0	532958..533530	-	190	78212100	-	Syncc9605_0550	-	hypothetical protein
545	 53.38	0	533693..534091	+	132	78212101	-	Syncc9605_0551	-	hypothetical protein
546	 56.73	0	534160..534330	+	56	78212102	-	Syncc9605_0552	-	hypothetical protein
547	 58.88	0	535525..536205	+	226	78212103	-	Syncc9605_0553	-	maleylacetoacetate isomerase
548	 55.72	0	536223..537812	-	529	78212104	-	Syncc9605_0554	-	hypothetical protein
549	 40.39	-2	538656..539633	+	325	78212105	-	Syncc9605_0555	-	hypothetical protein
550	 52.71	-1	539755..540105	-	116	78212106	-	Syncc9605_0556	-	hypothetical protein
551	 60.70	0	540400..541053	-	217	78212107	-	Syncc9605_0557	-	hypothetical protein
552	 53.93	0	541216..542016	+	266	78212108	-	Syncc9605_0558	-	hypothetical protein
553	 41.50	-2	542873..543166	+	97	78212109	-	Syncc9605_0559	-	hypothetical protein
554	 44.76	-2	543406..544149	+	247	78212110	-	Syncc9605_0560	-	hypothetical protein
555	 55.00	0	544231..544650	-	139	78212111	-	Syncc9605_0561	-	hypothetical protein
556	 54.12	0	544647..544901	-	84	78212112	-	Syncc9605_0562	-	hypothetical protein
557	 57.47	0	545219..545794	+	191	78212113	-	Syncc9605_0563	-	phage integrase family protein
59.39	MEAN

6.29	STD DEV
