IslandPath Analysis: Synechococcus sp. CC9605

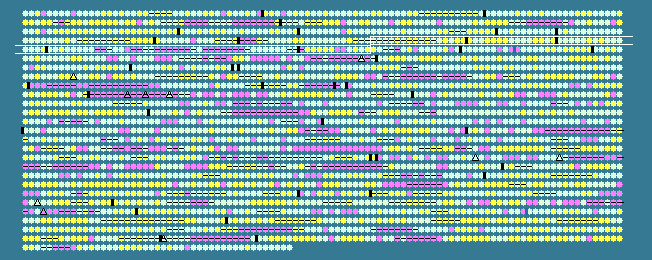

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
359	 60.74	0	371631..372170	-	179	78211916	rplE	Syncc9605_0364	-	50S ribosomal protein L5
360	 61.06	0	372211..372567	-	118	78211917	rplX	Syncc9605_0365	-	50S ribosomal protein L24
361	 60.93	0	372570..372935	-	121	78211918	rplN	Syncc9605_0366	-	50S ribosomal protein L14
362	 58.92	0	372932..373228	-	98	78211919	rpsQ	Syncc9605_0367	-	30S ribosomal protein S17
363	 64.29	0	373246..373455	-	69	78211920	-	Syncc9605_0368	-	50S ribosomal protein L29
364	 60.59	0	373458..373934	-	158	78211921	rplP	Syncc9605_0369	-	50S ribosomal protein L16
365	 63.79	0	373951..374679	-	242	78211922	rpsC	Syncc9605_0370	-	30S ribosomal protein S3
366	 63.11	0	374700..375065	-	121	78211923	rplV	Syncc9605_0371	-	50S ribosomal protein L22
367	 56.52	0	375069..375344	-	91	78211924	rpsS	Syncc9605_0372	-	30S ribosomal protein S19
368	 65.05	0	375380..376243	-	287	78211925	rplB	Syncc9605_0373	-	50S ribosomal protein L2
369	 62.38	0	376259..376561	-	100	78211926	rplW	Syncc9605_0374	-	50S ribosomal protein L23
370	 62.11	0	376554..377189	-	211	78211927	rplD	Syncc9605_0375	-	50S ribosomal protein L4
371	 63.17	0	377189..377845	-	218	78211928	rplC	Syncc9605_0376	-	50S ribosomal protein L3
372	 60.17	0	378227..378688	+	153	78211929	-	Syncc9605_0377	-	NADH dehydrogenase I subunit N
373	 65.79	+1	378655..379686	+	343	78211930	-	Syncc9605_0378	-	putative LdpA protein
374	 65.69	+1	379709..381349	+	546	78211931	-	Syncc9605_0379	-	ATPase
375	 63.60	0	381533..382282	+	249	78211932	-	Syncc9605_0380	-	hypothetical protein
376	 60.18	0	382369..383493	+	374	78211933	recA	Syncc9605_0381	-	recombinase A
377	 61.45	0	383496..383840	-	114	78211934	-	Syncc9605_0382	-	hypothetical protein
378	 65.06	0	383910..384158	-	82	78211935	-	Syncc9605_0383	-	hypothetical protein
379	 64.38	0	384194..385639	-	481	78211936	-	Syncc9605_0384	-	hypothetical protein
380	 65.16	0	385678..386604	+	308	78211937	-	Syncc9605_0385	-	arogenate dehydrogenase
381	 65.54	0	386588..388090	-	500	78211938	-	Syncc9605_0386	-	phytoene dehydrogenase related enzyme
382	 61.82	0	388141..389028	+	295	78211939	-	Syncc9605_0387	-	hypothetical protein
383	 58.40	0	389032..389418	-	128	78211940	-	Syncc9605_0388	-	hypothetical protein
384	 61.81	0	389483..389935	+	150	78211941	-	Syncc9605_0389	-	hypothetical protein
385	 61.57	0	389928..391064	+	378	78211942	-	Syncc9605_0390	-	rhodanese-like protein
386	 63.19	0	391074..392222	-	382	78211943	-	Syncc9605_0391	-	hypothetical protein
387	 63.53	0	392276..393103	+	275	78211944	-	Syncc9605_0392	-	hypothetical protein
388	 59.40	0	393120..393587	-	155	78211945	-	Syncc9605_0393	-	S-adenosylmethionine decarboxylase proenzyme
389	 64.20	0	393619..394713	-	364	78211946	-	Syncc9605_0394	-	DNA replication and repair protein RecF
390	 60.31	0	394907..395362	-	151	78211947	-	Syncc9605_0395	-	hypothetical protein
391	 61.22	0	395369..398362	-	997	78211948	-	Syncc9605_0396	-	phosphoenolpyruvate carboxylase
392	 60.98	0	398395..399555	-	386	78211949	-	Syncc9605_0397	-	glutamate--cysteine ligase, putative
393	 62.25	0	399534..401051	-	505	78211950	-	Syncc9605_0398	-	anthranilate synthase, component I
394	 57.41	0	401112..401543	-	143	78211951	-	Syncc9605_0399	-	photosystem I reaction center subunit II (PsaD)
395	 64.30	0	401646..402995	-	449	78211952	-	Syncc9605_0400	-	hypothetical protein
396	 61.02	0	402992..404230	-	412	78211953	-	Syncc9605_0401	-	cell division protein
397	 65.00	0	404233..405309	-	358	78211954	-	Syncc9605_0402	-	MRP protein-like
398	 62.53	0	405425..406513	+	362	78211955	-	Syncc9605_0403	-	coproporphyrinogen III oxidase
399	 62.53	0	406510..407355	-	281	78211956	-	Syncc9605_0404	-	hypothetical protein
400	 62.52	0	407359..407913	-	184	78211957	-	Syncc9605_0405	-	hypothetical protein
401	 59.64	0	407964..408347	-	127	78211958	-	Syncc9605_0406	-	PadR family transcriptional regulator
402	 61.55	0	408463..409107	+	214	78211959	-	Syncc9605_0407	-	3'-5' exonuclease
403	 61.63	0	409117..409374	-	85	78211960	-	Syncc9605_0408	-	hypothetical protein
404	 64.98	0	409394..410581	-	395	78211961	-	Syncc9605_0409	-	hypothetical protein
405	 62.05	0	410751..411248	-	165	78211962	-	Syncc9605_0410	-	hypothetical protein
406	 60.38	0	411224..411382	-	52	78211963	-	Syncc9605_0411	-	hypothetical protein
407	 63.22	0	411411..412397	+	328	78211964	-	Syncc9605_0412	-	hypothetical protein
408	 60.82	0	412407..413039	-	210	78211965	-	Syncc9605_0413	-	hypothetical protein
409	 62.51	0	413159..414265	-	368	78211966	-	Syncc9605_0414	-	phosphoribosylaminoimidazole synthetase
410	 60.37	0	414517..415056	+	179	78211967	-	Syncc9605_0415	-	rare lipoprotein A
411	 62.51	0	415128..416570	+	480	78211968	-	Syncc9605_0416	-	bifunctional pantoate ligase/cytidylate kinase
412	 61.43	0	416554..417030	-	158	78211969	-	Syncc9605_0417	-	protein tyrosine phosphatase
413	 43.68	-2	417023..418501	-	492	78211970	-	Syncc9605_0418	-	HEAT repeat-containing PBS lyase
414	 43.86	-2	418543..419169	-	208	78211971	-	Syncc9605_0419	-	hypothetical protein
415	 58.28	0	419201..419689	-	162	78211972	-	Syncc9605_0420	-	phycocyanin, alpha subunit
416	 58.57	0	419727..420245	-	172	78211973	-	Syncc9605_0421	-	phycocyanin, beta subunit
417	 59.44	0	420382..421197	-	271	78211974	-	Syncc9605_0422	-	phycoerythrobilin:ferredoxin oxidoreductase
418	 49.15	-1	421194..421901	-	235	78211975	-	Syncc9605_0423	-	dihydrobiliverdin:ferredoxin oxidoreductase
419	 47.55	-1	421907..422518	-	203	78211976	-	Syncc9605_0424	-	hypothetical protein
420	 47.17	-1	422581..422898	-	105	78211977	-	Syncc9605_0425	-	hypothetical protein
421	 56.76	0	423124..423678	+	184	78211978	-	Syncc9605_0426	-	C-phycoerythrin class I beta chain
422	 56.57	0	423740..424234	+	164	78211979	-	Syncc9605_0427	-	C-phycoerythrin class I alpha chain
423	 44.37	-2	424369..424803	+	144	78211980	-	Syncc9605_0428	-	hypothetical protein
424	 41.93	-2	425302..426627	+	441	78211981	-	Syncc9605_0429	-	putative bilin biosynthesis protein (CpeY)
425	 44.76	-2	426701..427339	+	212	78211982	-	Syncc9605_0430	-	putative bilin biosynthesis protein cpeZ
426	 46.38	-2	427349..427693	-	114	78211983	-	Syncc9605_0431	-	hypothetical protein
427	 46.78	-2	427804..428703	-	299	78211984	-	Syncc9605_0432	-	HEAT repeat-containing PBS lyase
428	 50.63	-1	428840..429706	-	288	78211985	-	Syncc9605_0433	-	C-phycoerythrin class II gamma chain, linker polypeptide
429	 61.65	0	430045..430542	-	165	78211986	-	Syncc9605_0434	-	C-phycoerythrin class II alpha chain
430	 61.51	0	430589..431170	-	193	78211987	-	Syncc9605_0435	-	C-phycoerythrin class II beta chain
431	 48.79	-1	431307..432503	-	398	78211988	-	Syncc9605_0436	-	HEAT repeat-containing PBS lyase
432	 44.86	-2	432753..433073	+	106	78211989	-	Syncc9605_0437	-	hypothetical protein
433	 46.86	-1	433055..433357	+	100	78211990	-	Syncc9605_0438	-	hypothetical protein
434	 39.54	-2	433661..433966	-	101	78211991	-	Syncc9605_0439	-	CpeR-like, phycoerythrin linker-proteins region
435	 44.55	-2	433968..434582	-	204	78211992	-	Syncc9605_0440	-	CpeT-like
436	 43.84	-2	434592..435086	-	164	78211993	-	Syncc9605_0441	-	hypothetical protein
437	 51.29	-1	435423..436157	-	244	78211994	-	Syncc9605_0442	-	phycobilisome linker polypeptide
438	 56.06	0	436233..437882	-	549	78211995	-	Syncc9605_0443	-	phycobilisome linker polypeptide
439	 57.85	0	437938..438822	-	294	78211996	-	Syncc9605_0444	-	phycobilisome linker polypeptide
440	 59.86	0	438995..439714	-	239	78211997	-	Syncc9605_0445	-	hypothetical protein
441	 61.79	0	439716..440474	-	252	78211998	-	Syncc9605_0446	-	phycobilisome rod-core linker polypeptide (L-RC 28.5)
442	 58.16	0	440546..441121	-	191	78211999	-	Syncc9605_0447	-	phycobilisome polypeptide
443	 59.86	0	441118..441543	-	141	78212000	-	Syncc9605_0448	-	hypothetical protein
444	 61.04	0	441653..442309	-	218	78212001	-	Syncc9605_0449	-	hypothetical protein
445	 61.14	0	442351..442857	+	168	78212002	-	Syncc9605_0450	-	hypothetical protein
446	 58.33	0	442858..443097	-	79	78212003	-	Syncc9605_0451	-	hypothetical protein
447	 53.95	0	444590..445108	+	172	78212004	-	Syncc9605_0452	-	hypothetical protein
448	 64.08	0	445101..446183	+	360	78212005	-	Syncc9605_0453	-	hypothetical protein
449	 64.16	0	446208..446645	+	145	78212006	-	Syncc9605_0454	-	hypothetical protein
450	 65.53	0	446726..447163	+	145	78212007	-	Syncc9605_0455	-	hypothetical protein
451	 66.02	+1	447402..448646	+	414	78212008	-	Syncc9605_0456	-	hypothetical protein
452	 65.33	0	448643..448867	+	74	78212009	-	Syncc9605_0457	-	hypothetical protein
453	 48.11	-1	448966..449283	-	105	78212010	-	Syncc9605_0458	-	hypothetical protein
454	 54.97	0	450236..450577	+	113	78212011	-	Syncc9605_0459	-	hypothetical protein
455	 62.04	0	450579..451010	-	143	78212012	-	Syncc9605_0460	-	hypothetical protein
456	 62.98	0	452622..453272	-	216	78212013	-	Syncc9605_0463	-	hypothetical protein
457	 61.23	0	453327..453602	-	91	78212014	-	Syncc9605_0464	-	hypothetical protein
458	 64.81	0	453783..455021	-	412	78212015	-	Syncc9605_0465	-	carbohydrate kinase
59.39	MEAN

6.29	STD DEV
