IslandPath Analysis: Synechococcus sp. CC9605

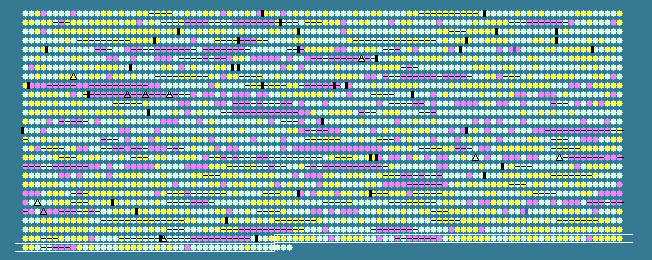

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2543	 64.41	0	2402328..2403170	+	280	78214094	-	Syncc9605_2590	-	spermidine synthase
2544	 64.04	0	2403167..2404042	+	291	78214095	-	Syncc9605_2591	-	agmatinase
2545	 58.59	0	2404039..2404434	-	131	78214096	-	Syncc9605_2592	-	cyclic nucleotide-binding domain-containing protein
2546	 62.91	0	2404519..2404731	-	70	78214097	-	Syncc9605_2593	-	hypothetical protein
2547	 64.54	0	2404838..2405965	+	375	78214098	-	Syncc9605_2594	-	glycine cleavage system aminomethyltransferase T
2548	 64.86	0	2406015..2407844	+	609	78214099	aspS	Syncc9605_2595	-	aspartyl-tRNA synthetase
2549	 63.40	0	2407948..2409081	+	377	78214100	-	Syncc9605_2596	-	type II alternative RNA polymerase sigma factor
2550	 60.42	0	2409329..2410978	+	549	78214101	-	Syncc9605_2598	-	CTP synthetase
2551	 62.14	0	2410988..2411605	+	205	78214102	-	Syncc9605_2599	-	organic radical activating protein
2552	 51.29	-1	2411856..2415803	+	1315	78214103	-	Syncc9605_2600	-	subtilisin-like serine protease-like
2553	 56.73	0	2415821..2416675	+	284	78214104	-	Syncc9605_2601	-	3-hydroxyacid dehydrogenase
2554	 65.64	0	2416672..2417352	+	226	78214105	-	Syncc9605_2602	-	ExsB
2555	 64.36	0	2417349..2418647	+	432	78214106	-	Syncc9605_2603	-	anthranilate synthase
2556	 63.96	0	2418644..2419456	+	270	78214107	-	Syncc9605_2604	-	aminotransferase class IV
2557	 64.39	0	2419476..2420267	-	263	78214108	-	Syncc9605_2605	-	mannosyl-3-phosphoglycerate phosphatase
2558	 61.40	0	2420264..2421991	-	575	78214109	-	Syncc9605_2606	-	alpha amylase domain-containing protein
2559	 59.71	0	2422019..2423311	+	430	78214110	-	Syncc9605_2607	-	hypothetical protein
2560	 50.20	-1	2423769..2424023	+	84	78214111	-	Syncc9605_2608	-	hypothetical protein
2561	 61.87	0	2424052..2424468	-	138	78214112	-	Syncc9605_2609	-	hypothetical protein
2562	 59.79	0	2424691..2425170	+	159	78214113	-	Syncc9605_2610	-	hypothetical protein
2563	 51.33	-1	2425289..2426338	+	349	78214114	amiF	Syncc9605_2611	-	formamidase
2564	 56.52	0	2426508..2427128	+	206	78214115	-	Syncc9605_2612	-	formamidase
2565	 51.81	-1	2427798..2428073	+	91	78214116	-	Syncc9605_2615	-	hypothetical protein
2566	 47.09	-1	2428139..2428894	-	251	78214117	-	Syncc9605_2616	-	ATPase
2567	 48.53	-1	2428916..2429665	-	249	78214118	-	Syncc9605_2617	-	putative ATP-binding subunit of urea ABC transport system
2568	 44.56	-2	2429697..2430845	-	382	78214119	-	Syncc9605_2618	-	putative membrane protein of urea ABC transport system
2569	 48.66	-1	2430867..2432027	-	386	78214120	-	Syncc9605_2619	-	putative urea ABC transporter
2570	 53.04	-1	2432101..2433399	-	432	78214121	-	Syncc9605_2620	-	putative urea ABC transporter, substrate binding protein
2571	 60.07	0	2433517..2434122	-	201	78214122	-	Syncc9605_2621	-	urease accessory protein UreG
2572	 63.54	0	2434122..2434793	-	223	78214123	-	Syncc9605_2622	-	urease accessory protein F
2573	 62.22	0	2434790..2435239	-	149	78214124	ureE	Syncc9605_2623	-	urease accessory protein UreE
2574	 65.75	+1	2435300..2436283	+	327	78214125	-	Syncc9605_2624	-	urease accessory protein D
2575	 63.37	0	2436302..2436604	+	100	78214126	ureA	Syncc9605_2625	-	urease subunit gamma
2576	 64.80	0	2436615..2436935	+	106	78214127	ureB	Syncc9605_2626	-	urease subunit beta
2577	 65.44	0	2436939..2438648	+	569	78214128	ureC	Syncc9605_2627	-	urease subunit alpha
2578	 63.50	0	2438645..2439403	+	252	78214129	-	Syncc9605_2628	-	glutamine amidotransferase class-I
2579	 60.71	0	2439595..2439762	+	55	78214130	-	Syncc9605_2629	-	hypothetical protein
2580	 58.90	0	2439843..2440061	+	72	78214131	-	Syncc9605_2630	-	hypothetical protein
2581	 61.33	0	2440144..2440818	-	224	78214132	-	Syncc9605_2631	-	hypothetical protein
2582	 63.41	0	2440815..2442104	-	429	78214133	-	Syncc9605_2632	-	allantoate amidohydrolase
2583	 63.01	0	2442199..2444223	-	674	78214134	-	Syncc9605_2633	-	asparagine synthase (glutamine-hydrolysing)
2584	 58.05	0	2444233..2445288	-	351	78214135	-	Syncc9605_2634	-	aspartate carbamoyltransferase
2585	 63.17	0	2445656..2447086	-	476	78214136	-	Syncc9605_2635	-	sodium/solute transporter family urea transporter
2586	 63.40	0	2447379..2448878	+	499	78214137	-	Syncc9605_2636	-	hypothetical protein
2587	 60.24	0	2448872..2449867	+	331	78214138	-	Syncc9605_2637	-	hypothetical protein
2588	 63.11	0	2449840..2450739	+	299	78214139	-	Syncc9605_2638	-	transglutaminase-like
2589	 61.75	0	2450727..2451275	-	182	78214140	-	Syncc9605_2639	-	hypothetical protein
2590	 65.33	0	2451298..2452341	-	347	78214141	-	Syncc9605_2640	-	GTP cyclohydrolase subunit MoaA
2591	 65.24	0	2452338..2452898	-	186	78214142	-	Syncc9605_2641	-	molybdenum cofactor guanylyltransferase
2592	 61.80	0	2453197..2454738	+	513	78214143	-	Syncc9605_2642	-	nitrate transporter
2593	 64.34	0	2454821..2457052	+	743	78214144	-	Syncc9605_2643	-	assimilatory nitrate reductase (ferredoxin) precursor
2594	 62.39	0	2457033..2457500	-	155	78214145	-	Syncc9605_2644	-	hypothetical protein
2595	 46.91	-1	2457512..2457754	+	80	78214146	-	Syncc9605_2645	-	hypothetical protein
2596	 67.31	+1	2457779..2458090	+	103	78214147	-	Syncc9605_2646	-	hypothetical protein
2597	 63.09	0	2458143..2458841	+	232	78214148	-	Syncc9605_2647	-	twin-arginine translocation pathway signal
2598	 64.36	0	2458838..2459314	+	158	78214149	-	Syncc9605_2648	-	GTP cyclohydrolase subunit MoaC
2599	 67.71	+1	2459298..2460548	+	416	78214150	-	Syncc9605_2649	-	molybdopterin molybdochelatase
2600	 63.91	0	2460545..2461342	-	265	78214151	-	Syncc9605_2650	-	hypothetical protein
2601	 65.62	0	2461402..2462265	+	287	78214152	-	Syncc9605_2651	-	hypothetical protein
2602	 67.13	+1	2462229..2462657	-	142	78214153	-	Syncc9605_2652	-	molybdopterin synthase subunit MoaE
2603	 62.45	0	2462943..2463440	+	165	78214154	-	Syncc9605_2653	-	molybdopterin binding domain-containing protein
2604	 60.96	0	2463462..2464250	-	262	78214155	-	Syncc9605_2654	-	uroporphyrinogen-III C-methyltransferase
2605	 62.44	0	2464247..2464909	-	220	78214156	-	Syncc9605_2655	-	DNA mismatch repair MutS family protein
2606	 47.15	-1	2465468..2467009	+	513	78214157	nirA	Syncc9605_2656	-	ferredoxin-nitrite reductase
2607	 50.48	-1	2467254..2468081	+	275	78214158	-	Syncc9605_2657	-	formate and nitrite transporters
2608	 49.17	-1	2468158..2468883	+	241	78214159	-	Syncc9605_2658	-	hypothetical protein
2609	 41.84	-2	2468934..2469368	-	144	78214160	-	Syncc9605_2659	-	cyanate hydratase
2610	 63.31	0	2469797..2470867	+	356	78214161	-	Syncc9605_2660	-	hypothetical protein
2611	 62.18	0	2470828..2471295	-	155	78214162	-	Syncc9605_2661	-	acetyltransferase
2612	 64.11	0	2471330..2472583	+	417	78214163	-	Syncc9605_2662	-	major facilitator superfamily permease
2613	 57.08	0	2472629..2474767	+	712	78214164	-	Syncc9605_2663	-	polyphosphate kinase
2614	 59.47	0	2474971..2475957	+	328	78214165	-	Syncc9605_2664	-	type II alternative sigma-70 family RNA polymerase sigma factor
2615	 60.03	0	2476026..2476613	+	195	78214166	-	Syncc9605_2665	-	hypothetical protein
2616	 61.89	0	2476630..2477697	-	355	78214167	-	Syncc9605_2666	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2617	 64.23	0	2477794..2480376	+	860	78214168	-	Syncc9605_2667	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
2618	 64.52	0	2480395..2481840	+	481	78214169	-	Syncc9605_2668	-	putative chloride channel
2619	 64.40	0	2481897..2483483	+	528	78214170	-	Syncc9605_2669	-	Elongator protein 3/MiaB/NifB
2620	 64.63	0	2483401..2484678	-	425	78214171	-	Syncc9605_2670	-	hypothetical protein
2621	 60.35	0	2484675..2485529	-	284	78214172	-	Syncc9605_2671	-	formyltetrahydrofolate deformylase
2622	 60.67	0	2485604..2486053	+	149	78214173	-	Syncc9605_2672	-	hypothetical protein
2623	 64.67	0	2486068..2487120	+	350	78214174	-	Syncc9605_2673	-	D-amino acid oxidase
2624	 60.61	0	2487164..2489077	-	637	78214175	dnaK	Syncc9605_2674	-	molecular chaperone DnaK
2625	 64.37	0	2489194..2490063	+	289	78214176	-	Syncc9605_2675	-	shikimate 5-dehydrogenase
2626	 60.82	0	2490053..2490565	+	170	78214177	-	Syncc9605_2676	-	hypothetical protein
2627	 58.13	0	2490645..2491019	+	124	78214178	rpsF	Syncc9605_2677	-	30S ribosomal protein S6
2628	 54.90	0	2490980..2491234	-	84	78214179	-	Syncc9605_2678	-	hypothetical protein
2629	 60.48	0	2491400..2492611	-	403	78214180	-	Syncc9605_2679	-	argininosuccinate synthase
2630	 59.75	0	2492611..2492769	-	52	78214181	-	Syncc9605_2680	-	hypothetical protein
2631	 61.11	0	2492904..2493173	+	89	78214182	-	Syncc9605_2681	-	hypothetical protein
2632	 60.87	0	2493293..2494345	+	350	78214183	-	Syncc9605_2682	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
2633	 57.83	0	2494651..2494899	+	82	78214184	-	Syncc9605_2683	-	hypothetical protein
2634	 55.95	0	2494899..2495066	+	55	78214185	-	Syncc9605_2684	-	hypothetical protein
2635	 61.23	0	2495071..2495493	-	140	78214186	-	Syncc9605_2685	-	hypothetical protein
2636	 59.37	0	2495667..2496269	+	200	78214187	-	Syncc9605_2686	-	hypothetical protein
2637	 62.67	0	2496364..2496963	-	199	78214188	-	Syncc9605_2687	-	hypothetical protein
2638	 63.36	0	2497074..2498252	+	392	78214189	purT	Syncc9605_2688	-	phosphoribosylglycinamide formyltransferase 2
2639	 61.72	0	2498238..2500361	-	707	78214190	-	Syncc9605_2689	-	sucrose-phosphate synthase
2640	 61.72	0	2500567..2502063	-	498	78214191	-	Syncc9605_2690	-	hypothetical protein
2641	 60.16	0	2502063..2505026	-	987	78214192	uvrA	Syncc9605_2691	-	excinuclease ABC subunit A
2642	 61.20	0	2505072..2506754	-	560	78214193	-	Syncc9605_2692	-	DNA repair protein RecN
59.39	MEAN

6.29	STD DEV
