IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

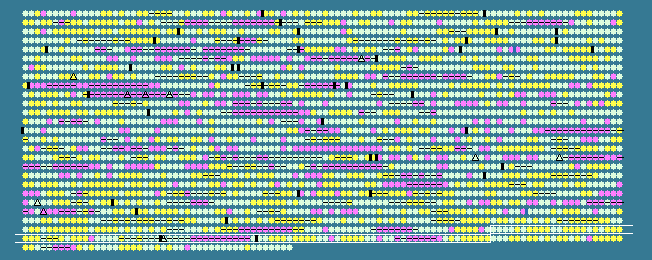

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2479	 56.38	0	2340075..2341328	-	417	78214030	-	Syncc9605_2526	-	leukotoxin secretion protein
2480	 59.84	0	2341328..2344258	-	976	78214031	-	Syncc9605_2527	-	Type I secretion system ATPase, HlyB
2481	 59.92	0	2344255..2345040	-	261	78214032	-	Syncc9605_2528	-	hypothetical protein
2482	 62.50	0	2345136..2346431	-	431	78214033	-	Syncc9605_2529	-	putative putative integral membrane protein
2483	 63.12	0	2346514..2348262	+	582	78214034	-	Syncc9605_2530	-	flavoprotein
2484	 61.94	0	2348256..2349356	-	366	78214035	-	Syncc9605_2531	-	hypothetical protein
2485	 66.56	+1	2349413..2351206	+	597	78214036	-	Syncc9605_2532	-	putative flavoprotein
2486	 63.17	0	2351300..2352013	+	237	78214037	-	Syncc9605_2533	-	rubrerythrin
2487	 64.34	0	2352050..2352565	+	171	78214038	-	Syncc9605_2534	-	reductase
2488	 64.81	0	2352573..2353328	+	251	78214039	-	Syncc9605_2535	-	hypothetical protein
2489	 61.35	0	2353418..2353624	+	68	78214040	-	Syncc9605_2536	-	hypothetical protein
2490	 61.18	0	2353627..2353881	-	84	78214041	-	Syncc9605_2537	-	hypothetical protein
2491	 66.04	+1	2354011..2356893	-	960	78214042	-	Syncc9605_2538	-	glycine dehydrogenase
2492	 63.85	0	2356952..2357341	-	129	78214043	-	Syncc9605_2539	-	glycine cleavage system protein H
2493	 66.20	+1	2357352..2358644	-	430	78214044	-	Syncc9605_2540	-	hypothetical protein
2494	 64.36	0	2358792..2359703	+	303	78214045	-	Syncc9605_2541	-	Delta-9 acyl-phospholipid desaturase
2495	 59.69	0	2359782..2360240	+	152	78214046	rplI	Syncc9605_2542	-	50S ribosomal protein L9
2496	 63.68	0	2360312..2361718	+	468	78214047	-	Syncc9605_2543	-	primary replicative DNA helicase
2497	 61.39	0	2361804..2362106	+	100	78214048	-	Syncc9605_2544	-	hypothetical protein
2498	 65.27	0	2362180..2364111	+	643	78214049	-	Syncc9605_2545	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2499	 63.86	0	2364136..2364813	+	225	78214050	-	Syncc9605_2546	-	hypothetical protein
2500	 65.18	0	2364873..2365409	+	178	78214051	-	Syncc9605_2547	-	hypothetical protein
2501	 65.28	0	2365434..2365937	+	167	78214052	-	Syncc9605_2548	-	hypothetical protein
2502	 68.16	+1	2365934..2366467	-	177	78214053	-	Syncc9605_2549	-	hypothetical protein
2503	 68.23	+1	2366573..2367148	-	191	78214054	-	Syncc9605_2550	-	hypothetical protein
2504	 60.95	0	2367193..2367612	+	139	78214055	-	Syncc9605_2551	-	hypothetical protein
2505	 66.67	+1	2367605..2369647	+	680	78214056	ligA	Syncc9605_2552	-	NAD-dependent DNA ligase LigA
2506	 64.52	0	2369644..2369829	+	61	78214057	-	Syncc9605_2553	-	hypothetical protein
2507	 66.35	+1	2369805..2370428	-	207	78214058	-	Syncc9605_2554	-	hypothetical protein
2508	 62.61	0	2370463..2371251	-	262	78214059	-	Syncc9605_2555	-	membrane protein, multidrug efflux associated
2509	 63.78	0	2371251..2372048	-	265	78214060	-	Syncc9605_2556	-	putative multidrug efflux ABC transporter
2510	 66.15	+1	2372048..2373022	-	324	78214061	-	Syncc9605_2557	-	ATPase
2511	 65.32	0	2373027..2375771	-	914	78214062	valS	Syncc9605_2558	-	valyl-tRNA synthetase
2512	 54.84	0	2375860..2377110	+	416	78214063	-	Syncc9605_2559	-	ABC-type sugar transport system periplasmic component-like
2513	 60.92	0	2377107..2378429	+	440	78214064	-	Syncc9605_2560	-	small-conductance mechanosensitive channel-like
2514	 62.18	0	2378409..2379032	-	207	78214065	-	Syncc9605_2561	-	hypothetical protein
2515	 62.67	0	2379029..2379478	-	149	78214066	-	Syncc9605_2562	-	protein phosphatase 2A
2516	 61.24	0	2379533..2379790	+	85	78214067	-	Syncc9605_2563	-	hypothetical protein
2517	 66.34	+1	2379811..2380719	+	302	78214068	-	Syncc9605_2564	-	short-chain dehydrogenase/reductase
2518	 62.24	0	2380697..2382685	+	662	78214069	-	Syncc9605_2565	-	sigma-54 factor
2519	 62.77	0	2382690..2383100	+	136	78214070	-	Syncc9605_2566	-	ferric uptake regulator family protein
2520	 64.63	0	2383097..2383834	+	245	78214071	-	Syncc9605_2567	-	hypothetical protein
2521	 62.03	0	2383873..2384109	+	78	78214072	-	Syncc9605_2568	-	putative high light inducible protein
2522	 62.75	0	2384167..2384472	+	101	78214073	-	Syncc9605_2569	-	hypothetical protein
2523	 60.32	0	2384560..2384748	-	62	78214074	-	Syncc9605_2570	-	hypothetical protein
2524	 56.42	0	2385705..2386982	+	425	78214075	-	Syncc9605_2571	-	phage integrase family protein
2525	 56.32	0	2387128..2387388	+	86	78214076	-	Syncc9605_2572	-	hypothetical protein
2526	 60.24	0	2387404..2387652	+	82	78214077	-	Syncc9605_2573	-	hypothetical protein
2527	 60.58	0	2387789..2389069	+	426	78214078	-	Syncc9605_2574	-	hypothetical protein
2528	 58.43	0	2389070..2390137	+	355	78214079	-	Syncc9605_2575	-	ATPase-like
2529	 45.77	-2	2390358..2390558	+	66	78214080	-	Syncc9605_2576	-	hypothetical protein
2530	 46.38	-2	2391346..2391621	-	91	78214081	-	Syncc9605_2577	-	hypothetical protein
2531	 45.87	-2	2391726..2392052	-	108	78214082	-	Syncc9605_2578	-	hypothetical protein
2532	 42.84	-2	2392079..2392825	-	248	78214083	-	Syncc9605_2579	-	phycobilisome rod-core linker polypeptide (L-RC 28.5)
2533	 40.16	-2	2392983..2393348	+	121	78214084	-	Syncc9605_2580	-	hypothetical protein
2534	 40.38	-2	2393658..2394026	+	122	78214085	-	Syncc9605_2581	-	hypothetical protein
2535	 36.30	-2	2394917..2395186	+	89	78214086	-	Syncc9605_2582	-	hypothetical protein
2536	 41.28	-2	2395221..2395736	-	171	161353758	-	Syncc9605_2583	-	flavodoxin FldA
2537	 53.57	0	2396224..2396475	+	83	78214088	-	Syncc9605_2584	-	hypothetical protein
2538	 48.28	-1	2397811..2398071	+	86	78214089	-	Syncc9605_2585	-	hypothetical protein
2539	 61.75	0	2399624..2399989	-	121	78214090	-	Syncc9605_2586	-	hypothetical protein
2540	 62.35	0	2400254..2400763	+	169	78214091	-	Syncc9605_2587	-	hypothetical protein
2541	 59.59	0	2400797..2401630	+	277	78214092	mazG	Syncc9605_2588	-	nucleoside triphosphate pyrophosphohydrolase
2542	 63.19	0	2401627..2402058	-	143	78214093	-	Syncc9605_2589	-	hypothetical protein
2543	 64.41	0	2402328..2403170	+	280	78214094	-	Syncc9605_2590	-	spermidine synthase
2544	 64.04	0	2403167..2404042	+	291	78214095	-	Syncc9605_2591	-	agmatinase
2545	 58.59	0	2404039..2404434	-	131	78214096	-	Syncc9605_2592	-	cyclic nucleotide-binding domain-containing protein
2546	 62.91	0	2404519..2404731	-	70	78214097	-	Syncc9605_2593	-	hypothetical protein
2547	 64.54	0	2404838..2405965	+	375	78214098	-	Syncc9605_2594	-	glycine cleavage system aminomethyltransferase T
2548	 64.86	0	2406015..2407844	+	609	78214099	aspS	Syncc9605_2595	-	aspartyl-tRNA synthetase
2549	 63.40	0	2407948..2409081	+	377	78214100	-	Syncc9605_2596	-	type II alternative RNA polymerase sigma factor
2550	 60.42	0	2409329..2410978	+	549	78214101	-	Syncc9605_2598	-	CTP synthetase
2551	 62.14	0	2410988..2411605	+	205	78214102	-	Syncc9605_2599	-	organic radical activating protein
2552	 51.29	-1	2411856..2415803	+	1315	78214103	-	Syncc9605_2600	-	subtilisin-like serine protease-like
2553	 56.73	0	2415821..2416675	+	284	78214104	-	Syncc9605_2601	-	3-hydroxyacid dehydrogenase
2554	 65.64	0	2416672..2417352	+	226	78214105	-	Syncc9605_2602	-	ExsB
2555	 64.36	0	2417349..2418647	+	432	78214106	-	Syncc9605_2603	-	anthranilate synthase
2556	 63.96	0	2418644..2419456	+	270	78214107	-	Syncc9605_2604	-	aminotransferase class IV
2557	 64.39	0	2419476..2420267	-	263	78214108	-	Syncc9605_2605	-	mannosyl-3-phosphoglycerate phosphatase
2558	 61.40	0	2420264..2421991	-	575	78214109	-	Syncc9605_2606	-	alpha amylase domain-containing protein
2559	 59.71	0	2422019..2423311	+	430	78214110	-	Syncc9605_2607	-	hypothetical protein
2560	 50.20	-1	2423769..2424023	+	84	78214111	-	Syncc9605_2608	-	hypothetical protein
2561	 61.87	0	2424052..2424468	-	138	78214112	-	Syncc9605_2609	-	hypothetical protein
2562	 59.79	0	2424691..2425170	+	159	78214113	-	Syncc9605_2610	-	hypothetical protein
2563	 51.33	-1	2425289..2426338	+	349	78214114	amiF	Syncc9605_2611	-	formamidase
2564	 56.52	0	2426508..2427128	+	206	78214115	-	Syncc9605_2612	-	formamidase
2565	 51.81	-1	2427798..2428073	+	91	78214116	-	Syncc9605_2615	-	hypothetical protein
2566	 47.09	-1	2428139..2428894	-	251	78214117	-	Syncc9605_2616	-	ATPase
2567	 48.53	-1	2428916..2429665	-	249	78214118	-	Syncc9605_2617	-	putative ATP-binding subunit of urea ABC transport system
2568	 44.56	-2	2429697..2430845	-	382	78214119	-	Syncc9605_2618	-	putative membrane protein of urea ABC transport system
2569	 48.66	-1	2430867..2432027	-	386	78214120	-	Syncc9605_2619	-	putative urea ABC transporter
2570	 53.04	-1	2432101..2433399	-	432	78214121	-	Syncc9605_2620	-	putative urea ABC transporter, substrate binding protein
2571	 60.07	0	2433517..2434122	-	201	78214122	-	Syncc9605_2621	-	urease accessory protein UreG
2572	 63.54	0	2434122..2434793	-	223	78214123	-	Syncc9605_2622	-	urease accessory protein F
2573	 62.22	0	2434790..2435239	-	149	78214124	ureE	Syncc9605_2623	-	urease accessory protein UreE
2574	 65.75	+1	2435300..2436283	+	327	78214125	-	Syncc9605_2624	-	urease accessory protein D
2575	 63.37	0	2436302..2436604	+	100	78214126	ureA	Syncc9605_2625	-	urease subunit gamma
2576	 64.80	0	2436615..2436935	+	106	78214127	ureB	Syncc9605_2626	-	urease subunit beta
2577	 65.44	0	2436939..2438648	+	569	78214128	ureC	Syncc9605_2627	-	urease subunit alpha
2578	 63.50	0	2438645..2439403	+	252	78214129	-	Syncc9605_2628	-	glutamine amidotransferase class-I
59.39	MEAN

6.29	STD DEV
