IslandPath Analysis: Synechococcus sp. CC9605

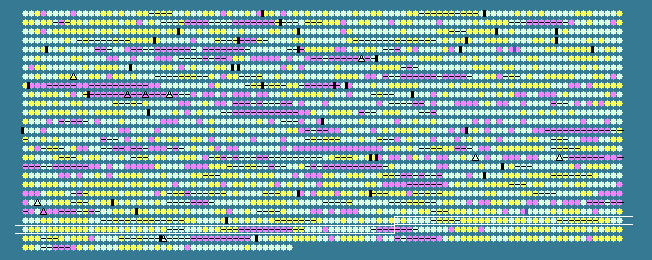

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2363	 56.99	0	2218820..2219098	+	92	78213914	-	Syncc9605_2406	-	LuxR family transcriptional regulator
2364	 64.50	0	2219313..2219819	-	168	78213915	-	Syncc9605_2407	-	hypothetical protein
2365	 62.57	0	2219823..2220773	-	316	78213916	ppnK	Syncc9605_2408	-	inorganic polyphosphate/ATP-NAD kinase
2366	 58.18	0	2220792..2221121	-	109	78213917	-	Syncc9605_2409	-	NADH dehydrogenase subunit K
2367	 59.67	0	2221121..2221720	-	199	78213918	-	Syncc9605_2410	-	NADH dehydrogenase subunit J
2368	 58.95	0	2221717..2222364	-	215	78213919	-	Syncc9605_2411	-	NADH dehydrogenase subunit I
2369	 60.16	0	2222424..2223545	-	373	78213920	-	Syncc9605_2412	-	NADH dehydrogenase subunit H
2370	 63.99	0	2223570..2224763	-	397	78213921	-	Syncc9605_2413	-	methylcitrate synthase
2371	 63.60	0	2224774..2225262	-	162	78213922	-	Syncc9605_2414	-	phosphohistidine phosphatase, SixA
2372	 66.48	+1	2225240..2226856	-	538	78213923	-	Syncc9605_2415	-	hypothetical protein
2373	 61.62	0	2226874..2227230	+	118	78213924	-	Syncc9605_2416	-	rhodanese-like protein
2374	 66.36	+1	2227230..2228204	+	324	78213925	-	Syncc9605_2417	-	heat-inducible transcription repressor HrcA
2375	 65.00	0	2228215..2229471	-	418	78213926	-	Syncc9605_2418	-	tryptophan synthase subunit beta
2376	 63.30	0	2229571..2229897	+	108	78213927	-	Syncc9605_2419	-	translation initiation factor 1 (eIF-1/SUI1)
2377	 63.88	0	2229929..2230573	+	214	78213928	-	Syncc9605_2420	-	adenylylsulfate kinase
2378	 63.44	0	2230533..2231618	-	361	78213929	-	Syncc9605_2421	-	hypothetical protein
2379	 60.00	0	2231640..2232269	-	209	78213930	-	Syncc9605_2422	-	hypothetical protein
2380	 66.49	+1	2232269..2232820	-	183	78213931	-	Syncc9605_2423	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
2381	 68.43	+1	2232832..2234019	+	395	78213932	-	Syncc9605_2424	-	N-acetylglucosamine 6-phosphate deacetylase
2382	 62.18	0	2234047..2234760	+	237	78213933	-	Syncc9605_2425	-	Mg-protoporphyrin IX methyl transferase
2383	 64.03	0	2234724..2235671	-	315	78213934	-	Syncc9605_2426	-	pseudouridine synthase
2384	 66.12	+1	2235668..2236405	-	245	78213935	-	Syncc9605_2427	-	two component LuxR family transcriptional regulator
2385	 62.32	0	2236445..2236996	-	183	78213936	-	Syncc9605_2428	-	hypothetical protein
2386	 68.83	+1	2237080..2238144	+	354	78213937	-	Syncc9605_2429	-	NifS-like aminotransferase class-V
2387	 62.35	0	2238178..2238987	+	269	78213938	-	Syncc9605_2430	-	hypothetical protein
2388	 65.42	0	2238984..2239868	-	294	78213939	-	Syncc9605_2431	-	methyltransferase
2389	 62.11	0	2239923..2241107	+	394	78213940	-	Syncc9605_2432	-	NAD(P)H-quinone oxidoreductase subunit H
2390	 65.01	0	2241132..2241494	+	120	78213941	-	Syncc9605_2433	-	hypothetical protein
2391	 61.06	0	2241499..2242176	-	225	78213942	-	Syncc9605_2434	-	hypothetical protein
2392	 65.11	0	2242236..2242685	+	149	78213943	-	Syncc9605_2435	-	hypothetical protein
2393	 67.95	+1	2242656..2243822	-	388	78213944	-	Syncc9605_2436	-	O-succinylbenzoate--CoA ligase
2394	 69.97	+1	2243819..2244787	-	322	78213945	-	Syncc9605_2437	-	putative O-succinylbenzoate synthase
2395	 66.35	+1	2244784..2245728	-	314	78213946	-	Syncc9605_2438	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
2396	 68.59	+1	2245799..2247205	+	468	78213947	-	Syncc9605_2439	-	isochorismate synthase
2397	 65.15	0	2247172..2248095	-	307	78213948	-	Syncc9605_2440	-	glutathione synthetase
2398	 64.34	0	2248099..2248356	-	85	78213949	-	Syncc9605_2441	-	glutaredoxin GrxC
2399	 61.34	0	2248492..2249562	+	356	78213950	prfB	Syncc9605_2442	-	peptide chain release factor 2
2400	 61.75	0	2249549..2249731	+	60	78213951	-	Syncc9605_2443	-	hypothetical protein
2401	 62.48	0	2249734..2250234	+	166	78213952	-	Syncc9605_2444	-	hypothetical protein
2402	 64.73	0	2250300..2250764	+	154	78213953	-	Syncc9605_2445	-	diacylglycerol kinase
2403	 64.48	0	2250779..2251372	+	197	78213954	-	Syncc9605_2446	-	anthranilate synthase, component II
2404	 59.20	0	2251387..2252457	+	356	78213955	-	Syncc9605_2447	-	hypothetical protein
2405	 66.67	+1	2252484..2253206	+	240	78213956	-	Syncc9605_2448	-	hypothetical protein
2406	 65.14	0	2253190..2254173	-	327	78213957	-	Syncc9605_2449	-	asparaginase
2407	 64.16	0	2254170..2255288	-	372	78213958	-	Syncc9605_2450	-	histidinol phosphate aminotransferase
2408	 64.75	0	2255285..2257057	-	590	78213959	argS	Syncc9605_2451	-	arginyl-tRNA synthetase
2409	 67.98	+1	2257101..2257940	-	279	78213960	-	Syncc9605_2452	-	nicotinate-nucleotide pyrophosphorylase [carboxylating]
2410	 70.07	+1	2257964..2259316	-	450	78213961	trmE	Syncc9605_2453	-	tRNA modification GTPase TrmE
2411	 66.21	+1	2259404..2259844	+	146	78213962	-	Syncc9605_2454	-	hypothetical protein
2412	 62.41	0	2259841..2262117	-	758	78213963	-	Syncc9605_2455	-	metal dependent phosphohydrolase
2413	 66.67	+1	2262195..2263835	+	546	78213964	-	Syncc9605_2456	-	ATPase
2414	 63.67	0	2263840..2264841	-	333	78213965	-	Syncc9605_2457	-	ribosomal large subunit pseudouridine synthase D
2415	 65.97	+1	2264838..2265704	-	288	78213966	rbgA	Syncc9605_2458	-	ribosomal biogenesis GTPase
2416	 64.76	0	2265823..2267028	+	401	78213967	pgk	Syncc9605_2459	-	phosphoglycerate kinase
2417	 61.25	0	2267037..2267405	-	122	78213968	-	Syncc9605_2460	-	hypothetical protein
2418	 64.30	0	2267475..2268362	+	295	78213969	-	Syncc9605_2461	-	3-hydroxyisobutyrate dehydrogenase
2419	 62.25	0	2268359..2269060	-	233	78213970	-	Syncc9605_2462	-	hypothetical protein
2420	 66.48	+1	2269155..2270231	+	358	78213971	-	Syncc9605_2463	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
2421	 62.29	0	2270233..2271306	-	357	78213972	-	Syncc9605_2464	-	L-threonine O-3-phosphate decarboxylase
2422	 64.13	0	2271382..2272563	-	393	78213973	-	Syncc9605_2465	-	dihydroorotate dehydrogenase 2
2423	 62.85	0	2272572..2273330	-	252	78213974	-	Syncc9605_2466	-	RNase HI
2424	 64.88	0	2273382..2274110	+	242	78213975	-	Syncc9605_2467	-	hypothetical protein
2425	 59.49	0	2274384..2274773	-	129	78213976	rplL	Syncc9605_2468	-	50S ribosomal protein L7/L12
2426	 59.66	0	2274828..2275355	-	175	78213977	rplJ	Syncc9605_2469	-	50S ribosomal protein L10
2427	 61.16	0	2275593..2276300	-	235	78213978	rplA	Syncc9605_2470	-	50S ribosomal protein L1
2428	 59.39	0	2276372..2276797	-	141	78213979	rplK	Syncc9605_2471	-	50S ribosomal protein L11
2429	 62.03	0	2276907..2277575	-	222	78213980	nusG	Syncc9605_2472	-	transcription antitermination protein NusG
2430	 59.45	0	2277597..2277887	-	96	78213981	secE	Syncc9605_2473	-	preprotein translocase subunit SecE
2431	 64.32	0	2277910..2280684	-	924	78213982	-	Syncc9605_2474	-	ATPase
2432	 60.15	0	2280693..2281091	-	132	78213983	-	Syncc9605_2475	-	glyoxalase I
2433	 64.04	0	2281204..2282496	+	430	78213984	-	Syncc9605_2476	-	enolase
2434	 63.34	0	2282514..2284166	-	550	78213985	-	Syncc9605_2477	-	kinase
2435	 63.46	0	2284166..2284477	-	103	78213986	-	Syncc9605_2478	-	hypothetical protein
2436	 63.48	0	2284523..2285149	-	208	78213987	-	Syncc9605_2479	-	hypothetical protein
2437	 40.23	-2	2285545..2286342	-	265	78213988	-	Syncc9605_2480	-	hypothetical protein
2438	 41.45	-2	2286339..2287397	-	352	78213989	-	Syncc9605_2481	-	hypothetical protein
2439	 40.42	-2	2288721..2289101	-	126	78213990	-	Syncc9605_2482	-	hypothetical protein
2440	 43.22	-2	2289108..2289896	+	262	78213991	-	Syncc9605_2483	-	hypothetical protein
2441	 38.57	-2	2290332..2290904	+	190	78213992	-	Syncc9605_2484	-	hypothetical protein
2442	 32.27	-2	2291295..2292701	-	468	78213993	-	Syncc9605_2485	-	hypothetical protein
2443	 37.27	-2	2293326..2293757	-	143	78213994	-	Syncc9605_2486	-	hypothetical protein
2444	 43.36	-2	2293935..2294393	-	152	78213995	-	Syncc9605_2487	-	hypothetical protein
2445	 43.30	-2	2294568..2294918	-	116	78213996	-	Syncc9605_2488	-	hypothetical protein
2446	 63.29	0	2295705..2296949	-	414	78213997	argJ	Syncc9605_2489	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
2447	 62.98	0	2296964..2297587	+	207	78213998	-	Syncc9605_2490	-	dephospho-CoA kinase
2448	 57.01	0	2297694..2298221	+	175	78213999	-	Syncc9605_2491	-	hypothetical protein
2449	 58.91	0	2298392..2298958	+	188	78214000	-	Syncc9605_2492	-	hypothetical protein
2450	 58.73	0	2299129..2299695	+	188	78214001	-	Syncc9605_2493	-	hypothetical protein
2451	 47.08	-1	2299757..2300047	+	96	78214002	-	Syncc9605_2494	-	hypothetical protein
2452	 56.15	0	2300091..2300480	+	129	78214003	-	Syncc9605_2495	-	hypothetical protein
2453	 60.98	0	2300482..2301273	-	263	78214004	-	Syncc9605_2496	-	prolyl 4-hydroxylase, alpha subunit
2454	 60.27	0	2301273..2302757	-	494	78214005	gatB	Syncc9605_2497	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
2455	 62.45	0	2302913..2303980	+	355	78214006	-	Syncc9605_2498	-	putative thiamine biosynthesis oxidoreductase
2456	 58.63	0	2304025..2304360	+	111	78214007	-	Syncc9605_2499	-	hypothetical protein
2457	 59.22	0	2304689..2307442	+	917	78214008	-	Syncc9605_2501	-	ATPase
2458	 56.24	0	2307439..2308560	+	373	78214009	-	Syncc9605_2502	-	hypothetical protein
2459	 56.42	0	2308560..2310707	+	715	78214010	-	Syncc9605_2503	-	ATPase
2460	 41.64	-2	2311073..2311867	+	264	78214011	-	Syncc9605_2504	-	hypothetical protein
2461	 42.35	-2	2311864..2313072	+	402	78214012	-	Syncc9605_2505	-	diaminopimelate decarboxylase
2462	 41.84	-2	2313085..2313660	+	191	78214013	-	Syncc9605_2506	-	acetyltransferase-like
59.39	MEAN

6.29	STD DEV
