IslandPath Analysis: Synechococcus sp. CC9605

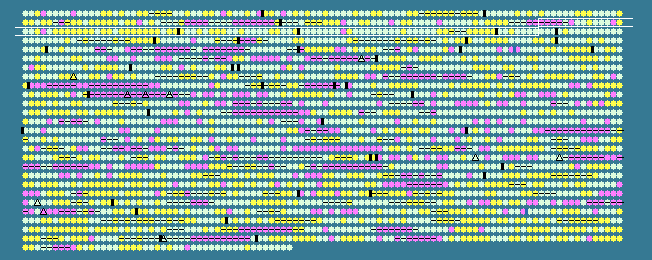

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
187	 39.65	-2	202312..204084	+	590	78211745	-	Syncc9605_0193	-	hypothetical protein
188	 34.89	-2	204725..207817	+	1030	78211746	-	Syncc9605_0194	-	lipopolysaccharide biosynthesis protein-like
189	 37.23	-2	208010..208291	+	93	78211747	-	Syncc9605_0195	-	hypothetical protein
190	 35.67	-2	208383..208682	+	99	78211748	-	Syncc9605_0196	-	hypothetical protein
191	 56.22	0	208764..208964	-	66	78211749	-	Syncc9605_0197	-	photosystem II reaction center protein J
192	 52.50	-1	208975..209094	-	39	78211750	-	Syncc9605_0198	-	photosystem II reaction center L
193	 59.57	0	209102..209242	-	46	78211751	-	Syncc9605_0199	-	cytochrome b559 subunit beta
194	 57.83	0	209246..209494	-	82	78211752	-	Syncc9605_0200	-	cytochrome b559 subunit alpha
195	 62.97	0	209566..210567	-	333	78211753	-	Syncc9605_0201	-	Ycf48-like protein
196	 58.10	0	210577..210996	-	139	78211754	-	Syncc9605_0202	-	rubredoxin
197	 55.92	0	211080..211442	+	120	78211755	-	Syncc9605_0203	-	NADH dehydrogenase subunit A
198	 59.38	0	211445..212185	+	246	78211756	-	Syncc9605_0204	-	NADH dehydrogenase subunit B
199	 55.91	0	212182..212748	+	188	78211757	-	Syncc9605_0205	-	NADH dehydrogenase subunit J
200	 62.98	0	212756..214111	-	451	78211758	-	Syncc9605_0206	-	hypothetical protein
201	 62.12	0	214273..215019	+	248	78211759	-	Syncc9605_0207	-	ATPase
202	 61.90	0	215025..215885	+	286	78211760	-	Syncc9605_0208	-	ABC transporter
203	 64.58	0	215936..218041	-	701	78211761	-	Syncc9605_0209	-	protoporphyrin IX magnesium-chelatase
204	 39.80	-2	218050..219456	-	468	78211762	-	Syncc9605_0210	-	hypothetical protein
205	 60.44	0	219542..220039	+	165	78211763	-	Syncc9605_0211	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
206	 65.60	0	220058..220618	+	186	78211764	-	Syncc9605_0212	-	NUDIX hydrolase
207	 63.67	0	220618..222051	+	477	78211765	-	Syncc9605_0213	-	deoxyribodipyrimidine photo-lyase type I
208	 62.88	0	222030..223271	-	413	78211766	-	Syncc9605_0214	-	putative pleiotropic regulatory protein
209	 63.42	0	223291..223875	-	194	78211767	-	Syncc9605_0215	-	hypothetical protein
210	 63.78	0	223933..224451	+	172	78211768	-	Syncc9605_0216	-	hypothetical protein
211	 63.72	0	224433..224873	-	146	78211769	-	Syncc9605_0217	-	hypothetical protein
212	 64.80	0	224889..225800	-	303	78211770	-	Syncc9605_0218	-	deoxyribodipyrimidine photo-lyase family protein
213	 62.40	0	225824..226666	+	280	78211771	-	Syncc9605_0219	-	enoyl-(acyl carrier protein) reductase
214	 62.89	0	226696..227304	+	202	78211772	hisB	Syncc9605_0220	-	imidazoleglycerol-phosphate dehydratase
215	 63.60	0	227365..228831	+	488	78211773	-	Syncc9605_0221	-	lignostilbene-alpha,beta-dioxygenase and related enzyme-like
216	 61.11	0	228919..229620	+	233	78211774	-	Syncc9605_0222	-	hypothetical protein
217	 64.48	0	229605..231161	-	518	78211775	-	Syncc9605_0223	-	BCCT family glycine betaine transporter
218	 65.58	0	231180..232370	-	396	78211776	-	Syncc9605_0224	-	putative sarcosine oxidase
219	 65.15	0	232367..233422	-	351	78211777	-	Syncc9605_0225	-	glutamate dehydrogenase/leucine dehydrogenase-like
220	 63.68	0	233422..234459	-	345	78211778	-	Syncc9605_0226	-	hypothetical protein
221	 65.29	0	234529..235110	-	193	78211779	-	Syncc9605_0227	-	Ham1-like protein
222	 66.12	+1	235107..236570	-	487	78211780	-	Syncc9605_0228	-	phosphoglucomutase/phosphomannomutase family protein
223	 66.33	+1	236624..238099	+	491	78211781	-	Syncc9605_0229	-	hypothetical protein
224	 62.52	0	238081..238875	-	264	78211782	-	Syncc9605_0230	-	hypothetical protein
225	 63.87	0	238872..239444	-	190	78211783	-	Syncc9605_0231	-	orotate phosphoribosyltransferase
226	 63.43	0	239477..240001	+	174	78211784	-	Syncc9605_0232	-	occludin/ELL family
227	 64.56	0	240099..241382	+	427	78211785	-	Syncc9605_0233	-	hypothetical protein
228	 62.50	0	241420..242427	+	335	78211786	-	Syncc9605_0234	-	oxidoreductase
229	 61.91	0	242443..245619	-	1058	78211787	-	Syncc9605_0235	-	putative phosphorylase kinase
230	 63.40	0	245667..246401	+	244	78211788	-	Syncc9605_0236	-	N-acetylmannosaminyltransferase
231	 60.78	0	246406..246558	-	50	78211789	-	Syncc9605_0237	-	photosystem II reaction center protein K
232	 64.43	0	246581..247699	-	372	78211790	-	Syncc9605_0238	-	queuine tRNA-ribosyltransferase
233	 66.54	+1	247729..248499	+	256	78211791	-	Syncc9605_0239	-	cobalamin-5'-phosphate synthase
234	 65.60	0	248459..249580	-	373	78211792	-	Syncc9605_0240	-	histidine kinase
235	 58.27	0	249918..250286	+	122	78211793	-	Syncc9605_0241	-	hypothetical protein
236	 61.43	0	250287..250859	-	190	78211794	-	Syncc9605_0242	-	esterase
237	 64.24	0	250916..252478	+	520	78211795	-	Syncc9605_0243	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
238	 61.44	0	252533..252991	+	152	78211796	-	Syncc9605_0244	-	hypothetical protein
239	 61.00	0	252999..253598	-	199	78211797	-	Syncc9605_0245	-	hypothetical protein
240	 59.08	0	253668..254867	-	399	78211798	-	Syncc9605_0246	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
241	 62.12	0	254978..256450	-	490	78211799	-	Syncc9605_0247	-	ammonium transporter
242	 64.18	0	256553..257317	-	254	78211800	-	Syncc9605_0248	-	sugar fermentation stimulation protein
243	 63.87	0	257386..258993	+	535	78211801	-	Syncc9605_0249	-	integral membrane protein MviN
244	 56.44	0	258980..259243	-	87	78211802	-	Syncc9605_0250	-	hypothetical protein
245	 62.20	0	259271..259561	-	96	78211803	-	Syncc9605_0251	-	hypothetical protein
246	 63.01	0	259604..259849	-	81	78211804	-	Syncc9605_0252	-	hypothetical protein
247	 61.57	0	260108..261403	+	431	78211805	glyA	Syncc9605_0253	-	serine hydroxymethyltransferase
248	 62.38	0	261518..262660	+	380	78211806	-	Syncc9605_0254	-	putative glycosyltransferase
249	 62.78	0	262653..263912	+	419	78211807	-	Syncc9605_0255	-	competence/damage-inducible protein cinA
250	 61.80	0	263939..265357	+	472	78211808	-	Syncc9605_0256	-	isopropylmalate isomerase large subunit
251	 58.37	0	265357..265971	+	204	78211809	-	Syncc9605_0257	-	3-isopropylmalate dehydratase, small subunit
252	 61.71	0	266023..266466	+	147	78211810	-	Syncc9605_0258	-	hypothetical protein
253	 59.96	0	266467..269253	-	928	78211811	-	Syncc9605_0259	-	hypothetical protein
254	 55.83	0	269408..269527	-	39	78211812	-	Syncc9605_0260	-	photosystem II reaction center I protein I
255	 65.32	0	269565..272531	+	988	78211813	-	Syncc9605_0261	-	alpha mannosidase
256	 58.87	0	272519..272659	-	46	78211814	psbN	Syncc9605_0262	-	photosystem II reaction center protein N
257	 57.21	0	272744..272944	+	66	78211815	-	Syncc9605_0263	-	photosystem II reaction center protein H
258	 56.71	0	272954..273184	+	76	78211816	-	Syncc9605_0264	-	twin arginine-targeting protein translocase
259	 60.52	0	273199..273816	+	205	78211817	-	Syncc9605_0265	-	peptidyl-tRNA hydrolase
260	 60.47	0	273816..274073	+	85	78211818	-	Syncc9605_0266	-	hypothetical protein
261	 62.42	0	274051..274497	-	148	78211819	-	Syncc9605_0267	-	hypothetical protein
262	 62.50	0	274494..275645	-	383	78211820	-	Syncc9605_0268	-	hypothetical protein
263	 59.97	0	275673..276389	-	238	78211821	-	Syncc9605_0269	-	Crp/FNR family transcriptional regulator
264	 64.25	0	276448..277191	-	247	78211822	-	Syncc9605_0270	-	RNAse PH
265	 61.50	0	277337..277936	+	199	78211823	-	Syncc9605_0271	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
266	 56.73	0	277936..278529	+	197	78211824	dcd	Syncc9605_0272	-	deoxycytidine triphosphate deaminase
267	 60.19	0	278537..279292	-	251	78211825	-	Syncc9605_0273	-	thymidylate synthase complementing protein ThyX
268	 60.59	0	279304..279879	-	191	78211826	-	Syncc9605_0274	-	thioredoxin-like protein TxlA
269	 57.74	0	279943..280446	+	167	78211827	-	Syncc9605_0275	-	hypothetical protein
270	 63.98	0	280351..282396	-	681	78211828	-	Syncc9605_0276	-	soluble lytic transglycosylase
271	 63.01	0	282550..283944	+	464	78211829	-	Syncc9605_0277	-	phosphoglucosamine mutase
272	 64.47	0	283931..284884	-	317	78211830	-	Syncc9605_0278	-	hypothetical protein
273	 62.57	0	284881..286197	-	438	78211831	-	Syncc9605_0279	-	bicarbonate transporter
274	 60.28	0	286207..286911	-	234	78211832	trmB	Syncc9605_0280	-	tRNA (guanine-N(7))-methyltransferase
275	 64.27	0	286936..288231	-	431	78211833	-	Syncc9605_0281	-	hypothetical protein
276	 63.56	0	288301..288912	+	203	78211834	-	Syncc9605_0282	-	hypothetical protein
277	 63.61	0	288912..289205	+	97	78211835	-	Syncc9605_0283	-	hypothetical protein
278	 63.93	0	289190..292114	-	974	78211836	ileS	Syncc9605_0284	-	isoleucyl-tRNA synthetase
279	 63.12	0	292142..292648	-	168	78211837	-	Syncc9605_0285	-	hypothetical protein
280	 60.10	0	292821..293870	+	349	78211838	-	Syncc9605_0286	-	beta-carotene hydroxylase
281	 61.22	0	293878..294171	-	97	78211839	gatC	Syncc9605_0287	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
282	 65.78	+1	294168..294956	-	262	78211840	-	Syncc9605_0288	-	hypothetical protein
283	 61.90	0	295000..295146	-	48	78211841	-	Syncc9605_0289	-	hypothetical protein
284	 59.36	0	295185..295841	-	218	78211842	-	Syncc9605_0290	-	hypothetical protein
285	 61.67	0	295906..296586	+	226	78211843	-	Syncc9605_0291	-	DNA-3-methyladenine glycosylase
286	 62.86	0	296583..297632	+	349	78211844	pyrB	Syncc9605_0292	-	aspartate carbamoyltransferase catalytic subunit
59.39	MEAN

6.29	STD DEV
