IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

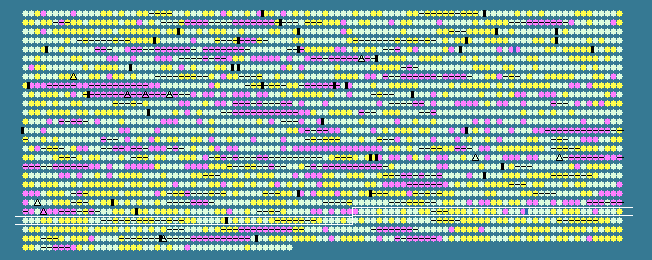

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2256	 45.98	-2	2104941..2105375	+	144	78213808	-	Syncc9605_2300	-	hypothetical protein
2257	 56.12	0	2105382..2105675	-	97	78213809	-	Syncc9605_2301	-	hypothetical protein
2258	 59.36	0	2105684..2109106	-	1140	78213810	-	Syncc9605_2302	-	hydrophobe/amphiphile efflux-1 HAE1
2259	 58.47	0	2109116..2110189	-	357	78213811	-	Syncc9605_2303	-	secretion protein HlyD
2260	 63.16	0	2110344..2112509	+	721	78213812	-	Syncc9605_2304	-	fused recombination factor protein RarA/unknown domain-containing protein
2261	 59.69	0	2112558..2113259	-	233	78213813	-	Syncc9605_2305	-	protein phosphatase 2C
2262	 58.59	0	2113744..2114040	-	98	78213814	-	Syncc9605_2306	-	hypothetical protein
2263	 56.20	0	2114094..2114561	+	155	78213815	-	Syncc9605_2307	-	putative bacterioferritin comigratory (BCP) protein
2264	 63.09	0	2114539..2115264	-	241	78213816	-	Syncc9605_2308	-	putative transcriptional regulators
2265	 60.64	0	2115265..2116011	-	248	78213817	-	Syncc9605_2309	-	phosphoadenosine phosphosulfate reductase
2266	 62.13	0	2116100..2117245	+	381	78213818	-	Syncc9605_2310	-	putative NADH dehydrogenase, transport associated
2267	 65.95	+1	2117242..2118918	+	558	78213819	-	Syncc9605_2311	-	putative GTP-binding protein, transporter associated
2268	 63.48	0	2118906..2120723	+	605	78213820	-	Syncc9605_2312	-	DASS family sodium/sulfate transporter
2269	 62.64	0	2120753..2122168	+	471	78213821	-	Syncc9605_2313	-	Trk family sodium transporter
2270	 63.97	0	2122193..2122897	+	234	78213822	-	Syncc9605_2314	-	VIC family potassium channel protein
2271	 67.54	+1	2122902..2124041	+	379	78213823	anmK	Syncc9605_2315	-	anhydro-N-acetylmuramic acid kinase
2272	 67.01	+1	2124038..2124331	-	97	78213824	-	Syncc9605_2316	-	hypothetical protein
2273	 67.00	+1	2124437..2124736	+	99	78213825	-	Syncc9605_2317	-	hypothetical protein
2274	 64.50	0	2124784..2125014	+	76	78213826	-	Syncc9605_2318	-	hypothetical protein
2275	 61.68	0	2125239..2126963	+	574	78213827	-	Syncc9605_2319	-	ATPase
2276	 64.58	0	2127278..2128333	-	351	78213828	-	Syncc9605_2320	-	PDZ/DHR/GLGF
2277	 62.50	0	2128859..2129242	+	127	78213829	-	Syncc9605_2321	-	hypothetical protein
2278	 65.19	0	2129466..2131970	+	834	78213830	-	Syncc9605_2322	-	ATP-dependent helicase HrpB
2279	 63.12	0	2132064..2132204	+	46	78213831	-	Syncc9605_2323	-	high light inducible protein
2280	 61.92	0	2132446..2133645	+	399	78213832	-	Syncc9605_2324	-	exodeoxyribonuclease VII large subunit
2281	 55.56	0	2133645..2133914	+	89	78213833	-	Syncc9605_2325	-	exodeoxyribonuclease VII small subunit
2282	 60.73	0	2133907..2134260	+	117	78213834	-	Syncc9605_2326	-	hypothetical protein
2283	 59.10	0	2134236..2134592	-	118	78213835	-	Syncc9605_2327	-	hypothetical protein
2284	 49.41	-1	2134640..2135572	-	310	78213836	-	Syncc9605_2328	-	serum resistance locus BrkB-like
2285	 58.59	0	2141664..2142455	-	263	78213837	-	Syncc9605_2329	-	inositol monophosphate family protein
2286	 56.81	0	2142461..2144245	-	594	78213838	-	Syncc9605_2330	-	RND family outer membrane efflux protein
2287	 61.37	0	2144270..2145667	-	465	78213839	-	Syncc9605_2331	-	Fe-S oxidoreductase
2288	 61.11	0	2145687..2146550	-	287	78213840	uppP	Syncc9605_2332	-	undecaprenyl pyrophosphate phosphatase
2289	 63.43	0	2146661..2147371	+	236	78213841	-	Syncc9605_2333	-	hypothetical protein
2290	 58.33	0	2147484..2147891	+	135	78213842	-	Syncc9605_2334	-	photosystem II complex extrinsic protein precursor U
2291	 66.00	+1	2147961..2149619	+	552	78213843	-	Syncc9605_2335	-	L-aspartate oxidase
2292	 63.44	0	2149633..2150562	-	309	78213844	-	Syncc9605_2336	-	thioredoxin domain-containing protein
2293	 63.83	0	2150648..2152024	+	458	78213845	-	Syncc9605_2337	-	hypothetical protein
2294	 60.00	0	2152021..2153250	+	409	78213846	-	Syncc9605_2338	-	putative multidrug efflux MFS transporter
2295	 62.66	0	2153352..2154575	+	407	78213847	-	Syncc9605_2339	-	putative multidrug efflux MFS transporter
2296	 54.84	0	2154568..2154660	-	30	109150031	petL	Syncc9605_2339a	-	cytochrome b6f complex subunit PetL
2297	 60.38	0	2154805..2156379	+	524	78213848	-	Syncc9605_2340	-	Elongator protein 3/MiaB/NifB
2298	 59.31	0	2156383..2156790	-	135	78213849	-	Syncc9605_2341	-	hypothetical protein
2299	 61.22	0	2156800..2157975	-	391	78213850	-	Syncc9605_2342	-	hypothetical protein
2300	 64.07	0	2158009..2158701	-	230	78213851	-	Syncc9605_2343	-	putative riboflavin-specific deaminase
2301	 62.87	0	2158713..2159633	-	306	78213852	-	Syncc9605_2344	-	6-pyruvoyltetrahydropterin synthase
2302	 62.50	0	2159661..2160260	+	199	78213853	aroK	Syncc9605_2345	-	shikimate kinase
2303	 59.85	0	2160263..2160526	-	87	78213854	-	Syncc9605_2346	-	hypothetical protein
2304	 63.94	0	2160543..2161202	+	219	78213855	-	Syncc9605_2347	-	hypothetical protein
2305	 62.89	0	2161168..2161908	-	246	78213856	-	Syncc9605_2348	-	putative glutathione S-transferase
2306	 61.84	0	2161953..2162159	+	68	78213857	-	Syncc9605_2349	-	hypothetical protein
2307	 63.12	0	2162159..2162581	+	140	78213858	-	Syncc9605_2350	-	ribosome-binding factor A
2308	 66.05	+1	2162562..2164178	+	538	78213859	-	Syncc9605_2351	-	putative beta-glucosidase
2309	 64.92	0	2164244..2165446	+	400	78213860	-	Syncc9605_2352	-	hypothetical protein
2310	 65.91	+1	2165443..2166240	+	265	78213861	-	Syncc9605_2353	-	uroporphyrinogen-III synthase
2311	 63.58	0	2166216..2166668	-	150	78213862	-	Syncc9605_2354	-	hypothetical protein
2312	 62.10	0	2166697..2167134	-	145	78213863	-	Syncc9605_2355	-	hypothetical protein
2313	 62.17	0	2167134..2168600	-	488	78213864	-	Syncc9605_2356	-	zeta-carotene desaturase
2314	 62.34	0	2168671..2169063	+	130	78213865	-	Syncc9605_2357	-	HesB/YadR/YfhF
2315	 61.47	0	2169110..2169532	+	140	78213866	-	Syncc9605_2358	-	hypothetical protein
2316	 64.70	0	2169751..2170920	+	389	78213867	-	Syncc9605_2359	-	hypothetical protein
2317	 62.27	0	2170917..2171189	+	90	78213868	-	Syncc9605_2360	-	hypothetical protein
2318	 63.33	0	2171137..2172066	-	309	78213869	-	Syncc9605_2361	-	hypothetical protein
2319	 62.75	0	2172149..2172403	+	84	78213870	-	Syncc9605_2362	-	hypothetical protein
2320	 66.23	+1	2172382..2174448	-	688	78213871	-	Syncc9605_2363	-	hypothetical protein
2321	 64.28	0	2174445..2175113	-	222	78213872	-	Syncc9605_2364	-	heat shock protein DnaJ-like
2322	 65.12	0	2175110..2176078	-	322	78213873	-	Syncc9605_2365	-	cysteine synthase
2323	 58.01	0	2176193..2177878	-	561	78213874	-	Syncc9605_2366	-	porin
2324	 58.15	0	2178101..2179603	-	500	78213875	-	Syncc9605_2367	-	porin
2325	 67.23	+1	2180036..2181631	+	531	78213876	-	Syncc9605_2368	-	hypothetical protein
2326	 62.42	0	2181655..2182785	+	376	78213877	-	Syncc9605_2369	-	putative glycosyl transferase
2327	 65.18	0	2182808..2184283	+	491	78213878	-	Syncc9605_2370	-	dolichyl-phosphate-mannose-protein mannosyltransferase
2328	 65.29	0	2184261..2185709	+	482	78213879	-	Syncc9605_2371	-	hypothetical protein
2329	 62.93	0	2185576..2187207	-	543	78213880	-	Syncc9605_2372	-	hypothetical protein
2330	 60.70	0	2187237..2188175	-	312	78213881	-	Syncc9605_2373	-	pectate lyase
2331	 59.70	0	2188341..2189000	+	219	78213882	-	Syncc9605_2374	-	hypothetical protein
2332	 60.42	0	2189051..2190106	-	351	78213883	-	Syncc9605_2375	-	photosystem II D2 protein (photosystem q(a) protein)
2333	 57.66	0	2190202..2190534	+	110	78213884	-	Syncc9605_2376	-	hypothetical protein
2334	 63.95	0	2190551..2191213	+	220	78213885	-	Syncc9605_2377	-	ATPase
2335	 61.85	0	2191584..2192372	+	262	78213886	-	Syncc9605_2378	-	two component transcriptional regulator
2336	 65.19	0	2192388..2193332	-	314	78213887	-	Syncc9605_2379	-	DNA polymerase III subunit delta'
2337	 61.27	0	2193329..2193958	-	209	78213888	-	Syncc9605_2380	-	thymidylate kinase
2338	 65.67	0	2193955..2196273	-	772	78213889	-	Syncc9605_2381	-	heavy metal translocating P-type ATPase
2339	 59.58	0	2196368..2196889	+	173	78213890	-	Syncc9605_2382	-	photosystem I assembly protein Ycf3
2340	 65.52	0	2196891..2198288	-	465	78213891	-	Syncc9605_2383	-	DNA repair protein RadA
2341	 60.90	0	2198346..2199125	+	259	78213892	-	Syncc9605_2384	-	two component transcriptional regulator
2342	 63.48	0	2199106..2200425	+	439	78213893	-	Syncc9605_2385	-	putative glycerol-3-phosphate acyltransferase PlsX
2343	 64.22	0	2200453..2201472	+	339	161353759	-	Syncc9605_2386	-	3-oxoacyl-(acyl carrier protein) synthase III
2344	 66.33	+1	2201501..2202397	+	298	78213895	-	Syncc9605_2387	-	malonyl CoA-acyl carrier protein transacylase
2345	 68.65	+1	2202394..2203047	+	217	78213896	-	Syncc9605_2388	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
2346	 67.53	+1	2203010..2203585	-	191	78213897	-	Syncc9605_2389	-	hypothetical protein
2347	 66.03	+1	2203585..2204208	-	207	78213898	-	Syncc9605_2390	-	hypothetical protein
2348	 62.30	0	2204205..2204456	-	83	78213899	-	Syncc9605_2391	-	hypothetical protein
2349	 65.91	+1	2204489..2205682	+	397	78213900	-	Syncc9605_2392	-	poly A polymerase family protein
2350	 62.96	0	2205744..2206175	+	143	78213901	-	Syncc9605_2393	-	RNA recognition motif-containing protein
2351	 61.83	0	2206247..2207155	-	302	78213902	-	Syncc9605_2394	-	phytoene synthase
2352	 59.27	0	2207159..2208577	-	472	78213903	-	Syncc9605_2395	-	zeta-carotene desaturase / three-step phytoene desaturase
2353	 60.15	0	2208615..2209013	+	132	78213904	-	Syncc9605_2396	-	NADH dehydrogenase I subunit M
2354	 65.57	0	2209010..2209645	+	211	78213905	-	Syncc9605_2397	-	hypothetical protein
2355	 62.22	0	2209636..2210625	-	329	78213906	-	Syncc9605_2398	-	putative Rubisco transcriptional regulator
59.39	MEAN

6.29	STD DEV
