IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

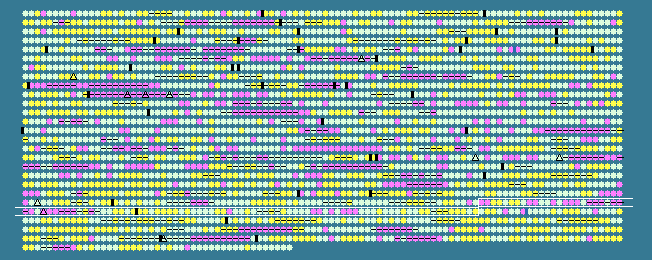

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2177	 42.63	-2	2025072..2025824	-	250	78213729	-	Syncc9605_2214	-	capsule polysaccharide protein KpsS-like
2178	 52.69	-1	2025856..2027808	-	650	78213730	-	Syncc9605_2215	-	capsule polysaccharide protein KpsS-like
2179	 66.15	+1	2027849..2029801	-	650	78213731	-	Syncc9605_2216	-	polysaccharide export protein
2180	 64.76	0	2029879..2030559	+	226	78213732	-	Syncc9605_2217	-	putative acylneuraminate cytidylyltransferase
2181	 61.31	0	2030586..2031893	+	435	78213733	-	Syncc9605_2218	-	hypothetical protein
2182	 63.56	0	2031890..2032918	+	342	78213734	-	Syncc9605_2219	-	hypothetical protein
2183	 63.11	0	2032915..2034234	+	439	78213735	-	Syncc9605_2220	-	hypothetical protein
2184	 60.76	0	2034274..2036559	+	761	78213736	-	Syncc9605_2221	-	N-acetylneuraminate synthase
2185	 54.23	0	2036742..2037473	+	243	78213737	-	Syncc9605_2222	-	hypothetical protein
2186	 52.51	-1	2037477..2038253	+	258	78213738	-	Syncc9605_2223	-	hypothetical protein
2187	 61.86	0	2038254..2038940	-	228	78213739	-	Syncc9605_2224	-	hypothetical protein
2188	 57.41	0	2039030..2039245	+	71	78213740	-	Syncc9605_2225	-	hypothetical protein
2189	 54.12	0	2039526..2040035	-	169	78213741	-	Syncc9605_2226	-	hypothetical protein
2190	 58.77	0	2040133..2040474	-	113	78213742	-	Syncc9605_2227	-	hypothetical protein
2191	 35.92	-2	2041159..2041584	+	141	78213743	-	Syncc9605_2228	-	hypothetical protein
2192	 51.37	-1	2042275..2042784	-	169	78213744	-	Syncc9605_2229	-	hypothetical protein
2193	 52.95	-1	2045128..2045856	+	242	78213745	-	Syncc9605_2230	-	hypothetical protein
2194	 59.84	0	2045981..2046346	-	121	78213746	-	Syncc9605_2231	-	hypothetical protein
2195	 46.62	-2	2046702..2047160	+	152	78213747	-	Syncc9605_2232	-	hypothetical protein
2196	 47.74	-1	2048779..2049021	+	80	78213748	-	Syncc9605_2235	-	hypothetical protein
2197	 43.64	-2	2049325..2049819	-	164	78213749	-	Syncc9605_2236	-	hypothetical protein
2198	 60.47	0	2050037..2050714	-	225	78213750	-	Syncc9605_2237	-	site-specific recombinase XerD-like
2199	 51.97	-1	2050892..2051170	+	92	78213751	-	Syncc9605_2238	-	hypothetical protein
2200	 38.69	-2	2051589..2052242	-	217	78213752	-	Syncc9605_2239	-	Outer membrane protein and related peptidoglycan-associated (lipo)proteins-like
2201	 42.81	-2	2052247..2052816	-	189	78213753	-	Syncc9605_2240	-	hypothetical protein
2202	 42.56	-2	2053101..2053718	+	205	78213754	-	Syncc9605_2241	-	hypothetical protein
2203	 61.05	0	2054833..2055117	+	94	78213755	-	Syncc9605_2242	-	hypothetical protein
2204	 55.72	0	2055286..2056500	+	404	78213756	-	Syncc9605_2243	-	phage integrase family protein
2205	 53.75	0	2056987..2057226	+	79	78213757	-	Syncc9605_2244	-	hypothetical protein
2206	 55.33	0	2057274..2059169	+	631	78213758	-	Syncc9605_2245	-	hypothetical protein
2207	 53.33	0	2059169..2060023	+	284	78213759	-	Syncc9605_2246	-	hypothetical protein
2208	 39.17	-2	2060302..2061621	+	439	78213760	-	Syncc9605_2247	-	demethylmenaquinone methyltransferase-like
2209	 38.06	-2	2061661..2062569	+	302	78213761	-	Syncc9605_2248	-	hypothetical protein
2210	 56.76	0	2062753..2063085	-	110	78213762	-	Syncc9605_2249	-	hypothetical protein
2211	 63.25	0	2063650..2064792	+	380	78213763	-	Syncc9605_2250	-	putative RNA methylase
2212	 46.48	-2	2064774..2065541	-	255	78213764	-	Syncc9605_2251	-	hypothetical protein
2213	 61.24	0	2065697..2066083	-	128	78213765	-	Syncc9605_2252	-	hypothetical protein
2214	 61.70	0	2066083..2066505	-	140	78213766	-	Syncc9605_2253	-	hypothetical protein
2215	 62.75	0	2066565..2066921	+	118	78213767	-	Syncc9605_2254	-	hypothetical protein
2216	 66.67	+1	2066972..2070580	+	1202	78213768	-	Syncc9605_2255	-	condensin subunit Smc
2217	 63.90	0	2070671..2071756	+	361	78213769	-	Syncc9605_2256	-	hypothetical protein
2218	 61.44	0	2071782..2072183	-	133	78213770	-	Syncc9605_2257	-	methionine sulfoxide reductase B
2219	 67.21	+1	2072212..2073495	-	427	78213771	-	Syncc9605_2258	-	hypothetical protein
2220	 63.18	0	2073706..2075052	+	448	78213772	-	Syncc9605_2259	-	acetyl-CoA carboxylase biotin carboxylase subunit
2221	 63.64	0	2075055..2075384	-	109	78213773	-	Syncc9605_2260	-	hypothetical protein
2222	 60.16	0	2075465..2075587	+	40	78213774	-	Syncc9605_2261	-	photosystem II PsbX protein
2223	 66.45	+1	2075637..2076569	+	310	78213775	-	Syncc9605_2262	-	hypothetical protein
2224	 68.55	+1	2076575..2077105	+	176	78213776	-	Syncc9605_2263	-	hypothetical protein
2225	 67.51	+1	2077102..2077578	+	158	78213777	-	Syncc9605_2264	-	hypothetical protein
2226	 64.68	0	2077579..2077779	-	66	78213778	-	Syncc9605_2265	-	high light inducible protein
2227	 58.88	0	2077789..2079765	-	658	78213779	-	Syncc9605_2266	-	ATPase
2228	 64.04	0	2079821..2080162	-	113	78213780	-	Syncc9605_2267	-	HIT (histidine triad) family protein
2229	 61.33	0	2081492..2081641	-	49	78213781	-	Syncc9605_2271	-	hypothetical protein
2230	 62.38	0	2081722..2082351	-	209	78213782	-	Syncc9605_2272	-	hypothetical protein
2231	 60.10	0	2082402..2082599	-	65	78213783	-	Syncc9605_2273	-	hypothetical protein
2232	 60.89	0	2082603..2083208	-	201	78213784	def	Syncc9605_2274	-	peptide deformylase
2233	 66.88	+1	2083258..2085165	+	635	78213785	-	Syncc9605_2275	-	putative peptidase
2234	 64.06	0	2085162..2086736	-	524	78213786	-	Syncc9605_2276	-	putative protease
2235	 55.76	0	2086902..2087231	+	109	78213787	-	Syncc9605_2277	-	large-conductive mechanosensitive channel
2236	 62.07	0	2087432..2087605	+	57	78213788	-	Syncc9605_2278	-	hypothetical protein
2237	 62.30	0	2087612..2088892	-	426	78213789	-	Syncc9605_2279	-	cysteine desulfurase
2238	 65.82	+1	2088889..2090067	-	392	78213790	-	Syncc9605_2280	-	Iron-regulated ABC transporter permease protein SufD
2239	 60.46	0	2090070..2090858	-	262	78213791	-	Syncc9605_2281	-	FeS assembly ATPase SufC
2240	 58.54	0	2090901..2092340	-	479	78213792	-	Syncc9605_2282	-	cysteine desulfurase activator complex subunit SufB
2241	 60.22	0	2092346..2092702	-	118	78213793	-	Syncc9605_2283	-	ferredoxin thioredoxin reductase, catalytic beta chain
2242	 69.46	+1	2092861..2093505	+	214	78213794	-	Syncc9605_2284	-	transcriptional regulator
2243	 62.54	0	2093505..2093843	+	112	78213795	-	Syncc9605_2285	-	hypothetical protein
2244	 62.96	0	2093924..2094517	+	197	78213796	-	Syncc9605_2286	-	hypothetical protein
2245	 58.05	0	2094608..2095396	+	262	78213797	-	Syncc9605_2287	-	phycobilisome rod-core linker polypeptide cpcG (L-RC 28.5)
2246	 61.55	0	2095581..2096654	+	357	78213798	-	Syncc9605_2288	-	hypothetical protein
2247	 61.35	0	2096645..2096851	+	68	78213799	-	Syncc9605_2289	-	hypothetical protein
2248	 59.14	0	2096891..2097169	+	92	78213800	-	Syncc9605_2290	-	hypothetical protein
2249	 45.62	-2	2098482..2100377	+	631	78213801	-	Syncc9605_2293	-	hypothetical protein
2250	 52.69	-1	2100474..2100974	+	166	78213802	-	Syncc9605_2294	-	hypothetical protein
2251	 57.26	0	2100989..2101105	-	38	78213803	-	Syncc9605_2295	-	hypothetical protein
2252	 51.28	-1	2101246..2101596	-	116	78213804	-	Syncc9605_2296	-	hypothetical protein
2253	 62.21	0	2101708..2103366	+	552	78213805	-	Syncc9605_2297	-	phosphoglucomutase
2254	 45.50	-2	2103540..2103983	+	147	78213806	-	Syncc9605_2298	-	hypothetical protein
2255	 48.93	-1	2104033..2104923	-	296	78213807	-	Syncc9605_2299	-	hypothetical protein
2256	 45.98	-2	2104941..2105375	+	144	78213808	-	Syncc9605_2300	-	hypothetical protein
2257	 56.12	0	2105382..2105675	-	97	78213809	-	Syncc9605_2301	-	hypothetical protein
2258	 59.36	0	2105684..2109106	-	1140	78213810	-	Syncc9605_2302	-	hydrophobe/amphiphile efflux-1 HAE1
2259	 58.47	0	2109116..2110189	-	357	78213811	-	Syncc9605_2303	-	secretion protein HlyD
2260	 63.16	0	2110344..2112509	+	721	78213812	-	Syncc9605_2304	-	fused recombination factor protein RarA/unknown domain-containing protein
2261	 59.69	0	2112558..2113259	-	233	78213813	-	Syncc9605_2305	-	protein phosphatase 2C
2262	 58.59	0	2113744..2114040	-	98	78213814	-	Syncc9605_2306	-	hypothetical protein
2263	 56.20	0	2114094..2114561	+	155	78213815	-	Syncc9605_2307	-	putative bacterioferritin comigratory (BCP) protein
2264	 63.09	0	2114539..2115264	-	241	78213816	-	Syncc9605_2308	-	putative transcriptional regulators
2265	 60.64	0	2115265..2116011	-	248	78213817	-	Syncc9605_2309	-	phosphoadenosine phosphosulfate reductase
2266	 62.13	0	2116100..2117245	+	381	78213818	-	Syncc9605_2310	-	putative NADH dehydrogenase, transport associated
2267	 65.95	+1	2117242..2118918	+	558	78213819	-	Syncc9605_2311	-	putative GTP-binding protein, transporter associated
2268	 63.48	0	2118906..2120723	+	605	78213820	-	Syncc9605_2312	-	DASS family sodium/sulfate transporter
2269	 62.64	0	2120753..2122168	+	471	78213821	-	Syncc9605_2313	-	Trk family sodium transporter
2270	 63.97	0	2122193..2122897	+	234	78213822	-	Syncc9605_2314	-	VIC family potassium channel protein
2271	 67.54	+1	2122902..2124041	+	379	78213823	anmK	Syncc9605_2315	-	anhydro-N-acetylmuramic acid kinase
2272	 67.01	+1	2124038..2124331	-	97	78213824	-	Syncc9605_2316	-	hypothetical protein
2273	 67.00	+1	2124437..2124736	+	99	78213825	-	Syncc9605_2317	-	hypothetical protein
2274	 64.50	0	2124784..2125014	+	76	78213826	-	Syncc9605_2318	-	hypothetical protein
2275	 61.68	0	2125239..2126963	+	574	78213827	-	Syncc9605_2319	-	ATPase
2276	 64.58	0	2127278..2128333	-	351	78213828	-	Syncc9605_2320	-	PDZ/DHR/GLGF
59.39	MEAN

6.29	STD DEV
