IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

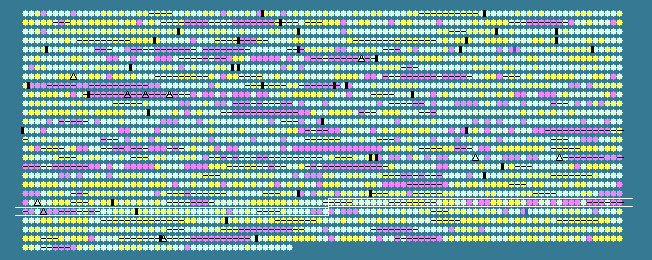

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2152	 57.38	0	2004470..2005018	-	182	78213704	-	Syncc9605_2189	-	F0F1 ATP synthase subunit delta
2153	 61.08	0	2005018..2005500	-	160	78213705	-	Syncc9605_2190	-	F0F1 ATP synthase subunit B
2154	 58.92	0	2005500..2005964	-	154	78213706	-	Syncc9605_2191	-	F0F1 ATP synthase subunit B'
2155	 67.07	+1	2006034..2006282	-	82	78213707	-	Syncc9605_2192	-	F0F1 ATP synthase subunit C
2156	 58.26	0	2006453..2007178	-	241	78213708	-	Syncc9605_2193	-	F0F1 ATP synthase subunit A
2157	 59.00	0	2007203..2007541	-	112	78213709	-	Syncc9605_2194	-	ATP synthase protein 1
2158	 62.84	0	2007588..2008790	-	400	78213710	-	Syncc9605_2195	-	hypothetical protein
2159	 61.21	0	2008904..2011855	+	983	78213711	-	Syncc9605_2196	-	anchor polypeptide LCM
2160	 61.73	0	2012265..2012750	+	161	78213712	-	Syncc9605_2197	-	allophycocyanin alpha chain
2161	 59.51	0	2012790..2013278	+	162	78213713	-	Syncc9605_2198	-	allophycocyanin, beta subunit
2162	 58.71	0	2013284..2013484	+	66	78213714	-	Syncc9605_2199	-	linker polypeptide, allophycocyanin-associated
2163	 61.46	0	2013541..2014347	-	268	78213715	-	Syncc9605_2200	-	hemolysin A
2164	 61.64	0	2014484..2014642	+	52	78213716	-	Syncc9605_2201	-	hypothetical protein
2165	 63.12	0	2014752..2015990	+	412	78213717	-	Syncc9605_2202	-	cell division protein FtsW
2166	 67.93	+1	2016045..2016758	+	237	78213718	-	Syncc9605_2203	-	putative c-type cytochrome biogenesis protein CcdA
2167	 66.67	+1	2016764..2018062	+	432	78213719	-	Syncc9605_2204	-	putative C-type cytochrome biogenesis protein Ccs1
2168	 61.03	0	2018050..2018439	-	129	78213720	-	Syncc9605_2205	-	7-cyano-7-deazaguanine reductase
2169	 58.70	0	2018565..2018903	+	112	78213721	-	Syncc9605_2206	-	nitrogen regulatory protein P-II
2170	 59.80	0	2018925..2019230	-	101	78213722	-	Syncc9605_2207	-	hypothetical protein
2171	 63.00	0	2019202..2019828	-	208	78213723	-	Syncc9605_2208	-	hypothetical protein
2172	 63.12	0	2019936..2021231	+	431	78213724	-	Syncc9605_2209	-	adenylosuccinate lyase
2173	 58.38	0	2021232..2022305	-	357	78213725	-	Syncc9605_2210	-	polysaccharide export outer membrane protein
2174	 58.57	0	2022570..2023508	+	312	78213726	-	Syncc9605_2211	-	hypothetical protein
2175	 55.44	0	2023554..2023838	+	94	78213727	-	Syncc9605_2212	-	acyl carrier protein
2176	 58.46	0	2023880..2025109	+	409	78213728	-	Syncc9605_2213	-	putative 3-oxoacyl-(acyl-carrier-protein) synthase I
2177	 42.63	-2	2025072..2025824	-	250	78213729	-	Syncc9605_2214	-	capsule polysaccharide protein KpsS-like
2178	 52.69	-1	2025856..2027808	-	650	78213730	-	Syncc9605_2215	-	capsule polysaccharide protein KpsS-like
2179	 66.15	+1	2027849..2029801	-	650	78213731	-	Syncc9605_2216	-	polysaccharide export protein
2180	 64.76	0	2029879..2030559	+	226	78213732	-	Syncc9605_2217	-	putative acylneuraminate cytidylyltransferase
2181	 61.31	0	2030586..2031893	+	435	78213733	-	Syncc9605_2218	-	hypothetical protein
2182	 63.56	0	2031890..2032918	+	342	78213734	-	Syncc9605_2219	-	hypothetical protein
2183	 63.11	0	2032915..2034234	+	439	78213735	-	Syncc9605_2220	-	hypothetical protein
2184	 60.76	0	2034274..2036559	+	761	78213736	-	Syncc9605_2221	-	N-acetylneuraminate synthase
2185	 54.23	0	2036742..2037473	+	243	78213737	-	Syncc9605_2222	-	hypothetical protein
2186	 52.51	-1	2037477..2038253	+	258	78213738	-	Syncc9605_2223	-	hypothetical protein
2187	 61.86	0	2038254..2038940	-	228	78213739	-	Syncc9605_2224	-	hypothetical protein
2188	 57.41	0	2039030..2039245	+	71	78213740	-	Syncc9605_2225	-	hypothetical protein
2189	 54.12	0	2039526..2040035	-	169	78213741	-	Syncc9605_2226	-	hypothetical protein
2190	 58.77	0	2040133..2040474	-	113	78213742	-	Syncc9605_2227	-	hypothetical protein
2191	 35.92	-2	2041159..2041584	+	141	78213743	-	Syncc9605_2228	-	hypothetical protein
2192	 51.37	-1	2042275..2042784	-	169	78213744	-	Syncc9605_2229	-	hypothetical protein
2193	 52.95	-1	2045128..2045856	+	242	78213745	-	Syncc9605_2230	-	hypothetical protein
2194	 59.84	0	2045981..2046346	-	121	78213746	-	Syncc9605_2231	-	hypothetical protein
2195	 46.62	-2	2046702..2047160	+	152	78213747	-	Syncc9605_2232	-	hypothetical protein
2196	 47.74	-1	2048779..2049021	+	80	78213748	-	Syncc9605_2235	-	hypothetical protein
2197	 43.64	-2	2049325..2049819	-	164	78213749	-	Syncc9605_2236	-	hypothetical protein
2198	 60.47	0	2050037..2050714	-	225	78213750	-	Syncc9605_2237	-	site-specific recombinase XerD-like
2199	 51.97	-1	2050892..2051170	+	92	78213751	-	Syncc9605_2238	-	hypothetical protein
2200	 38.69	-2	2051589..2052242	-	217	78213752	-	Syncc9605_2239	-	Outer membrane protein and related peptidoglycan-associated (lipo)proteins-like
2201	 42.81	-2	2052247..2052816	-	189	78213753	-	Syncc9605_2240	-	hypothetical protein
2202	 42.56	-2	2053101..2053718	+	205	78213754	-	Syncc9605_2241	-	hypothetical protein
2203	 61.05	0	2054833..2055117	+	94	78213755	-	Syncc9605_2242	-	hypothetical protein
2204	 55.72	0	2055286..2056500	+	404	78213756	-	Syncc9605_2243	-	phage integrase family protein
2205	 53.75	0	2056987..2057226	+	79	78213757	-	Syncc9605_2244	-	hypothetical protein
2206	 55.33	0	2057274..2059169	+	631	78213758	-	Syncc9605_2245	-	hypothetical protein
2207	 53.33	0	2059169..2060023	+	284	78213759	-	Syncc9605_2246	-	hypothetical protein
2208	 39.17	-2	2060302..2061621	+	439	78213760	-	Syncc9605_2247	-	demethylmenaquinone methyltransferase-like
2209	 38.06	-2	2061661..2062569	+	302	78213761	-	Syncc9605_2248	-	hypothetical protein
2210	 56.76	0	2062753..2063085	-	110	78213762	-	Syncc9605_2249	-	hypothetical protein
2211	 63.25	0	2063650..2064792	+	380	78213763	-	Syncc9605_2250	-	putative RNA methylase
2212	 46.48	-2	2064774..2065541	-	255	78213764	-	Syncc9605_2251	-	hypothetical protein
2213	 61.24	0	2065697..2066083	-	128	78213765	-	Syncc9605_2252	-	hypothetical protein
2214	 61.70	0	2066083..2066505	-	140	78213766	-	Syncc9605_2253	-	hypothetical protein
2215	 62.75	0	2066565..2066921	+	118	78213767	-	Syncc9605_2254	-	hypothetical protein
2216	 66.67	+1	2066972..2070580	+	1202	78213768	-	Syncc9605_2255	-	condensin subunit Smc
2217	 63.90	0	2070671..2071756	+	361	78213769	-	Syncc9605_2256	-	hypothetical protein
2218	 61.44	0	2071782..2072183	-	133	78213770	-	Syncc9605_2257	-	methionine sulfoxide reductase B
2219	 67.21	+1	2072212..2073495	-	427	78213771	-	Syncc9605_2258	-	hypothetical protein
2220	 63.18	0	2073706..2075052	+	448	78213772	-	Syncc9605_2259	-	acetyl-CoA carboxylase biotin carboxylase subunit
2221	 63.64	0	2075055..2075384	-	109	78213773	-	Syncc9605_2260	-	hypothetical protein
2222	 60.16	0	2075465..2075587	+	40	78213774	-	Syncc9605_2261	-	photosystem II PsbX protein
2223	 66.45	+1	2075637..2076569	+	310	78213775	-	Syncc9605_2262	-	hypothetical protein
2224	 68.55	+1	2076575..2077105	+	176	78213776	-	Syncc9605_2263	-	hypothetical protein
2225	 67.51	+1	2077102..2077578	+	158	78213777	-	Syncc9605_2264	-	hypothetical protein
2226	 64.68	0	2077579..2077779	-	66	78213778	-	Syncc9605_2265	-	high light inducible protein
2227	 58.88	0	2077789..2079765	-	658	78213779	-	Syncc9605_2266	-	ATPase
2228	 64.04	0	2079821..2080162	-	113	78213780	-	Syncc9605_2267	-	HIT (histidine triad) family protein
2229	 61.33	0	2081492..2081641	-	49	78213781	-	Syncc9605_2271	-	hypothetical protein
2230	 62.38	0	2081722..2082351	-	209	78213782	-	Syncc9605_2272	-	hypothetical protein
2231	 60.10	0	2082402..2082599	-	65	78213783	-	Syncc9605_2273	-	hypothetical protein
2232	 60.89	0	2082603..2083208	-	201	78213784	def	Syncc9605_2274	-	peptide deformylase
2233	 66.88	+1	2083258..2085165	+	635	78213785	-	Syncc9605_2275	-	putative peptidase
2234	 64.06	0	2085162..2086736	-	524	78213786	-	Syncc9605_2276	-	putative protease
2235	 55.76	0	2086902..2087231	+	109	78213787	-	Syncc9605_2277	-	large-conductive mechanosensitive channel
2236	 62.07	0	2087432..2087605	+	57	78213788	-	Syncc9605_2278	-	hypothetical protein
2237	 62.30	0	2087612..2088892	-	426	78213789	-	Syncc9605_2279	-	cysteine desulfurase
2238	 65.82	+1	2088889..2090067	-	392	78213790	-	Syncc9605_2280	-	Iron-regulated ABC transporter permease protein SufD
2239	 60.46	0	2090070..2090858	-	262	78213791	-	Syncc9605_2281	-	FeS assembly ATPase SufC
2240	 58.54	0	2090901..2092340	-	479	78213792	-	Syncc9605_2282	-	cysteine desulfurase activator complex subunit SufB
2241	 60.22	0	2092346..2092702	-	118	78213793	-	Syncc9605_2283	-	ferredoxin thioredoxin reductase, catalytic beta chain
2242	 69.46	+1	2092861..2093505	+	214	78213794	-	Syncc9605_2284	-	transcriptional regulator
2243	 62.54	0	2093505..2093843	+	112	78213795	-	Syncc9605_2285	-	hypothetical protein
2244	 62.96	0	2093924..2094517	+	197	78213796	-	Syncc9605_2286	-	hypothetical protein
2245	 58.05	0	2094608..2095396	+	262	78213797	-	Syncc9605_2287	-	phycobilisome rod-core linker polypeptide cpcG (L-RC 28.5)
2246	 61.55	0	2095581..2096654	+	357	78213798	-	Syncc9605_2288	-	hypothetical protein
2247	 61.35	0	2096645..2096851	+	68	78213799	-	Syncc9605_2289	-	hypothetical protein
2248	 59.14	0	2096891..2097169	+	92	78213800	-	Syncc9605_2290	-	hypothetical protein
2249	 45.62	-2	2098482..2100377	+	631	78213801	-	Syncc9605_2293	-	hypothetical protein
2250	 52.69	-1	2100474..2100974	+	166	78213802	-	Syncc9605_2294	-	hypothetical protein
2251	 57.26	0	2100989..2101105	-	38	78213803	-	Syncc9605_2295	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
