IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

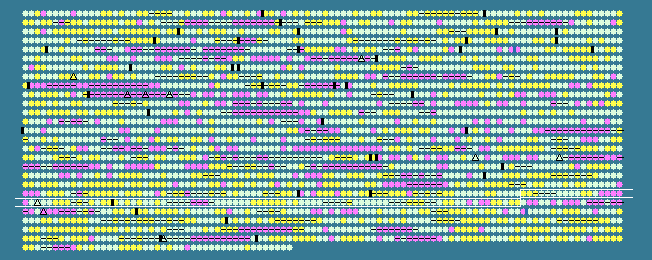

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2084	 64.25	0	1942875..1943783	-	302	78213636	-	Syncc9605_2121	-	hypothetical protein
2085	 67.97	+1	1943842..1945149	+	435	78213637	-	Syncc9605_2122	-	phosphoribosylamine--glycine ligase
2086	 63.23	0	1945146..1947212	+	688	78213638	-	Syncc9605_2123	-	multi-sensor signal transduction histidine kinase
2087	 60.10	0	1947214..1948752	-	512	78213639	-	Syncc9605_2124	-	circadian clock protein KaiC
2088	 56.83	0	1948818..1949183	-	121	78213640	-	Syncc9605_2125	-	circadian clock protein KaiB
2089	 60.68	0	1949180..1950064	-	294	78213641	-	Syncc9605_2126	-	circadian clock protein KaiA
2090	 59.29	0	1950197..1950562	+	121	78213642	rplU	Syncc9605_2127	-	50S ribosomal protein L21
2091	 60.30	0	1950607..1950873	+	88	78213643	rpmA	Syncc9605_2128	-	50S ribosomal protein L27
2092	 58.84	0	1950911..1951357	-	148	78213644	-	Syncc9605_2129	-	hypothetical protein
2093	 62.75	0	1951365..1952129	-	254	78213645	-	Syncc9605_2130	-	hypothetical protein
2094	 67.72	+1	1952132..1953079	+	315	78213646	-	Syncc9605_2131	-	tRNA pseudouridine synthase B
2095	 64.32	0	1953066..1953875	+	269	78213647	-	Syncc9605_2132	-	hypothetical protein
2096	 57.89	0	1954045..1954329	+	94	78213648	-	Syncc9605_2133	-	hypothetical protein
2097	 47.84	-1	1954331..1954654	-	107	78213649	-	Syncc9605_2134	-	hypothetical protein
2098	 49.65	-1	1954730..1955158	+	142	78213650	-	Syncc9605_2135	-	hypothetical protein
2099	 40.02	-2	1956203..1957519	-	438	78213651	-	Syncc9605_2136	-	hypothetical protein
2100	 51.39	-1	1957990..1958205	-	71	78213652	-	Syncc9605_2137	-	hypothetical protein
2101	 55.28	0	1958358..1958717	-	119	78213653	-	Syncc9605_2138	-	hypothetical protein
2102	 56.92	0	1958723..1960651	-	642	78213654	-	Syncc9605_2139	-	ATPase-like protein
2103	 58.42	0	1961621..1961923	-	100	78213655	-	Syncc9605_2140	-	phage integrase family protein
2104	 57.31	0	1962218..1962388	+	56	78213656	-	Syncc9605_2141	-	hypothetical protein
2105	 61.74	0	1962416..1962679	-	87	78213657	-	Syncc9605_2142	-	hypothetical protein
2106	 64.28	0	1962699..1963409	-	236	78213658	-	Syncc9605_2143	-	glucosamine-6-phosphate deaminase
2107	 67.34	+1	1963426..1964913	-	495	78213659	-	Syncc9605_2144	-	stage II sporulation protein D-like
2108	 64.90	0	1964919..1965878	+	319	78213660	-	Syncc9605_2145	-	RNAse Z
2109	 60.61	0	1965904..1966464	+	186	78213661	-	Syncc9605_2146	-	cytochrome c-550
2110	 63.27	0	1966479..1966979	-	166	78213662	-	Syncc9605_2147	-	hypothetical protein
2111	 60.00	0	1967001..1967300	-	99	78213663	-	Syncc9605_2148	-	ferredoxin (2Fe-2S)
2112	 66.89	+1	1967456..1968343	-	295	78213664	-	Syncc9605_2149	-	50S ribosomal protein L11P methyltransferase
2113	 62.76	0	1968343..1969929	-	528	78213665	-	Syncc9605_2150	-	D-3-phosphoglycerate dehydrogenase
2114	 65.07	0	1970037..1970537	+	166	78213666	-	Syncc9605_2151	-	hypothetical protein
2115	 64.86	0	1970537..1971313	+	258	78213667	-	Syncc9605_2152	-	RNA-binding S4
2116	 64.21	0	1971501..1972886	+	461	78213668	murD	Syncc9605_2153	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
2117	 59.06	0	1972972..1973418	+	148	78213669	-	Syncc9605_2154	-	hypothetical protein
2118	 65.18	0	1973393..1974130	+	245	78213670	-	Syncc9605_2155	-	hypothetical protein
2119	 58.13	0	1974082..1974327	-	81	78213671	-	Syncc9605_2156	-	hypothetical protein
2120	 63.44	0	1974641..1975012	-	123	78213672	-	Syncc9605_2157	-	hypothetical protein
2121	 58.33	0	1975022..1975249	-	75	78213673	-	Syncc9605_2158	-	DNA-directed RNA polymerase subunit omega
2122	 61.75	0	1975292..1975576	-	94	78213674	-	Syncc9605_2159	-	hypothetical protein
2123	 66.29	+1	1975639..1977213	+	524	78213675	-	Syncc9605_2160	-	HSP70 family molecular chaperone
2124	 62.53	0	1977301..1978146	+	281	78213676	-	Syncc9605_2161	-	hypothetical protein
2125	 58.75	0	1978159..1978398	+	79	78213677	-	Syncc9605_2162	-	putative ferredoxin-thioredoxin reductase, variable chain
2126	 59.78	0	1978382..1978933	-	183	78213678	-	Syncc9605_2163	-	pyrimidine regulatory protein PyrR
2127	 59.40	0	1979042..1980679	+	545	78213679	-	Syncc9605_2164	-	phosphoglyceromutase
2128	 56.28	0	1980679..1980909	+	76	78213680	secG	Syncc9605_2165	-	preprotein translocase subunit SecG
2129	 41.54	-2	1981647..1982816	+	389	78213681	-	Syncc9605_2166	-	hypothetical protein
2130	 37.77	-2	1983034..1984452	+	472	78213682	-	Syncc9605_2167	-	hypothetical protein
2131	 49.00	-1	1984512..1984862	-	116	78213683	-	Syncc9605_2168	-	hypothetical protein
2132	 61.53	0	1985081..1986715	-	544	78213684	groEL	Syncc9605_2169	-	chaperonin GroEL
2133	 60.26	0	1986793..1987104	-	103	78213685	groES	Syncc9605_2170	-	co-chaperonin GroES
2134	 62.57	0	1987327..1988790	+	487	78213686	-	Syncc9605_2171	-	F0F1 ATP synthase subunit beta
2135	 59.61	0	1988865..1989275	+	136	78213687	atpC	Syncc9605_2172	-	F0F1 ATP synthase subunit epsilon
2136	 62.79	0	1989444..1989959	-	171	78213688	-	Syncc9605_2173	-	hypothetical protein
2137	 61.23	0	1990062..1990760	+	232	78213689	-	Syncc9605_2174	-	HAD family hydrolase
2138	 60.57	0	1990765..1991913	+	382	78213690	-	Syncc9605_2175	-	CaCA family calcium/proton exchanger
2139	 65.42	0	1991910..1993190	-	426	78213691	-	Syncc9605_2176	-	aminopeptidase P
2140	 66.67	+1	1993326..1994324	+	332	78213692	-	Syncc9605_2177	-	hypothetical protein
2141	 67.67	+1	1994321..1995616	+	431	78213693	-	Syncc9605_2178	-	small GTP-binding protein domain-containing protein
2142	 64.60	0	1995618..1996199	+	193	78213694	nadD	Syncc9605_2179	-	nicotinic acid mononucleotide adenylyltransferase
2143	 65.01	0	1996199..1997884	+	561	78213695	-	Syncc9605_2180	-	NH(3)-dependent NAD(+) synthetase
2144	 67.98	+1	1997957..1999096	+	379	78213696	-	Syncc9605_2181	-	L-alanine dehydrogenase
2145	 62.70	0	1999093..1999521	-	142	78213697	-	Syncc9605_2182	-	hypothetical protein
2146	 65.99	+1	1999521..2000558	-	345	78213698	-	Syncc9605_2183	-	hypothetical protein
2147	 60.75	0	2000570..2000755	-	61	78213699	-	Syncc9605_2184	-	hypothetical protein
2148	 60.91	0	2000752..2001081	-	109	78213700	-	Syncc9605_2185	-	ferredoxin (2Fe-2S)
2149	 60.40	0	2001114..2001863	-	249	78213701	-	Syncc9605_2186	-	hypothetical protein
2150	 58.68	0	2001928..2002878	-	316	78213702	-	Syncc9605_2187	-	F0F1 ATP synthase subunit gamma
2151	 61.01	0	2002892..2004412	-	506	78213703	-	Syncc9605_2188	-	F0F1 ATP synthase subunit alpha
2152	 57.38	0	2004470..2005018	-	182	78213704	-	Syncc9605_2189	-	F0F1 ATP synthase subunit delta
2153	 61.08	0	2005018..2005500	-	160	78213705	-	Syncc9605_2190	-	F0F1 ATP synthase subunit B
2154	 58.92	0	2005500..2005964	-	154	78213706	-	Syncc9605_2191	-	F0F1 ATP synthase subunit B'
2155	 67.07	+1	2006034..2006282	-	82	78213707	-	Syncc9605_2192	-	F0F1 ATP synthase subunit C
2156	 58.26	0	2006453..2007178	-	241	78213708	-	Syncc9605_2193	-	F0F1 ATP synthase subunit A
2157	 59.00	0	2007203..2007541	-	112	78213709	-	Syncc9605_2194	-	ATP synthase protein 1
2158	 62.84	0	2007588..2008790	-	400	78213710	-	Syncc9605_2195	-	hypothetical protein
2159	 61.21	0	2008904..2011855	+	983	78213711	-	Syncc9605_2196	-	anchor polypeptide LCM
2160	 61.73	0	2012265..2012750	+	161	78213712	-	Syncc9605_2197	-	allophycocyanin alpha chain
2161	 59.51	0	2012790..2013278	+	162	78213713	-	Syncc9605_2198	-	allophycocyanin, beta subunit
2162	 58.71	0	2013284..2013484	+	66	78213714	-	Syncc9605_2199	-	linker polypeptide, allophycocyanin-associated
2163	 61.46	0	2013541..2014347	-	268	78213715	-	Syncc9605_2200	-	hemolysin A
2164	 61.64	0	2014484..2014642	+	52	78213716	-	Syncc9605_2201	-	hypothetical protein
2165	 63.12	0	2014752..2015990	+	412	78213717	-	Syncc9605_2202	-	cell division protein FtsW
2166	 67.93	+1	2016045..2016758	+	237	78213718	-	Syncc9605_2203	-	putative c-type cytochrome biogenesis protein CcdA
2167	 66.67	+1	2016764..2018062	+	432	78213719	-	Syncc9605_2204	-	putative C-type cytochrome biogenesis protein Ccs1
2168	 61.03	0	2018050..2018439	-	129	78213720	-	Syncc9605_2205	-	7-cyano-7-deazaguanine reductase
2169	 58.70	0	2018565..2018903	+	112	78213721	-	Syncc9605_2206	-	nitrogen regulatory protein P-II
2170	 59.80	0	2018925..2019230	-	101	78213722	-	Syncc9605_2207	-	hypothetical protein
2171	 63.00	0	2019202..2019828	-	208	78213723	-	Syncc9605_2208	-	hypothetical protein
2172	 63.12	0	2019936..2021231	+	431	78213724	-	Syncc9605_2209	-	adenylosuccinate lyase
2173	 58.38	0	2021232..2022305	-	357	78213725	-	Syncc9605_2210	-	polysaccharide export outer membrane protein
2174	 58.57	0	2022570..2023508	+	312	78213726	-	Syncc9605_2211	-	hypothetical protein
2175	 55.44	0	2023554..2023838	+	94	78213727	-	Syncc9605_2212	-	acyl carrier protein
2176	 58.46	0	2023880..2025109	+	409	78213728	-	Syncc9605_2213	-	putative 3-oxoacyl-(acyl-carrier-protein) synthase I
2177	 42.63	-2	2025072..2025824	-	250	78213729	-	Syncc9605_2214	-	capsule polysaccharide protein KpsS-like
2178	 52.69	-1	2025856..2027808	-	650	78213730	-	Syncc9605_2215	-	capsule polysaccharide protein KpsS-like
2179	 66.15	+1	2027849..2029801	-	650	78213731	-	Syncc9605_2216	-	polysaccharide export protein
2180	 64.76	0	2029879..2030559	+	226	78213732	-	Syncc9605_2217	-	putative acylneuraminate cytidylyltransferase
2181	 61.31	0	2030586..2031893	+	435	78213733	-	Syncc9605_2218	-	hypothetical protein
2182	 63.56	0	2031890..2032918	+	342	78213734	-	Syncc9605_2219	-	hypothetical protein
2183	 63.11	0	2032915..2034234	+	439	78213735	-	Syncc9605_2220	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
