IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

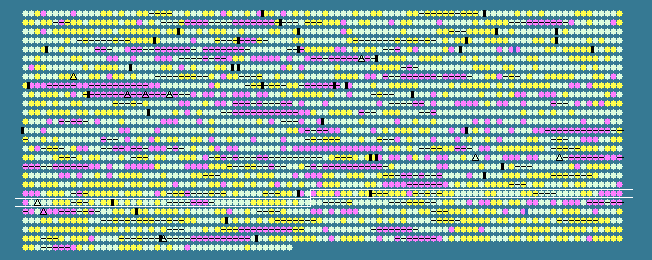

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2049	 54.21	0	1909238..1910128	-	296	78213601	-	Syncc9605_2085	-	hypothetical protein
2050	 64.43	0	1910420..1911046	+	208	78213602	-	Syncc9605_2086	-	succinate dehydrogenase subunit C
2051	 64.74	0	1911043..1912962	+	639	78213603	sdhA	Syncc9605_2087	-	succinate dehydrogenase flavoprotein subunit
2052	 66.94	+1	1912959..1913687	+	242	78213604	-	Syncc9605_2088	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
2053	 50.90	-1	1913989..1914768	+	259	78213605	-	Syncc9605_2089	-	SPFH domain-containing protein/band 7 family protein
2054	 65.52	0	1914778..1915125	-	115	78213606	-	Syncc9605_2090	-	hypothetical protein
2055	 64.06	0	1915523..1916404	-	293	78213607	-	Syncc9605_2091	-	glutamyl-tRNA synthetase-like
2056	 57.61	0	1916472..1916747	-	91	78213608	-	Syncc9605_2092	-	nucleoid protein Hbs
2057	 64.24	0	1916881..1917540	-	219	78213609	-	Syncc9605_2093	-	hypothetical protein
2058	 64.10	0	1917582..1919687	+	701	78213610	-	Syncc9605_2094	-	alpha amylase domain-containing protein
2059	 66.82	+1	1919894..1921222	+	442	78213611	-	Syncc9605_2095	-	GPH family sugar transporter
2060	 65.47	0	1921219..1921968	+	249	78213612	-	Syncc9605_2096	-	hypothetical protein
2061	 63.62	0	1921965..1922390	+	141	78213613	-	Syncc9605_2097	-	hypothetical protein
2062	 68.92	+1	1922498..1923517	+	339	78213614	-	Syncc9605_2098	-	hypothetical protein
2063	 65.69	+1	1923514..1924125	+	203	78213615	-	Syncc9605_2099	-	acyl-phosphate glycerol-3-phosphate acyltransferase
2064	 68.32	+1	1924176..1924901	-	241	78213616	-	Syncc9605_2100	-	orotidine-5'-phosphate decarboxylase
2065	 50.79	-1	1924961..1925974	-	337	78213617	-	Syncc9605_2101	-	aminoglycoside phosphotransferase-like
2066	 65.38	0	1926025..1927272	-	415	78213618	-	Syncc9605_2102	-	tyrosyl-tRNA synthetase
2067	 57.58	0	1927333..1927662	-	109	78213619	-	Syncc9605_2103	-	hypothetical protein
2068	 65.53	0	1927864..1928565	+	233	78213620	-	Syncc9605_2104	-	two component LuxR family transcriptional regulator
2069	 59.37	0	1928609..1928923	+	104	78213621	-	Syncc9605_2105	-	hypothetical protein
2070	 68.77	+1	1928971..1929540	+	189	78213622	-	Syncc9605_2106	-	hypothetical protein
2071	 67.19	+1	1929540..1930112	+	190	78213623	-	Syncc9605_2107	-	hypothetical protein
2072	 66.05	+1	1930168..1931637	+	489	78213624	-	Syncc9605_2108	-	leucyl aminopeptidase
2073	 62.45	0	1931634..1931870	+	78	78213625	-	Syncc9605_2109	-	hypothetical protein
2074	 59.11	0	1932417..1932641	-	74	78213626	-	Syncc9605_2110	-	hypothetical protein
2075	 59.74	0	1932666..1932896	-	76	78213627	-	Syncc9605_2111	-	hypothetical protein
2076	 58.58	0	1932991..1933398	-	135	78213628	-	Syncc9605_2112	-	hypothetical protein
2077	 61.90	0	1935984..1936613	-	209	78213629	-	Syncc9605_2114	-	peptide methionine sulfoxide reductase
2078	 66.16	+1	1936610..1937791	-	393	78213630	lpxB	Syncc9605_2115	-	lipid-A-disaccharide synthase
2079	 64.48	0	1937791..1938615	-	274	78213631	-	Syncc9605_2116	-	UDP-N-acetylglucosamine acyltransferase
2080	 61.84	0	1938621..1939076	-	151	78213632	fabZ	Syncc9605_2117	-	(3R)-hydroxymyristoyl-ACP dehydratase
2081	 62.56	0	1939073..1939900	-	275	78213633	lpxC	Syncc9605_2118	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
2082	 58.53	0	1939900..1942110	-	736	78213634	-	Syncc9605_2119	-	outer envelope membrane protein-like
2083	 60.16	0	1942126..1942878	-	250	78213635	-	Syncc9605_2120	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2084	 64.25	0	1942875..1943783	-	302	78213636	-	Syncc9605_2121	-	hypothetical protein
2085	 67.97	+1	1943842..1945149	+	435	78213637	-	Syncc9605_2122	-	phosphoribosylamine--glycine ligase
2086	 63.23	0	1945146..1947212	+	688	78213638	-	Syncc9605_2123	-	multi-sensor signal transduction histidine kinase
2087	 60.10	0	1947214..1948752	-	512	78213639	-	Syncc9605_2124	-	circadian clock protein KaiC
2088	 56.83	0	1948818..1949183	-	121	78213640	-	Syncc9605_2125	-	circadian clock protein KaiB
2089	 60.68	0	1949180..1950064	-	294	78213641	-	Syncc9605_2126	-	circadian clock protein KaiA
2090	 59.29	0	1950197..1950562	+	121	78213642	rplU	Syncc9605_2127	-	50S ribosomal protein L21
2091	 60.30	0	1950607..1950873	+	88	78213643	rpmA	Syncc9605_2128	-	50S ribosomal protein L27
2092	 58.84	0	1950911..1951357	-	148	78213644	-	Syncc9605_2129	-	hypothetical protein
2093	 62.75	0	1951365..1952129	-	254	78213645	-	Syncc9605_2130	-	hypothetical protein
2094	 67.72	+1	1952132..1953079	+	315	78213646	-	Syncc9605_2131	-	tRNA pseudouridine synthase B
2095	 64.32	0	1953066..1953875	+	269	78213647	-	Syncc9605_2132	-	hypothetical protein
2096	 57.89	0	1954045..1954329	+	94	78213648	-	Syncc9605_2133	-	hypothetical protein
2097	 47.84	-1	1954331..1954654	-	107	78213649	-	Syncc9605_2134	-	hypothetical protein
2098	 49.65	-1	1954730..1955158	+	142	78213650	-	Syncc9605_2135	-	hypothetical protein
2099	 40.02	-2	1956203..1957519	-	438	78213651	-	Syncc9605_2136	-	hypothetical protein
2100	 51.39	-1	1957990..1958205	-	71	78213652	-	Syncc9605_2137	-	hypothetical protein
2101	 55.28	0	1958358..1958717	-	119	78213653	-	Syncc9605_2138	-	hypothetical protein
2102	 56.92	0	1958723..1960651	-	642	78213654	-	Syncc9605_2139	-	ATPase-like protein
2103	 58.42	0	1961621..1961923	-	100	78213655	-	Syncc9605_2140	-	phage integrase family protein
2104	 57.31	0	1962218..1962388	+	56	78213656	-	Syncc9605_2141	-	hypothetical protein
2105	 61.74	0	1962416..1962679	-	87	78213657	-	Syncc9605_2142	-	hypothetical protein
2106	 64.28	0	1962699..1963409	-	236	78213658	-	Syncc9605_2143	-	glucosamine-6-phosphate deaminase
2107	 67.34	+1	1963426..1964913	-	495	78213659	-	Syncc9605_2144	-	stage II sporulation protein D-like
2108	 64.90	0	1964919..1965878	+	319	78213660	-	Syncc9605_2145	-	RNAse Z
2109	 60.61	0	1965904..1966464	+	186	78213661	-	Syncc9605_2146	-	cytochrome c-550
2110	 63.27	0	1966479..1966979	-	166	78213662	-	Syncc9605_2147	-	hypothetical protein
2111	 60.00	0	1967001..1967300	-	99	78213663	-	Syncc9605_2148	-	ferredoxin (2Fe-2S)
2112	 66.89	+1	1967456..1968343	-	295	78213664	-	Syncc9605_2149	-	50S ribosomal protein L11P methyltransferase
2113	 62.76	0	1968343..1969929	-	528	78213665	-	Syncc9605_2150	-	D-3-phosphoglycerate dehydrogenase
2114	 65.07	0	1970037..1970537	+	166	78213666	-	Syncc9605_2151	-	hypothetical protein
2115	 64.86	0	1970537..1971313	+	258	78213667	-	Syncc9605_2152	-	RNA-binding S4
2116	 64.21	0	1971501..1972886	+	461	78213668	murD	Syncc9605_2153	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
2117	 59.06	0	1972972..1973418	+	148	78213669	-	Syncc9605_2154	-	hypothetical protein
2118	 65.18	0	1973393..1974130	+	245	78213670	-	Syncc9605_2155	-	hypothetical protein
2119	 58.13	0	1974082..1974327	-	81	78213671	-	Syncc9605_2156	-	hypothetical protein
2120	 63.44	0	1974641..1975012	-	123	78213672	-	Syncc9605_2157	-	hypothetical protein
2121	 58.33	0	1975022..1975249	-	75	78213673	-	Syncc9605_2158	-	DNA-directed RNA polymerase subunit omega
2122	 61.75	0	1975292..1975576	-	94	78213674	-	Syncc9605_2159	-	hypothetical protein
2123	 66.29	+1	1975639..1977213	+	524	78213675	-	Syncc9605_2160	-	HSP70 family molecular chaperone
2124	 62.53	0	1977301..1978146	+	281	78213676	-	Syncc9605_2161	-	hypothetical protein
2125	 58.75	0	1978159..1978398	+	79	78213677	-	Syncc9605_2162	-	putative ferredoxin-thioredoxin reductase, variable chain
2126	 59.78	0	1978382..1978933	-	183	78213678	-	Syncc9605_2163	-	pyrimidine regulatory protein PyrR
2127	 59.40	0	1979042..1980679	+	545	78213679	-	Syncc9605_2164	-	phosphoglyceromutase
2128	 56.28	0	1980679..1980909	+	76	78213680	secG	Syncc9605_2165	-	preprotein translocase subunit SecG
2129	 41.54	-2	1981647..1982816	+	389	78213681	-	Syncc9605_2166	-	hypothetical protein
2130	 37.77	-2	1983034..1984452	+	472	78213682	-	Syncc9605_2167	-	hypothetical protein
2131	 49.00	-1	1984512..1984862	-	116	78213683	-	Syncc9605_2168	-	hypothetical protein
2132	 61.53	0	1985081..1986715	-	544	78213684	groEL	Syncc9605_2169	-	chaperonin GroEL
2133	 60.26	0	1986793..1987104	-	103	78213685	groES	Syncc9605_2170	-	co-chaperonin GroES
2134	 62.57	0	1987327..1988790	+	487	78213686	-	Syncc9605_2171	-	F0F1 ATP synthase subunit beta
2135	 59.61	0	1988865..1989275	+	136	78213687	atpC	Syncc9605_2172	-	F0F1 ATP synthase subunit epsilon
2136	 62.79	0	1989444..1989959	-	171	78213688	-	Syncc9605_2173	-	hypothetical protein
2137	 61.23	0	1990062..1990760	+	232	78213689	-	Syncc9605_2174	-	HAD family hydrolase
2138	 60.57	0	1990765..1991913	+	382	78213690	-	Syncc9605_2175	-	CaCA family calcium/proton exchanger
2139	 65.42	0	1991910..1993190	-	426	78213691	-	Syncc9605_2176	-	aminopeptidase P
2140	 66.67	+1	1993326..1994324	+	332	78213692	-	Syncc9605_2177	-	hypothetical protein
2141	 67.67	+1	1994321..1995616	+	431	78213693	-	Syncc9605_2178	-	small GTP-binding protein domain-containing protein
2142	 64.60	0	1995618..1996199	+	193	78213694	nadD	Syncc9605_2179	-	nicotinic acid mononucleotide adenylyltransferase
2143	 65.01	0	1996199..1997884	+	561	78213695	-	Syncc9605_2180	-	NH(3)-dependent NAD(+) synthetase
2144	 67.98	+1	1997957..1999096	+	379	78213696	-	Syncc9605_2181	-	L-alanine dehydrogenase
2145	 62.70	0	1999093..1999521	-	142	78213697	-	Syncc9605_2182	-	hypothetical protein
2146	 65.99	+1	1999521..2000558	-	345	78213698	-	Syncc9605_2183	-	hypothetical protein
2147	 60.75	0	2000570..2000755	-	61	78213699	-	Syncc9605_2184	-	hypothetical protein
2148	 60.91	0	2000752..2001081	-	109	78213700	-	Syncc9605_2185	-	ferredoxin (2Fe-2S)
59.39	MEAN

6.29	STD DEV
