IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

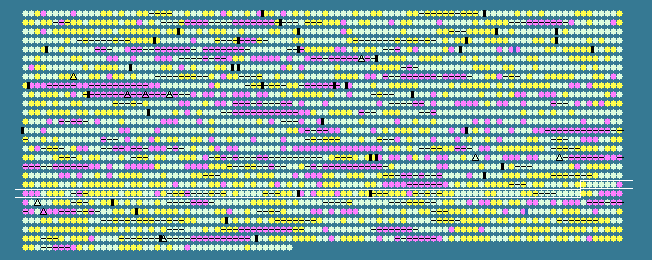

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1994	 65.67	0	1846747..1847748	+	333	78213546	-	Syncc9605_2030	-	dihydrouridine synthase TIM-barrel protein nifR3
1995	 62.42	0	1847745..1850756	+	1003	78213547	-	Syncc9605_2031	-	glycosyltransferase
1996	 61.02	0	1850765..1851703	+	312	78213548	-	Syncc9605_2032	-	glucose-1-phosphate thymidylyltransferase
1997	 59.28	0	1851693..1852274	+	193	78213549	-	Syncc9605_2033	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1998	 62.82	0	1852271..1853155	+	294	78213550	-	Syncc9605_2034	-	dTDP-4-dehydrorhamnose reductase
1999	 59.28	0	1853214..1854350	+	378	78213551	-	Syncc9605_2035	-	dTDP-glucose 4,6-dehydratase
2000	 47.55	-1	1854383..1857871	+	1162	78213552	-	Syncc9605_2036	-	lipopolysaccharide biosynthesis protein-like
2001	 46.07	-2	1858108..1859316	-	402	78213553	-	Syncc9605_2037	-	polysaccharide ABC transporter
2002	 40.21	-2	1859363..1860205	-	280	78213554	-	Syncc9605_2038	-	polysaccharide ABC transporter
2003	 42.62	-2	1860208..1860993	-	261	78213555	-	Syncc9605_2039	-	hypothetical protein
2004	 57.19	0	1861051..1861599	-	182	78213556	-	Syncc9605_2040	-	hypothetical protein
2005	 62.90	0	1861627..1863060	+	477	78213557	fumC	Syncc9605_2041	-	fumarate hydratase
2006	 63.89	0	1863063..1865837	-	924	78213558	-	Syncc9605_2042	-	DEAD/DEAH box helicase-like
2007	 64.20	0	1866082..1866324	+	80	78213559	-	Syncc9605_2043	-	hypothetical protein
2008	 58.73	0	1866451..1866702	-	83	78213560	-	Syncc9605_2044	-	hypothetical protein
2009	 58.18	0	1867932..1868096	-	54	78213561	-	Syncc9605_2045	-	hypothetical protein
2010	 47.53	-1	1868142..1868465	+	107	78213562	-	Syncc9605_2046	-	hypothetical protein
2011	 66.02	+1	1868715..1869647	-	310	78213563	-	Syncc9605_2047	-	sodium/bile acid cotransporter family protein
2012	 67.54	+1	1869702..1870841	+	379	78213564	-	Syncc9605_2048	-	8-amino-7-oxononanoate synthase
2013	 67.41	+1	1870856..1871527	+	223	78213565	-	Syncc9605_2049	-	hypothetical protein
2014	 65.62	0	1871509..1872273	+	254	78213566	-	Syncc9605_2050	-	biotin biosynthesis
2015	 63.48	0	1872270..1872929	+	219	78213567	-	Syncc9605_2051	-	dethiobiotin synthase
2016	 66.13	+1	1873378..1874676	+	432	78213568	-	Syncc9605_2052	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
2017	 61.20	0	1874688..1874870	-	60	78213569	-	Syncc9605_2053	-	hypothetical protein
2018	 65.74	+1	1874902..1875441	-	179	78213570	-	Syncc9605_2054	-	heat shock protein DnaJ-like
2019	 67.62	+1	1875467..1876198	+	243	78213571	-	Syncc9605_2055	-	methyltransferase GidB
2020	 62.92	0	1876208..1877407	-	399	78213572	-	Syncc9605_2056	-	hypothetical protein
2021	 58.33	0	1877407..1877670	-	87	78213573	-	Syncc9605_2057	-	3Fe-4S ferredoxin
2022	 58.78	0	1877761..1878153	-	130	78213574	-	Syncc9605_2058	-	hypothetical protein
2023	 55.26	0	1878153..1878380	-	75	78213575	-	Syncc9605_2059	-	hypothetical protein
2024	 63.10	0	1878430..1879242	-	270	78213576	-	Syncc9605_2060	-	HEAT repeat-containing PBS lyase
2025	 57.14	0	1879273..1879398	-	41	78213577	-	Syncc9605_2061	-	hypothetical protein
2026	 65.53	0	1879429..1881183	-	584	78213578	-	Syncc9605_2062	-	sodium/solute symporter family protein glucose transporter
2027	 62.97	0	1881238..1882293	-	351	78213579	-	Syncc9605_2063	-	hypothetical protein
2028	 55.73	0	1882290..1882481	-	63	78213580	-	Syncc9605_2064	-	hypothetical protein
2029	 62.31	0	1882478..1886566	-	1362	78213581	-	Syncc9605_2065	-	DNA-directed RNA polymerase subunit beta'
2030	 60.68	0	1886614..1888518	-	634	78213582	-	Syncc9605_2066	-	DNA-directed RNA polymerase subunit gamma
2031	 61.90	0	1888567..1891860	-	1097	78213583	rpoB	Syncc9605_2067	-	DNA-directed RNA polymerase subunit beta
2032	 63.24	0	1892142..1892930	-	262	78213584	-	Syncc9605_2068	-	TatD-related deoxyribonuclease
2033	 61.95	0	1892979..1893275	-	98	78213585	rpsT	Syncc9605_2069	-	30S ribosomal protein S20
2034	 66.97	+1	1893384..1894691	+	435	78213586	-	Syncc9605_2070	-	histidinol dehydrogenase
2035	 61.53	0	1894684..1895403	-	239	78213587	-	Syncc9605_2071	-	ribose-5-phosphate isomerase
2036	 64.94	0	1895442..1896542	-	366	78213588	-	Syncc9605_2072	-	PDZ/DHR/GLGF
2037	 61.90	0	1896691..1897551	+	286	78213589	-	Syncc9605_2073	-	extracellular solute-binding protein
2038	 59.95	0	1897592..1897993	+	133	78213590	-	Syncc9605_2074	-	hypothetical protein
2039	 60.67	0	1897990..1899189	+	399	78213591	-	Syncc9605_2075	-	putative arylsulfatase regulatory protein
2040	 60.24	0	1899231..1899650	+	139	78213592	-	Syncc9605_2076	-	hypothetical protein
2041	 63.70	0	1899696..1899965	+	89	78213593	-	Syncc9605_2077	-	hypothetical protein
2042	 61.54	0	1900076..1900543	+	155	78213594	-	Syncc9605_2078	-	hypothetical protein
2043	 64.25	0	1900599..1902044	+	481	78213595	nusA	Syncc9605_2079	-	transcription elongation factor NusA
2044	 63.08	0	1902041..1902319	+	92	78213596	-	Syncc9605_2080	-	hypothetical protein
2045	 65.85	+1	1902389..1905703	+	1104	78213597	infB	Syncc9605_2081	-	translation initiation factor IF-2
2046	 60.57	0	1905718..1907193	+	491	78213598	-	Syncc9605_2082	-	ATPase
2047	 50.43	-1	1907457..1908146	+	229	78213599	-	Syncc9605_2083	-	hypothetical protein
2048	 55.96	0	1908147..1909136	-	329	78213600	-	Syncc9605_2084	-	hypothetical protein
2049	 54.21	0	1909238..1910128	-	296	78213601	-	Syncc9605_2085	-	hypothetical protein
2050	 64.43	0	1910420..1911046	+	208	78213602	-	Syncc9605_2086	-	succinate dehydrogenase subunit C
2051	 64.74	0	1911043..1912962	+	639	78213603	sdhA	Syncc9605_2087	-	succinate dehydrogenase flavoprotein subunit
2052	 66.94	+1	1912959..1913687	+	242	78213604	-	Syncc9605_2088	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
2053	 50.90	-1	1913989..1914768	+	259	78213605	-	Syncc9605_2089	-	SPFH domain-containing protein/band 7 family protein
2054	 65.52	0	1914778..1915125	-	115	78213606	-	Syncc9605_2090	-	hypothetical protein
2055	 64.06	0	1915523..1916404	-	293	78213607	-	Syncc9605_2091	-	glutamyl-tRNA synthetase-like
2056	 57.61	0	1916472..1916747	-	91	78213608	-	Syncc9605_2092	-	nucleoid protein Hbs
2057	 64.24	0	1916881..1917540	-	219	78213609	-	Syncc9605_2093	-	hypothetical protein
2058	 64.10	0	1917582..1919687	+	701	78213610	-	Syncc9605_2094	-	alpha amylase domain-containing protein
2059	 66.82	+1	1919894..1921222	+	442	78213611	-	Syncc9605_2095	-	GPH family sugar transporter
2060	 65.47	0	1921219..1921968	+	249	78213612	-	Syncc9605_2096	-	hypothetical protein
2061	 63.62	0	1921965..1922390	+	141	78213613	-	Syncc9605_2097	-	hypothetical protein
2062	 68.92	+1	1922498..1923517	+	339	78213614	-	Syncc9605_2098	-	hypothetical protein
2063	 65.69	+1	1923514..1924125	+	203	78213615	-	Syncc9605_2099	-	acyl-phosphate glycerol-3-phosphate acyltransferase
2064	 68.32	+1	1924176..1924901	-	241	78213616	-	Syncc9605_2100	-	orotidine-5'-phosphate decarboxylase
2065	 50.79	-1	1924961..1925974	-	337	78213617	-	Syncc9605_2101	-	aminoglycoside phosphotransferase-like
2066	 65.38	0	1926025..1927272	-	415	78213618	-	Syncc9605_2102	-	tyrosyl-tRNA synthetase
2067	 57.58	0	1927333..1927662	-	109	78213619	-	Syncc9605_2103	-	hypothetical protein
2068	 65.53	0	1927864..1928565	+	233	78213620	-	Syncc9605_2104	-	two component LuxR family transcriptional regulator
2069	 59.37	0	1928609..1928923	+	104	78213621	-	Syncc9605_2105	-	hypothetical protein
2070	 68.77	+1	1928971..1929540	+	189	78213622	-	Syncc9605_2106	-	hypothetical protein
2071	 67.19	+1	1929540..1930112	+	190	78213623	-	Syncc9605_2107	-	hypothetical protein
2072	 66.05	+1	1930168..1931637	+	489	78213624	-	Syncc9605_2108	-	leucyl aminopeptidase
2073	 62.45	0	1931634..1931870	+	78	78213625	-	Syncc9605_2109	-	hypothetical protein
2074	 59.11	0	1932417..1932641	-	74	78213626	-	Syncc9605_2110	-	hypothetical protein
2075	 59.74	0	1932666..1932896	-	76	78213627	-	Syncc9605_2111	-	hypothetical protein
2076	 58.58	0	1932991..1933398	-	135	78213628	-	Syncc9605_2112	-	hypothetical protein
2077	 61.90	0	1935984..1936613	-	209	78213629	-	Syncc9605_2114	-	peptide methionine sulfoxide reductase
2078	 66.16	+1	1936610..1937791	-	393	78213630	lpxB	Syncc9605_2115	-	lipid-A-disaccharide synthase
2079	 64.48	0	1937791..1938615	-	274	78213631	-	Syncc9605_2116	-	UDP-N-acetylglucosamine acyltransferase
2080	 61.84	0	1938621..1939076	-	151	78213632	fabZ	Syncc9605_2117	-	(3R)-hydroxymyristoyl-ACP dehydratase
2081	 62.56	0	1939073..1939900	-	275	78213633	lpxC	Syncc9605_2118	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
2082	 58.53	0	1939900..1942110	-	736	78213634	-	Syncc9605_2119	-	outer envelope membrane protein-like
2083	 60.16	0	1942126..1942878	-	250	78213635	-	Syncc9605_2120	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2084	 64.25	0	1942875..1943783	-	302	78213636	-	Syncc9605_2121	-	hypothetical protein
2085	 67.97	+1	1943842..1945149	+	435	78213637	-	Syncc9605_2122	-	phosphoribosylamine--glycine ligase
2086	 63.23	0	1945146..1947212	+	688	78213638	-	Syncc9605_2123	-	multi-sensor signal transduction histidine kinase
2087	 60.10	0	1947214..1948752	-	512	78213639	-	Syncc9605_2124	-	circadian clock protein KaiC
2088	 56.83	0	1948818..1949183	-	121	78213640	-	Syncc9605_2125	-	circadian clock protein KaiB
2089	 60.68	0	1949180..1950064	-	294	78213641	-	Syncc9605_2126	-	circadian clock protein KaiA
2090	 59.29	0	1950197..1950562	+	121	78213642	rplU	Syncc9605_2127	-	50S ribosomal protein L21
2091	 60.30	0	1950607..1950873	+	88	78213643	rpmA	Syncc9605_2128	-	50S ribosomal protein L27
2092	 58.84	0	1950911..1951357	-	148	78213644	-	Syncc9605_2129	-	hypothetical protein
2093	 62.75	0	1951365..1952129	-	254	78213645	-	Syncc9605_2130	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
