IslandPath Analysis: Synechococcus sp. CC9605

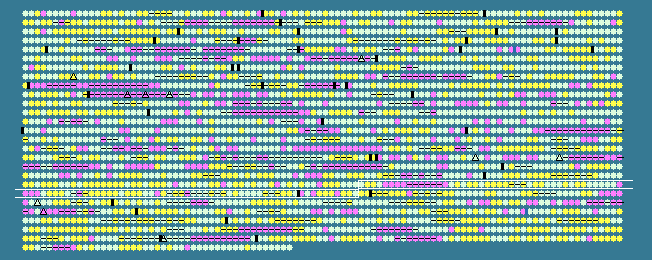

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1957	 61.48	0	1810834..1812222	+	462	78213510	-	Syncc9605_1993	-	photosystem II 44 kDa subunit reaction center protein
1958	 64.13	0	1812332..1813474	+	380	78213511	-	Syncc9605_1994	-	cystathionine gamma-synthase
1959	 64.80	0	1813471..1814967	+	498	78213512	-	Syncc9605_1995	-	cystathionine gamma-synthase
1960	 61.70	0	1815022..1816008	+	328	78213513	-	Syncc9605_1996	-	cysteine synthase
1961	 50.37	-1	1816149..1816694	+	181	78213514	-	Syncc9605_1997	-	hypothetical protein
1962	 44.94	-2	1816751..1817353	+	200	78213515	-	Syncc9605_1998	-	hypothetical protein
1963	 47.04	-1	1817373..1819481	-	702	78213516	-	Syncc9605_1999	-	hypothetical protein
1964	 47.43	-1	1819491..1820015	-	174	78213517	-	Syncc9605_2000	-	hypothetical protein
1965	 50.12	-1	1820018..1822507	-	829	78213518	-	Syncc9605_2001	-	heavy metal translocating P-type ATPase
1966	 47.95	-1	1822558..1822899	-	113	78213519	-	Syncc9605_2002	-	hypothetical protein
1967	 40.09	-2	1822973..1824142	+	389	78213520	-	Syncc9605_2003	-	hypothetical protein
1968	 48.22	-1	1824441..1824749	-	102	78213521	-	Syncc9605_2004	-	hypothetical protein
1969	 40.72	-2	1824883..1825545	-	220	78213522	-	Syncc9605_2005	-	membrane protein-like
1970	 41.19	-2	1825549..1826961	-	470	78213523	-	Syncc9605_2006	-	hypothetical protein
1971	 53.24	0	1827095..1827742	+	215	78213524	-	Syncc9605_2007	-	carbonic anhydrase-like
1972	 62.13	0	1827727..1828827	-	366	78213525	-	Syncc9605_2008	-	queuosine biosynthesis protein
1973	 64.79	0	1828840..1830171	-	443	78213526	-	Syncc9605_2009	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1974	 60.86	0	1830228..1830692	-	154	78213527	-	Syncc9605_2010	-	hypothetical protein
1975	 65.88	+1	1830764..1832677	-	637	78213528	-	Syncc9605_2011	-	putative long-chain-fatty-acid--CoA ligase
1976	 64.66	0	1832706..1833404	-	232	78213529	-	Syncc9605_2012	-	lipoate-protein ligase B
1977	 61.90	0	1833416..1834003	+	195	78213530	-	Syncc9605_2013	-	sigma 54 modulation protein / SSU ribosomal protein S30P
1978	 66.67	+1	1834018..1834698	+	226	78213531	-	Syncc9605_2014	-	deoxyribose-phosphate aldolase
1979	 68.09	+1	1834699..1835472	+	257	78213532	-	Syncc9605_2015	-	DNA replication and repair protein RecO
1980	 64.20	0	1835501..1836880	+	459	78213533	-	Syncc9605_2016	-	MFS superfamily transporter
1981	 64.62	0	1836913..1838082	+	389	78213534	-	Syncc9605_2017	-	glycosyltransferase
1982	 64.35	0	1838091..1838609	-	172	78213535	-	Syncc9605_2018	-	hypothetical protein
1983	 57.71	0	1838986..1839264	+	92	78213536	-	Syncc9605_2019	-	hypothetical protein
1984	 65.75	+1	1839371..1839697	-	108	78213537	-	Syncc9605_2020	-	hypothetical protein
1985	 61.68	0	1839719..1840279	-	186	78213538	-	Syncc9605_2021	-	methionine salvage pathway enzyme E-2/E-2'-like
1986	 67.93	+1	1840348..1841058	+	236	78213539	-	Syncc9605_2022	-	cobalt-factor II C20-methyltransferase / precorrin-2 C20-methyltransferase
1987	 64.82	0	1841055..1841867	-	270	78213540	-	Syncc9605_2023	-	pyrroline-5-carboxylate reductase
1988	 60.85	0	1841876..1842442	-	188	78213541	-	Syncc9605_2024	-	hypothetical protein
1989	 62.29	0	1842518..1843180	-	220	78213542	-	Syncc9605_2025	-	hypothetical protein
1990	 60.35	0	1843185..1843469	-	94	78213543	-	Syncc9605_2026	-	hypothetical protein
1991	 64.91	0	1843466..1844374	-	302	78213544	-	Syncc9605_2027	-	cobalt ABC transporter permease
1992	 61.62	0	1844378..1845745	-	455	78213545	engA	Syncc9605_2028	-	GTP-binding protein EngA
1993	 64.53	0	1846273..1846740	-	155	109150037	-	Syncc9605_2029a	-	hypothetical protein
1994	 65.67	0	1846747..1847748	+	333	78213546	-	Syncc9605_2030	-	dihydrouridine synthase TIM-barrel protein nifR3
1995	 62.42	0	1847745..1850756	+	1003	78213547	-	Syncc9605_2031	-	glycosyltransferase
1996	 61.02	0	1850765..1851703	+	312	78213548	-	Syncc9605_2032	-	glucose-1-phosphate thymidylyltransferase
1997	 59.28	0	1851693..1852274	+	193	78213549	-	Syncc9605_2033	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1998	 62.82	0	1852271..1853155	+	294	78213550	-	Syncc9605_2034	-	dTDP-4-dehydrorhamnose reductase
1999	 59.28	0	1853214..1854350	+	378	78213551	-	Syncc9605_2035	-	dTDP-glucose 4,6-dehydratase
2000	 47.55	-1	1854383..1857871	+	1162	78213552	-	Syncc9605_2036	-	lipopolysaccharide biosynthesis protein-like
2001	 46.07	-2	1858108..1859316	-	402	78213553	-	Syncc9605_2037	-	polysaccharide ABC transporter
2002	 40.21	-2	1859363..1860205	-	280	78213554	-	Syncc9605_2038	-	polysaccharide ABC transporter
2003	 42.62	-2	1860208..1860993	-	261	78213555	-	Syncc9605_2039	-	hypothetical protein
2004	 57.19	0	1861051..1861599	-	182	78213556	-	Syncc9605_2040	-	hypothetical protein
2005	 62.90	0	1861627..1863060	+	477	78213557	fumC	Syncc9605_2041	-	fumarate hydratase
2006	 63.89	0	1863063..1865837	-	924	78213558	-	Syncc9605_2042	-	DEAD/DEAH box helicase-like
2007	 64.20	0	1866082..1866324	+	80	78213559	-	Syncc9605_2043	-	hypothetical protein
2008	 58.73	0	1866451..1866702	-	83	78213560	-	Syncc9605_2044	-	hypothetical protein
2009	 58.18	0	1867932..1868096	-	54	78213561	-	Syncc9605_2045	-	hypothetical protein
2010	 47.53	-1	1868142..1868465	+	107	78213562	-	Syncc9605_2046	-	hypothetical protein
2011	 66.02	+1	1868715..1869647	-	310	78213563	-	Syncc9605_2047	-	sodium/bile acid cotransporter family protein
2012	 67.54	+1	1869702..1870841	+	379	78213564	-	Syncc9605_2048	-	8-amino-7-oxononanoate synthase
2013	 67.41	+1	1870856..1871527	+	223	78213565	-	Syncc9605_2049	-	hypothetical protein
2014	 65.62	0	1871509..1872273	+	254	78213566	-	Syncc9605_2050	-	biotin biosynthesis
2015	 63.48	0	1872270..1872929	+	219	78213567	-	Syncc9605_2051	-	dethiobiotin synthase
2016	 66.13	+1	1873378..1874676	+	432	78213568	-	Syncc9605_2052	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
2017	 61.20	0	1874688..1874870	-	60	78213569	-	Syncc9605_2053	-	hypothetical protein
2018	 65.74	+1	1874902..1875441	-	179	78213570	-	Syncc9605_2054	-	heat shock protein DnaJ-like
2019	 67.62	+1	1875467..1876198	+	243	78213571	-	Syncc9605_2055	-	methyltransferase GidB
2020	 62.92	0	1876208..1877407	-	399	78213572	-	Syncc9605_2056	-	hypothetical protein
2021	 58.33	0	1877407..1877670	-	87	78213573	-	Syncc9605_2057	-	3Fe-4S ferredoxin
2022	 58.78	0	1877761..1878153	-	130	78213574	-	Syncc9605_2058	-	hypothetical protein
2023	 55.26	0	1878153..1878380	-	75	78213575	-	Syncc9605_2059	-	hypothetical protein
2024	 63.10	0	1878430..1879242	-	270	78213576	-	Syncc9605_2060	-	HEAT repeat-containing PBS lyase
2025	 57.14	0	1879273..1879398	-	41	78213577	-	Syncc9605_2061	-	hypothetical protein
2026	 65.53	0	1879429..1881183	-	584	78213578	-	Syncc9605_2062	-	sodium/solute symporter family protein glucose transporter
2027	 62.97	0	1881238..1882293	-	351	78213579	-	Syncc9605_2063	-	hypothetical protein
2028	 55.73	0	1882290..1882481	-	63	78213580	-	Syncc9605_2064	-	hypothetical protein
2029	 62.31	0	1882478..1886566	-	1362	78213581	-	Syncc9605_2065	-	DNA-directed RNA polymerase subunit beta'
2030	 60.68	0	1886614..1888518	-	634	78213582	-	Syncc9605_2066	-	DNA-directed RNA polymerase subunit gamma
2031	 61.90	0	1888567..1891860	-	1097	78213583	rpoB	Syncc9605_2067	-	DNA-directed RNA polymerase subunit beta
2032	 63.24	0	1892142..1892930	-	262	78213584	-	Syncc9605_2068	-	TatD-related deoxyribonuclease
2033	 61.95	0	1892979..1893275	-	98	78213585	rpsT	Syncc9605_2069	-	30S ribosomal protein S20
2034	 66.97	+1	1893384..1894691	+	435	78213586	-	Syncc9605_2070	-	histidinol dehydrogenase
2035	 61.53	0	1894684..1895403	-	239	78213587	-	Syncc9605_2071	-	ribose-5-phosphate isomerase
2036	 64.94	0	1895442..1896542	-	366	78213588	-	Syncc9605_2072	-	PDZ/DHR/GLGF
2037	 61.90	0	1896691..1897551	+	286	78213589	-	Syncc9605_2073	-	extracellular solute-binding protein
2038	 59.95	0	1897592..1897993	+	133	78213590	-	Syncc9605_2074	-	hypothetical protein
2039	 60.67	0	1897990..1899189	+	399	78213591	-	Syncc9605_2075	-	putative arylsulfatase regulatory protein
2040	 60.24	0	1899231..1899650	+	139	78213592	-	Syncc9605_2076	-	hypothetical protein
2041	 63.70	0	1899696..1899965	+	89	78213593	-	Syncc9605_2077	-	hypothetical protein
2042	 61.54	0	1900076..1900543	+	155	78213594	-	Syncc9605_2078	-	hypothetical protein
2043	 64.25	0	1900599..1902044	+	481	78213595	nusA	Syncc9605_2079	-	transcription elongation factor NusA
2044	 63.08	0	1902041..1902319	+	92	78213596	-	Syncc9605_2080	-	hypothetical protein
2045	 65.85	+1	1902389..1905703	+	1104	78213597	infB	Syncc9605_2081	-	translation initiation factor IF-2
2046	 60.57	0	1905718..1907193	+	491	78213598	-	Syncc9605_2082	-	ATPase
2047	 50.43	-1	1907457..1908146	+	229	78213599	-	Syncc9605_2083	-	hypothetical protein
2048	 55.96	0	1908147..1909136	-	329	78213600	-	Syncc9605_2084	-	hypothetical protein
2049	 54.21	0	1909238..1910128	-	296	78213601	-	Syncc9605_2085	-	hypothetical protein
2050	 64.43	0	1910420..1911046	+	208	78213602	-	Syncc9605_2086	-	succinate dehydrogenase subunit C
2051	 64.74	0	1911043..1912962	+	639	78213603	sdhA	Syncc9605_2087	-	succinate dehydrogenase flavoprotein subunit
2052	 66.94	+1	1912959..1913687	+	242	78213604	-	Syncc9605_2088	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
2053	 50.90	-1	1913989..1914768	+	259	78213605	-	Syncc9605_2089	-	SPFH domain-containing protein/band 7 family protein
2054	 65.52	0	1914778..1915125	-	115	78213606	-	Syncc9605_2090	-	hypothetical protein
2055	 64.06	0	1915523..1916404	-	293	78213607	-	Syncc9605_2091	-	glutamyl-tRNA synthetase-like
2056	 57.61	0	1916472..1916747	-	91	78213608	-	Syncc9605_2092	-	nucleoid protein Hbs
59.39	MEAN

6.29	STD DEV
