IslandPath Analysis: Synechococcus sp. CC9605

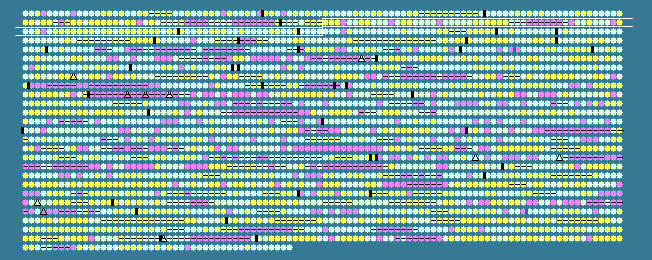

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
151	 67.45	+1	159517..160668	-	383	78211709	-	Syncc9605_0157	-	putative glycolate oxidase subunit GlcE
152	 66.15	+1	160683..162029	+	448	78211710	-	Syncc9605_0158	-	hypothetical protein
153	 66.16	+1	161928..163304	-	458	78211711	-	Syncc9605_0159	-	putative glycolate oxidase subunit (Fe-S) protein
154	 42.32	-2	163572..164294	-	240	78211712	-	Syncc9605_0160	-	hypothetical protein
155	 62.74	0	164316..165740	-	474	78211713	-	Syncc9605_0161	-	isocitrate dehydrogenase
156	 60.78	0	165823..166773	+	316	78211714	-	Syncc9605_0162	-	putative glycosyl transferase family protein
157	 64.06	0	166756..167943	-	395	78211715	-	Syncc9605_0163	-	hypothetical protein
158	 64.95	0	167961..168716	-	251	78211716	-	Syncc9605_0164	-	methylthioadenosine nucleosidase
159	 61.87	0	168821..169237	+	138	78211717	-	Syncc9605_0165	-	hypothetical protein
160	 57.98	0	169313..170026	+	237	78211718	-	Syncc9605_0166	-	Heme oxygenase (decyclizing)
161	 61.85	0	170043..171080	+	345	78211719	-	Syncc9605_0167	-	hypothetical protein
162	 46.44	-2	171147..172985	+	612	78211720	-	Syncc9605_0168	-	ATPase
163	 61.92	0	172985..175240	+	751	78211721	-	Syncc9605_0169	-	glycosyltransferase-like protein
164	 63.29	0	175237..176391	+	384	78211722	-	Syncc9605_0170	-	putative glycosyl transferase, group 1
165	 63.57	0	176384..177643	+	419	78211723	-	Syncc9605_0171	-	glycosyl transferase, group 1
166	 61.96	0	177640..178764	+	374	78211724	-	Syncc9605_0172	-	glycosyl transferase, group 1
167	 62.22	0	178761..179615	+	284	78211725	-	Syncc9605_0173	-	hypothetical protein
168	 59.33	0	179640..180470	-	276	78211726	-	Syncc9605_0174	-	hypothetical protein
169	 58.42	0	180495..181343	-	282	78211727	-	Syncc9605_0175	-	2-dehydro-3-deoxyphosphooctonate aldolase
170	 52.00	-1	181389..182213	-	274	78211728	-	Syncc9605_0176	-	hypothetical protein
171	 57.49	0	182241..183134	-	297	78211729	-	Syncc9605_0177	-	hypothetical protein
172	 62.15	0	183158..185548	+	796	78211730	-	Syncc9605_0178	-	ATP-dependent DNA helicase Rep
173	 60.06	0	185574..186284	+	236	78211731	-	Syncc9605_0179	-	hypothetical protein
174	 62.44	0	186284..187063	+	259	78211732	-	Syncc9605_0180	-	3-deoxy-manno-octulosonate cytidylyltransferase
175	 61.69	0	187138..189327	+	729	78211733	-	Syncc9605_0181	-	catalase/peroxidase HPI
176	 64.13	0	189341..189892	-	183	78211734	-	Syncc9605_0182	-	phosphatase kdsC
177	 62.82	0	189889..190902	-	337	78211735	-	Syncc9605_0183	-	KpsF/GutQ family protein
178	 65.92	+1	190921..192132	+	403	78211736	-	Syncc9605_0184	-	polyA polymerase
179	 63.72	0	192129..193553	+	474	78211737	-	Syncc9605_0185	-	hypothetical protein
180	 65.04	0	193498..195525	-	675	78211738	-	Syncc9605_0186	-	selenide,water dikinase
181	 64.25	0	195522..196556	-	344	78211739	-	Syncc9605_0187	-	UDP-galactose 4-epimerase
182	 62.33	0	196613..197950	+	445	78211740	hisS	Syncc9605_0188	-	histidyl-tRNA synthetase
183	 59.73	0	197953..198903	+	316	78211741	-	Syncc9605_0189	-	putative nucleoside-diphosphate sugar epimerase
184	 59.26	0	198900..200303	+	467	78211742	-	Syncc9605_0190	-	UDP-glucose 6-dehydrogenase
185	 53.63	0	200303..201322	+	339	78211743	-	Syncc9605_0191	-	putative nucleotide sugar epimerase
186	 37.60	-2	201515..201772	-	85	78211744	-	Syncc9605_0192	-	hypothetical protein
187	 39.65	-2	202312..204084	+	590	78211745	-	Syncc9605_0193	-	hypothetical protein
188	 34.89	-2	204725..207817	+	1030	78211746	-	Syncc9605_0194	-	lipopolysaccharide biosynthesis protein-like
189	 37.23	-2	208010..208291	+	93	78211747	-	Syncc9605_0195	-	hypothetical protein
190	 35.67	-2	208383..208682	+	99	78211748	-	Syncc9605_0196	-	hypothetical protein
191	 56.22	0	208764..208964	-	66	78211749	-	Syncc9605_0197	-	photosystem II reaction center protein J
192	 52.50	-1	208975..209094	-	39	78211750	-	Syncc9605_0198	-	photosystem II reaction center L
193	 59.57	0	209102..209242	-	46	78211751	-	Syncc9605_0199	-	cytochrome b559 subunit beta
194	 57.83	0	209246..209494	-	82	78211752	-	Syncc9605_0200	-	cytochrome b559 subunit alpha
195	 62.97	0	209566..210567	-	333	78211753	-	Syncc9605_0201	-	Ycf48-like protein
196	 58.10	0	210577..210996	-	139	78211754	-	Syncc9605_0202	-	rubredoxin
197	 55.92	0	211080..211442	+	120	78211755	-	Syncc9605_0203	-	NADH dehydrogenase subunit A
198	 59.38	0	211445..212185	+	246	78211756	-	Syncc9605_0204	-	NADH dehydrogenase subunit B
199	 55.91	0	212182..212748	+	188	78211757	-	Syncc9605_0205	-	NADH dehydrogenase subunit J
200	 62.98	0	212756..214111	-	451	78211758	-	Syncc9605_0206	-	hypothetical protein
201	 62.12	0	214273..215019	+	248	78211759	-	Syncc9605_0207	-	ATPase
202	 61.90	0	215025..215885	+	286	78211760	-	Syncc9605_0208	-	ABC transporter
203	 64.58	0	215936..218041	-	701	78211761	-	Syncc9605_0209	-	protoporphyrin IX magnesium-chelatase
204	 39.80	-2	218050..219456	-	468	78211762	-	Syncc9605_0210	-	hypothetical protein
205	 60.44	0	219542..220039	+	165	78211763	-	Syncc9605_0211	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
206	 65.60	0	220058..220618	+	186	78211764	-	Syncc9605_0212	-	NUDIX hydrolase
207	 63.67	0	220618..222051	+	477	78211765	-	Syncc9605_0213	-	deoxyribodipyrimidine photo-lyase type I
208	 62.88	0	222030..223271	-	413	78211766	-	Syncc9605_0214	-	putative pleiotropic regulatory protein
209	 63.42	0	223291..223875	-	194	78211767	-	Syncc9605_0215	-	hypothetical protein
210	 63.78	0	223933..224451	+	172	78211768	-	Syncc9605_0216	-	hypothetical protein
211	 63.72	0	224433..224873	-	146	78211769	-	Syncc9605_0217	-	hypothetical protein
212	 64.80	0	224889..225800	-	303	78211770	-	Syncc9605_0218	-	deoxyribodipyrimidine photo-lyase family protein
213	 62.40	0	225824..226666	+	280	78211771	-	Syncc9605_0219	-	enoyl-(acyl carrier protein) reductase
214	 62.89	0	226696..227304	+	202	78211772	hisB	Syncc9605_0220	-	imidazoleglycerol-phosphate dehydratase
215	 63.60	0	227365..228831	+	488	78211773	-	Syncc9605_0221	-	lignostilbene-alpha,beta-dioxygenase and related enzyme-like
216	 61.11	0	228919..229620	+	233	78211774	-	Syncc9605_0222	-	hypothetical protein
217	 64.48	0	229605..231161	-	518	78211775	-	Syncc9605_0223	-	BCCT family glycine betaine transporter
218	 65.58	0	231180..232370	-	396	78211776	-	Syncc9605_0224	-	putative sarcosine oxidase
219	 65.15	0	232367..233422	-	351	78211777	-	Syncc9605_0225	-	glutamate dehydrogenase/leucine dehydrogenase-like
220	 63.68	0	233422..234459	-	345	78211778	-	Syncc9605_0226	-	hypothetical protein
221	 65.29	0	234529..235110	-	193	78211779	-	Syncc9605_0227	-	Ham1-like protein
222	 66.12	+1	235107..236570	-	487	78211780	-	Syncc9605_0228	-	phosphoglucomutase/phosphomannomutase family protein
223	 66.33	+1	236624..238099	+	491	78211781	-	Syncc9605_0229	-	hypothetical protein
224	 62.52	0	238081..238875	-	264	78211782	-	Syncc9605_0230	-	hypothetical protein
225	 63.87	0	238872..239444	-	190	78211783	-	Syncc9605_0231	-	orotate phosphoribosyltransferase
226	 63.43	0	239477..240001	+	174	78211784	-	Syncc9605_0232	-	occludin/ELL family
227	 64.56	0	240099..241382	+	427	78211785	-	Syncc9605_0233	-	hypothetical protein
228	 62.50	0	241420..242427	+	335	78211786	-	Syncc9605_0234	-	oxidoreductase
229	 61.91	0	242443..245619	-	1058	78211787	-	Syncc9605_0235	-	putative phosphorylase kinase
230	 63.40	0	245667..246401	+	244	78211788	-	Syncc9605_0236	-	N-acetylmannosaminyltransferase
231	 60.78	0	246406..246558	-	50	78211789	-	Syncc9605_0237	-	photosystem II reaction center protein K
232	 64.43	0	246581..247699	-	372	78211790	-	Syncc9605_0238	-	queuine tRNA-ribosyltransferase
233	 66.54	+1	247729..248499	+	256	78211791	-	Syncc9605_0239	-	cobalamin-5'-phosphate synthase
234	 65.60	0	248459..249580	-	373	78211792	-	Syncc9605_0240	-	histidine kinase
235	 58.27	0	249918..250286	+	122	78211793	-	Syncc9605_0241	-	hypothetical protein
236	 61.43	0	250287..250859	-	190	78211794	-	Syncc9605_0242	-	esterase
237	 64.24	0	250916..252478	+	520	78211795	-	Syncc9605_0243	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
238	 61.44	0	252533..252991	+	152	78211796	-	Syncc9605_0244	-	hypothetical protein
239	 61.00	0	252999..253598	-	199	78211797	-	Syncc9605_0245	-	hypothetical protein
240	 59.08	0	253668..254867	-	399	78211798	-	Syncc9605_0246	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
241	 62.12	0	254978..256450	-	490	78211799	-	Syncc9605_0247	-	ammonium transporter
242	 64.18	0	256553..257317	-	254	78211800	-	Syncc9605_0248	-	sugar fermentation stimulation protein
243	 63.87	0	257386..258993	+	535	78211801	-	Syncc9605_0249	-	integral membrane protein MviN
244	 56.44	0	258980..259243	-	87	78211802	-	Syncc9605_0250	-	hypothetical protein
245	 62.20	0	259271..259561	-	96	78211803	-	Syncc9605_0251	-	hypothetical protein
246	 63.01	0	259604..259849	-	81	78211804	-	Syncc9605_0252	-	hypothetical protein
247	 61.57	0	260108..261403	+	431	78211805	glyA	Syncc9605_0253	-	serine hydroxymethyltransferase
248	 62.38	0	261518..262660	+	380	78211806	-	Syncc9605_0254	-	putative glycosyltransferase
249	 62.78	0	262653..263912	+	419	78211807	-	Syncc9605_0255	-	competence/damage-inducible protein cinA
250	 61.80	0	263939..265357	+	472	78211808	-	Syncc9605_0256	-	isopropylmalate isomerase large subunit
59.39	MEAN

6.29	STD DEV
