IslandPath Analysis: Synechococcus sp. CC9605

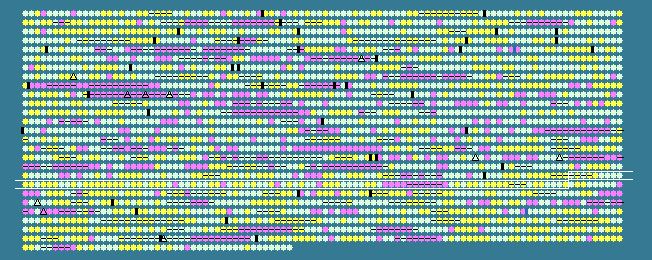

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1892	 59.00	0	1752522..1752782	-	86	78213447	-	Syncc9605_1930	-	hypothetical protein
1893	 66.67	+1	1752766..1753353	-	195	78213448	-	Syncc9605_1931	-	ribosomal large subunit pseudouridine synthase A
1894	 61.76	0	1753380..1753868	-	162	78213449	-	Syncc9605_1932	-	hypothetical protein
1895	 64.03	0	1753950..1754252	-	100	78213450	-	Syncc9605_1933	-	hypothetical protein
1896	 63.05	0	1754252..1754500	-	82	78213451	-	Syncc9605_1934	-	hypothetical protein
1897	 61.07	0	1754591..1755037	+	148	78213452	-	Syncc9605_1935	-	hypothetical protein
1898	 60.95	0	1755108..1755317	+	69	78213453	-	Syncc9605_1936	-	hypothetical protein
1899	 60.98	0	1755360..1755605	-	81	78213454	-	Syncc9605_1937	-	hypothetical protein
1900	 62.42	0	1755919..1756743	-	274	78213455	-	Syncc9605_1938	-	putative permease protein of sugar ABC transporter
1901	 63.83	0	1756754..1758376	-	540	78213456	-	Syncc9605_1939	-	2-isopropylmalate synthase
1902	 66.10	+1	1758486..1760081	+	531	78213457	-	Syncc9605_1940	-	hypothetical protein
1903	 61.74	0	1760196..1761434	-	412	78213458	-	Syncc9605_1941	-	lycopene cyclase (CrtL-type)
1904	 64.36	0	1761437..1764034	-	865	78213459	-	Syncc9605_1942	-	DNA gyrase subunit A
1905	 65.56	0	1764126..1764668	+	180	78213460	-	Syncc9605_1943	-	hypothetical protein
1906	 65.64	0	1764732..1765895	+	387	78213461	-	Syncc9605_1944	-	inositol-5-monophosphate dehydrogenase
1907	 56.80	0	1766025..1766399	+	124	78213462	-	Syncc9605_1945	-	thioredoxin
1908	 62.31	0	1766426..1767067	+	213	78213463	-	Syncc9605_1946	-	imidazole glycerol phosphate synthase subunit hisH
1909	 63.61	0	1767064..1767684	+	206	78213464	-	Syncc9605_1947	-	hypothetical protein
1910	 59.83	0	1767614..1767730	-	38	109150035	petG	Syncc9605_1947a	-	cytochrome b6-f complex subunit PetG
1911	 63.77	0	1767787..1768200	+	137	78213465	-	Syncc9605_1948	-	cytochrome cM
1912	 67.76	+1	1768225..1768956	+	243	78213466	-	Syncc9605_1949	-	RNA methyltransferase TrmH, group 1
1913	 64.31	0	1768985..1770130	+	381	78213467	-	Syncc9605_1950	-	beta-lactamase family protein
1914	 66.30	+1	1770127..1771479	+	450	78213468	-	Syncc9605_1951	-	hypothetical protein
1915	 65.56	0	1771500..1772588	+	362	78213469	-	Syncc9605_1952	-	protoporphyrin IX magnesium-chelatase
1916	 63.23	0	1772607..1773071	+	154	78213470	-	Syncc9605_1953	-	Holliday junction endonuclease RuvC
1917	 67.76	+1	1773068..1773616	+	182	78213471	-	Syncc9605_1954	-	hypothetical protein
1918	 61.26	0	1773628..1774071	+	147	78213472	-	Syncc9605_1955	-	hypothetical protein
1919	 64.30	0	1774079..1774501	+	140	78213473	-	Syncc9605_1956	-	SufE protein
1920	 64.76	0	1774589..1775896	+	435	78213474	-	Syncc9605_1957	-	homoserine dehydrogenase
1921	 58.62	0	1776060..1776233	+	57	78213475	-	Syncc9605_1958	-	hypothetical protein
1922	 64.30	0	1776274..1777881	+	535	78213476	-	Syncc9605_1959	-	ABC transporter substrate-binding protein
1923	 64.80	0	1777881..1778900	+	339	78213477	-	Syncc9605_1960	-	putative ABC transporter, oligopeptides
1924	 63.81	0	1778894..1780468	-	524	78213478	-	Syncc9605_1961	-	hypothetical protein
1925	 62.01	0	1780606..1781808	+	400	78213479	-	Syncc9605_1962	-	major facilitator superfamily multidrug-efflux transporter
1926	 43.99	-2	1782133..1782723	+	196	78213480	-	Syncc9605_1963	-	hypothetical protein
1927	 58.42	0	1782736..1783827	-	363	78213481	-	Syncc9605_1964	-	translation-associated GTPase
1928	 61.10	0	1783879..1785045	+	388	78213482	-	Syncc9605_1965	-	secretion protein HlyD
1929	 63.73	0	1785070..1788030	+	986	78213483	-	Syncc9605_1966	-	DNA polymerase I
1930	 62.28	0	1788077..1789558	+	493	78213484	-	Syncc9605_1967	-	cysteinyl-tRNA synthetase
1931	 57.61	0	1789579..1789821	+	80	78213485	-	Syncc9605_1968	-	hypothetical protein
1932	 64.77	0	1789843..1791162	-	439	78213486	-	Syncc9605_1969	-	sodium-dependent transporter
1933	 63.86	0	1791242..1792489	+	415	78213487	-	Syncc9605_1970	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1934	 52.07	-1	1792492..1792854	+	120	78213488	-	Syncc9605_1971	-	putative ferredoxin like protein
1935	 57.68	0	1793076..1794221	+	381	78213489	-	Syncc9605_1972	-	Delta(12)-fatty acid dehydrogenase
1936	 65.88	+1	1794257..1795276	-	339	78213490	-	Syncc9605_1973	-	hypothetical protein
1937	 63.22	0	1795288..1796709	-	473	78213491	-	Syncc9605_1974	-	putative nicotinamide nucleotide transhydrogenase, subunit beta
1938	 60.27	0	1796709..1797005	-	98	78213492	-	Syncc9605_1975	-	putative nicotinamide nucleotide transhydrogenase, subunit alpha 2 (A2)
1939	 64.14	0	1797005..1798153	-	382	78213493	-	Syncc9605_1976	-	NAD(P)(+) transhydrogenase (AB-specific)
1940	 62.00	0	1798270..1798848	+	192	78213494	-	Syncc9605_1977	-	hypothetical protein
1941	 61.02	0	1798882..1799058	-	58	78213495	-	Syncc9605_1978	-	hypothetical protein
1942	 64.45	0	1799305..1800612	+	435	78213496	-	Syncc9605_1979	-	hypothetical protein
1943	 55.87	0	1800643..1800957	+	104	78213497	-	Syncc9605_1980	-	hypothetical protein
1944	 61.53	0	1801065..1802447	+	460	78213498	-	Syncc9605_1981	-	thioredoxin reductase
1945	 65.19	0	1802460..1802729	-	89	78213499	-	Syncc9605_1982	-	translation initiation factor 1
1946	 62.77	0	1802886..1803578	+	230	78213500	-	Syncc9605_1983	-	pseudouridine synthase, Rsu
1947	 62.98	0	1803526..1804338	-	270	78213501	-	Syncc9605_1984	-	methyltransferase-like
1948	 61.57	0	1804338..1804553	-	71	78213502	-	Syncc9605_1985	-	hypothetical protein
1949	 60.85	0	1804607..1805569	-	320	78213503	-	Syncc9605_1986	-	putative chaperon-like protein for quinone binding in photosystem II
1950	 54.90	0	1805626..1805727	-	33	109150033	petM	Syncc9605_1986a	-	cytochrome b6-f complex subunit PetM
1951	 66.40	+1	1805756..1806886	-	376	78213504	-	Syncc9605_1987	-	N(2),N(2)-dimethylguanosine tRNA methyltransferase
1952	 68.74	+1	1806924..1807889	+	321	78213505	-	Syncc9605_1988	-	alpha/beta hydrolase superfamily protein
1953	 62.90	0	1807861..1808391	+	176	78213506	ilvH	Syncc9605_1989	-	acetolactate synthase 3 regulatory subunit
1954	 62.35	0	1808394..1809065	-	223	78213507	-	Syncc9605_1990	-	peptidyl-prolyl cis-trans isomerase, cyclophilin type
1955	 61.68	0	1809070..1809630	-	186	78213508	-	Syncc9605_1991	-	photosystem I assembly protein Ycf4
1956	 60.23	0	1809795..1810850	+	351	78213509	-	Syncc9605_1992	-	photosystem II D2 protein (photosystem q(a) protein)
1957	 61.48	0	1810834..1812222	+	462	78213510	-	Syncc9605_1993	-	photosystem II 44 kDa subunit reaction center protein
1958	 64.13	0	1812332..1813474	+	380	78213511	-	Syncc9605_1994	-	cystathionine gamma-synthase
1959	 64.80	0	1813471..1814967	+	498	78213512	-	Syncc9605_1995	-	cystathionine gamma-synthase
1960	 61.70	0	1815022..1816008	+	328	78213513	-	Syncc9605_1996	-	cysteine synthase
1961	 50.37	-1	1816149..1816694	+	181	78213514	-	Syncc9605_1997	-	hypothetical protein
1962	 44.94	-2	1816751..1817353	+	200	78213515	-	Syncc9605_1998	-	hypothetical protein
1963	 47.04	-1	1817373..1819481	-	702	78213516	-	Syncc9605_1999	-	hypothetical protein
1964	 47.43	-1	1819491..1820015	-	174	78213517	-	Syncc9605_2000	-	hypothetical protein
1965	 50.12	-1	1820018..1822507	-	829	78213518	-	Syncc9605_2001	-	heavy metal translocating P-type ATPase
1966	 47.95	-1	1822558..1822899	-	113	78213519	-	Syncc9605_2002	-	hypothetical protein
1967	 40.09	-2	1822973..1824142	+	389	78213520	-	Syncc9605_2003	-	hypothetical protein
1968	 48.22	-1	1824441..1824749	-	102	78213521	-	Syncc9605_2004	-	hypothetical protein
1969	 40.72	-2	1824883..1825545	-	220	78213522	-	Syncc9605_2005	-	membrane protein-like
1970	 41.19	-2	1825549..1826961	-	470	78213523	-	Syncc9605_2006	-	hypothetical protein
1971	 53.24	0	1827095..1827742	+	215	78213524	-	Syncc9605_2007	-	carbonic anhydrase-like
1972	 62.13	0	1827727..1828827	-	366	78213525	-	Syncc9605_2008	-	queuosine biosynthesis protein
1973	 64.79	0	1828840..1830171	-	443	78213526	-	Syncc9605_2009	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1974	 60.86	0	1830228..1830692	-	154	78213527	-	Syncc9605_2010	-	hypothetical protein
1975	 65.88	+1	1830764..1832677	-	637	78213528	-	Syncc9605_2011	-	putative long-chain-fatty-acid--CoA ligase
1976	 64.66	0	1832706..1833404	-	232	78213529	-	Syncc9605_2012	-	lipoate-protein ligase B
1977	 61.90	0	1833416..1834003	+	195	78213530	-	Syncc9605_2013	-	sigma 54 modulation protein / SSU ribosomal protein S30P
1978	 66.67	+1	1834018..1834698	+	226	78213531	-	Syncc9605_2014	-	deoxyribose-phosphate aldolase
1979	 68.09	+1	1834699..1835472	+	257	78213532	-	Syncc9605_2015	-	DNA replication and repair protein RecO
1980	 64.20	0	1835501..1836880	+	459	78213533	-	Syncc9605_2016	-	MFS superfamily transporter
1981	 64.62	0	1836913..1838082	+	389	78213534	-	Syncc9605_2017	-	glycosyltransferase
1982	 64.35	0	1838091..1838609	-	172	78213535	-	Syncc9605_2018	-	hypothetical protein
1983	 57.71	0	1838986..1839264	+	92	78213536	-	Syncc9605_2019	-	hypothetical protein
1984	 65.75	+1	1839371..1839697	-	108	78213537	-	Syncc9605_2020	-	hypothetical protein
1985	 61.68	0	1839719..1840279	-	186	78213538	-	Syncc9605_2021	-	methionine salvage pathway enzyme E-2/E-2'-like
1986	 67.93	+1	1840348..1841058	+	236	78213539	-	Syncc9605_2022	-	cobalt-factor II C20-methyltransferase / precorrin-2 C20-methyltransferase
1987	 64.82	0	1841055..1841867	-	270	78213540	-	Syncc9605_2023	-	pyrroline-5-carboxylate reductase
1988	 60.85	0	1841876..1842442	-	188	78213541	-	Syncc9605_2024	-	hypothetical protein
1989	 62.29	0	1842518..1843180	-	220	78213542	-	Syncc9605_2025	-	hypothetical protein
1990	 60.35	0	1843185..1843469	-	94	78213543	-	Syncc9605_2026	-	hypothetical protein
1991	 64.91	0	1843466..1844374	-	302	78213544	-	Syncc9605_2027	-	cobalt ABC transporter permease
59.39	MEAN

6.29	STD DEV
