IslandPath Analysis: Synechococcus sp. CC9605

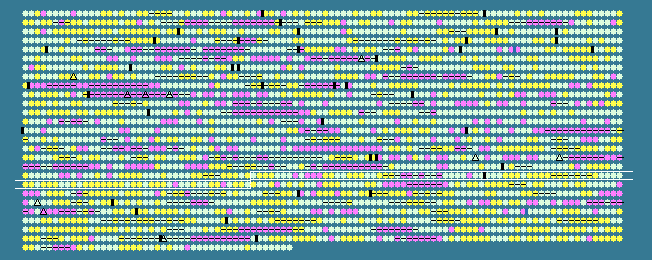

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1839	 62.28	0	1704882..1705337	-	151	78213394	-	Syncc9605_1875	-	ferric uptake regulator family protein
1840	 64.58	0	1705379..1706146	-	255	78213395	-	Syncc9605_1876	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1841	 65.12	0	1706233..1707138	+	301	78213396	-	Syncc9605_1877	-	nucleotide sugar epimerase
1842	 66.48	+1	1707107..1707643	-	178	78213397	-	Syncc9605_1878	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
1843	 62.87	0	1707675..1708148	+	157	78213398	-	Syncc9605_1879	-	CBS
1844	 58.56	0	1708120..1708452	+	110	78213399	-	Syncc9605_1880	-	hypothetical protein
1845	 56.40	0	1708433..1708948	+	171	78213400	-	Syncc9605_1881	-	hypothetical protein
1846	 52.56	-1	1709205..1709516	+	103	78213401	-	Syncc9605_1882	-	ferredoxin (2Fe-2S)
1847	 60.95	0	1710058..1710582	-	174	78213402	-	Syncc9605_1883	-	dCTP deaminase
1848	 53.83	0	1711277..1711720	+	147	78213403	-	Syncc9605_1884	-	hypothetical protein
1849	 51.63	-1	1711720..1712118	+	132	78213404	-	Syncc9605_1885	-	hypothetical protein
1850	 54.57	0	1712389..1712793	-	134	78213405	-	Syncc9605_1886	-	hypothetical protein
1851	 65.26	0	1712914..1713483	-	189	78213406	-	Syncc9605_1887	-	hypothetical protein
1852	 64.26	0	1713487..1714941	-	484	78213407	-	Syncc9605_1888	-	hypothetical protein
1853	 62.07	0	1714938..1715612	-	224	78213408	-	Syncc9605_1889	-	hypothetical protein
1854	 60.53	0	1715654..1715881	+	75	78213409	-	Syncc9605_1890	-	hypothetical protein
1855	 67.51	+1	1717059..1717295	-	78	78213410	-	Syncc9605_1893	-	hypothetical protein
1856	 65.19	0	1717381..1717989	+	202	78213411	-	Syncc9605_1894	-	hypothetical protein
1857	 65.56	0	1717967..1718236	+	89	78213412	-	Syncc9605_1895	-	hypothetical protein
1858	 61.85	0	1718233..1718730	+	165	78213413	-	Syncc9605_1896	-	hypothetical protein
1859	 59.20	0	1718721..1718921	-	66	78213414	-	Syncc9605_1897	-	hypothetical protein
1860	 64.52	0	1718965..1720500	-	511	78213415	-	Syncc9605_1898	-	hypothetical protein
1861	 64.07	0	1720545..1721084	+	179	78213416	-	Syncc9605_1899	-	hypothetical protein
1862	 63.66	0	1721101..1721832	-	243	78213417	-	Syncc9605_1900	-	hypothetical protein
1863	 59.60	0	1722357..1722653	-	98	78213418	-	Syncc9605_1901	-	hypothetical protein
1864	 42.37	-2	1723046..1724329	-	427	78213419	-	Syncc9605_1902	-	Na+/H+ antiporter NhaP
1865	 53.88	0	1725001..1725258	-	85	78213420	-	Syncc9605_1903	-	hypothetical protein
1866	 57.02	0	1725410..1725865	+	151	78213421	-	Syncc9605_1904	-	hypothetical protein
1867	 55.04	0	1726577..1727746	+	389	78213422	-	Syncc9605_1905	-	beta-lactamase class C and other penicillin binding proteins
1868	 59.84	0	1728207..1729670	+	487	78213423	-	Syncc9605_1906	-	amine oxidase (flavin-containing)
1869	 58.33	0	1730207..1730446	-	79	78213424	-	Syncc9605_1907	-	hypothetical protein
1870	 53.88	0	1730647..1731045	+	132	78213425	-	Syncc9605_1908	-	hypothetical protein
1871	 60.49	0	1731817..1732059	+	80	78213426	-	Syncc9605_1909	-	hypothetical protein
1872	 58.15	0	1732068..1732337	+	89	78213427	-	Syncc9605_1910	-	hypothetical protein
1873	 60.95	0	1732393..1732602	+	69	78213428	-	Syncc9605_1911	-	hypothetical protein
1874	 60.87	0	1732592..1735195	-	867	78213429	-	Syncc9605_1912	-	alanyl aminopeptidase
1875	 54.50	0	1735375..1735785	-	136	78213430	-	Syncc9605_1913	-	cAMP phosphodiesterase class-II
1876	 58.17	0	1735880..1736479	-	199	78213431	-	Syncc9605_1914	-	hypothetical protein
1877	 59.06	0	1736504..1737739	+	411	78213432	-	Syncc9605_1915	-	adaptive-response sensory kinase
1878	 57.28	0	1737986..1738507	-	173	78213433	-	Syncc9605_1916	-	hypothetical protein
1879	 59.36	0	1738669..1739859	+	396	78213434	-	Syncc9605_1917	-	ferredoxin--NADP reductase (FNR)
1880	 62.27	0	1740028..1741551	+	507	78213435	-	Syncc9605_1918	-	glucose-6-phosphate 1-dehydrogenase
1881	 65.97	+1	1741610..1742896	+	428	78213436	-	Syncc9605_1919	-	glucose 6-phosphate dehydrogenase effector OpcA
1882	 65.97	+1	1742911..1744338	+	475	78213437	-	Syncc9605_1920	-	cobyrinate a,c-diamide synthase / hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing)
1883	 69.05	+1	1744335..1744586	+	83	78213438	-	Syncc9605_1921	-	acylphosphatase
1884	 62.40	0	1744687..1745061	+	124	78213439	-	Syncc9605_1922	-	hypothetical protein
1885	 65.50	0	1745208..1745894	+	228	78213440	-	Syncc9605_1923	-	cytochrome c biogenesis protein trans
1886	 65.84	+1	1745896..1747347	-	483	78213441	-	Syncc9605_1924	-	exodeoxyribonuclease V
1887	 63.94	0	1747344..1747856	-	170	78213442	-	Syncc9605_1925	-	hypothetical protein
1888	 63.97	0	1747853..1748743	-	296	78213443	-	Syncc9605_1926	-	farnesyl-diphosphate synthase
1889	 62.98	0	1748784..1749461	-	225	78213444	-	Syncc9605_1927	-	hypothetical protein
1890	 65.53	0	1749470..1750351	-	293	78213445	-	Syncc9605_1928	-	methenyltetrahydrofolate cyclohydrolase
1891	 64.75	0	1750422..1752512	+	696	78213446	-	Syncc9605_1929	-	metal dependent phosphohydrolase
1892	 59.00	0	1752522..1752782	-	86	78213447	-	Syncc9605_1930	-	hypothetical protein
1893	 66.67	+1	1752766..1753353	-	195	78213448	-	Syncc9605_1931	-	ribosomal large subunit pseudouridine synthase A
1894	 61.76	0	1753380..1753868	-	162	78213449	-	Syncc9605_1932	-	hypothetical protein
1895	 64.03	0	1753950..1754252	-	100	78213450	-	Syncc9605_1933	-	hypothetical protein
1896	 63.05	0	1754252..1754500	-	82	78213451	-	Syncc9605_1934	-	hypothetical protein
1897	 61.07	0	1754591..1755037	+	148	78213452	-	Syncc9605_1935	-	hypothetical protein
1898	 60.95	0	1755108..1755317	+	69	78213453	-	Syncc9605_1936	-	hypothetical protein
1899	 60.98	0	1755360..1755605	-	81	78213454	-	Syncc9605_1937	-	hypothetical protein
1900	 62.42	0	1755919..1756743	-	274	78213455	-	Syncc9605_1938	-	putative permease protein of sugar ABC transporter
1901	 63.83	0	1756754..1758376	-	540	78213456	-	Syncc9605_1939	-	2-isopropylmalate synthase
1902	 66.10	+1	1758486..1760081	+	531	78213457	-	Syncc9605_1940	-	hypothetical protein
1903	 61.74	0	1760196..1761434	-	412	78213458	-	Syncc9605_1941	-	lycopene cyclase (CrtL-type)
1904	 64.36	0	1761437..1764034	-	865	78213459	-	Syncc9605_1942	-	DNA gyrase subunit A
1905	 65.56	0	1764126..1764668	+	180	78213460	-	Syncc9605_1943	-	hypothetical protein
1906	 65.64	0	1764732..1765895	+	387	78213461	-	Syncc9605_1944	-	inositol-5-monophosphate dehydrogenase
1907	 56.80	0	1766025..1766399	+	124	78213462	-	Syncc9605_1945	-	thioredoxin
1908	 62.31	0	1766426..1767067	+	213	78213463	-	Syncc9605_1946	-	imidazole glycerol phosphate synthase subunit hisH
1909	 63.61	0	1767064..1767684	+	206	78213464	-	Syncc9605_1947	-	hypothetical protein
1910	 59.83	0	1767614..1767730	-	38	109150035	petG	Syncc9605_1947a	-	cytochrome b6-f complex subunit PetG
1911	 63.77	0	1767787..1768200	+	137	78213465	-	Syncc9605_1948	-	cytochrome cM
1912	 67.76	+1	1768225..1768956	+	243	78213466	-	Syncc9605_1949	-	RNA methyltransferase TrmH, group 1
1913	 64.31	0	1768985..1770130	+	381	78213467	-	Syncc9605_1950	-	beta-lactamase family protein
1914	 66.30	+1	1770127..1771479	+	450	78213468	-	Syncc9605_1951	-	hypothetical protein
1915	 65.56	0	1771500..1772588	+	362	78213469	-	Syncc9605_1952	-	protoporphyrin IX magnesium-chelatase
1916	 63.23	0	1772607..1773071	+	154	78213470	-	Syncc9605_1953	-	Holliday junction endonuclease RuvC
1917	 67.76	+1	1773068..1773616	+	182	78213471	-	Syncc9605_1954	-	hypothetical protein
1918	 61.26	0	1773628..1774071	+	147	78213472	-	Syncc9605_1955	-	hypothetical protein
1919	 64.30	0	1774079..1774501	+	140	78213473	-	Syncc9605_1956	-	SufE protein
1920	 64.76	0	1774589..1775896	+	435	78213474	-	Syncc9605_1957	-	homoserine dehydrogenase
1921	 58.62	0	1776060..1776233	+	57	78213475	-	Syncc9605_1958	-	hypothetical protein
1922	 64.30	0	1776274..1777881	+	535	78213476	-	Syncc9605_1959	-	ABC transporter substrate-binding protein
1923	 64.80	0	1777881..1778900	+	339	78213477	-	Syncc9605_1960	-	putative ABC transporter, oligopeptides
1924	 63.81	0	1778894..1780468	-	524	78213478	-	Syncc9605_1961	-	hypothetical protein
1925	 62.01	0	1780606..1781808	+	400	78213479	-	Syncc9605_1962	-	major facilitator superfamily multidrug-efflux transporter
1926	 43.99	-2	1782133..1782723	+	196	78213480	-	Syncc9605_1963	-	hypothetical protein
1927	 58.42	0	1782736..1783827	-	363	78213481	-	Syncc9605_1964	-	translation-associated GTPase
1928	 61.10	0	1783879..1785045	+	388	78213482	-	Syncc9605_1965	-	secretion protein HlyD
1929	 63.73	0	1785070..1788030	+	986	78213483	-	Syncc9605_1966	-	DNA polymerase I
1930	 62.28	0	1788077..1789558	+	493	78213484	-	Syncc9605_1967	-	cysteinyl-tRNA synthetase
1931	 57.61	0	1789579..1789821	+	80	78213485	-	Syncc9605_1968	-	hypothetical protein
1932	 64.77	0	1789843..1791162	-	439	78213486	-	Syncc9605_1969	-	sodium-dependent transporter
1933	 63.86	0	1791242..1792489	+	415	78213487	-	Syncc9605_1970	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1934	 52.07	-1	1792492..1792854	+	120	78213488	-	Syncc9605_1971	-	putative ferredoxin like protein
1935	 57.68	0	1793076..1794221	+	381	78213489	-	Syncc9605_1972	-	Delta(12)-fatty acid dehydrogenase
1936	 65.88	+1	1794257..1795276	-	339	78213490	-	Syncc9605_1973	-	hypothetical protein
1937	 63.22	0	1795288..1796709	-	473	78213491	-	Syncc9605_1974	-	putative nicotinamide nucleotide transhydrogenase, subunit beta
1938	 60.27	0	1796709..1797005	-	98	78213492	-	Syncc9605_1975	-	putative nicotinamide nucleotide transhydrogenase, subunit alpha 2 (A2)
59.39	MEAN

6.29	STD DEV
