IslandPath Analysis: Synechococcus sp. CC9605

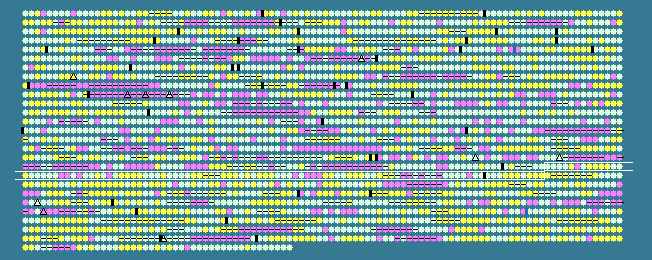

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1788	 59.74	0	1662268..1662498	-	76	78213343	-	Syncc9605_1822	-	hypothetical protein
1789	 61.63	0	1662548..1664293	-	581	78213344	-	Syncc9605_1823	-	ATPase
1790	 57.21	0	1664309..1664530	+	73	78213345	-	Syncc9605_1824	-	RNA-binding S4
1791	 59.71	0	1664548..1665294	+	248	78213346	tpiA	Syncc9605_1825	-	triosephosphate isomerase
1792	 64.54	0	1665272..1666117	+	281	78213347	-	Syncc9605_1826	-	dihydropteroate synthase
1793	 55.49	0	1666114..1667097	+	327	78213348	-	Syncc9605_1827	-	hypothetical protein
1794	 59.84	0	1667168..1671193	-	1341	78213349	-	Syncc9605_1828	-	magnesium chelatase
1795	 64.51	0	1671311..1672144	+	277	78213350	-	Syncc9605_1829	-	dihydrodipicolinate reductase
1796	 64.69	0	1672155..1672811	+	218	78213351	-	Syncc9605_1830	-	hypothetical protein
1797	 65.48	0	1672876..1673127	+	83	78213352	-	Syncc9605_1831	-	high light inducible protein
1798	 64.40	0	1673169..1674314	+	381	78213353	-	Syncc9605_1832	-	2-octaprenyl-6-methoxyphenol 4-monoxygenase UbiH
1799	 59.62	0	1674335..1674547	+	70	78213354	-	Syncc9605_1833	-	hypothetical protein
1800	 62.62	0	1674538..1675056	-	172	78213355	-	Syncc9605_1834	-	adenine phosphoribosyltransferase
1801	 64.85	0	1675100..1675648	+	182	78213356	-	Syncc9605_1835	-	hypothetical protein
1802	 61.79	0	1675656..1676270	+	204	78213357	-	Syncc9605_1836	-	hypothetical protein
1803	 60.98	0	1676330..1676698	+	122	78213358	-	Syncc9605_1837	-	hypothetical protein
1804	 59.16	0	1676695..1677147	-	150	78213359	-	Syncc9605_1838	-	hypothetical protein
1805	 61.85	0	1677242..1678009	+	255	78213360	-	Syncc9605_1839	-	two component transcriptional regulator
1806	 62.22	0	1678011..1679336	+	441	78213361	-	Syncc9605_1840	-	periplasmic sensor signal transduction histidine kinase
1807	 53.50	0	1679363..1680319	+	318	78213362	-	Syncc9605_1841	-	hypothetical protein
1808	 46.79	-2	1680439..1680750	-	103	78213363	-	Syncc9605_1842	-	hypothetical protein
1809	 57.28	0	1680913..1681125	+	70	78213364	-	Syncc9605_1843	-	hypothetical protein
1810	 55.28	0	1681291..1681536	-	81	78213365	-	Syncc9605_1844	-	hypothetical protein
1811	 59.71	0	1681651..1682901	-	416	78213366	-	Syncc9605_1845	-	major facilitator superfamily multidrug-efflux transporter
1812	 60.02	0	1682898..1683920	-	340	78213367	-	Syncc9605_1846	-	glyceraldehyde-3-phosphate dehydrogenase
1813	 62.89	0	1683981..1684298	+	105	78213368	-	Syncc9605_1847	-	ArsR family transcriptional regulator
1814	 58.90	0	1684301..1684918	+	205	78213369	-	Syncc9605_1848	-	hypothetical protein
1815	 42.52	-2	1684974..1685996	+	340	78213370	-	Syncc9605_1849	-	small mechanosensitive ion channel
1816	 57.78	0	1685957..1686271	-	104	78213371	-	Syncc9605_1850	-	hypothetical protein
1817	 63.95	0	1686310..1686714	-	134	78213372	-	Syncc9605_1851	-	hypothetical protein
1818	 63.92	0	1686770..1687024	+	84	78213373	-	Syncc9605_1852	-	phosphoribosylformylglycinamidine synthetase PurS
1819	 63.59	0	1687021..1687671	+	216	78213374	-	Syncc9605_1853	-	phosphoribosylformylglycinamidine synthase subunit I
1820	 63.21	0	1687671..1688624	+	317	78213375	-	Syncc9605_1854	-	hypothetical protein
1821	 60.86	0	1688657..1689310	+	217	78213376	-	Syncc9605_1855	-	hypothetical protein
1822	 58.87	0	1689356..1689817	+	153	78213377	-	Syncc9605_1856	-	hypothetical protein
1823	 62.20	0	1689901..1690974	-	357	78213378	-	Syncc9605_1857	-	fructose-1,6-bisphosphate aldolase
1824	 66.67	+1	1691035..1692117	-	360	78213379	-	Syncc9605_1858	-	putative oxidoreductase
1825	 62.37	0	1692119..1692490	-	123	78213380	-	Syncc9605_1859	-	hypothetical protein
1826	 61.22	0	1692487..1693368	-	293	78213381	-	Syncc9605_1860	-	acetyl-CoA carboxylase subunit beta
1827	 62.46	0	1694209..1694493	-	94	78213382	-	Syncc9605_1863	-	hypothetical protein
1828	 57.48	0	1694561..1695463	-	300	78213383	-	Syncc9605_1864	-	phosphoribulokinase
1829	 63.78	0	1695528..1696601	-	357	78213384	-	Syncc9605_1865	-	3-isopropylmalate dehydrogenase
1830	 66.11	+1	1696634..1697710	-	358	78213385	-	Syncc9605_1866	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1831	 66.20	+1	1697713..1698786	-	357	78213386	-	Syncc9605_1867	-	gamma-glutamyl kinase
1832	 64.56	0	1698783..1699304	-	173	78213387	-	Syncc9605_1868	-	HAD family phosphatase
1833	 60.18	0	1699292..1699846	-	184	78213388	-	Syncc9605_1869	-	hypothetical protein
1834	 70.23	+1	1699867..1700343	-	158	78213389	-	Syncc9605_1870	-	Holliday junction resolvase YqgF
1835	 65.79	+1	1700343..1701374	-	343	78213390	-	Syncc9605_1871	-	hypothetical protein
1836	 66.93	+1	1701413..1702573	-	386	78213391	-	Syncc9605_1872	-	hypothetical protein
1837	 60.14	0	1702636..1703202	-	188	78213392	-	Syncc9605_1873	-	hypothetical protein
1838	 66.30	+1	1703218..1704837	-	539	78213393	-	Syncc9605_1874	-	hypothetical protein
1839	 62.28	0	1704882..1705337	-	151	78213394	-	Syncc9605_1875	-	ferric uptake regulator family protein
1840	 64.58	0	1705379..1706146	-	255	78213395	-	Syncc9605_1876	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1841	 65.12	0	1706233..1707138	+	301	78213396	-	Syncc9605_1877	-	nucleotide sugar epimerase
1842	 66.48	+1	1707107..1707643	-	178	78213397	-	Syncc9605_1878	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
1843	 62.87	0	1707675..1708148	+	157	78213398	-	Syncc9605_1879	-	CBS
1844	 58.56	0	1708120..1708452	+	110	78213399	-	Syncc9605_1880	-	hypothetical protein
1845	 56.40	0	1708433..1708948	+	171	78213400	-	Syncc9605_1881	-	hypothetical protein
1846	 52.56	-1	1709205..1709516	+	103	78213401	-	Syncc9605_1882	-	ferredoxin (2Fe-2S)
1847	 60.95	0	1710058..1710582	-	174	78213402	-	Syncc9605_1883	-	dCTP deaminase
1848	 53.83	0	1711277..1711720	+	147	78213403	-	Syncc9605_1884	-	hypothetical protein
1849	 51.63	-1	1711720..1712118	+	132	78213404	-	Syncc9605_1885	-	hypothetical protein
1850	 54.57	0	1712389..1712793	-	134	78213405	-	Syncc9605_1886	-	hypothetical protein
1851	 65.26	0	1712914..1713483	-	189	78213406	-	Syncc9605_1887	-	hypothetical protein
1852	 64.26	0	1713487..1714941	-	484	78213407	-	Syncc9605_1888	-	hypothetical protein
1853	 62.07	0	1714938..1715612	-	224	78213408	-	Syncc9605_1889	-	hypothetical protein
1854	 60.53	0	1715654..1715881	+	75	78213409	-	Syncc9605_1890	-	hypothetical protein
1855	 67.51	+1	1717059..1717295	-	78	78213410	-	Syncc9605_1893	-	hypothetical protein
1856	 65.19	0	1717381..1717989	+	202	78213411	-	Syncc9605_1894	-	hypothetical protein
1857	 65.56	0	1717967..1718236	+	89	78213412	-	Syncc9605_1895	-	hypothetical protein
1858	 61.85	0	1718233..1718730	+	165	78213413	-	Syncc9605_1896	-	hypothetical protein
1859	 59.20	0	1718721..1718921	-	66	78213414	-	Syncc9605_1897	-	hypothetical protein
1860	 64.52	0	1718965..1720500	-	511	78213415	-	Syncc9605_1898	-	hypothetical protein
1861	 64.07	0	1720545..1721084	+	179	78213416	-	Syncc9605_1899	-	hypothetical protein
1862	 63.66	0	1721101..1721832	-	243	78213417	-	Syncc9605_1900	-	hypothetical protein
1863	 59.60	0	1722357..1722653	-	98	78213418	-	Syncc9605_1901	-	hypothetical protein
1864	 42.37	-2	1723046..1724329	-	427	78213419	-	Syncc9605_1902	-	Na+/H+ antiporter NhaP
1865	 53.88	0	1725001..1725258	-	85	78213420	-	Syncc9605_1903	-	hypothetical protein
1866	 57.02	0	1725410..1725865	+	151	78213421	-	Syncc9605_1904	-	hypothetical protein
1867	 55.04	0	1726577..1727746	+	389	78213422	-	Syncc9605_1905	-	beta-lactamase class C and other penicillin binding proteins
1868	 59.84	0	1728207..1729670	+	487	78213423	-	Syncc9605_1906	-	amine oxidase (flavin-containing)
1869	 58.33	0	1730207..1730446	-	79	78213424	-	Syncc9605_1907	-	hypothetical protein
1870	 53.88	0	1730647..1731045	+	132	78213425	-	Syncc9605_1908	-	hypothetical protein
1871	 60.49	0	1731817..1732059	+	80	78213426	-	Syncc9605_1909	-	hypothetical protein
1872	 58.15	0	1732068..1732337	+	89	78213427	-	Syncc9605_1910	-	hypothetical protein
1873	 60.95	0	1732393..1732602	+	69	78213428	-	Syncc9605_1911	-	hypothetical protein
1874	 60.87	0	1732592..1735195	-	867	78213429	-	Syncc9605_1912	-	alanyl aminopeptidase
1875	 54.50	0	1735375..1735785	-	136	78213430	-	Syncc9605_1913	-	cAMP phosphodiesterase class-II
1876	 58.17	0	1735880..1736479	-	199	78213431	-	Syncc9605_1914	-	hypothetical protein
1877	 59.06	0	1736504..1737739	+	411	78213432	-	Syncc9605_1915	-	adaptive-response sensory kinase
1878	 57.28	0	1737986..1738507	-	173	78213433	-	Syncc9605_1916	-	hypothetical protein
1879	 59.36	0	1738669..1739859	+	396	78213434	-	Syncc9605_1917	-	ferredoxin--NADP reductase (FNR)
1880	 62.27	0	1740028..1741551	+	507	78213435	-	Syncc9605_1918	-	glucose-6-phosphate 1-dehydrogenase
1881	 65.97	+1	1741610..1742896	+	428	78213436	-	Syncc9605_1919	-	glucose 6-phosphate dehydrogenase effector OpcA
1882	 65.97	+1	1742911..1744338	+	475	78213437	-	Syncc9605_1920	-	cobyrinate a,c-diamide synthase / hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing)
1883	 69.05	+1	1744335..1744586	+	83	78213438	-	Syncc9605_1921	-	acylphosphatase
1884	 62.40	0	1744687..1745061	+	124	78213439	-	Syncc9605_1922	-	hypothetical protein
1885	 65.50	0	1745208..1745894	+	228	78213440	-	Syncc9605_1923	-	cytochrome c biogenesis protein trans
1886	 65.84	+1	1745896..1747347	-	483	78213441	-	Syncc9605_1924	-	exodeoxyribonuclease V
1887	 63.94	0	1747344..1747856	-	170	78213442	-	Syncc9605_1925	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
