IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

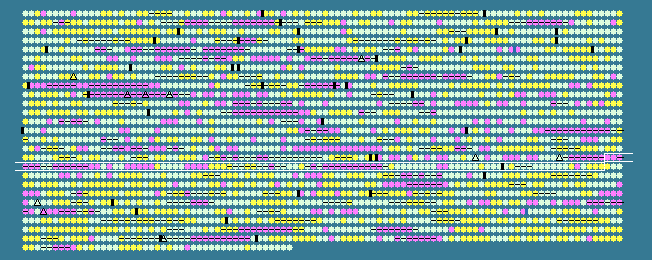

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1698	 41.48	-2	1582880..1583149	-	89	78213253	-	Syncc9605_1728	-	hypothetical protein
1699	 51.82	-1	1583497..1584129	-	210	78213254	-	Syncc9605_1729	-	hypothetical protein
1700	 53.82	0	1585034..1585282	-	82	78213255	-	Syncc9605_1730	-	hypothetical protein
1701	 54.49	0	1585556..1586089	+	177	78213256	-	Syncc9605_1731	-	hypothetical protein
1702	 54.60	0	1586384..1586698	-	104	78213257	-	Syncc9605_1732	-	hypothetical protein
1703	 49.82	-1	1586815..1587093	-	92	78213258	-	Syncc9605_1733	-	hypothetical protein
1704	 59.26	0	1587128..1587370	-	80	78213259	-	Syncc9605_1734	-	hypothetical protein
1705	 59.77	0	1588895..1589068	-	57	78213260	-	Syncc9605_1735	-	hypothetical protein
1706	 53.19	0	1589666..1589947	-	93	78213261	-	Syncc9605_1736	-	hypothetical protein
1707	 55.00	0	1589919..1590518	-	199	78213262	-	Syncc9605_1737	-	hypothetical protein
1708	 44.87	-2	1591162..1591395	+	77	78213263	-	Syncc9605_1738	-	hypothetical protein
1709	 38.00	-2	1592989..1593888	+	299	78213264	-	Syncc9605_1741	-	hypothetical protein
1710	 51.58	-1	1594101..1594544	-	147	78213265	-	Syncc9605_1742	-	hypothetical protein
1711	 42.36	-2	1595237..1595524	+	95	78213266	-	Syncc9605_1743	-	hypothetical protein
1712	 53.96	0	1595899..1596378	+	159	78213267	-	Syncc9605_1744	-	hypothetical protein
1713	 45.74	-2	1596401..1596811	-	136	78213268	-	Syncc9605_1745	-	hypothetical protein
1714	 62.05	0	1597084..1597950	-	288	78213269	-	Syncc9605_1746	-	pfkB family carbohydrate kinase
1715	 54.26	0	1598066..1598323	+	85	78213270	-	Syncc9605_1747	-	hypothetical protein
1716	 57.54	0	1598551..1598835	-	94	78213271	-	Syncc9605_1748	-	hypothetical protein
1717	 60.49	0	1599037..1599279	+	80	78213272	-	Syncc9605_1749	-	hypothetical protein
1718	 48.39	-1	1599283..1599561	+	92	78213273	-	Syncc9605_1750	-	hypothetical protein
1719	 54.60	0	1599599..1599946	-	115	78213274	-	Syncc9605_1751	-	hypothetical protein
1720	 48.62	-1	1602219..1602944	+	241	78213275	-	Syncc9605_1752	-	pectate lyase
1721	 49.65	-1	1603050..1603190	+	46	78213276	-	Syncc9605_1753	-	hypothetical protein
1722	 51.31	-1	1603548..1603814	-	88	78213277	-	Syncc9605_1754	-	hypothetical protein
1723	 64.04	0	1603851..1604117	-	88	78213278	-	Syncc9605_1755	-	hypothetical protein
1724	 60.61	0	1604226..1604423	+	65	78213279	-	Syncc9605_1756	-	high light inducible protein
1725	 56.31	0	1604819..1605301	-	160	78213280	-	Syncc9605_1757	-	hypothetical protein
1726	 60.90	0	1605305..1605703	-	132	78213281	-	Syncc9605_1758	-	hypothetical protein
1727	 56.35	0	1606085..1606336	+	83	78213282	-	Syncc9605_1759	-	hypothetical protein
1728	 50.00	-1	1607210..1607527	-	105	78213283	-	Syncc9605_1760	-	hypothetical protein
1729	 50.20	-1	1608069..1608572	-	167	78213284	-	Syncc9605_1761	-	hypothetical protein
1730	 52.05	-1	1608787..1609176	-	129	78213285	-	Syncc9605_1762	-	hypothetical protein
1731	 51.79	-1	1609461..1609655	-	64	78213286	-	Syncc9605_1763	-	hypothetical protein
1732	 64.46	0	1610308..1611258	+	316	78213287	-	Syncc9605_1764	-	putative histone deacetylase/AcuC/AphA family protein
1733	 64.08	0	1611255..1611833	+	192	78213288	-	Syncc9605_1765	-	hypothetical protein
1734	 63.64	0	1611840..1612169	-	109	78213289	-	Syncc9605_1766	-	hypothetical protein
1735	 64.47	0	1613631..1614131	-	166	78213290	-	Syncc9605_1769	-	hypothetical protein
1736	 62.46	0	1614199..1614912	+	237	78213291	-	Syncc9605_1770	-	hypothetical protein
1737	 60.71	0	1614955..1615206	+	83	78213292	-	Syncc9605_1771	-	hypothetical protein
1738	 65.35	0	1615209..1615970	-	253	78213293	-	Syncc9605_1772	-	ICC (3',5'-cyclic-nucleotide phosphodiesterase) protein
1739	 63.68	0	1615948..1616181	-	77	78213294	-	Syncc9605_1773	-	hypothetical protein
1740	 58.43	0	1616181..1616447	-	88	78213295	-	Syncc9605_1774	-	hypothetical protein
1741	 61.84	0	1616594..1617049	+	151	78213296	-	Syncc9605_1775	-	ferric uptake regulator family protein
1742	 52.06	-1	1617065..1617331	-	88	78213297	-	Syncc9605_1776	-	hypothetical protein
1743	 60.35	0	1617370..1617765	-	131	78213298	-	Syncc9605_1777	-	hypothetical protein
1744	 60.42	0	1617769..1618008	-	79	78213299	-	Syncc9605_1778	-	hypothetical protein
1745	 59.96	0	1618033..1618986	-	317	78213300	-	Syncc9605_1779	-	L-asparaginase II
1746	 61.70	0	1619062..1620270	-	402	78213301	-	Syncc9605_1780	-	glucosylglycerol 3-phosphatase
1747	 65.13	0	1620384..1621754	+	456	78213302	-	Syncc9605_1781	-	cell death suppressor protein Lls1-like
1748	 61.81	0	1621755..1622186	-	143	78213303	-	Syncc9605_1782	-	hypothetical protein
1749	 49.29	-1	1622471..1623034	+	187	78213304	-	Syncc9605_1783	-	putative glutathione S-transferase
1750	 61.39	0	1623251..1624765	+	504	78213305	-	Syncc9605_1784	-	hypothetical protein
1751	 48.28	-1	1625004..1626482	+	492	78213306	-	Syncc9605_1785	-	hypothetical protein
1752	 42.68	-2	1627035..1627280	-	81	78213307	-	Syncc9605_1786	-	hypothetical protein
1753	 45.17	-2	1627578..1628084	-	168	78213308	-	Syncc9605_1787	-	hypothetical protein
1754	 48.61	-1	1628097..1628384	-	95	78213309	-	Syncc9605_1788	-	hypothetical protein
1755	 42.65	-2	1628381..1628659	-	92	78213310	-	Syncc9605_1789	-	hypothetical protein
1756	 44.72	-2	1628700..1628945	-	81	78213311	-	Syncc9605_1790	-	hypothetical protein
1757	 42.32	-2	1629301..1629567	-	88	78213312	-	Syncc9605_1791	-	hypothetical protein
1758	 42.51	-2	1629636..1630583	-	315	78213313	-	Syncc9605_1792	-	hypothetical protein
1759	 44.30	-2	1632379..1632606	+	75	78213314	-	Syncc9605_1793	-	hypothetical protein
1760	 53.25	0	1634078..1634308	-	76	78213315	-	Syncc9605_1794	-	hypothetical protein
1761	 61.98	0	1634768..1635898	+	376	78213316	-	Syncc9605_1795	-	hypothetical protein
1762	 63.54	0	1635900..1636475	+	191	78213317	-	Syncc9605_1796	-	hypothetical protein
1763	 62.79	0	1636515..1637519	+	334	78213318	-	Syncc9605_1797	-	hypothetical protein
1764	 61.16	0	1637563..1638234	+	223	78213319	-	Syncc9605_1798	-	hypothetical protein
1765	 60.78	0	1638263..1639588	+	441	78213320	-	Syncc9605_1799	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
1766	 59.73	0	1639605..1640498	+	297	78213321	-	Syncc9605_1800	-	homoserine O-succinyltransferase
1767	 55.97	0	1640524..1640841	-	105	78213322	-	Syncc9605_1801	-	hypothetical protein
1768	 56.58	0	1640901..1641485	+	194	78213323	-	Syncc9605_1802	-	DNA-N1-methyladenine dioxygenase
1769	 61.42	0	1641476..1642390	-	304	78213324	-	Syncc9605_1803	-	AEC family transporter
1770	 52.08	-1	1642479..1642670	+	63	78213325	-	Syncc9605_1804	-	hypothetical protein
1771	 55.38	0	1642863..1643252	+	129	78213326	-	Syncc9605_1805	-	hypothetical protein
1772	 60.62	0	1643714..1644457	-	247	78213327	-	Syncc9605_1806	-	ATPase
1773	 61.54	0	1644454..1645428	-	324	78213328	-	Syncc9605_1807	-	amino acid ABC transporter permease
1774	 59.26	0	1645428..1646318	-	296	78213329	-	Syncc9605_1808	-	amino acid ABC transporter permease
1775	 60.92	0	1646318..1647379	-	353	78213330	-	Syncc9605_1809	-	extracellular solute-binding protein
1776	 60.78	0	1647772..1649334	-	520	78213331	-	Syncc9605_1810	-	putative sulfate transporter
1777	 64.10	0	1649365..1650570	-	401	78213332	-	Syncc9605_1811	-	hypothetical protein
1778	 62.66	0	1650619..1651716	+	365	78213333	-	Syncc9605_1812	-	hypothetical protein
1779	 57.02	0	1652045..1652386	+	113	78213334	-	Syncc9605_1813	-	hypothetical protein
1780	 62.53	0	1652367..1654010	-	547	78213335	-	Syncc9605_1814	-	oxidoreductase
1781	 60.89	0	1654192..1655160	-	322	78213336	-	Syncc9605_1815	-	hypothetical protein
1782	 63.23	0	1655178..1655672	-	164	78213337	-	Syncc9605_1816	-	hypothetical protein
1783	 58.82	0	1655684..1656040	-	118	78213338	-	Syncc9605_1817	-	Iojap-related protein
1784	 59.75	0	1656033..1656668	-	211	78213339	-	Syncc9605_1818	-	hypothetical protein
1785	 61.64	0	1656773..1660096	+	1107	78213340	carB	Syncc9605_1819	-	carbamoyl phosphate synthase large subunit
1786	 60.96	0	1660132..1660797	+	221	78213341	-	Syncc9605_1820	-	hypothetical protein
1787	 60.40	0	1660803..1662206	+	467	78213342	-	Syncc9605_1821	-	amino acid carrier protein
1788	 59.74	0	1662268..1662498	-	76	78213343	-	Syncc9605_1822	-	hypothetical protein
1789	 61.63	0	1662548..1664293	-	581	78213344	-	Syncc9605_1823	-	ATPase
1790	 57.21	0	1664309..1664530	+	73	78213345	-	Syncc9605_1824	-	RNA-binding S4
1791	 59.71	0	1664548..1665294	+	248	78213346	tpiA	Syncc9605_1825	-	triosephosphate isomerase
1792	 64.54	0	1665272..1666117	+	281	78213347	-	Syncc9605_1826	-	dihydropteroate synthase
1793	 55.49	0	1666114..1667097	+	327	78213348	-	Syncc9605_1827	-	hypothetical protein
1794	 59.84	0	1667168..1671193	-	1341	78213349	-	Syncc9605_1828	-	magnesium chelatase
1795	 64.51	0	1671311..1672144	+	277	78213350	-	Syncc9605_1829	-	dihydrodipicolinate reductase
1796	 64.69	0	1672155..1672811	+	218	78213351	-	Syncc9605_1830	-	hypothetical protein
1797	 65.48	0	1672876..1673127	+	83	78213352	-	Syncc9605_1831	-	high light inducible protein
59.39	MEAN

6.29	STD DEV
