IslandPath Analysis: Synechococcus sp. CC9605

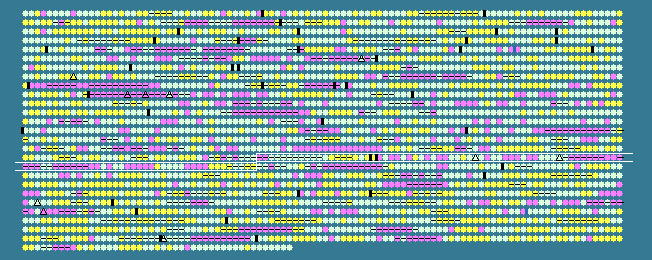

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1640	 54.86	0	1536635..1536922	-	95	78213195	-	Syncc9605_1670	-	hypothetical protein
1641	 53.91	0	1537130..1537372	-	80	78213196	-	Syncc9605_1671	-	hypothetical protein
1642	 59.06	0	1537649..1538200	-	183	78213197	-	Syncc9605_1672	-	hypothetical protein
1643	 58.39	0	1538729..1539139	-	136	78213198	-	Syncc9605_1673	-	hypothetical protein
1644	 57.84	0	1539143..1539346	-	67	78213199	-	Syncc9605_1674	-	hypothetical protein
1645	 57.44	0	1539367..1539756	+	129	78213200	-	Syncc9605_1675	-	hypothetical protein
1646	 60.14	0	1539790..1540080	+	96	78213201	-	Syncc9605_1676	-	hypothetical protein
1647	 56.60	0	1540195..1540512	+	105	78213202	-	Syncc9605_1677	-	hypothetical protein
1648	 61.93	0	1540650..1541135	+	161	78213203	-	Syncc9605_1678	-	hypothetical protein
1649	 62.34	0	1541219..1541773	-	184	78213204	-	Syncc9605_1679	-	hypothetical protein
1650	 58.95	0	1541770..1542054	-	94	78213205	-	Syncc9605_1680	-	hypothetical protein
1651	 62.30	0	1542090..1543646	-	518	78213206	-	Syncc9605_1681	-	carotenoid isomerase
1652	 63.24	0	1543670..1543873	-	67	78213207	-	Syncc9605_1682	-	CDF family cation efflux system protein
1653	 69.05	+1	1543919..1544086	-	55	78213208	-	Syncc9605_1683	-	CDF family cation efflux system protein
1654	 66.67	+1	1544159..1544383	-	74	78213209	-	Syncc9605_1684	-	CDF family cation efflux system protein
1655	 64.29	0	1544384..1544635	-	83	78213210	-	Syncc9605_1685	-	CDF family cation efflux system protein
1656	 63.82	0	1544632..1546002	-	456	78213211	-	Syncc9605_1686	-	tRNA (uracil-5-)-methyltransferase Gid
1657	 61.50	0	1546050..1546262	-	70	78213212	-	Syncc9605_1687	-	hypothetical protein
1658	 65.30	0	1546366..1546878	-	170	78213213	-	Syncc9605_1688	-	carbonic anhydrase
1659	 63.50	0	1547226..1548392	+	388	78213214	-	Syncc9605_1689	-	hypothetical protein
1660	 55.23	0	1548688..1548993	+	101	78213215	-	Syncc9605_1690	-	hypothetical protein
1661	 59.29	0	1549003..1549314	+	103	78213216	-	Syncc9605_1691	-	hypothetical protein
1662	 54.68	0	1549661..1550002	+	113	78213217	-	Syncc9605_1692	-	hypothetical protein
1663	 55.24	0	1550047..1550256	+	69	78213218	-	Syncc9605_1693	-	hypothetical protein
1664	 59.83	0	1550253..1550852	+	199	78213219	-	Syncc9605_1694	-	hypothetical protein
1665	 55.37	0	1550849..1552096	+	415	78213220	-	Syncc9605_1695	-	hypothetical protein
1666	 63.25	0	1552515..1552982	+	155	78213221	-	Syncc9605_1696	-	hypothetical protein
1667	 59.13	0	1553360..1553611	+	83	78213222	-	Syncc9605_1697	-	hypothetical protein
1668	 52.33	-1	1553637..1553936	+	99	78213223	-	Syncc9605_1698	-	hypothetical protein
1669	 56.38	0	1554230..1555804	+	524	78213224	-	Syncc9605_1699	-	hypothetical protein
1670	 48.64	-1	1556112..1557986	+	624	78213225	-	Syncc9605_1700	-	hypothetical protein
1671	 49.46	-1	1558148..1559164	+	338	78213226	-	Syncc9605_1701	-	carbamoyl-phosphate synthase L chain
1672	 57.14	0	1559430..1559975	+	181	78213227	-	Syncc9605_1702	-	hypothetical protein
1673	 61.46	0	1559968..1560984	+	338	78213228	-	Syncc9605_1703	-	hypothetical protein
1674	 63.93	0	1560984..1561166	+	60	78213229	-	Syncc9605_1704	-	hypothetical protein
1675	 60.69	0	1561166..1562203	+	345	78213230	-	Syncc9605_1705	-	hypothetical protein
1676	 60.02	0	1562649..1563821	-	390	78213231	-	Syncc9605_1706	-	phage integrase family protein
1677	 57.91	0	1564571..1564867	+	98	78213232	-	Syncc9605_1707	-	hypothetical protein
1678	 52.81	-1	1564857..1565123	+	88	78213233	-	Syncc9605_1708	-	hypothetical protein
1679	 59.45	0	1565410..1565880	+	156	78213234	-	Syncc9605_1709	-	hypothetical protein
1680	 59.60	0	1565971..1566168	-	65	78213235	-	Syncc9605_1710	-	hypothetical protein
1681	 55.25	0	1566231..1566449	-	72	78213236	-	Syncc9605_1711	-	hypothetical protein
1682	 54.82	0	1567088..1568404	+	438	78213237	-	Syncc9605_1712	-	hypothetical protein
1683	 46.64	-2	1568570..1569967	+	465	78213238	-	Syncc9605_1713	-	hypothetical protein
1684	 58.69	0	1570378..1570941	+	187	78213239	-	Syncc9605_1714	-	hypothetical protein
1685	 46.92	-1	1571318..1573003	+	561	78213240	-	Syncc9605_1715	-	hypothetical protein
1686	 53.33	0	1573143..1573622	+	159	78213241	-	Syncc9605_1716	-	hypothetical protein
1687	 57.64	0	1573622..1574197	+	191	78213242	-	Syncc9605_1717	-	hypothetical protein
1688	 61.36	0	1574210..1574548	+	112	78213243	-	Syncc9605_1718	-	hypothetical protein
1689	 59.24	0	1574577..1575626	+	349	78213244	-	Syncc9605_1719	-	hypothetical protein
1690	 59.16	0	1576311..1577483	-	390	78213245	-	Syncc9605_1720	-	phage integrase family protein
1691	 59.35	0	1578418..1578663	+	81	78213246	-	Syncc9605_1721	-	hypothetical protein
1692	 46.71	-2	1578666..1579166	+	166	78213247	-	Syncc9605_1722	-	hypothetical protein
1693	 40.50	-2	1579999..1580277	-	92	78213248	-	Syncc9605_1723	-	hypothetical protein
1694	 42.07	-2	1580591..1580899	+	102	78213249	-	Syncc9605_1724	-	hypothetical protein
1695	 50.72	-1	1581296..1581847	+	183	78213250	-	Syncc9605_1725	-	hypothetical protein
1696	 36.78	-2	1582118..1582378	-	86	78213251	-	Syncc9605_1726	-	hypothetical protein
1697	 40.71	-2	1582436..1582828	+	130	78213252	-	Syncc9605_1727	-	hypothetical protein
1698	 41.48	-2	1582880..1583149	-	89	78213253	-	Syncc9605_1728	-	hypothetical protein
1699	 51.82	-1	1583497..1584129	-	210	78213254	-	Syncc9605_1729	-	hypothetical protein
1700	 53.82	0	1585034..1585282	-	82	78213255	-	Syncc9605_1730	-	hypothetical protein
1701	 54.49	0	1585556..1586089	+	177	78213256	-	Syncc9605_1731	-	hypothetical protein
1702	 54.60	0	1586384..1586698	-	104	78213257	-	Syncc9605_1732	-	hypothetical protein
1703	 49.82	-1	1586815..1587093	-	92	78213258	-	Syncc9605_1733	-	hypothetical protein
1704	 59.26	0	1587128..1587370	-	80	78213259	-	Syncc9605_1734	-	hypothetical protein
1705	 59.77	0	1588895..1589068	-	57	78213260	-	Syncc9605_1735	-	hypothetical protein
1706	 53.19	0	1589666..1589947	-	93	78213261	-	Syncc9605_1736	-	hypothetical protein
1707	 55.00	0	1589919..1590518	-	199	78213262	-	Syncc9605_1737	-	hypothetical protein
1708	 44.87	-2	1591162..1591395	+	77	78213263	-	Syncc9605_1738	-	hypothetical protein
1709	 38.00	-2	1592989..1593888	+	299	78213264	-	Syncc9605_1741	-	hypothetical protein
1710	 51.58	-1	1594101..1594544	-	147	78213265	-	Syncc9605_1742	-	hypothetical protein
1711	 42.36	-2	1595237..1595524	+	95	78213266	-	Syncc9605_1743	-	hypothetical protein
1712	 53.96	0	1595899..1596378	+	159	78213267	-	Syncc9605_1744	-	hypothetical protein
1713	 45.74	-2	1596401..1596811	-	136	78213268	-	Syncc9605_1745	-	hypothetical protein
1714	 62.05	0	1597084..1597950	-	288	78213269	-	Syncc9605_1746	-	pfkB family carbohydrate kinase
1715	 54.26	0	1598066..1598323	+	85	78213270	-	Syncc9605_1747	-	hypothetical protein
1716	 57.54	0	1598551..1598835	-	94	78213271	-	Syncc9605_1748	-	hypothetical protein
1717	 60.49	0	1599037..1599279	+	80	78213272	-	Syncc9605_1749	-	hypothetical protein
1718	 48.39	-1	1599283..1599561	+	92	78213273	-	Syncc9605_1750	-	hypothetical protein
1719	 54.60	0	1599599..1599946	-	115	78213274	-	Syncc9605_1751	-	hypothetical protein
1720	 48.62	-1	1602219..1602944	+	241	78213275	-	Syncc9605_1752	-	pectate lyase
1721	 49.65	-1	1603050..1603190	+	46	78213276	-	Syncc9605_1753	-	hypothetical protein
1722	 51.31	-1	1603548..1603814	-	88	78213277	-	Syncc9605_1754	-	hypothetical protein
1723	 64.04	0	1603851..1604117	-	88	78213278	-	Syncc9605_1755	-	hypothetical protein
1724	 60.61	0	1604226..1604423	+	65	78213279	-	Syncc9605_1756	-	high light inducible protein
1725	 56.31	0	1604819..1605301	-	160	78213280	-	Syncc9605_1757	-	hypothetical protein
1726	 60.90	0	1605305..1605703	-	132	78213281	-	Syncc9605_1758	-	hypothetical protein
1727	 56.35	0	1606085..1606336	+	83	78213282	-	Syncc9605_1759	-	hypothetical protein
1728	 50.00	-1	1607210..1607527	-	105	78213283	-	Syncc9605_1760	-	hypothetical protein
1729	 50.20	-1	1608069..1608572	-	167	78213284	-	Syncc9605_1761	-	hypothetical protein
1730	 52.05	-1	1608787..1609176	-	129	78213285	-	Syncc9605_1762	-	hypothetical protein
1731	 51.79	-1	1609461..1609655	-	64	78213286	-	Syncc9605_1763	-	hypothetical protein
1732	 64.46	0	1610308..1611258	+	316	78213287	-	Syncc9605_1764	-	putative histone deacetylase/AcuC/AphA family protein
1733	 64.08	0	1611255..1611833	+	192	78213288	-	Syncc9605_1765	-	hypothetical protein
1734	 63.64	0	1611840..1612169	-	109	78213289	-	Syncc9605_1766	-	hypothetical protein
1735	 64.47	0	1613631..1614131	-	166	78213290	-	Syncc9605_1769	-	hypothetical protein
1736	 62.46	0	1614199..1614912	+	237	78213291	-	Syncc9605_1770	-	hypothetical protein
1737	 60.71	0	1614955..1615206	+	83	78213292	-	Syncc9605_1771	-	hypothetical protein
1738	 65.35	0	1615209..1615970	-	253	78213293	-	Syncc9605_1772	-	ICC (3',5'-cyclic-nucleotide phosphodiesterase) protein
1739	 63.68	0	1615948..1616181	-	77	78213294	-	Syncc9605_1773	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
