IslandPath Analysis: Synechococcus sp. CC9605

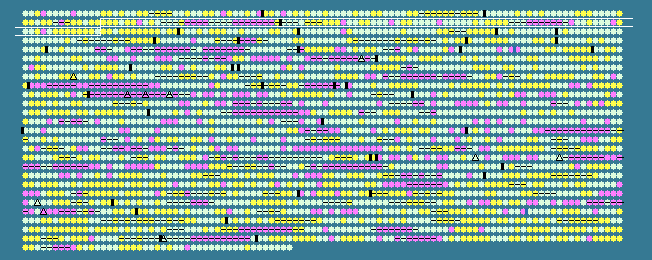

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
114	 65.99	+1	117063..118244	+	393	78211672	-	Syncc9605_0120	-	peptidase M20D, amidohydrolase
115	 63.60	0	118241..118468	+	75	78211673	-	Syncc9605_0121	-	hypothetical protein
116	 63.25	0	118465..119079	+	204	78211674	-	Syncc9605_0122	-	hypothetical protein
117	 60.62	0	119212..120666	+	484	78211675	-	Syncc9605_0123	-	thiamine biosynthesis protein ThiC
118	 63.38	0	120807..122816	-	669	78211676	-	Syncc9605_0124	-	transketolase
119	 63.70	0	122871..124118	-	415	78211677	-	Syncc9605_0125	-	3-oxoacyl-[acyl-carrier-protein] synthase II
120	 54.73	0	124127..124369	-	80	161353765	acpP	Syncc9605_0126	-	acyl carrier protein
121	 60.14	0	124486..124761	+	91	78211679	-	Syncc9605_0127	-	photosystem I subunit VII
122	 64.23	0	124816..126705	+	629	78211680	-	Syncc9605_0128	-	D-fructose-6-phosphate amidotransferase
123	 62.56	0	126709..128169	-	486	78211681	-	Syncc9605_0129	-	mannose-1-phosphate guanylyltransferase (GDP)
124	 62.55	0	128246..128779	-	177	78211682	rimM	Syncc9605_0130	-	16S rRNA-processing protein
125	 59.57	0	128880..129020	+	46	78211683	-	Syncc9605_0131	-	hypothetical protein
126	 60.51	0	129025..129852	+	275	78211684	-	Syncc9605_0132	-	VIC family potassium channel protein
127	 64.76	0	129900..130004	-	34	78211685	-	Syncc9605_0133	-	hypothetical protein
128	 54.52	0	130260..131585	+	441	78211686	-	Syncc9605_0134	-	hypothetical protein
129	 47.39	-1	132091..132972	-	293	78211687	-	Syncc9605_0135	-	hypothetical protein
130	 35.43	-2	133070..134215	+	381	78211688	-	Syncc9605_0136	-	hypothetical protein
131	 39.52	-2	134341..134712	+	123	78211689	-	Syncc9605_0137	-	hypothetical protein
132	 57.05	0	135126..135437	-	103	78211690	-	Syncc9605_0138	-	hypothetical protein
133	 60.78	0	135673..136521	-	282	78211691	-	Syncc9605_0139	-	2-dehydro-3-deoxyphosphooctonate aldolase
134	 60.06	0	136719..137429	+	236	78211692	-	Syncc9605_0140	-	hypothetical protein
135	 62.08	0	137429..138148	+	239	78211693	-	Syncc9605_0141	-	3-deoxy-manno-octulosonate cytidylyltransferase
136	 34.57	-2	138531..140147	-	538	78211694	-	Syncc9605_0142	-	hypothetical protein
137	 33.29	-2	140144..142693	-	849	78211695	-	Syncc9605_0143	-	glycosyltransferase-like protein
138	 37.85	-2	142965..143828	-	287	78211696	-	Syncc9605_0144	-	putative sugar nucleotide epimerase/dehydratase
139	 32.47	-2	144154..145191	-	345	78211697	-	Syncc9605_0145	-	hypothetical protein
140	 35.35	-2	145188..146327	-	379	78211698	-	Syncc9605_0146	-	hypothetical protein
141	 33.27	-2	146324..147859	-	511	78211699	-	Syncc9605_0147	-	hypothetical protein
142	 32.73	-2	147856..149841	-	661	78211700	-	Syncc9605_0148	-	hypothetical protein
143	 65.29	0	151016..151741	-	241	78211701	-	Syncc9605_0149	-	RNAse III
144	 61.98	0	152308..152691	+	127	78211702	-	Syncc9605_0150	-	hypothetical protein
145	 59.14	0	152729..153193	+	154	78211703	-	Syncc9605_0151	-	hypothetical protein
146	 60.80	0	153255..155777	-	840	78211704	-	Syncc9605_0152	-	glycogen/starch/alpha-glucan phosphorylase
147	 59.33	0	155990..157366	+	458	78211705	-	Syncc9605_0153	-	CPA2 family Na+/H+ antiporter
148	 62.96	0	157369..157719	-	116	78211706	-	Syncc9605_0154	-	hypothetical protein
149	 62.98	0	157740..158660	+	306	78211707	-	Syncc9605_0155	-	hypothetical protein
150	 63.86	0	158678..159532	+	284	78211708	-	Syncc9605_0156	-	hypothetical protein
151	 67.45	+1	159517..160668	-	383	78211709	-	Syncc9605_0157	-	putative glycolate oxidase subunit GlcE
152	 66.15	+1	160683..162029	+	448	78211710	-	Syncc9605_0158	-	hypothetical protein
153	 66.16	+1	161928..163304	-	458	78211711	-	Syncc9605_0159	-	putative glycolate oxidase subunit (Fe-S) protein
154	 42.32	-2	163572..164294	-	240	78211712	-	Syncc9605_0160	-	hypothetical protein
155	 62.74	0	164316..165740	-	474	78211713	-	Syncc9605_0161	-	isocitrate dehydrogenase
156	 60.78	0	165823..166773	+	316	78211714	-	Syncc9605_0162	-	putative glycosyl transferase family protein
157	 64.06	0	166756..167943	-	395	78211715	-	Syncc9605_0163	-	hypothetical protein
158	 64.95	0	167961..168716	-	251	78211716	-	Syncc9605_0164	-	methylthioadenosine nucleosidase
159	 61.87	0	168821..169237	+	138	78211717	-	Syncc9605_0165	-	hypothetical protein
160	 57.98	0	169313..170026	+	237	78211718	-	Syncc9605_0166	-	Heme oxygenase (decyclizing)
161	 61.85	0	170043..171080	+	345	78211719	-	Syncc9605_0167	-	hypothetical protein
162	 46.44	-2	171147..172985	+	612	78211720	-	Syncc9605_0168	-	ATPase
163	 61.92	0	172985..175240	+	751	78211721	-	Syncc9605_0169	-	glycosyltransferase-like protein
164	 63.29	0	175237..176391	+	384	78211722	-	Syncc9605_0170	-	putative glycosyl transferase, group 1
165	 63.57	0	176384..177643	+	419	78211723	-	Syncc9605_0171	-	glycosyl transferase, group 1
166	 61.96	0	177640..178764	+	374	78211724	-	Syncc9605_0172	-	glycosyl transferase, group 1
167	 62.22	0	178761..179615	+	284	78211725	-	Syncc9605_0173	-	hypothetical protein
168	 59.33	0	179640..180470	-	276	78211726	-	Syncc9605_0174	-	hypothetical protein
169	 58.42	0	180495..181343	-	282	78211727	-	Syncc9605_0175	-	2-dehydro-3-deoxyphosphooctonate aldolase
170	 52.00	-1	181389..182213	-	274	78211728	-	Syncc9605_0176	-	hypothetical protein
171	 57.49	0	182241..183134	-	297	78211729	-	Syncc9605_0177	-	hypothetical protein
172	 62.15	0	183158..185548	+	796	78211730	-	Syncc9605_0178	-	ATP-dependent DNA helicase Rep
173	 60.06	0	185574..186284	+	236	78211731	-	Syncc9605_0179	-	hypothetical protein
174	 62.44	0	186284..187063	+	259	78211732	-	Syncc9605_0180	-	3-deoxy-manno-octulosonate cytidylyltransferase
175	 61.69	0	187138..189327	+	729	78211733	-	Syncc9605_0181	-	catalase/peroxidase HPI
176	 64.13	0	189341..189892	-	183	78211734	-	Syncc9605_0182	-	phosphatase kdsC
177	 62.82	0	189889..190902	-	337	78211735	-	Syncc9605_0183	-	KpsF/GutQ family protein
178	 65.92	+1	190921..192132	+	403	78211736	-	Syncc9605_0184	-	polyA polymerase
179	 63.72	0	192129..193553	+	474	78211737	-	Syncc9605_0185	-	hypothetical protein
180	 65.04	0	193498..195525	-	675	78211738	-	Syncc9605_0186	-	selenide,water dikinase
181	 64.25	0	195522..196556	-	344	78211739	-	Syncc9605_0187	-	UDP-galactose 4-epimerase
182	 62.33	0	196613..197950	+	445	78211740	hisS	Syncc9605_0188	-	histidyl-tRNA synthetase
183	 59.73	0	197953..198903	+	316	78211741	-	Syncc9605_0189	-	putative nucleoside-diphosphate sugar epimerase
184	 59.26	0	198900..200303	+	467	78211742	-	Syncc9605_0190	-	UDP-glucose 6-dehydrogenase
185	 53.63	0	200303..201322	+	339	78211743	-	Syncc9605_0191	-	putative nucleotide sugar epimerase
186	 37.60	-2	201515..201772	-	85	78211744	-	Syncc9605_0192	-	hypothetical protein
187	 39.65	-2	202312..204084	+	590	78211745	-	Syncc9605_0193	-	hypothetical protein
188	 34.89	-2	204725..207817	+	1030	78211746	-	Syncc9605_0194	-	lipopolysaccharide biosynthesis protein-like
189	 37.23	-2	208010..208291	+	93	78211747	-	Syncc9605_0195	-	hypothetical protein
190	 35.67	-2	208383..208682	+	99	78211748	-	Syncc9605_0196	-	hypothetical protein
191	 56.22	0	208764..208964	-	66	78211749	-	Syncc9605_0197	-	photosystem II reaction center protein J
192	 52.50	-1	208975..209094	-	39	78211750	-	Syncc9605_0198	-	photosystem II reaction center L
193	 59.57	0	209102..209242	-	46	78211751	-	Syncc9605_0199	-	cytochrome b559 subunit beta
194	 57.83	0	209246..209494	-	82	78211752	-	Syncc9605_0200	-	cytochrome b559 subunit alpha
195	 62.97	0	209566..210567	-	333	78211753	-	Syncc9605_0201	-	Ycf48-like protein
196	 58.10	0	210577..210996	-	139	78211754	-	Syncc9605_0202	-	rubredoxin
197	 55.92	0	211080..211442	+	120	78211755	-	Syncc9605_0203	-	NADH dehydrogenase subunit A
198	 59.38	0	211445..212185	+	246	78211756	-	Syncc9605_0204	-	NADH dehydrogenase subunit B
199	 55.91	0	212182..212748	+	188	78211757	-	Syncc9605_0205	-	NADH dehydrogenase subunit J
200	 62.98	0	212756..214111	-	451	78211758	-	Syncc9605_0206	-	hypothetical protein
201	 62.12	0	214273..215019	+	248	78211759	-	Syncc9605_0207	-	ATPase
202	 61.90	0	215025..215885	+	286	78211760	-	Syncc9605_0208	-	ABC transporter
203	 64.58	0	215936..218041	-	701	78211761	-	Syncc9605_0209	-	protoporphyrin IX magnesium-chelatase
204	 39.80	-2	218050..219456	-	468	78211762	-	Syncc9605_0210	-	hypothetical protein
205	 60.44	0	219542..220039	+	165	78211763	-	Syncc9605_0211	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
206	 65.60	0	220058..220618	+	186	78211764	-	Syncc9605_0212	-	NUDIX hydrolase
207	 63.67	0	220618..222051	+	477	78211765	-	Syncc9605_0213	-	deoxyribodipyrimidine photo-lyase type I
208	 62.88	0	222030..223271	-	413	78211766	-	Syncc9605_0214	-	putative pleiotropic regulatory protein
209	 63.42	0	223291..223875	-	194	78211767	-	Syncc9605_0215	-	hypothetical protein
210	 63.78	0	223933..224451	+	172	78211768	-	Syncc9605_0216	-	hypothetical protein
211	 63.72	0	224433..224873	-	146	78211769	-	Syncc9605_0217	-	hypothetical protein
212	 64.80	0	224889..225800	-	303	78211770	-	Syncc9605_0218	-	deoxyribodipyrimidine photo-lyase family protein
213	 62.40	0	225824..226666	+	280	78211771	-	Syncc9605_0219	-	enoyl-(acyl carrier protein) reductase
59.39	MEAN

6.29	STD DEV
