IslandPath Analysis: Synechococcus sp. CC9605

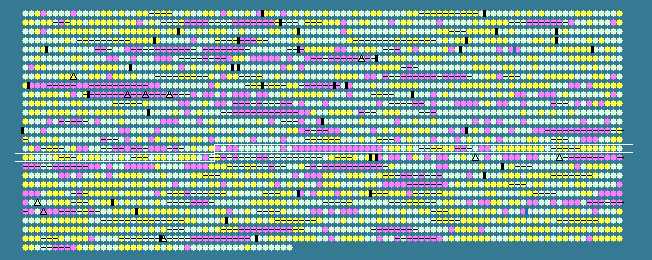

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1533	 53.81	0	1437435..1437854	-	139	78213088	-	Syncc9605_1563	-	hypothetical protein
1534	 57.41	0	1438023..1438238	+	71	78213089	-	Syncc9605_1564	-	hypothetical protein
1535	 53.33	0	1438932..1439111	-	59	78213090	-	Syncc9605_1565	-	hypothetical protein
1536	 54.44	0	1439117..1439386	-	89	78213091	-	Syncc9605_1566	-	hypothetical protein
1537	 58.85	0	1439537..1440316	+	259	78213092	-	Syncc9605_1567	-	hypothetical protein
1538	 59.44	0	1440322..1441137	+	271	78213093	-	Syncc9605_1568	-	hypothetical protein
1539	 59.07	0	1441137..1441847	+	236	78213094	-	Syncc9605_1569	-	hypothetical protein
1540	 58.98	0	1441964..1443082	+	372	78213095	-	Syncc9605_1570	-	hypothetical protein
1541	 58.91	0	1443341..1443598	+	85	78213096	-	Syncc9605_1571	-	hypothetical protein
1542	 56.31	0	1443603..1443824	+	73	78213097	-	Syncc9605_1572	-	hypothetical protein
1543	 59.30	0	1443821..1444105	+	94	78213098	-	Syncc9605_1573	-	hypothetical protein
1544	 38.54	-2	1444972..1445547	+	191	78213099	-	Syncc9605_1574	-	CRP/FNR family transcriptional regulator
1545	 56.70	0	1445936..1447480	+	514	78213100	-	Syncc9605_1575	-	porin
1546	 48.00	-1	1447576..1447800	-	74	78213101	-	Syncc9605_1576	-	hypothetical protein
1547	 47.53	-1	1447878..1448546	-	222	78213102	-	Syncc9605_1577	-	putative hydroxylase
1548	 44.38	-2	1448661..1449665	+	334	78213103	-	Syncc9605_1578	-	putative iron ABC transporter, substrate binding protein
1549	 49.57	-1	1449810..1450394	+	194	78213104	-	Syncc9605_1579	-	ferritin
1550	 42.70	-2	1450878..1451144	+	88	78213105	-	Syncc9605_1580	-	ferredoxin (2Fe-2S)
1551	 35.77	-2	1451138..1451383	+	81	78213106	-	Syncc9605_1581	-	hypothetical protein
1552	 38.41	-2	1451475..1452242	+	255	78213107	-	Syncc9605_1582	-	hypothetical protein
1553	 42.62	-2	1452305..1453198	+	297	78213108	-	Syncc9605_1583	-	thioredoxin-disulfide reductase
1554	 45.10	-2	1453244..1453753	-	169	78213109	-	Syncc9605_1584	-	flavodoxin FldA
1555	 42.27	-2	1454342..1454632	-	96	78213110	-	Syncc9605_1585	-	hypothetical protein
1556	 54.83	0	1454629..1455177	-	182	78213111	-	Syncc9605_1586	-	cAMP family transcriptional regulator
1557	 43.78	-2	1457775..1457975	+	66	78213112	rpmG	Syncc9605_1587	-	50S ribosomal protein L33
1558	 43.78	-2	1459383..1460081	+	232	78213113	-	Syncc9605_1588	-	hypothetical protein
1559	 37.92	-2	1460307..1460546	+	79	78213114	-	Syncc9605_1589	-	hypothetical protein
1560	 50.39	-1	1460643..1461680	+	345	78213115	-	Syncc9605_1590	-	chlorophyll a/b binding light harvesting protein PcbD
1561	 60.24	0	1461868..1463454	-	528	78213116	-	Syncc9605_1591	-	porin
1562	 64.61	0	1463533..1464165	-	210	78213117	-	Syncc9605_1592	-	putative hydrogenase accessory protein
1563	 64.29	0	1464350..1464601	-	83	78213118	-	Syncc9605_1593	-	hypothetical protein
1564	 61.81	0	1464598..1464906	-	102	78213119	-	Syncc9605_1594	-	hypothetical protein
1565	 62.98	0	1464941..1465645	-	234	78213120	-	Syncc9605_1595	-	hypothetical protein
1566	 59.80	0	1465727..1466032	-	101	78213121	-	Syncc9605_1596	-	hypothetical protein
1567	 58.93	0	1466143..1466646	+	167	78213122	-	Syncc9605_1597	-	hypothetical protein
1568	 59.74	0	1466727..1467029	-	100	78213123	-	Syncc9605_1598	-	hypothetical protein
1569	 66.31	+1	1467036..1470683	-	1215	78213124	-	Syncc9605_1599	-	5-oxoprolinase (ATP-hydrolyzing)
1570	 64.47	0	1470803..1471759	+	318	78213125	-	Syncc9605_1600	-	permease
1571	 63.61	0	1471773..1472426	+	217	78213126	-	Syncc9605_1601	-	hypothetical protein
1572	 64.78	0	1472423..1473745	+	440	78213127	-	Syncc9605_1602	-	hypothetical protein
1573	 52.64	-1	1473823..1474941	-	372	78213128	-	Syncc9605_1603	-	hypothetical protein
1574	 54.15	0	1475150..1476076	-	308	78213129	-	Syncc9605_1604	-	ABC transporter substrate-binding protein
1575	 58.08	0	1476174..1476860	+	228	78213130	-	Syncc9605_1605	-	ATPase
1576	 57.79	0	1476853..1477629	+	258	78213131	-	Syncc9605_1606	-	ABC transporter
1577	 46.41	-2	1477811..1478047	-	78	78213132	-	Syncc9605_1607	-	hypothetical protein
1578	 49.48	-1	1478272..1478463	-	63	78213133	-	Syncc9605_1608	-	hypothetical protein
1579	 60.27	0	1478500..1479672	-	390	78213134	-	Syncc9605_1609	-	hypothetical protein
1580	 63.45	0	1479750..1480745	-	331	78213135	-	Syncc9605_1610	-	ribose-phosphate pyrophosphokinase
1581	 69.06	+1	1480802..1481302	+	166	78213136	-	Syncc9605_1611	-	hypothetical protein
1582	 63.99	0	1481299..1482231	-	310	78213137	-	Syncc9605_1612	-	cell envelope-related function transcriptional attenuator
1583	 63.65	0	1482311..1483339	+	342	78213138	-	Syncc9605_1613	-	hypothetical protein
1584	 64.31	0	1483372..1484940	+	522	78213139	-	Syncc9605_1614	-	4-alpha-glucanotransferase
1585	 65.15	0	1484874..1485794	-	306	78213140	-	Syncc9605_1615	-	hypothetical protein
1586	 65.87	+1	1485785..1486537	-	250	78213141	-	Syncc9605_1616	-	ribosomal large subunit pseudouridine synthase B
1587	 63.57	0	1486534..1487664	-	376	78213142	-	Syncc9605_1617	-	histidine kinase
1588	 59.87	0	1487672..1488436	-	254	78213143	-	Syncc9605_1618	-	two component transcriptional regulator
1589	 59.76	0	1488472..1488891	-	139	78213144	-	Syncc9605_1619	-	hypothetical protein
1590	 63.52	0	1488963..1490615	-	550	78213145	-	Syncc9605_1620	-	kinase
1591	 67.95	+1	1490660..1492066	+	468	78213146	-	Syncc9605_1621	-	arginine decarboxylase
1592	 62.03	0	1492113..1492586	+	157	78213147	-	Syncc9605_1622	-	rare lipoprotein A
1593	 64.01	0	1492617..1493483	+	288	78213148	-	Syncc9605_1623	-	putative phosphatidate cytidylyltransferase
1594	 62.96	0	1493490..1494110	-	206	78213149	-	Syncc9605_1624	-	hypothetical protein
1595	 63.55	0	1494103..1494969	-	288	78213150	-	Syncc9605_1625	-	putative 2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
1596	 63.67	0	1494966..1496066	-	366	78213151	-	Syncc9605_1626	-	putative glycerol dehydrogenase
1597	 59.78	0	1496066..1498606	-	846	78213152	-	Syncc9605_1627	-	ATPase
1598	 65.50	0	1498780..1499295	-	171	78213153	-	Syncc9605_1628	-	ribosomal-protein-alanine acetyltransferase
1599	 63.77	0	1499299..1500678	+	459	78213154	-	Syncc9605_1629	-	diaminopimelate decarboxylase
1600	 62.45	0	1500701..1501531	+	276	78213155	-	Syncc9605_1630	-	hypothetical protein
1601	 63.73	0	1501528..1502310	+	260	78213156	-	Syncc9605_1631	-	undecaprenyl pyrophosphate synthetase
1602	 65.06	0	1502307..1503302	+	331	78213157	-	Syncc9605_1632	-	biotin synthase
1603	 60.56	0	1503358..1503783	+	141	78213158	-	Syncc9605_1633	-	hypothetical protein
1604	 56.80	0	1504311..1504685	+	124	78213159	-	Syncc9605_1634	-	hypothetical protein
1605	 61.89	0	1504753..1505736	+	327	78213160	-	Syncc9605_1635	-	rhodanese-like protein
1606	 65.64	0	1505785..1506756	+	323	78213161	-	Syncc9605_1636	-	glutathione S-transferase domain-containing protein
1607	 68.79	+1	1506767..1507285	+	172	78213162	-	Syncc9605_1637	-	hypothetical protein
1608	 66.78	+1	1507270..1508169	-	299	78213163	-	Syncc9605_1638	-	lipoyl synthase
1609	 62.73	0	1508166..1508825	-	219	78213164	-	Syncc9605_1639	-	DNA replication and repair protein RecR
1610	 63.23	0	1508849..1509430	+	193	78213165	-	Syncc9605_1640	-	putative photosystem II oxygen-evolving complex 23K protein PsbP
1611	 62.54	0	1509431..1510375	-	314	78213166	-	Syncc9605_1641	-	cell envelope-related function transcriptional attenuator
1612	 65.24	0	1510442..1512541	-	699	78213167	-	Syncc9605_1642	-	CPA2 family Na(+)/H(+) antiporter
1613	 63.73	0	1512604..1514409	-	601	78213168	-	Syncc9605_1643	-	ATPase
1614	 62.05	0	1514463..1514657	+	64	78213169	-	Syncc9605_1644	-	hypothetical protein
1615	 62.85	0	1514661..1514948	-	95	78213170	-	Syncc9605_1645	-	RNA recognition motif-containing protein
1616	 56.92	0	1515146..1515340	+	64	78213171	-	Syncc9605_1646	-	hypothetical protein
1617	 63.05	0	1515360..1515608	-	82	78213172	-	Syncc9605_1647	-	hypothetical protein
1618	 62.28	0	1515608..1517431	-	607	78213173	-	Syncc9605_1648	-	DEAD/DEAH box helicase-like
1619	 60.82	0	1517494..1517835	-	113	78213174	-	Syncc9605_1649	-	mannose-6-phosphate isomerase WbpW-like
1620	 67.30	+1	1517849..1519429	-	526	78213175	-	Syncc9605_1650	-	DNA helicase/exodeoxyribonuclease V, alpha subunit
1621	 66.67	+1	1519426..1523106	-	1226	78213176	-	Syncc9605_1651	-	DNA helicase/exodeoxyribonuclease V, beta subunit
1622	 59.01	0	1523253..1523474	+	73	78213177	-	Syncc9605_1652	-	hypothetical protein
1623	 67.34	+1	1523471..1526716	-	1081	78213178	-	Syncc9605_1653	-	DNA helicase/exodeoxyribonuclease V, gamma subunit
1624	 63.29	0	1526710..1527330	-	206	78213179	-	Syncc9605_1654	-	serine/threonine specific protein phosphatase
1625	 61.31	0	1527398..1527733	-	111	78213180	-	Syncc9605_1655	-	hypothetical protein
1626	 60.12	0	1527733..1528053	-	106	78213181	-	Syncc9605_1656	-	hypothetical protein
1627	 63.33	0	1528050..1528799	-	249	78213182	-	Syncc9605_1657	-	pyridoxal phosphate biosynthetic protein PdxJ
1628	 64.15	0	1528826..1529581	+	251	78213183	-	Syncc9605_1658	-	phospholipid/glycerol acyltransferase
1629	 63.35	0	1529625..1530137	+	170	78213184	-	Syncc9605_1659	-	hypothetical protein
1630	 59.44	0	1530186..1530434	+	82	78213185	-	Syncc9605_1660	-	BolA family protein
1631	 50.93	-1	1530455..1530778	+	107	78213186	-	Syncc9605_1661	-	glutaredoxin-like protein
1632	 56.03	0	1530780..1531061	-	93	78213187	-	Syncc9605_1662	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
