IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

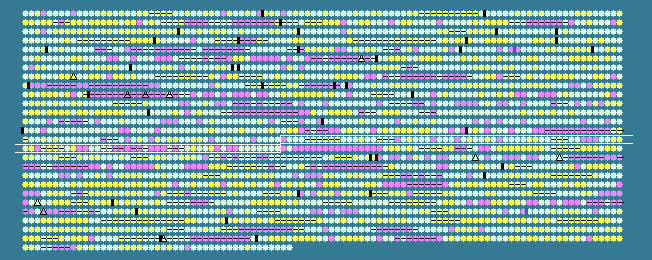

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1444	 50.98	-1	1377428..1377682	+	84	78212999	-	Syncc9605_1471	-	hypothetical protein
1445	 56.85	0	1377984..1378370	-	128	78213000	-	Syncc9605_1472	-	hypothetical protein
1446	 62.04	0	1378591..1378806	-	71	78213001	-	Syncc9605_1473	-	heat shock protein DnaJ-like
1447	 60.12	0	1379920..1380576	-	218	78213002	-	Syncc9605_1476	-	hypothetical protein
1448	 61.71	0	1380580..1380801	-	73	78213003	-	Syncc9605_1477	-	high light inducible protein
1449	 64.01	0	1380798..1381211	-	137	78213004	-	Syncc9605_1478	-	hypothetical protein
1450	 58.06	0	1381358..1381543	+	61	78213005	-	Syncc9605_1479	-	hypothetical protein
1451	 68.23	+1	1381527..1381718	-	63	78213006	-	Syncc9605_1480	-	hypothetical protein
1452	 65.26	0	1381757..1382254	+	165	78213007	-	Syncc9605_1481	-	hypothetical protein
1453	 63.43	0	1382251..1382682	+	143	78213008	-	Syncc9605_1482	-	NUDIX family protein
1454	 61.22	0	1382672..1383460	+	262	78213009	-	Syncc9605_1483	-	ATPase
1455	 59.20	0	1383516..1383716	+	66	78213010	-	Syncc9605_1484	-	hypothetical protein
1456	 61.09	0	1383918..1384742	-	274	78213011	-	Syncc9605_1485	-	ABC transporter
1457	 64.84	0	1384775..1386139	+	454	78213012	-	Syncc9605_1486	-	phospholipid/glycerol acyltransferase
1458	 61.51	0	1386140..1386895	-	251	78213013	-	Syncc9605_1487	-	ATPase
1459	 61.24	0	1386895..1387908	-	337	78213014	-	Syncc9605_1488	-	ABC transporter substrate-binding protein
1460	 64.22	0	1387961..1388614	+	217	78213015	-	Syncc9605_1489	-	endonuclease III
1461	 57.19	0	1388615..1388899	-	94	78213016	-	Syncc9605_1490	-	ferredoxin (2Fe-2S)
1462	 60.48	0	1389295..1389504	+	69	78213017	-	Syncc9605_1491	-	hypothetical protein
1463	 54.17	0	1389729..1389992	+	87	78213018	-	Syncc9605_1492	-	hypothetical protein
1464	 60.91	0	1390404..1390994	-	196	78213019	-	Syncc9605_1493	-	uridine kinase
1465	 63.17	0	1391090..1391404	+	104	78213020	-	Syncc9605_1494	-	hypothetical protein
1466	 60.39	0	1391483..1392853	+	456	78213021	-	Syncc9605_1495	-	putative hydrolase transmembrane protein
1467	 59.63	0	1392997..1393266	+	89	78213022	-	Syncc9605_1496	-	hypothetical protein
1468	 58.33	0	1393330..1393713	-	127	78213023	-	Syncc9605_1497	-	hypothetical protein
1469	 55.15	0	1393780..1394109	+	109	78213024	-	Syncc9605_1498	-	hypothetical protein
1470	 59.37	0	1394122..1394436	-	104	78213025	-	Syncc9605_1499	-	hypothetical protein
1471	 62.53	0	1394490..1394876	+	128	78213026	-	Syncc9605_1500	-	hypothetical protein
1472	 61.18	0	1395010..1395246	+	78	78213027	-	Syncc9605_1501	-	hypothetical protein
1473	 54.42	0	1395231..1395524	-	97	78213028	-	Syncc9605_1502	-	hypothetical protein
1474	 59.35	0	1395839..1396699	-	286	78213029	-	Syncc9605_1503	-	hypothetical protein
1475	 62.96	0	1396765..1397169	+	134	78213030	-	Syncc9605_1504	-	hypothetical protein
1476	 60.17	0	1397187..1397540	-	117	78213031	-	Syncc9605_1505	-	hypothetical protein
1477	 56.96	0	1398031..1398267	-	78	78213032	-	Syncc9605_1506	-	hypothetical protein
1478	 64.06	0	1398353..1398889	+	178	78213033	-	Syncc9605_1507	-	superoxide dismutase precursor (Cu-Zn)
1479	 62.22	0	1399101..1399280	-	59	78213034	-	Syncc9605_1508	-	hypothetical protein
1480	 54.31	0	1399369..1399635	+	88	78213035	-	Syncc9605_1509	-	hypothetical protein
1481	 58.94	0	1399660..1399905	-	81	78213036	-	Syncc9605_1510	-	RNA recognition motif-containing protein
1482	 60.92	0	1400098..1400271	+	57	78213037	-	Syncc9605_1511	-	hypothetical protein
1483	 62.23	0	1400268..1401461	-	397	78213038	-	Syncc9605_1512	-	glycosyl transferase family protein
1484	 58.81	0	1401492..1401809	-	105	78213039	-	Syncc9605_1513	-	hypothetical protein
1485	 64.46	0	1402958..1403500	-	180	78213040	-	Syncc9605_1515	-	hypothetical protein
1486	 63.68	0	1403497..1405170	-	557	78213041	-	Syncc9605_1516	-	hypothetical protein
1487	 61.33	0	1405279..1405428	+	49	78213042	-	Syncc9605_1517	-	hypothetical protein
1488	 60.78	0	1405871..1406074	-	67	78213043	-	Syncc9605_1518	-	hypothetical protein
1489	 57.41	0	1406171..1406332	+	53	78213044	-	Syncc9605_1519	-	hypothetical protein
1490	 64.10	0	1406444..1406872	+	142	78213045	-	Syncc9605_1520	-	hypothetical protein
1491	 56.44	0	1406858..1407160	-	100	78213046	-	Syncc9605_1521	-	hypothetical protein
1492	 56.38	0	1407275..1407517	+	80	78213047	-	Syncc9605_1522	-	hypothetical protein
1493	 55.95	0	1407633..1407800	-	55	78213048	-	Syncc9605_1523	-	hypothetical protein
1494	 51.04	-1	1407849..1408040	-	63	78213049	-	Syncc9605_1524	-	hypothetical protein
1495	 53.23	0	1408112..1408498	-	128	78213050	-	Syncc9605_1525	-	hypothetical protein
1496	 55.91	0	1408689..1408874	+	61	78213051	-	Syncc9605_1526	-	hypothetical protein
1497	 60.09	0	1409043..1409498	+	151	78213052	-	Syncc9605_1527	-	hypothetical protein
1498	 58.78	0	1409517..1409795	-	92	78213053	-	Syncc9605_1528	-	hypothetical protein
1499	 65.29	0	1409857..1411095	+	412	78213054	-	Syncc9605_1529	-	cytochrome P450 family protein
1500	 65.49	0	1411077..1411331	-	84	78213055	-	Syncc9605_1530	-	hypothetical protein
1501	 58.67	0	1411397..1411621	-	74	78213056	-	Syncc9605_1531	-	hypothetical protein
1502	 65.19	0	1411634..1412242	-	202	78213057	-	Syncc9605_1532	-	hypothetical protein
1503	 47.56	-1	1412314..1412559	-	81	78213058	-	Syncc9605_1533	-	hypothetical protein
1504	 57.73	0	1412687..1413559	-	290	78213059	-	Syncc9605_1534	-	phycobilisome linker polypeptide
1505	 63.64	0	1413759..1413857	-	32	78213060	-	Syncc9605_1535	-	phosphate-binding protein
1506	 65.73	+1	1414287..1414715	-	142	78213061	-	Syncc9605_1536	-	response regulator receiver domain-containing protein
1507	 60.85	0	1415152..1415409	+	85	78213062	-	Syncc9605_1537	-	superfamily I DNA/RNA helicase
1508	 57.78	0	1415406..1415765	+	119	78213063	-	Syncc9605_1538	-	hypothetical protein
1509	 63.26	0	1415809..1416072	+	87	78213064	-	Syncc9605_1539	-	hypothetical protein
1510	 54.69	0	1417198..1417389	+	63	78213065	-	Syncc9605_1540	-	hypothetical protein
1511	 53.93	0	1417375..1417641	-	88	78213066	-	Syncc9605_1541	-	hypothetical protein
1512	 56.39	0	1417660..1418574	-	304	78213067	-	Syncc9605_1542	-	hypothetical protein
1513	 58.75	0	1418617..1420005	-	462	78213068	-	Syncc9605_1543	-	nucleotide binding protein, PINc
1514	 58.97	0	1420932..1421243	+	103	78213069	-	Syncc9605_1544	-	hypothetical protein
1515	 57.09	0	1422507..1422767	+	86	78213070	-	Syncc9605_1545	-	hypothetical protein
1516	 53.73	0	1423226..1423480	-	84	78213071	-	Syncc9605_1546	-	hypothetical protein
1517	 55.78	0	1424072..1424374	+	100	78213072	-	Syncc9605_1547	-	hypothetical protein
1518	 55.82	0	1425389..1425637	-	82	78213073	-	Syncc9605_1548	-	hypothetical protein
1519	 54.37	0	1425784..1426035	-	83	78213074	-	Syncc9605_1549	-	hypothetical protein
1520	 48.89	-1	1427917..1428411	-	164	78213075	-	Syncc9605_1550	-	hypothetical protein
1521	 56.02	0	1428587..1428802	+	71	78213076	-	Syncc9605_1551	-	hypothetical protein
1522	 53.85	0	1429870..1430259	+	129	78213077	-	Syncc9605_1552	-	hypothetical protein
1523	 53.33	0	1430302..1430556	-	84	78213078	-	Syncc9605_1553	-	hypothetical protein
1524	 48.61	-1	1430549..1430836	-	95	78213079	-	Syncc9605_1554	-	hypothetical protein
1525	 62.84	0	1431372..1431554	+	60	78213080	-	Syncc9605_1555	-	hypothetical protein
1526	 52.33	-1	1431730..1432008	-	92	78213081	-	Syncc9605_1556	-	hypothetical protein
1527	 56.63	0	1431986..1432294	-	102	78213082	-	Syncc9605_1557	-	hypothetical protein
1528	 55.99	0	1432988..1433446	+	152	78213083	-	Syncc9605_1558	-	hypothetical protein
1529	 67.01	+1	1433488..1435260	+	590	78213084	-	Syncc9605_1559	-	gamma-glutamyltransferase
1530	 59.78	0	1435277..1435741	-	154	78213085	-	Syncc9605_1560	-	hypothetical protein
1531	 62.44	0	1435838..1436713	+	291	78213086	-	Syncc9605_1561	-	putative ribosomal-protein-alanine acetyltransferase
1532	 64.85	0	1436737..1436901	-	54	78213087	-	Syncc9605_1562	-	hypothetical protein
1533	 53.81	0	1437435..1437854	-	139	78213088	-	Syncc9605_1563	-	hypothetical protein
1534	 57.41	0	1438023..1438238	+	71	78213089	-	Syncc9605_1564	-	hypothetical protein
1535	 53.33	0	1438932..1439111	-	59	78213090	-	Syncc9605_1565	-	hypothetical protein
1536	 54.44	0	1439117..1439386	-	89	78213091	-	Syncc9605_1566	-	hypothetical protein
1537	 58.85	0	1439537..1440316	+	259	78213092	-	Syncc9605_1567	-	hypothetical protein
1538	 59.44	0	1440322..1441137	+	271	78213093	-	Syncc9605_1568	-	hypothetical protein
1539	 59.07	0	1441137..1441847	+	236	78213094	-	Syncc9605_1569	-	hypothetical protein
1540	 58.98	0	1441964..1443082	+	372	78213095	-	Syncc9605_1570	-	hypothetical protein
1541	 58.91	0	1443341..1443598	+	85	78213096	-	Syncc9605_1571	-	hypothetical protein
1542	 56.31	0	1443603..1443824	+	73	78213097	-	Syncc9605_1572	-	hypothetical protein
1543	 59.30	0	1443821..1444105	+	94	78213098	-	Syncc9605_1573	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
