IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

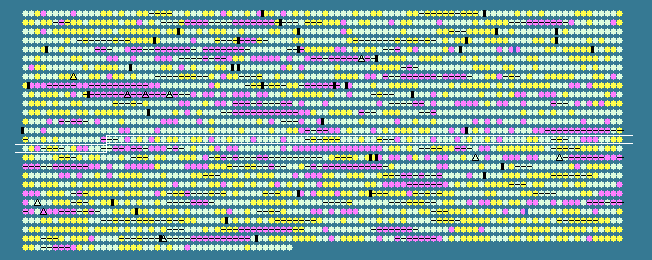

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1415	 57.38	0	1352341..1352997	-	218	78212970	-	Syncc9605_1440	-	ATP-dependent Clp protease proteolytic subunit
1416	 58.18	0	1353016..1353663	+	215	78212971	-	Syncc9605_1441	-	Thf1-like protein
1417	 60.95	0	1353645..1354886	-	413	78212972	-	Syncc9605_1442	-	hypothetical protein
1418	 53.92	0	1355112..1355213	-	33	78212973	-	Syncc9605_1443	-	cytochrome b6-f complex subunit PetN
1419	 60.61	0	1355286..1355582	+	98	78212974	clpS	Syncc9605_1444	-	ATP-dependent Clp protease adaptor
1420	 64.91	0	1355584..1355811	-	75	78212975	-	Syncc9605_1445	-	hypothetical protein
1421	 61.96	0	1355886..1356161	+	91	78212976	-	Syncc9605_1446	-	hypothetical protein
1422	 48.26	-1	1357341..1357742	-	133	78212977	-	Syncc9605_1447	-	hypothetical protein
1423	 63.39	0	1358436..1359596	-	386	78212978	-	Syncc9605_1448	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1424	 60.94	0	1359649..1360521	-	290	78212979	-	Syncc9605_1449	-	lactose transport system permease protein
1425	 62.90	0	1360583..1361698	+	371	78212980	-	Syncc9605_1450	-	3-dehydroquinate synthase
1426	 63.67	0	1361652..1362884	-	410	78212981	-	Syncc9605_1451	-	hypothetical protein
1427	 62.39	0	1362922..1363692	+	256	78212982	-	Syncc9605_1452	-	hypothetical protein
1428	 61.67	0	1363721..1364440	-	239	78212983	-	Syncc9605_1453	-	muramidase
1429	 63.44	0	1364648..1365733	-	361	78212984	-	Syncc9605_1454	-	hypothetical protein
1430	 64.92	0	1365727..1366584	-	285	78212985	-	Syncc9605_1455	-	putative transcripton factor
1431	 59.81	0	1366629..1367561	+	310	78212986	-	Syncc9605_1456	-	quinolinate synthetase
1432	 54.79	0	1367558..1367860	+	100	78212987	-	Syncc9605_1457	-	hypothetical protein
1433	 56.76	0	1367905..1368318	+	137	78212988	-	Syncc9605_1458	-	hypothetical protein
1434	 55.98	0	1368319..1368552	-	77	78212989	-	Syncc9605_1459	-	hypothetical protein
1435	 63.73	0	1368620..1369606	+	328	78212990	-	Syncc9605_1460	-	exonuclease involved in mRNA processing
1436	 58.62	0	1369603..1369863	-	86	78212991	-	Syncc9605_1461	-	hypothetical protein
1437	 60.99	0	1369982..1371637	+	551	161353760	-	Syncc9605_1462	-	ATP-dependent DNA ligase
1438	 61.30	0	1371637..1374132	+	831	78212993	-	Syncc9605_1463	-	DEAD/DEAH box helicase-like
1439	 53.75	0	1375327..1375566	+	79	78212994	-	Syncc9605_1466	-	hypothetical protein
1440	 56.74	0	1375583..1375864	+	93	78212995	-	Syncc9605_1467	-	hypothetical protein
1441	 60.90	0	1375889..1376287	+	132	78212996	-	Syncc9605_1468	-	hypothetical protein
1442	 58.61	0	1376284..1376829	+	181	78212997	-	Syncc9605_1469	-	hypothetical protein
1443	 59.16	0	1377078..1377410	+	110	78212998	-	Syncc9605_1470	-	hypothetical protein
1444	 50.98	-1	1377428..1377682	+	84	78212999	-	Syncc9605_1471	-	hypothetical protein
1445	 56.85	0	1377984..1378370	-	128	78213000	-	Syncc9605_1472	-	hypothetical protein
1446	 62.04	0	1378591..1378806	-	71	78213001	-	Syncc9605_1473	-	heat shock protein DnaJ-like
1447	 60.12	0	1379920..1380576	-	218	78213002	-	Syncc9605_1476	-	hypothetical protein
1448	 61.71	0	1380580..1380801	-	73	78213003	-	Syncc9605_1477	-	high light inducible protein
1449	 64.01	0	1380798..1381211	-	137	78213004	-	Syncc9605_1478	-	hypothetical protein
1450	 58.06	0	1381358..1381543	+	61	78213005	-	Syncc9605_1479	-	hypothetical protein
1451	 68.23	+1	1381527..1381718	-	63	78213006	-	Syncc9605_1480	-	hypothetical protein
1452	 65.26	0	1381757..1382254	+	165	78213007	-	Syncc9605_1481	-	hypothetical protein
1453	 63.43	0	1382251..1382682	+	143	78213008	-	Syncc9605_1482	-	NUDIX family protein
1454	 61.22	0	1382672..1383460	+	262	78213009	-	Syncc9605_1483	-	ATPase
1455	 59.20	0	1383516..1383716	+	66	78213010	-	Syncc9605_1484	-	hypothetical protein
1456	 61.09	0	1383918..1384742	-	274	78213011	-	Syncc9605_1485	-	ABC transporter
1457	 64.84	0	1384775..1386139	+	454	78213012	-	Syncc9605_1486	-	phospholipid/glycerol acyltransferase
1458	 61.51	0	1386140..1386895	-	251	78213013	-	Syncc9605_1487	-	ATPase
1459	 61.24	0	1386895..1387908	-	337	78213014	-	Syncc9605_1488	-	ABC transporter substrate-binding protein
1460	 64.22	0	1387961..1388614	+	217	78213015	-	Syncc9605_1489	-	endonuclease III
1461	 57.19	0	1388615..1388899	-	94	78213016	-	Syncc9605_1490	-	ferredoxin (2Fe-2S)
1462	 60.48	0	1389295..1389504	+	69	78213017	-	Syncc9605_1491	-	hypothetical protein
1463	 54.17	0	1389729..1389992	+	87	78213018	-	Syncc9605_1492	-	hypothetical protein
1464	 60.91	0	1390404..1390994	-	196	78213019	-	Syncc9605_1493	-	uridine kinase
1465	 63.17	0	1391090..1391404	+	104	78213020	-	Syncc9605_1494	-	hypothetical protein
1466	 60.39	0	1391483..1392853	+	456	78213021	-	Syncc9605_1495	-	putative hydrolase transmembrane protein
1467	 59.63	0	1392997..1393266	+	89	78213022	-	Syncc9605_1496	-	hypothetical protein
1468	 58.33	0	1393330..1393713	-	127	78213023	-	Syncc9605_1497	-	hypothetical protein
1469	 55.15	0	1393780..1394109	+	109	78213024	-	Syncc9605_1498	-	hypothetical protein
1470	 59.37	0	1394122..1394436	-	104	78213025	-	Syncc9605_1499	-	hypothetical protein
1471	 62.53	0	1394490..1394876	+	128	78213026	-	Syncc9605_1500	-	hypothetical protein
1472	 61.18	0	1395010..1395246	+	78	78213027	-	Syncc9605_1501	-	hypothetical protein
1473	 54.42	0	1395231..1395524	-	97	78213028	-	Syncc9605_1502	-	hypothetical protein
1474	 59.35	0	1395839..1396699	-	286	78213029	-	Syncc9605_1503	-	hypothetical protein
1475	 62.96	0	1396765..1397169	+	134	78213030	-	Syncc9605_1504	-	hypothetical protein
1476	 60.17	0	1397187..1397540	-	117	78213031	-	Syncc9605_1505	-	hypothetical protein
1477	 56.96	0	1398031..1398267	-	78	78213032	-	Syncc9605_1506	-	hypothetical protein
1478	 64.06	0	1398353..1398889	+	178	78213033	-	Syncc9605_1507	-	superoxide dismutase precursor (Cu-Zn)
1479	 62.22	0	1399101..1399280	-	59	78213034	-	Syncc9605_1508	-	hypothetical protein
1480	 54.31	0	1399369..1399635	+	88	78213035	-	Syncc9605_1509	-	hypothetical protein
1481	 58.94	0	1399660..1399905	-	81	78213036	-	Syncc9605_1510	-	RNA recognition motif-containing protein
1482	 60.92	0	1400098..1400271	+	57	78213037	-	Syncc9605_1511	-	hypothetical protein
1483	 62.23	0	1400268..1401461	-	397	78213038	-	Syncc9605_1512	-	glycosyl transferase family protein
1484	 58.81	0	1401492..1401809	-	105	78213039	-	Syncc9605_1513	-	hypothetical protein
1485	 64.46	0	1402958..1403500	-	180	78213040	-	Syncc9605_1515	-	hypothetical protein
1486	 63.68	0	1403497..1405170	-	557	78213041	-	Syncc9605_1516	-	hypothetical protein
1487	 61.33	0	1405279..1405428	+	49	78213042	-	Syncc9605_1517	-	hypothetical protein
1488	 60.78	0	1405871..1406074	-	67	78213043	-	Syncc9605_1518	-	hypothetical protein
1489	 57.41	0	1406171..1406332	+	53	78213044	-	Syncc9605_1519	-	hypothetical protein
1490	 64.10	0	1406444..1406872	+	142	78213045	-	Syncc9605_1520	-	hypothetical protein
1491	 56.44	0	1406858..1407160	-	100	78213046	-	Syncc9605_1521	-	hypothetical protein
1492	 56.38	0	1407275..1407517	+	80	78213047	-	Syncc9605_1522	-	hypothetical protein
1493	 55.95	0	1407633..1407800	-	55	78213048	-	Syncc9605_1523	-	hypothetical protein
1494	 51.04	-1	1407849..1408040	-	63	78213049	-	Syncc9605_1524	-	hypothetical protein
1495	 53.23	0	1408112..1408498	-	128	78213050	-	Syncc9605_1525	-	hypothetical protein
1496	 55.91	0	1408689..1408874	+	61	78213051	-	Syncc9605_1526	-	hypothetical protein
1497	 60.09	0	1409043..1409498	+	151	78213052	-	Syncc9605_1527	-	hypothetical protein
1498	 58.78	0	1409517..1409795	-	92	78213053	-	Syncc9605_1528	-	hypothetical protein
1499	 65.29	0	1409857..1411095	+	412	78213054	-	Syncc9605_1529	-	cytochrome P450 family protein
1500	 65.49	0	1411077..1411331	-	84	78213055	-	Syncc9605_1530	-	hypothetical protein
1501	 58.67	0	1411397..1411621	-	74	78213056	-	Syncc9605_1531	-	hypothetical protein
1502	 65.19	0	1411634..1412242	-	202	78213057	-	Syncc9605_1532	-	hypothetical protein
1503	 47.56	-1	1412314..1412559	-	81	78213058	-	Syncc9605_1533	-	hypothetical protein
1504	 57.73	0	1412687..1413559	-	290	78213059	-	Syncc9605_1534	-	phycobilisome linker polypeptide
1505	 63.64	0	1413759..1413857	-	32	78213060	-	Syncc9605_1535	-	phosphate-binding protein
1506	 65.73	+1	1414287..1414715	-	142	78213061	-	Syncc9605_1536	-	response regulator receiver domain-containing protein
1507	 60.85	0	1415152..1415409	+	85	78213062	-	Syncc9605_1537	-	superfamily I DNA/RNA helicase
1508	 57.78	0	1415406..1415765	+	119	78213063	-	Syncc9605_1538	-	hypothetical protein
1509	 63.26	0	1415809..1416072	+	87	78213064	-	Syncc9605_1539	-	hypothetical protein
1510	 54.69	0	1417198..1417389	+	63	78213065	-	Syncc9605_1540	-	hypothetical protein
1511	 53.93	0	1417375..1417641	-	88	78213066	-	Syncc9605_1541	-	hypothetical protein
1512	 56.39	0	1417660..1418574	-	304	78213067	-	Syncc9605_1542	-	hypothetical protein
1513	 58.75	0	1418617..1420005	-	462	78213068	-	Syncc9605_1543	-	nucleotide binding protein, PINc
1514	 58.97	0	1420932..1421243	+	103	78213069	-	Syncc9605_1544	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
