IslandPath Analysis: Synechococcus sp. CC9605

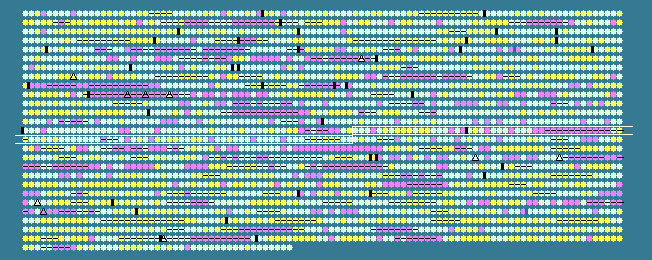

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1356	 61.78	0	1297577..1299235	-	552	78212911	pgi	Syncc9605_1381	-	glucose-6-phosphate isomerase
1357	 59.66	0	1299291..1300061	+	256	78212912	-	Syncc9605_1382	-	hypothetical protein
1358	 59.23	0	1300183..1300518	+	111	78212913	-	Syncc9605_1383	-	hypothetical protein
1359	 55.83	0	1300536..1300775	-	79	78212914	-	Syncc9605_1384	-	hypothetical protein
1360	 61.82	0	1300812..1301699	-	295	78212915	-	Syncc9605_1385	-	N-acetylmuramoyl-L-alanine amidase
1361	 63.00	0	1301681..1303318	-	545	78212916	-	Syncc9605_1386	-	PDZ/DHR/GLGF
1362	 61.82	0	1303380..1303730	-	116	78212917	-	Syncc9605_1387	-	hypothetical protein
1363	 63.99	0	1303803..1304363	+	186	78212918	-	Syncc9605_1388	-	phosphoribosylglycinamide formyltransferase
1364	 64.99	0	1304354..1305427	-	357	78212919	argC	Syncc9605_1389	-	N-acetyl-gamma-glutamyl-phosphate reductase
1365	 64.45	0	1305625..1307160	+	511	78212920	-	Syncc9605_1390	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1366	 62.39	0	1307161..1307604	-	147	78212921	-	Syncc9605_1391	-	peptidylprolyl isomerase
1367	 63.92	0	1307645..1308553	+	302	78212922	-	Syncc9605_1392	-	methylthioadenosine phosphorylase
1368	 67.82	+1	1308535..1309485	-	316	78212923	murQ	Syncc9605_1393	-	N-acetylmuramic acid-6-phosphate etherase
1369	 62.66	0	1309489..1309962	-	157	78212924	-	Syncc9605_1394	-	hypothetical protein
1370	 61.95	0	1310006..1310938	-	310	78212925	-	Syncc9605_1395	-	heat shock protein DnaJ-like
1371	 62.45	0	1310922..1312913	-	663	78212926	-	Syncc9605_1396	-	molecular chaperone DnaK, heat shock protein HSP70
1372	 55.80	0	1313038..1313985	+	315	78212927	-	Syncc9605_1397	-	phosphate ABC transporter permease
1373	 59.48	0	1313987..1314904	+	305	78212928	-	Syncc9605_1398	-	phosphate ABC transporter permease
1374	 55.72	0	1314925..1315746	+	273	78212929	-	Syncc9605_1399	-	phosphate ABC transporter permease
1375	 62.60	0	1315974..1316342	+	122	78212930	-	Syncc9605_1400	-	ferredoxin
1376	 64.30	0	1316345..1317232	+	295	78212931	-	Syncc9605_1401	-	inositol-1(or 4)-monophosphatase
1377	 62.09	0	1317255..1318433	+	392	78212932	hisZ	Syncc9605_1402	-	ATP phosphoribosyltransferase regulatory subunit
1378	 55.11	0	1318459..1318683	+	74	78212933	-	Syncc9605_1403	-	ferredoxin
1379	 60.42	0	1318772..1320676	+	634	78212934	-	Syncc9605_1404	-	heat shock protein 90
1380	 60.34	0	1320756..1320992	+	78	78212935	rpmB	Syncc9605_1405	-	50S ribosomal protein L28
1381	 61.14	0	1321005..1321565	+	186	78212936	-	Syncc9605_1406	-	twin-arginine translocation pathway signal
1382	 53.92	0	1321618..1323108	+	496	78212937	-	Syncc9605_1407	-	glucosylglycerol-phosphate synthase
1383	 62.24	0	1323105..1324370	+	421	78212938	-	Syncc9605_1408	-	ABC transporter, likely sugar solute binding protein
1384	 61.94	0	1324367..1325233	+	288	78212939	-	Syncc9605_1409	-	trehalose/maltose ABC transporter membrane protein
1385	 59.93	0	1325230..1326105	+	291	78212940	-	Syncc9605_1410	-	ABC transporter, likely for trehalose/maltose, membrane component
1386	 55.11	0	1326213..1327796	+	527	78212941	-	Syncc9605_1411	-	hypothetical protein
1387	 53.25	0	1327841..1328563	-	240	78212942	-	Syncc9605_1412	-	hypothetical protein
1388	 53.93	0	1328784..1329152	+	122	78212943	-	Syncc9605_1413	-	hypothetical protein
1389	 44.83	-2	1329295..1329555	-	86	78212944	-	Syncc9605_1414	-	hypothetical protein
1390	 53.54	0	1329796..1330374	+	192	78212945	-	Syncc9605_1415	-	hypothetical protein
1391	 37.55	-2	1330875..1331135	-	86	78212946	-	Syncc9605_1416	-	hypothetical protein
1392	 51.40	-1	1331257..1332756	-	499	78212947	-	Syncc9605_1417	-	hypothetical protein
1393	 46.48	-2	1332946..1333470	+	174	78212948	-	Syncc9605_1418	-	hypothetical protein
1394	 48.01	-1	1333476..1334177	+	233	78212949	-	Syncc9605_1419	-	hypothetical protein
1395	 42.32	-2	1334184..1334684	-	166	78212950	-	Syncc9605_1420	-	hypothetical protein
1396	 39.06	-2	1335727..1335918	-	63	78212951	-	Syncc9605_1421	-	hypothetical protein
1397	 42.59	-2	1335990..1336259	-	89	78212952	-	Syncc9605_1422	-	hypothetical protein
1398	 54.37	0	1337332..1337754	-	140	78212953	-	Syncc9605_1423	-	hypothetical protein
1399	 62.54	0	1337945..1338937	+	330	78212954	-	Syncc9605_1424	-	ATPase
1400	 64.36	0	1338894..1339976	-	360	78212955	-	Syncc9605_1425	-	hypothetical protein
1401	 64.29	0	1340031..1340324	+	97	78212956	-	Syncc9605_1426	-	hypothetical protein
1402	 57.29	0	1340321..1340608	+	95	78212957	-	Syncc9605_1427	-	hypothetical protein
1403	 62.55	0	1340668..1340934	+	88	78212958	-	Syncc9605_1428	-	photosystem I reaction center subunit X
1404	 64.73	0	1340986..1342173	-	395	78212959	-	Syncc9605_1429	-	hypothetical protein
1405	 62.22	0	1342187..1344118	-	643	78212960	-	Syncc9605_1430	-	1-deoxy-D-xylulose-5-phosphate synthase
1406	 63.33	0	1344199..1345728	+	509	78212961	-	Syncc9605_1431	-	threonine dehydratase
1407	 60.64	0	1345768..1346265	+	165	78212962	-	Syncc9605_1432	-	condensin subunit ScpB
1408	 60.27	0	1346290..1346586	+	98	78212963	-	Syncc9605_1433	-	hypothetical protein
1409	 59.28	0	1346601..1347074	-	157	78212964	-	Syncc9605_1434	-	hypothetical protein
1410	 59.09	0	1347082..1347411	-	109	78212965	-	Syncc9605_1435	-	hypothetical protein
1411	 61.35	0	1347435..1348919	+	494	78212966	-	Syncc9605_1436	-	pyruvate kinase
1412	 61.22	0	1348933..1350162	+	409	78212967	-	Syncc9605_1437	-	ABC transporter
1413	 60.42	0	1350221..1352140	+	639	78212968	-	Syncc9605_1438	-	FtsH peptidase
1414	 47.44	-1	1352189..1352344	-	51	78212969	-	Syncc9605_1439	-	hypothetical protein
1415	 57.38	0	1352341..1352997	-	218	78212970	-	Syncc9605_1440	-	ATP-dependent Clp protease proteolytic subunit
1416	 58.18	0	1353016..1353663	+	215	78212971	-	Syncc9605_1441	-	Thf1-like protein
1417	 60.95	0	1353645..1354886	-	413	78212972	-	Syncc9605_1442	-	hypothetical protein
1418	 53.92	0	1355112..1355213	-	33	78212973	-	Syncc9605_1443	-	cytochrome b6-f complex subunit PetN
1419	 60.61	0	1355286..1355582	+	98	78212974	clpS	Syncc9605_1444	-	ATP-dependent Clp protease adaptor
1420	 64.91	0	1355584..1355811	-	75	78212975	-	Syncc9605_1445	-	hypothetical protein
1421	 61.96	0	1355886..1356161	+	91	78212976	-	Syncc9605_1446	-	hypothetical protein
1422	 48.26	-1	1357341..1357742	-	133	78212977	-	Syncc9605_1447	-	hypothetical protein
1423	 63.39	0	1358436..1359596	-	386	78212978	-	Syncc9605_1448	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1424	 60.94	0	1359649..1360521	-	290	78212979	-	Syncc9605_1449	-	lactose transport system permease protein
1425	 62.90	0	1360583..1361698	+	371	78212980	-	Syncc9605_1450	-	3-dehydroquinate synthase
1426	 63.67	0	1361652..1362884	-	410	78212981	-	Syncc9605_1451	-	hypothetical protein
1427	 62.39	0	1362922..1363692	+	256	78212982	-	Syncc9605_1452	-	hypothetical protein
1428	 61.67	0	1363721..1364440	-	239	78212983	-	Syncc9605_1453	-	muramidase
1429	 63.44	0	1364648..1365733	-	361	78212984	-	Syncc9605_1454	-	hypothetical protein
1430	 64.92	0	1365727..1366584	-	285	78212985	-	Syncc9605_1455	-	putative transcripton factor
1431	 59.81	0	1366629..1367561	+	310	78212986	-	Syncc9605_1456	-	quinolinate synthetase
1432	 54.79	0	1367558..1367860	+	100	78212987	-	Syncc9605_1457	-	hypothetical protein
1433	 56.76	0	1367905..1368318	+	137	78212988	-	Syncc9605_1458	-	hypothetical protein
1434	 55.98	0	1368319..1368552	-	77	78212989	-	Syncc9605_1459	-	hypothetical protein
1435	 63.73	0	1368620..1369606	+	328	78212990	-	Syncc9605_1460	-	exonuclease involved in mRNA processing
1436	 58.62	0	1369603..1369863	-	86	78212991	-	Syncc9605_1461	-	hypothetical protein
1437	 60.99	0	1369982..1371637	+	551	161353760	-	Syncc9605_1462	-	ATP-dependent DNA ligase
1438	 61.30	0	1371637..1374132	+	831	78212993	-	Syncc9605_1463	-	DEAD/DEAH box helicase-like
1439	 53.75	0	1375327..1375566	+	79	78212994	-	Syncc9605_1466	-	hypothetical protein
1440	 56.74	0	1375583..1375864	+	93	78212995	-	Syncc9605_1467	-	hypothetical protein
1441	 60.90	0	1375889..1376287	+	132	78212996	-	Syncc9605_1468	-	hypothetical protein
1442	 58.61	0	1376284..1376829	+	181	78212997	-	Syncc9605_1469	-	hypothetical protein
1443	 59.16	0	1377078..1377410	+	110	78212998	-	Syncc9605_1470	-	hypothetical protein
1444	 50.98	-1	1377428..1377682	+	84	78212999	-	Syncc9605_1471	-	hypothetical protein
1445	 56.85	0	1377984..1378370	-	128	78213000	-	Syncc9605_1472	-	hypothetical protein
1446	 62.04	0	1378591..1378806	-	71	78213001	-	Syncc9605_1473	-	heat shock protein DnaJ-like
1447	 60.12	0	1379920..1380576	-	218	78213002	-	Syncc9605_1476	-	hypothetical protein
1448	 61.71	0	1380580..1380801	-	73	78213003	-	Syncc9605_1477	-	high light inducible protein
1449	 64.01	0	1380798..1381211	-	137	78213004	-	Syncc9605_1478	-	hypothetical protein
1450	 58.06	0	1381358..1381543	+	61	78213005	-	Syncc9605_1479	-	hypothetical protein
1451	 68.23	+1	1381527..1381718	-	63	78213006	-	Syncc9605_1480	-	hypothetical protein
1452	 65.26	0	1381757..1382254	+	165	78213007	-	Syncc9605_1481	-	hypothetical protein
1453	 63.43	0	1382251..1382682	+	143	78213008	-	Syncc9605_1482	-	NUDIX family protein
1454	 61.22	0	1382672..1383460	+	262	78213009	-	Syncc9605_1483	-	ATPase
1455	 59.20	0	1383516..1383716	+	66	78213010	-	Syncc9605_1484	-	hypothetical protein
59.39	MEAN

6.29	STD DEV
