IslandPath Analysis: Synechococcus sp. CC9605

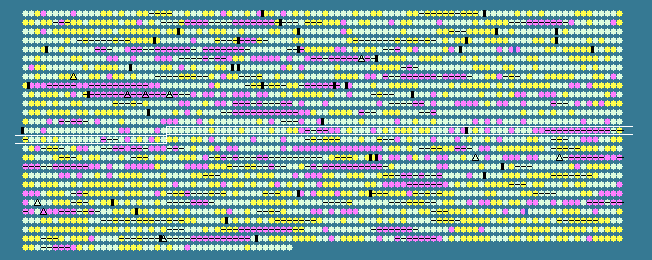

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1325	 58.33	0	1263163..1263954	-	263	78212880	-	Syncc9605_1350	-	hypothetical protein
1326	 60.77	0	1264082..1264810	+	242	78212881	-	Syncc9605_1351	-	CsgA C-factor signaling protein
1327	 59.09	0	1264792..1265187	-	131	78212882	-	Syncc9605_1352	-	hypothetical protein
1328	 57.58	0	1265299..1265529	+	76	78212883	-	Syncc9605_1353	-	hypothetical protein
1329	 56.04	0	1265560..1265832	-	90	78212884	-	Syncc9605_1354	-	hypothetical protein
1330	 61.12	0	1265880..1269506	-	1208	78212885	-	Syncc9605_1355	-	methionine synthase (B12-dependent)
1331	 60.33	0	1269570..1270484	-	304	78212886	-	Syncc9605_1356	-	branched-chain amino acid aminotransferase
1332	 64.87	0	1270550..1274278	+	1242	78212887	-	Syncc9605_1357	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
1333	 59.10	0	1274268..1274822	-	184	78212888	-	Syncc9605_1358	-	hypothetical protein
1334	 61.73	0	1274850..1275497	-	215	78212889	-	Syncc9605_1359	-	phosphoesterase PHP-like
1335	 60.91	0	1275511..1276083	-	190	78212890	-	Syncc9605_1360	-	hypothetical protein
1336	 61.32	0	1276119..1277615	-	498	78212891	-	Syncc9605_1361	-	photolyase family protein
1337	 65.28	0	1277618..1277905	-	95	78212892	-	Syncc9605_1362	-	hypothetical protein
1338	 62.59	0	1277902..1279887	-	661	78212893	uvrC	Syncc9605_1363	-	excinuclease ABC subunit C
1339	 61.49	0	1279897..1280379	-	160	78212894	-	Syncc9605_1364	-	hypothetical protein
1340	 59.55	0	1280449..1280940	+	163	78212895	-	Syncc9605_1365	-	phosphopantetheine adenylyltransferase
1341	 62.45	0	1280942..1281961	+	339	78212896	-	Syncc9605_1366	-	hypothetical protein
1342	 64.30	0	1281906..1283213	-	435	78212897	-	Syncc9605_1367	-	D-alanyl-D-alanine carboxypeptidase/D-alanyl-D-alanine-endopeptidase
1343	 62.50	0	1283210..1283713	-	167	78212898	-	Syncc9605_1368	-	hypothetical protein
1344	 62.76	0	1283779..1284495	-	238	78212899	-	Syncc9605_1369	-	hypothetical protein
1345	 66.16	+1	1284508..1285680	-	390	78212900	-	Syncc9605_1370	-	class-V aminotransferase family cysteine desulfurase
1346	 63.96	0	1285667..1286773	-	368	78212901	-	Syncc9605_1371	-	diaminopimelate epimerase
1347	 52.27	-1	1287134..1287397	+	87	78212902	-	Syncc9605_1372	-	hypothetical protein
1348	 45.31	-2	1288403..1288828	-	141	78212903	-	Syncc9605_1373	-	hypothetical protein
1349	 56.10	0	1289770..1290195	-	141	78212904	-	Syncc9605_1374	-	hypothetical protein
1350	 55.28	0	1291336..1291704	-	122	78212905	-	Syncc9605_1375	-	hypothetical protein
1351	 43.33	-2	1292186..1292695	+	169	78212906	-	Syncc9605_1376	-	hypothetical protein
1352	 41.74	-2	1292951..1293307	-	118	78212907	-	Syncc9605_1377	-	hypothetical protein
1353	 54.28	0	1293375..1294577	-	400	78212908	-	Syncc9605_1378	-	site-specific recombinase XerD-like
1354	 62.16	0	1294687..1294908	+	73	78212909	-	Syncc9605_1379	-	hypothetical protein
1355	 63.24	0	1294937..1297564	+	875	78212910	leuS	Syncc9605_1380	-	leucyl-tRNA synthetase
1356	 61.78	0	1297577..1299235	-	552	78212911	pgi	Syncc9605_1381	-	glucose-6-phosphate isomerase
1357	 59.66	0	1299291..1300061	+	256	78212912	-	Syncc9605_1382	-	hypothetical protein
1358	 59.23	0	1300183..1300518	+	111	78212913	-	Syncc9605_1383	-	hypothetical protein
1359	 55.83	0	1300536..1300775	-	79	78212914	-	Syncc9605_1384	-	hypothetical protein
1360	 61.82	0	1300812..1301699	-	295	78212915	-	Syncc9605_1385	-	N-acetylmuramoyl-L-alanine amidase
1361	 63.00	0	1301681..1303318	-	545	78212916	-	Syncc9605_1386	-	PDZ/DHR/GLGF
1362	 61.82	0	1303380..1303730	-	116	78212917	-	Syncc9605_1387	-	hypothetical protein
1363	 63.99	0	1303803..1304363	+	186	78212918	-	Syncc9605_1388	-	phosphoribosylglycinamide formyltransferase
1364	 64.99	0	1304354..1305427	-	357	78212919	argC	Syncc9605_1389	-	N-acetyl-gamma-glutamyl-phosphate reductase
1365	 64.45	0	1305625..1307160	+	511	78212920	-	Syncc9605_1390	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1366	 62.39	0	1307161..1307604	-	147	78212921	-	Syncc9605_1391	-	peptidylprolyl isomerase
1367	 63.92	0	1307645..1308553	+	302	78212922	-	Syncc9605_1392	-	methylthioadenosine phosphorylase
1368	 67.82	+1	1308535..1309485	-	316	78212923	murQ	Syncc9605_1393	-	N-acetylmuramic acid-6-phosphate etherase
1369	 62.66	0	1309489..1309962	-	157	78212924	-	Syncc9605_1394	-	hypothetical protein
1370	 61.95	0	1310006..1310938	-	310	78212925	-	Syncc9605_1395	-	heat shock protein DnaJ-like
1371	 62.45	0	1310922..1312913	-	663	78212926	-	Syncc9605_1396	-	molecular chaperone DnaK, heat shock protein HSP70
1372	 55.80	0	1313038..1313985	+	315	78212927	-	Syncc9605_1397	-	phosphate ABC transporter permease
1373	 59.48	0	1313987..1314904	+	305	78212928	-	Syncc9605_1398	-	phosphate ABC transporter permease
1374	 55.72	0	1314925..1315746	+	273	78212929	-	Syncc9605_1399	-	phosphate ABC transporter permease
1375	 62.60	0	1315974..1316342	+	122	78212930	-	Syncc9605_1400	-	ferredoxin
1376	 64.30	0	1316345..1317232	+	295	78212931	-	Syncc9605_1401	-	inositol-1(or 4)-monophosphatase
1377	 62.09	0	1317255..1318433	+	392	78212932	hisZ	Syncc9605_1402	-	ATP phosphoribosyltransferase regulatory subunit
1378	 55.11	0	1318459..1318683	+	74	78212933	-	Syncc9605_1403	-	ferredoxin
1379	 60.42	0	1318772..1320676	+	634	78212934	-	Syncc9605_1404	-	heat shock protein 90
1380	 60.34	0	1320756..1320992	+	78	78212935	rpmB	Syncc9605_1405	-	50S ribosomal protein L28
1381	 61.14	0	1321005..1321565	+	186	78212936	-	Syncc9605_1406	-	twin-arginine translocation pathway signal
1382	 53.92	0	1321618..1323108	+	496	78212937	-	Syncc9605_1407	-	glucosylglycerol-phosphate synthase
1383	 62.24	0	1323105..1324370	+	421	78212938	-	Syncc9605_1408	-	ABC transporter, likely sugar solute binding protein
1384	 61.94	0	1324367..1325233	+	288	78212939	-	Syncc9605_1409	-	trehalose/maltose ABC transporter membrane protein
1385	 59.93	0	1325230..1326105	+	291	78212940	-	Syncc9605_1410	-	ABC transporter, likely for trehalose/maltose, membrane component
1386	 55.11	0	1326213..1327796	+	527	78212941	-	Syncc9605_1411	-	hypothetical protein
1387	 53.25	0	1327841..1328563	-	240	78212942	-	Syncc9605_1412	-	hypothetical protein
1388	 53.93	0	1328784..1329152	+	122	78212943	-	Syncc9605_1413	-	hypothetical protein
1389	 44.83	-2	1329295..1329555	-	86	78212944	-	Syncc9605_1414	-	hypothetical protein
1390	 53.54	0	1329796..1330374	+	192	78212945	-	Syncc9605_1415	-	hypothetical protein
1391	 37.55	-2	1330875..1331135	-	86	78212946	-	Syncc9605_1416	-	hypothetical protein
1392	 51.40	-1	1331257..1332756	-	499	78212947	-	Syncc9605_1417	-	hypothetical protein
1393	 46.48	-2	1332946..1333470	+	174	78212948	-	Syncc9605_1418	-	hypothetical protein
1394	 48.01	-1	1333476..1334177	+	233	78212949	-	Syncc9605_1419	-	hypothetical protein
1395	 42.32	-2	1334184..1334684	-	166	78212950	-	Syncc9605_1420	-	hypothetical protein
1396	 39.06	-2	1335727..1335918	-	63	78212951	-	Syncc9605_1421	-	hypothetical protein
1397	 42.59	-2	1335990..1336259	-	89	78212952	-	Syncc9605_1422	-	hypothetical protein
1398	 54.37	0	1337332..1337754	-	140	78212953	-	Syncc9605_1423	-	hypothetical protein
1399	 62.54	0	1337945..1338937	+	330	78212954	-	Syncc9605_1424	-	ATPase
1400	 64.36	0	1338894..1339976	-	360	78212955	-	Syncc9605_1425	-	hypothetical protein
1401	 64.29	0	1340031..1340324	+	97	78212956	-	Syncc9605_1426	-	hypothetical protein
1402	 57.29	0	1340321..1340608	+	95	78212957	-	Syncc9605_1427	-	hypothetical protein
1403	 62.55	0	1340668..1340934	+	88	78212958	-	Syncc9605_1428	-	photosystem I reaction center subunit X
1404	 64.73	0	1340986..1342173	-	395	78212959	-	Syncc9605_1429	-	hypothetical protein
1405	 62.22	0	1342187..1344118	-	643	78212960	-	Syncc9605_1430	-	1-deoxy-D-xylulose-5-phosphate synthase
1406	 63.33	0	1344199..1345728	+	509	78212961	-	Syncc9605_1431	-	threonine dehydratase
1407	 60.64	0	1345768..1346265	+	165	78212962	-	Syncc9605_1432	-	condensin subunit ScpB
1408	 60.27	0	1346290..1346586	+	98	78212963	-	Syncc9605_1433	-	hypothetical protein
1409	 59.28	0	1346601..1347074	-	157	78212964	-	Syncc9605_1434	-	hypothetical protein
1410	 59.09	0	1347082..1347411	-	109	78212965	-	Syncc9605_1435	-	hypothetical protein
1411	 61.35	0	1347435..1348919	+	494	78212966	-	Syncc9605_1436	-	pyruvate kinase
1412	 61.22	0	1348933..1350162	+	409	78212967	-	Syncc9605_1437	-	ABC transporter
1413	 60.42	0	1350221..1352140	+	639	78212968	-	Syncc9605_1438	-	FtsH peptidase
1414	 47.44	-1	1352189..1352344	-	51	78212969	-	Syncc9605_1439	-	hypothetical protein
1415	 57.38	0	1352341..1352997	-	218	78212970	-	Syncc9605_1440	-	ATP-dependent Clp protease proteolytic subunit
1416	 58.18	0	1353016..1353663	+	215	78212971	-	Syncc9605_1441	-	Thf1-like protein
1417	 60.95	0	1353645..1354886	-	413	78212972	-	Syncc9605_1442	-	hypothetical protein
1418	 53.92	0	1355112..1355213	-	33	78212973	-	Syncc9605_1443	-	cytochrome b6-f complex subunit PetN
1419	 60.61	0	1355286..1355582	+	98	78212974	clpS	Syncc9605_1444	-	ATP-dependent Clp protease adaptor
1420	 64.91	0	1355584..1355811	-	75	78212975	-	Syncc9605_1445	-	hypothetical protein
1421	 61.96	0	1355886..1356161	+	91	78212976	-	Syncc9605_1446	-	hypothetical protein
1422	 48.26	-1	1357341..1357742	-	133	78212977	-	Syncc9605_1447	-	hypothetical protein
1423	 63.39	0	1358436..1359596	-	386	78212978	-	Syncc9605_1448	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1424	 60.94	0	1359649..1360521	-	290	78212979	-	Syncc9605_1449	-	lactose transport system permease protein
59.39	MEAN

6.29	STD DEV
