IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. CC9605

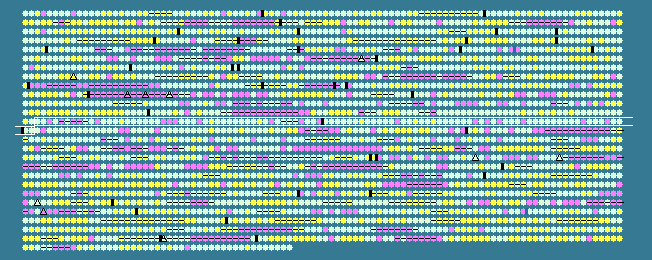

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1203	 62.15	0	1148257..1150428	+	723	78212759	-	Syncc9605_1228	-	glycyl-tRNA synthetase, beta subunit
1204	 57.00	0	1150493..1151713	+	406	78212760	-	Syncc9605_1229	-	hypothetical protein
1205	 49.69	-1	1151881..1152198	+	105	78212761	-	Syncc9605_1230	-	hypothetical protein
1206	 56.31	0	1153110..1153814	-	234	78212762	-	Syncc9605_1231	-	hypothetical protein
1207	 55.56	0	1154027..1154467	-	146	78212763	-	Syncc9605_1232	-	hypothetical protein
1208	 56.11	0	1154464..1155183	-	239	78212764	-	Syncc9605_1233	-	hypothetical protein
1209	 50.70	-1	1155265..1155690	-	141	78212765	-	Syncc9605_1234	-	hypothetical protein
1210	 50.00	-1	1156267..1156512	-	81	78212766	-	Syncc9605_1235	-	hypothetical protein
1211	 59.74	0	1157204..1157434	-	76	78212767	-	Syncc9605_1236	-	hypothetical protein
1212	 57.89	0	1157498..1158169	-	223	78212768	-	Syncc9605_1237	-	hypothetical protein
1213	 50.62	-1	1158797..1159039	+	80	78212769	-	Syncc9605_1238	-	hypothetical protein
1214	 56.41	0	1159624..1159896	+	90	78212770	-	Syncc9605_1239	-	hypothetical protein
1215	 58.85	0	1159945..1161312	-	455	78212771	-	Syncc9605_1240	-	geranylgeranyl reductase
1216	 60.82	0	1161421..1162173	+	250	78212772	-	Syncc9605_1241	-	putative carboxypeptidase
1217	 64.14	0	1162170..1164701	+	843	78212773	-	Syncc9605_1242	-	putative peptidase U32 family protein
1218	 59.04	0	1164759..1166567	+	602	78212774	-	Syncc9605_1243	-	GTP-binding protein TypA
1219	 59.66	0	1166567..1166923	+	118	78212775	-	Syncc9605_1244	-	hypothetical protein
1220	 59.82	0	1166974..1167411	+	145	78212776	-	Syncc9605_1245	-	hypothetical protein
1221	 60.22	0	1167408..1168136	+	242	78212777	-	Syncc9605_1246	-	ATPase
1222	 56.85	0	1168136..1169296	+	386	78212778	-	Syncc9605_1247	-	permease
1223	 59.23	0	1169335..1170249	+	304	78212779	-	Syncc9605_1248	-	heme transporter
1224	 52.48	-1	1170279..1170842	-	187	78212780	-	Syncc9605_1249	-	hypothetical protein
1225	 46.81	-2	1171421..1171561	+	46	78212781	-	Syncc9605_1250	-	hypothetical protein
1226	 49.16	-1	1172131..1172427	+	98	78212782	-	Syncc9605_1251	-	hypothetical protein
1227	 58.04	0	1172560..1173243	-	227	78212783	-	Syncc9605_1252	-	ribulose-phosphate 3-epimerase
1228	 59.80	0	1173394..1174398	+	334	78212784	glpX	Syncc9605_1253	-	fructose 1,6-bisphosphatase II
1229	 59.28	0	1174430..1175728	+	432	78212785	hemA	Syncc9605_1254	-	glutamyl-tRNA reductase
1230	 55.40	0	1175850..1177145	+	431	78212786	glgC	Syncc9605_1255	-	glucose-1-phosphate adenylyltransferase
1231	 58.91	0	1177281..1178699	+	472	78212787	-	Syncc9605_1256	-	6-phosphogluconate dehydrogenase
1232	 64.29	0	1178711..1179424	+	237	78212788	-	Syncc9605_1257	-	6-phosphogluconolactonase
1233	 62.21	0	1179405..1179965	+	186	78212789	-	Syncc9605_1258	-	hypothetical protein
1234	 59.89	0	1179970..1180338	+	122	78212790	-	Syncc9605_1259	-	hypothetical protein
1235	 62.07	0	1180350..1182023	-	557	78212791	-	Syncc9605_1260	-	dihydroxy-acid dehydratase
1236	 61.29	0	1182068..1182346	-	92	78212792	-	Syncc9605_1261	-	hypothetical protein
1237	 62.54	0	1182383..1182988	-	201	78212793	-	Syncc9605_1262	-	putative uracil phosphoribosyltransferase
1238	 58.63	0	1183044..1183553	+	169	78212794	-	Syncc9605_1263	-	hypothetical protein
1239	 62.10	0	1183559..1184674	+	371	78212795	-	Syncc9605_1264	-	putative cobalamin synthesis protein
1240	 62.98	0	1184611..1185477	-	288	78212796	-	Syncc9605_1265	-	hypothetical protein
1241	 57.45	0	1185564..1186442	+	292	78212797	-	Syncc9605_1266	-	hypothetical protein
1242	 41.55	-2	1186421..1186639	+	72	78212798	-	Syncc9605_1267	-	hypothetical protein
1243	 58.36	0	1186650..1187636	-	328	78212799	-	Syncc9605_1268	-	chlorophyll synthase / NADPH-protochlorophyllide oxidoreductase
1244	 57.50	0	1187608..1188414	-	268	78212800	-	Syncc9605_1269	-	inner membrane protein
1245	 59.59	0	1188483..1189061	+	192	78212801	-	Syncc9605_1270	-	hypothetical protein
1246	 59.91	0	1189061..1189756	+	231	78212802	-	Syncc9605_1271	-	putative short-chain dehydrogenase family protein
1247	 55.66	0	1189787..1190113	+	108	78212803	-	Syncc9605_1272	-	hypothetical protein
1248	 59.19	0	1190110..1190577	+	155	78212804	-	Syncc9605_1273	-	hypothetical protein
1249	 56.12	0	1190561..1190977	-	138	78212805	-	Syncc9605_1274	-	hypothetical protein
1250	 47.53	-1	1191494..1191979	+	161	78212806	-	Syncc9605_1276	-	hypothetical protein
1251	 61.49	0	1192554..1194908	-	784	78212807	-	Syncc9605_1277	-	ribonucleotide reductase (class II)
1252	 61.23	0	1195003..1195683	+	226	78212808	-	Syncc9605_1278	-	hypothetical protein
1253	 59.08	0	1195690..1197336	+	548	78212809	prfC	Syncc9605_1279	-	peptide chain release factor 3
1254	 59.01	0	1197406..1197627	+	73	78212810	-	Syncc9605_1280	-	hypothetical protein
1255	 62.64	0	1197669..1198364	+	231	78212811	-	Syncc9605_1281	-	hypothetical protein
1256	 60.89	0	1198368..1199285	-	305	78212812	-	Syncc9605_1282	-	chaperonin HSP33
1257	 63.38	0	1199300..1199938	-	212	78212813	-	Syncc9605_1283	-	ATPase
1258	 56.22	0	1199980..1200429	+	149	78212814	-	Syncc9605_1284	-	hypothetical protein
1259	 61.61	0	1200422..1201153	+	243	78212815	-	Syncc9605_1285	-	hypothetical protein
1260	 61.34	0	1201143..1201574	-	143	78212816	-	Syncc9605_1286	-	hypothetical protein
1261	 62.78	0	1201634..1202380	+	248	78212817	-	Syncc9605_1287	-	hypothetical protein
1262	 59.60	0	1202581..1203132	-	183	78212818	-	Syncc9605_1288	-	DNA-directed RNA polymerase specialized sigma subunit-like
1263	 55.76	0	1203216..1203380	+	54	78212819	-	Syncc9605_1289	-	hypothetical protein
1264	 62.50	0	1203384..1203551	-	55	78212820	-	Syncc9605_1290	-	hypothetical protein
1265	 61.72	0	1203606..1204292	-	228	78212821	-	Syncc9605_1291	-	hypothetical protein
1266	 63.60	0	1204289..1205821	-	510	78212822	-	Syncc9605_1292	-	putative phosphonate ABC transporter
1267	 62.84	0	1205800..1206504	-	234	78212823	-	Syncc9605_1293	-	ATPase
1268	 61.26	0	1206501..1207424	-	307	78212824	-	Syncc9605_1294	-	phosphonate-binding periplasmic protein
1269	 62.93	0	1207451..1208629	-	392	78212825	-	Syncc9605_1295	-	L-aspartate aminotransferase
1270	 61.44	0	1208716..1209117	+	133	78212826	-	Syncc9605_1296	-	hypothetical protein
1271	 60.64	0	1209114..1209677	+	187	78212827	-	Syncc9605_1297	-	phage SPO1 DNA polymerase-related protein
1272	 60.23	0	1209698..1210894	+	398	78212828	ispG	Syncc9605_1298	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1273	 57.41	0	1210928..1212277	+	449	78212829	-	Syncc9605_1299	-	carboxyl-terminal protease
1274	 61.25	0	1212529..1216107	-	1192	78212830	-	Syncc9605_1300	-	transcription-repair coupling factor
1275	 56.41	0	1216612..1217118	-	168	78212831	-	Syncc9605_1301	-	hypothetical protein
1276	 47.44	-1	1217746..1217901	+	51	78212832	-	Syncc9605_1302	-	hypothetical protein
1277	 58.03	0	1218118..1218870	-	250	78212833	-	Syncc9605_1303	-	hypothetical protein
1278	 55.56	0	1218909..1219646	+	245	78212834	-	Syncc9605_1304	-	TerC family protein
1279	 56.34	0	1219636..1219974	+	112	78212835	-	Syncc9605_1305	-	hypothetical protein
1280	 52.84	-1	1219978..1220628	+	216	78212836	-	Syncc9605_1306	-	hypothetical protein
1281	 60.47	0	1220630..1221646	-	338	78212837	-	Syncc9605_1307	-	methionyl-tRNA formyltransferase
1282	 58.28	0	1221649..1223019	-	456	78212838	-	Syncc9605_1308	-	modulator of DNA gyrase
1283	 59.15	0	1223019..1224428	-	469	78212839	-	Syncc9605_1309	-	putative modulator of DNA gyrase; TldD
1284	 54.72	0	1224461..1225531	-	356	78212840	-	Syncc9605_1310	-	magnesium-protoporphyrin IX monomethyl ester cyclase
1285	 60.05	0	1225598..1226035	-	145	78212841	-	Syncc9605_1311	-	hypothetical protein
1286	 60.70	0	1226081..1226566	-	161	78212842	-	Syncc9605_1312	-	hypothetical protein
1287	 62.23	0	1226563..1227171	-	202	78212843	-	Syncc9605_1313	-	aromatic acid decarboxylase
1288	 59.73	0	1227175..1229496	-	773	78212844	-	Syncc9605_1314	-	RNA binding S1
1289	 57.23	0	1229597..1229914	-	105	78212845	-	Syncc9605_1315	-	hypothetical protein
1290	 57.36	0	1229917..1230249	-	110	78212846	-	Syncc9605_1316	-	hypothetical protein
1291	 57.33	0	1230239..1230613	-	124	78212847	-	Syncc9605_1317	-	hypothetical protein
1292	 62.52	0	1230840..1232696	-	618	78212848	-	Syncc9605_1318	-	exonuclease RecJ
1293	 60.64	0	1232771..1233550	+	259	78212849	-	Syncc9605_1319	-	HAD family hydrolase
1294	 54.49	0	1233547..1233858	+	103	78212850	-	Syncc9605_1320	-	hypothetical protein
1295	 59.10	0	1233848..1234825	+	325	78212851	-	Syncc9605_1321	-	hypothetical protein
1296	 61.58	0	1234789..1234965	-	58	109150036	rpmF	Syncc9605_1321a	-	50S ribosomal protein L32
1297	 59.82	0	1235053..1236849	+	598	78212852	-	Syncc9605_1322	-	ATP-dependent metalloprotease FtsH
1298	 54.17	0	1236846..1239590	+	914	78212853	-	Syncc9605_1323	-	hypothetical protein
1299	 57.38	0	1239626..1240228	-	200	78212854	-	Syncc9605_1324	-	thioredoxin peroxidase
1300	 60.80	0	1240350..1240673	+	107	78212855	-	Syncc9605_1325	-	hypothetical protein
1301	 57.24	0	1240856..1241905	-	349	78212856	-	Syncc9605_1326	-	peptidoglycan-binding LysM
1302	 61.59	0	1241978..1242469	-	163	78212857	-	Syncc9605_1327	-	SpoU family tRNA/rRNA methyltransferase
59.39	MEAN

6.29	STD DEV
