IslandPath Analysis: Synechococcus sp. CC9605

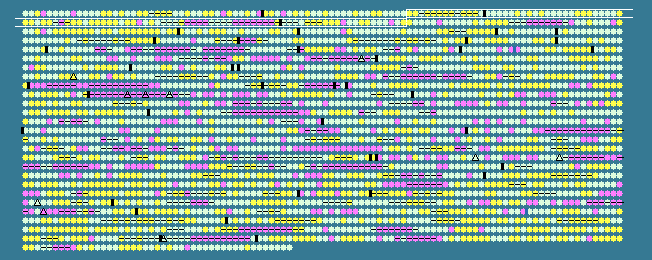

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
65	 64.14	0	65740..66648	+	302	78211623	dapA	Syncc9605_0068	-	dihydrodipicolinate synthase
66	 63.04	0	66701..68740	+	679	78211624	-	Syncc9605_0069	-	hypothetical protein
67	 61.16	0	68726..69415	-	229	78211625	-	Syncc9605_0070	-	hypothetical protein
68	 64.67	0	69541..71346	-	601	78211626	-	Syncc9605_0071	-	aspartate kinase
69	 66.36	+1	71394..72359	-	321	78211627	-	Syncc9605_0072	-	DNA polymerase III subunit delta
70	 69.01	+1	72378..73016	+	212	78211628	-	Syncc9605_0073	-	precorrin-8X methylmutase
71	 69.45	+1	72964..73968	-	334	78211629	-	Syncc9605_0074	-	MesJ-like protein
72	 65.48	0	74004..74762	+	252	78211630	-	Syncc9605_0075	-	hypothetical protein
73	 60.00	0	74734..75063	+	109	78211631	-	Syncc9605_0076	-	photosystem II reaction center protein Z
74	 64.60	0	75127..75609	+	160	78211632	ribH	Syncc9605_0077	-	riboflavin synthase subunit beta
75	 67.51	+1	75614..78325	-	903	78211633	-	Syncc9605_0078	-	DNA mismatch repair protein
76	 70.39	+1	78378..78833	-	151	78211634	-	Syncc9605_0079	-	hypothetical protein
77	 62.87	0	78836..80944	+	702	78211635	-	Syncc9605_0080	-	excinuclease ABC subunit B
78	 59.39	0	81186..83990	+	934	78211636	secA	Syncc9605_0081	-	preprotein translocase subunit SecA
79	 60.51	0	84327..85073	-	248	78211637	-	Syncc9605_0082	-	serine O-acetyltransferase
80	 62.28	0	85084..86085	-	333	78211638	-	Syncc9605_0083	-	GntR family transcriptional regulator
81	 61.11	0	86105..86932	+	275	78211639	-	Syncc9605_0084	-	carboxymethylenebutenolidase
82	 61.47	0	86929..87582	-	217	78211640	infC	Syncc9605_0085	-	translation initiation factor IF-3
83	 66.22	+1	87640..88539	-	299	78211641	-	Syncc9605_0086	-	tRNA delta(2)-isopentenylpyrophosphate transferase
84	 60.62	0	88692..90659	+	655	78211642	gyrB	Syncc9605_0087	-	DNA gyrase subunit B
85	 66.07	+1	90659..90994	+	111	78211643	-	Syncc9605_0088	-	hypothetical protein
86	 62.73	0	90975..91355	+	126	78211644	-	Syncc9605_0089	-	camphor resistance protein CrcB
87	 65.41	0	91348..91746	+	132	78211645	-	Syncc9605_0090	-	putative integral membrane protein
88	 61.71	0	91712..92236	-	174	78211646	-	Syncc9605_0091	-	glutathione peroxidase
89	 62.63	0	92258..93718	+	486	78211647	-	Syncc9605_0092	-	magnesium transporter
90	 58.13	0	93773..94780	+	335	78211648	-	Syncc9605_0093	-	type II alternative sigma-70 family RNA polymerase sigma factor
91	 60.24	0	94783..95685	-	300	78211649	-	Syncc9605_0094	-	hypothetical protein
92	 62.05	0	95750..96703	+	317	78211650	-	Syncc9605_0095	-	MoxR protein
93	 63.98	0	98442..99632	+	396	78211651	-	Syncc9605_0099	-	A/G-specific DNA-adenine glycosylase
94	 63.95	0	99654..100610	+	318	78211652	-	Syncc9605_0100	-	putative fructokinase
95	 63.01	0	100577..101068	-	163	78211653	-	Syncc9605_0101	-	hypothetical protein
96	 60.94	0	101099..102529	+	476	78211654	-	Syncc9605_0102	-	S-adenosyl-L-homocysteine hydrolase
97	 62.12	0	102601..103260	+	219	78211655	-	Syncc9605_0103	-	putative alkaline phosphatase-like protein
98	 62.43	0	103294..103671	-	125	78211656	-	Syncc9605_0104	-	single-strand DNA-binding protein
99	 61.73	0	103814..104866	+	350	78211657	-	Syncc9605_0105	-	cell shape determining protein MreB
100	 66.27	+1	104871..105617	+	248	78211658	-	Syncc9605_0106	-	rod shape-determining protein MreC
101	 63.05	0	105619..106143	+	174	78211659	-	Syncc9605_0107	-	hypothetical protein
102	 65.37	0	106140..107447	+	435	78211660	-	Syncc9605_0108	-	twin-arginine translocation pathway signal
103	 58.01	0	107540..108301	+	253	78211661	-	Syncc9605_0109	-	two component transcriptional regulator
104	 64.02	0	108346..109854	+	502	78211662	lysS	Syncc9605_0110	-	lysyl-tRNA synthetase
105	 64.39	0	109882..110145	+	87	78211663	-	Syncc9605_0111	-	hypothetical protein
106	 62.71	0	110147..110626	-	159	78211664	-	Syncc9605_0112	-	hypothetical protein
107	 54.70	0	110623..110856	-	77	78211665	-	Syncc9605_0113	-	hypothetical protein
108	 63.94	0	110890..111843	-	317	78211666	-	Syncc9605_0114	-	hypothetical protein
109	 63.05	0	111840..113000	-	386	78211667	-	Syncc9605_0115	-	hypothetical protein
110	 64.72	0	113069..114709	+	546	78211668	-	Syncc9605_0116	-	serine/threonine protein kinase
111	 59.08	0	114703..115203	-	166	78211669	smpB	Syncc9605_0117	-	SsrA-binding protein
112	 65.23	0	115254..116300	+	348	78211670	ruvB	Syncc9605_0118	-	Holliday junction DNA helicase B
113	 65.36	0	116297..117061	+	254	78211671	-	Syncc9605_0119	-	hypothetical protein
114	 65.99	+1	117063..118244	+	393	78211672	-	Syncc9605_0120	-	peptidase M20D, amidohydrolase
115	 63.60	0	118241..118468	+	75	78211673	-	Syncc9605_0121	-	hypothetical protein
116	 63.25	0	118465..119079	+	204	78211674	-	Syncc9605_0122	-	hypothetical protein
117	 60.62	0	119212..120666	+	484	78211675	-	Syncc9605_0123	-	thiamine biosynthesis protein ThiC
118	 63.38	0	120807..122816	-	669	78211676	-	Syncc9605_0124	-	transketolase
119	 63.70	0	122871..124118	-	415	78211677	-	Syncc9605_0125	-	3-oxoacyl-[acyl-carrier-protein] synthase II
120	 54.73	0	124127..124369	-	80	161353765	acpP	Syncc9605_0126	-	acyl carrier protein
121	 60.14	0	124486..124761	+	91	78211679	-	Syncc9605_0127	-	photosystem I subunit VII
122	 64.23	0	124816..126705	+	629	78211680	-	Syncc9605_0128	-	D-fructose-6-phosphate amidotransferase
123	 62.56	0	126709..128169	-	486	78211681	-	Syncc9605_0129	-	mannose-1-phosphate guanylyltransferase (GDP)
124	 62.55	0	128246..128779	-	177	78211682	rimM	Syncc9605_0130	-	16S rRNA-processing protein
125	 59.57	0	128880..129020	+	46	78211683	-	Syncc9605_0131	-	hypothetical protein
126	 60.51	0	129025..129852	+	275	78211684	-	Syncc9605_0132	-	VIC family potassium channel protein
127	 64.76	0	129900..130004	-	34	78211685	-	Syncc9605_0133	-	hypothetical protein
128	 54.52	0	130260..131585	+	441	78211686	-	Syncc9605_0134	-	hypothetical protein
129	 47.39	-1	132091..132972	-	293	78211687	-	Syncc9605_0135	-	hypothetical protein
130	 35.43	-2	133070..134215	+	381	78211688	-	Syncc9605_0136	-	hypothetical protein
131	 39.52	-2	134341..134712	+	123	78211689	-	Syncc9605_0137	-	hypothetical protein
132	 57.05	0	135126..135437	-	103	78211690	-	Syncc9605_0138	-	hypothetical protein
133	 60.78	0	135673..136521	-	282	78211691	-	Syncc9605_0139	-	2-dehydro-3-deoxyphosphooctonate aldolase
134	 60.06	0	136719..137429	+	236	78211692	-	Syncc9605_0140	-	hypothetical protein
135	 62.08	0	137429..138148	+	239	78211693	-	Syncc9605_0141	-	3-deoxy-manno-octulosonate cytidylyltransferase
136	 34.57	-2	138531..140147	-	538	78211694	-	Syncc9605_0142	-	hypothetical protein
137	 33.29	-2	140144..142693	-	849	78211695	-	Syncc9605_0143	-	glycosyltransferase-like protein
138	 37.85	-2	142965..143828	-	287	78211696	-	Syncc9605_0144	-	putative sugar nucleotide epimerase/dehydratase
139	 32.47	-2	144154..145191	-	345	78211697	-	Syncc9605_0145	-	hypothetical protein
140	 35.35	-2	145188..146327	-	379	78211698	-	Syncc9605_0146	-	hypothetical protein
141	 33.27	-2	146324..147859	-	511	78211699	-	Syncc9605_0147	-	hypothetical protein
142	 32.73	-2	147856..149841	-	661	78211700	-	Syncc9605_0148	-	hypothetical protein
143	 65.29	0	151016..151741	-	241	78211701	-	Syncc9605_0149	-	RNAse III
144	 61.98	0	152308..152691	+	127	78211702	-	Syncc9605_0150	-	hypothetical protein
145	 59.14	0	152729..153193	+	154	78211703	-	Syncc9605_0151	-	hypothetical protein
146	 60.80	0	153255..155777	-	840	78211704	-	Syncc9605_0152	-	glycogen/starch/alpha-glucan phosphorylase
147	 59.33	0	155990..157366	+	458	78211705	-	Syncc9605_0153	-	CPA2 family Na+/H+ antiporter
148	 62.96	0	157369..157719	-	116	78211706	-	Syncc9605_0154	-	hypothetical protein
149	 62.98	0	157740..158660	+	306	78211707	-	Syncc9605_0155	-	hypothetical protein
150	 63.86	0	158678..159532	+	284	78211708	-	Syncc9605_0156	-	hypothetical protein
151	 67.45	+1	159517..160668	-	383	78211709	-	Syncc9605_0157	-	putative glycolate oxidase subunit GlcE
152	 66.15	+1	160683..162029	+	448	78211710	-	Syncc9605_0158	-	hypothetical protein
153	 66.16	+1	161928..163304	-	458	78211711	-	Syncc9605_0159	-	putative glycolate oxidase subunit (Fe-S) protein
154	 42.32	-2	163572..164294	-	240	78211712	-	Syncc9605_0160	-	hypothetical protein
155	 62.74	0	164316..165740	-	474	78211713	-	Syncc9605_0161	-	isocitrate dehydrogenase
156	 60.78	0	165823..166773	+	316	78211714	-	Syncc9605_0162	-	putative glycosyl transferase family protein
157	 64.06	0	166756..167943	-	395	78211715	-	Syncc9605_0163	-	hypothetical protein
158	 64.95	0	167961..168716	-	251	78211716	-	Syncc9605_0164	-	methylthioadenosine nucleosidase
159	 61.87	0	168821..169237	+	138	78211717	-	Syncc9605_0165	-	hypothetical protein
160	 57.98	0	169313..170026	+	237	78211718	-	Syncc9605_0166	-	Heme oxygenase (decyclizing)
161	 61.85	0	170043..171080	+	345	78211719	-	Syncc9605_0167	-	hypothetical protein
162	 46.44	-2	171147..172985	+	612	78211720	-	Syncc9605_0168	-	ATPase
163	 61.92	0	172985..175240	+	751	78211721	-	Syncc9605_0169	-	glycosyltransferase-like protein
164	 63.29	0	175237..176391	+	384	78211722	-	Syncc9605_0170	-	putative glycosyl transferase, group 1
59.39	MEAN

6.29	STD DEV
