IslandPath Analysis: Synechococcus sp. CC9605

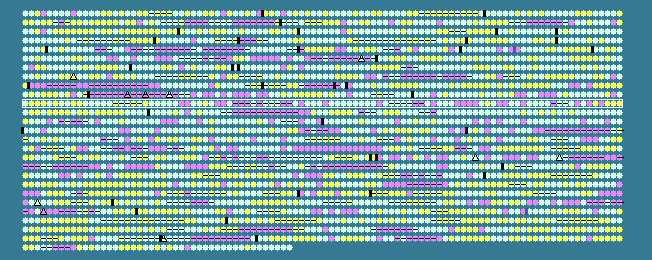

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 59.39 STD DEV: 6.29
Synechococcus sp. CC9605, complete genome - 1..2510659
2645 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1001	 62.56	0	970841..971278	-	145	78212557	-	Syncc9605_1023	-	hypothetical protein
1002	 63.12	0	971372..975793	+	1473	78212558	-	Syncc9605_1024	-	hypothetical protein
1003	 66.56	+1	975797..976705	+	302	78212559	-	Syncc9605_1025	-	sugar kinase
1004	 64.68	0	976714..978021	+	435	78212560	-	Syncc9605_1026	-	glutamate-5-semialdehyde dehydrogenase
1005	 61.02	0	978021..978392	+	123	78212561	-	Syncc9605_1027	-	dihydroneopterin aldolase
1006	 63.19	0	978401..978976	+	191	78212562	-	Syncc9605_1028	-	lipase family protein
1007	 62.82	0	978979..981081	-	700	78212563	-	Syncc9605_1029	-	oligopeptidase A
1008	 60.29	0	981083..982618	-	511	78212564	-	Syncc9605_1030	-	NAD(P)H-quinone oxidoreductase subunit 4
1009	 65.82	+1	982676..983623	-	315	78212565	-	Syncc9605_1031	-	homoserine kinase
1010	 64.25	0	983638..984672	-	344	78212566	-	Syncc9605_1032	-	glucokinase
1011	 61.87	0	984708..985103	-	131	78212567	-	Syncc9605_1033	-	hypothetical protein
1012	 61.55	0	985100..986935	-	611	78212568	-	Syncc9605_1034	-	Ser-tRNA(Thr) hydrolase / threonyl-tRNA synthetase
1013	 62.46	0	986939..987295	+	118	78212569	-	Syncc9605_1035	-	hypothetical protein
1014	 62.66	0	987280..987903	-	207	78212570	-	Syncc9605_1036	-	muramidase
1015	 61.44	0	988189..989202	-	337	78212571	-	Syncc9605_1037	-	tryptophanyl-tRNA synthetase
1016	 65.89	+1	989206..989721	-	171	78212572	-	Syncc9605_1038	-	hypothetical protein
1017	 62.31	0	989738..990265	-	175	78212573	-	Syncc9605_1039	-	hypothetical protein
1018	 61.70	0	990258..991184	-	308	78212574	-	Syncc9605_1040	-	cation diffusion facilitator family transporter
1019	 64.80	0	991330..992613	+	427	78212575	-	Syncc9605_1041	-	hypothetical protein
1020	 58.59	0	992755..993831	+	358	78212576	-	Syncc9605_1042	-	photosystem q(b) protein
1021	 65.88	+1	993951..994205	-	84	78212577	-	Syncc9605_1043	-	hypothetical protein
1022	 60.10	0	994280..994477	+	65	78212578	-	Syncc9605_1044	-	hypothetical protein
1023	 61.11	0	995069..995608	-	179	78212579	-	Syncc9605_1045	-	hypothetical protein
1024	 58.61	0	995601..996047	-	148	78212580	-	Syncc9605_1046	-	transcriptional regulator
1025	 56.00	0	996047..997087	-	346	78212581	-	Syncc9605_1047	-	hypothetical protein
1026	 55.99	0	998432..998890	+	152	78212582	-	Syncc9605_1049	-	hypothetical protein
1027	 45.61	-2	1000022..1000591	-	189	78212583	-	Syncc9605_1050	-	hypothetical protein
1028	 55.20	0	1000926..1001204	-	92	78212584	-	Syncc9605_1051	-	hypothetical protein
1029	 56.90	0	1001874..1002170	-	98	78212585	-	Syncc9605_1052	-	hypothetical protein
1030	 61.04	0	1002241..1002471	+	76	78212586	-	Syncc9605_1053	-	hypothetical protein
1031	 63.47	0	1002448..1003197	-	249	78212587	-	Syncc9605_1054	-	hypothetical protein
1032	 59.24	0	1003215..1003712	-	165	78212588	-	Syncc9605_1055	-	hypothetical protein
1033	 53.22	0	1003791..1003961	+	56	78212589	-	Syncc9605_1056	-	hypothetical protein
1034	 52.56	-1	1004441..1004674	+	77	78212590	-	Syncc9605_1057	-	hypothetical protein
1035	 56.84	0	1004751..1005269	+	172	78212591	-	Syncc9605_1058	-	membrane protein
1036	 49.70	-1	1005370..1005534	+	54	78212592	-	Syncc9605_1059	-	hypothetical protein
1037	 52.15	-1	1005541..1005726	+	61	78212593	-	Syncc9605_1060	-	hypothetical protein
1038	 53.03	-1	1005763..1006026	+	87	78212594	-	Syncc9605_1061	-	hypothetical protein
1039	 57.23	0	1006016..1006672	-	218	78212595	-	Syncc9605_1062	-	hypothetical protein
1040	 54.59	0	1006676..1007056	-	126	78212596	-	Syncc9605_1063	-	hypothetical protein
1041	 57.06	0	1007102..1007278	-	58	78212597	rpsU	Syncc9605_1064	-	30S ribosomal protein S21
1042	 60.69	0	1007617..1007934	-	105	78212598	-	Syncc9605_1065	-	hypothetical protein
1043	 58.84	0	1008248..1008745	-	165	78212599	-	Syncc9605_1066	-	hypothetical protein
1044	 50.00	-1	1008749..1010188	-	479	78212600	-	Syncc9605_1067	-	hypothetical protein
1045	 53.19	0	1010212..1010352	+	46	78212601	-	Syncc9605_1068	-	hypothetical protein
1046	 58.96	0	1010360..1010761	-	133	78212602	-	Syncc9605_1069	-	hypothetical protein
1047	 50.57	-1	1011333..1011506	-	57	78212603	-	Syncc9605_1070	-	hypothetical protein
1048	 57.22	0	1012181..1013641	-	486	78212604	-	Syncc9605_1071	-	hypothetical protein
1049	 56.41	0	1013658..1014008	-	116	78212605	-	Syncc9605_1072	-	hypothetical protein
1050	 58.70	0	1014155..1014493	+	112	78212606	-	Syncc9605_1073	-	ATLS1-like light-inducible protein
1051	 54.55	0	1014609..1014707	+	32	78212607	-	Syncc9605_1074	-	hypothetical protein
1052	 58.85	0	1014704..1015573	+	289	78212608	-	Syncc9605_1075	-	hypothetical protein
1053	 58.82	0	1015495..1016565	-	356	78212609	-	Syncc9605_1076	-	putative Rieske (2Fe-2S) family protein
1054	 57.67	0	1016588..1017343	-	251	78212610	-	Syncc9605_1077	-	ATPase
1055	 58.94	0	1017347..1018174	-	275	78212611	-	Syncc9605_1078	-	ABC transporter, nitrate-like
1056	 56.99	0	1018174..1019175	-	333	78212612	-	Syncc9605_1079	-	ABC transporter, substrate-binding protein, aliphatic sulphonates
1057	 60.71	0	1019214..1019918	-	234	78212613	-	Syncc9605_1080	-	hydrogenase accessory protein HypB
1058	 59.90	0	1019941..1020339	-	132	78212614	-	Syncc9605_1081	-	putative hydrogenase expression/formation protein HypA2
1059	 58.69	0	1020343..1021533	-	396	78212615	-	Syncc9605_1082	-	agmatinase
1060	 53.33	0	1022211..1022465	+	84	78212616	-	Syncc9605_1083	-	hypothetical protein
1061	 56.45	0	1022601..1022786	-	61	78212617	-	Syncc9605_1084	-	hypothetical protein
1062	 60.24	0	1022855..1023181	+	108	78212618	-	Syncc9605_1085	-	hypothetical protein
1063	 58.22	0	1023684..1023896	+	70	78212619	-	Syncc9605_1086	-	hypothetical protein
1064	 59.61	0	1023953..1024618	+	221	78212620	-	Syncc9605_1087	-	short-chain dehydrogenase/reductase
1065	 59.07	0	1024634..1025410	+	258	78212621	-	Syncc9605_1088	-	heat shock protein DnaJ-like
1066	 55.34	0	1025404..1025712	-	102	78212622	-	Syncc9605_1089	-	hypothetical protein
1067	 52.43	-1	1026199..1026465	+	88	78212623	-	Syncc9605_1090	-	hypothetical protein
1068	 59.28	0	1026568..1027122	+	184	78212624	-	Syncc9605_1091	-	hypothetical protein
1069	 52.67	-1	1027477..1027626	+	49	78212625	-	Syncc9605_1092	-	hypothetical protein
1070	 61.59	0	1028073..1029707	+	544	78212626	-	Syncc9605_1093	-	zeta-carotene desaturase-like
1071	 57.75	0	1029710..1029922	-	70	78212627	-	Syncc9605_1094	-	hypothetical protein
1072	 60.92	0	1031232..1032659	+	475	78212628	-	Syncc9605_1095	-	porin
1073	 55.88	0	1032569..1033189	-	206	78212629	-	Syncc9605_1096	-	phosphonate-binding periplasmic protein
1074	 54.51	0	1033234..1033998	-	254	78212630	-	Syncc9605_1097	-	ATPase
1075	 53.59	0	1035366..1035755	-	129	78212631	-	Syncc9605_1098	-	hypothetical protein
1076	 47.88	-1	1035772..1036149	+	125	78212632	-	Syncc9605_1099	-	hypothetical protein
1077	 60.14	0	1036350..1037360	+	336	78212633	-	Syncc9605_1100	-	ACR3 family arsenite transporter
1078	 63.38	0	1037374..1038558	+	394	78212634	-	Syncc9605_1101	-	chromate transporter
1079	 57.02	0	1038545..1038886	-	113	78212635	-	Syncc9605_1102	-	hypothetical protein
1080	 54.31	0	1039554..1039820	-	88	78212636	-	Syncc9605_1103	-	hypothetical protein
1081	 55.30	0	1039856..1040119	-	87	78212637	-	Syncc9605_1104	-	hypothetical protein
1082	 57.27	0	1040100..1040663	-	187	78212638	-	Syncc9605_1105	-	hypothetical protein
1083	 58.60	0	1040773..1042074	-	433	78212639	-	Syncc9605_1106	-	flavoprotein involved in K+ transport
1084	 52.17	-1	1042254..1042736	+	160	78212640	-	Syncc9605_1107	-	hypothetical protein
1085	 58.56	0	1042759..1043757	+	332	78212641	-	Syncc9605_1108	-	nitrilase
1086	 59.50	0	1043750..1044838	+	362	78212642	-	Syncc9605_1109	-	Elongator protein 3/MiaB/NifB
1087	 57.85	0	1044841..1045509	+	222	78212643	-	Syncc9605_1110	-	hypothetical protein
1088	 60.43	0	1045506..1046483	+	325	78212644	-	Syncc9605_1111	-	hypothetical protein
1089	 54.96	0	1046536..1046817	+	93	78212645	-	Syncc9605_1112	-	hypothetical protein
1090	 57.26	0	1046844..1047311	+	155	78212646	-	Syncc9605_1113	-	hypothetical protein
1091	 60.71	0	1047316..1048104	+	262	78212647	-	Syncc9605_1114	-	hypothetical protein
1092	 56.19	0	1048278..1048382	+	34	78212648	-	Syncc9605_1115	-	hypothetical protein
1093	 53.70	0	1048539..1048862	-	107	78212649	-	Syncc9605_1116	-	hypothetical protein
1094	 56.58	0	1048902..1049387	-	161	78212650	-	Syncc9605_1117	-	hypothetical protein
1095	 45.01	-2	1049678..1050790	-	370	78212651	-	Syncc9605_1118	-	hypothetical protein
1096	 64.16	0	1050889..1052085	+	398	78212652	-	Syncc9605_1119	-	hypothetical protein
1097	 54.24	0	1052075..1052428	-	117	78212653	-	Syncc9605_1120	-	hypothetical protein
1098	 64.97	0	1052478..1053068	-	196	78212654	-	Syncc9605_1121	-	thylakoidal processing peptidase
1099	 66.79	+1	1053126..1054811	+	561	78212655	-	Syncc9605_1122	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylate synthase
1100	 64.71	0	1054817..1055686	+	289	78212656	-	Syncc9605_1123	-	naphthoate synthase
59.39	MEAN

6.29	STD DEV
