IslandPath Analysis: Synechocystis sp. PCC 6803

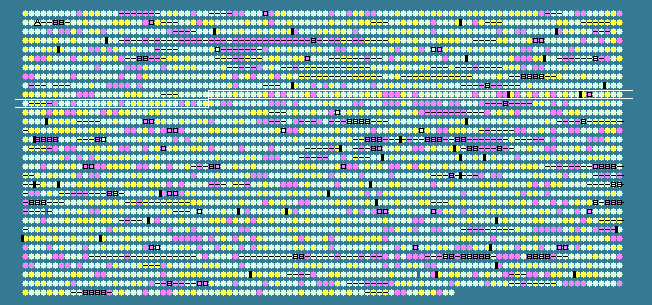

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
932	 50.53	0	1026511..1027737	+	408	16330100	malK	slr1224	-	cytoplasmic membrane protein for maltose uptake
933	 49.26	0	1027844..1029331	+	495	16330101	pknA	slr1225	-	protein kinase; PknA
934	 51.54	0	1029337..1030083	-	248	16330102	-	sll1138	-	hypothetical protein
935	 49.31	0	1030195..1030989	+	264	16330103	purC	slr1226	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
936	 52.71	0	1031202..1033787	+	861	16330104	IAP75	slr1227	-	chloroplast import-associated channel IAP75
937	 49.33	0	1033902..1035545	+	547	16330105	prfC	slr1228	-	peptide chain release factor 3
938	 46.63	0	1035593..1037089	+	498	16330106	-	slr1229	-	hypothetical protein
939	 44.79	0	1037189..1038052	+	287	16330107	-	slr1230	-	hypothetical protein
940	 51.24	0	1038038..1039042	-	334	16330108	-	sll1135	-	hypothetical protein
941	 51.96	0	1039196..1039732	+	178	16330109	-	slr1232	-	hypothetical protein
942	 42.42	-1	1040092..1040355	+	87	16330110	-	ssr2047	-	hypothetical protein
943	 51.56	0	1040531..1042258	+	575	16330111	sdhA	slr1233	-	succinate dehydrogenase flavoprotein subunit
944	 42.86	-1	1042306..1042557	+	83	16330112	bchB	ssr2049	-	protochlorophillide reductase 57 kD subunit
945	 49.86	0	1042609..1042953	+	114	16330113	-	slr1234	-	protein kinase C inhibitor
946	 51.59	0	1042999..1043880	+	293	16330114	-	slr1235	-	hypothetical protein
947	 50.37	0	1043917..1044450	+	177	16330115	-	slr1236	-	hypothetical protein
948	 54.24	+1	1044517..1044693	-	58	16330116	-	ssl2250	-	glycoprotein 64
949	 42.63	-1	1044915..1046366	-	483	16330117	-	sll1132	-	hypothetical protein
950	 46.39	0	1046402..1046830	-	142	16330118	-	sll1131	-	hypothetical protein
951	 50.26	0	1047005..1048357	+	450	16330119	codA	slr1237	-	cytosine deaminase
952	 47.41	0	1048406..1048753	-	115	16330120	-	sll1130	-	hypothetical protein
953	 52.43	0	1048750..1049016	-	88	16330121	-	ssl2245	-	hypothetical protein
954	 49.72	0	1049517..1050407	-	296	16330122	todF	sll1129	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
955	 47.50	0	1050490..1050729	+	79	16330123	-	ssr2060	-	hypothetical protein
956	 47.94	0	1050812..1051078	+	88	16330124	grxC	ssr2061	-	glutaredoxin 3
957	 51.19	0	1051159..1052121	+	320	16330125	gshB	slr1238	-	glutathione synthetase
958	 53.18	0	1052518..1052784	+	88	16330126	-	ssr2062	-	hypothetical protein
959	 51.69	0	1052927..1053754	-	275	16330127	menB	sll1127	-	naphthoate synthase
960	 53.36	+1	1053955..1055547	+	530	16330128	pntA	slr1239	-	NAD(P) transhydrogenase subunit alpha
961	 37.96	-2	1055574..1056113	+	179	16330129	-	slr1240	-	hypothetical protein
962	 38.22	-2	1056119..1056466	+	115	16330130	-	slr1241	-	hypothetical protein
963	 42.86	-1	1056714..1056944	+	76	16330131	-	ssr2067	-	hypothetical protein
964	 51.98	0	1056985..1058427	+	480	16330132	pntB	slr1434	-	pyridine nucleotide transhydrogenase beta subunit
965	 48.13	0	1058537..1059820	+	427	16330133	pmbA	slr1435	-	PmbA protein
966	 39.44	-1	1059922..1060773	+	283	16330134	-	slr1436	-	hypothetical protein
967	 46.02	0	1060901..1061239	+	112	16330135	-	slr1437	-	hypothetical protein
968	 51.61	0	1061242..1062111	+	289	16330136	-	slr1438	-	hypothetical protein
969	 46.28	0	1062238..1065204	-	988	16330137	ileS	sll1362	-	isoleucyl-tRNA synthetase
970	 46.67	0	1065398..1065622	+	74	16330138	-	ssr2406	-	hypothetical protein
971	 48.85	0	1065660..1069010	-	1116	16330139	dnaX	sll1360	-	DNA polymerase III subunit
972	 47.45	0	1069178..1069609	+	143	16330140	-	slr1440	-	hypothetical protein
973	 47.32	0	1069666..1071702	-	678	16330141	-	sll1359	-	hypothetical protein
974	 50.13	0	1071734..1072918	-	394	16330142	-	sll1358	-	hypothetical protein
975	 46.78	0	1073080..1075629	-	849	16330143	glgP	sll1356	-	glycogen phosphorylase
976	 44.36	0	1076065..1076454	+	129	16330144	-	slr1441	-	hypothetical protein
977	 47.07	0	1076474..1077019	-	181	16330145	-	sll1355	-	hypothetical protein
978	 49.07	0	1077755..1078612	+	285	16330146	-	slr1442	-	hypothetical protein
979	 50.95	0	1078657..1080501	+	614	16330147	pknA	slr1443	-	protein kinase
980	 44.31	0	1080695..1081696	+	333	16330148	-	slr1444	-	hypothetical protein
981	 42.75	-1	1081887..1082141	+	84	16330149	-	ssr2422	-	hypothetical protein
982	 51.71	0	1082437..1084716	-	759	16330150	recJ	sll1354	-	single-strand-DNA-specific exonuclease; RecJ
983	 42.01	-1	1084757..1087753	-	998	16330151	-	sll1353	-	sensory transduction histidine kinase
984	 46.30	0	1087772..1089190	-	472	16330152	-	sll1352	-	hypothetical protein
985	 52.81	0	1089400..1090323	+	307	16330153	cscK	slr1448	-	fructokinase
986	 40.00	-1	1090680..1091279	+	199	16330154	-	slr1449	-	hypothetical protein
987	 51.43	0	1091317..1091631	+	104	16330155	-	slr1450	-	hypothetical protein
988	 52.05	0	1091698..1092894	-	398	16330156	-	sll1350	-	hypothetical protein
989	 42.64	-1	1092925..1093590	-	221	16330157	cbbZp	sll1349	-	phosphoglycolate phosphatase
990	 51.26	0	1093626..1094495	-	289	16330158	-	sll1348	-	hypothetical protein
991	 52.32	0	1094649..1095143	-	164	16330159	ribH	sll1282	-	riboflavin synthase subunit beta
992	 47.84	0	1095248..1095571	-	107	16330160	ycf9	sll1281	-	photosystem II reaction center protein Z
993	 51.10	0	1095772..1096683	-	303	16330161	-	sll1280	-	hypothetical protein
994	 52.48	0	1097077..1098063	+	328	16330162	rps1	slr1356	-	30S ribosomal protein S1
995	 36.63	-2	1098323..1099171	+	282	16330163	-	slr1357	-	transposase
996	 50.04	0	1099214..1100368	-	384	16330164	recF	sll1277	-	recombination protein F
997	 49.03	0	1100410..1102014	-	534	16330165	-	sll1276	-	ABC transporter
998	 52.65	0	1102283..1104058	-	591	16330166	pykF	sll1275	-	pyruvate kinase
999	 47.51	0	1104246..1104647	+	133	16330167	-	slr1362	-	hypothetical protein
1000	 51.55	0	1105030..1105545	-	171	16330168	-	sll1274	-	hypothetical protein
1001	 49.70	0	1105666..1107168	+	500	16330169	-	slr1363	-	hypothetical protein
1002	 53.26	+1	1107242..1108330	+	362	16330170	bioB	slr1364	-	biotin synthetase
1003	 53.67	+1	1108314..1108967	+	217	16330171	bioY	slr1365	-	BioY protein
1004	 52.06	0	1108967..1109452	+	161	16330172	lspA	slr1366	-	lipoprotein signal peptidase
1005	 39.37	-1	1109620..1111044	-	474	16330173	-	sll1273	-	hypothetical protein
1006	 42.80	-1	1111185..1111955	-	256	16330174	-	sll1272	-	hypothetical protein
1007	 48.57	0	1112531..1114249	-	572	16330175	-	sll1271	-	hypothetical protein
1008	 50.09	0	1114429..1116021	-	530	16330176	glnH/glnP	sll1270	-	glutamine-binding periplasmic protein/glutamine transport system permease protein
1009	 42.96	-1	1116360..1116629	-	89	16330177	-	ssl2501	-	hypothetical protein
1010	 49.42	0	1117107..1119674	+	855	16330178	glgP	slr1367	-	glycogen phosphorylase
1011	 51.18	0	1119916..1120509	+	197	161344766	cbiT	slr1368	-	precorrin-6B methylase
1012	 50.45	0	1120643..1121524	+	293	16330180	cdsA	slr1369	-	phosphatidate cytidylyltransferase
1013	 46.14	0	1121627..1123180	-	517	16330181	-	sll1268	-	hypothetical protein
1014	 48.73	0	1123441..1124031	-	196	16330182	-	sll1267	-	hypothetical protein
1015	 52.43	0	1124071..1130007	-	1978	16330183	-	sll1265	-	hypothetical protein
1016	 46.32	0	1130313..1131683	-	456	16330184	-	sll0877	-	hypothetical protein
1017	 43.61	0	1131810..1132247	+	145	16330185	mscL	slr0875	-	large-conductance mechanosensitive channel
1018	 50.63	0	1132264..1132899	-	211	16330186	ruvA	sll0876	-	Holliday junction DNA helicase motor protein
1019	 52.25	0	1132914..1133690	-	258	16330187	-	sll0875	-	hypothetical protein
1020	 52.11	0	1133879..1135108	+	409	16330188	-	slr0876	-	hypothetical protein
1021	 49.21	0	1135337..1135588	+	83	16330189	-	ssr1480	-	RNA-binding protein
1022	 53.24	+1	1135716..1137167	+	483	16330190	gatA	slr0877	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1023	 53.25	+1	1137375..1138112	+	245	16330191	-	slr0878	-	hypothetical protein
1024	 52.63	0	1138210..1138608	+	132	16330192	gcvH	slr0879	-	glycine decarboxylase complex H-protein
1025	 48.56	0	1138702..1140474	+	590	16330193	-	slr0880	-	secreted protein MPB70 precursor
1026	 50.69	0	1140497..1141660	-	387	16330194	napC	sll0873	-	carboxynorspermidine decarboxylase
1027	 44.13	0	1141803..1142015	-	70	16330195	-	ssl1633	-	high light inducible protein
1028	 54.49	+1	1142101..1142412	+	103	16330196	-	slr0881	-	hypothetical protein
1029	 40.20	-1	1142501..1142893	-	130	16330197	-	sll0872	-	hypothetical protein
1030	 50.38	0	1143047..1144231	+	394	16330198	-	slr0882	-	hypothetical protein
1031	 52.84	0	1144728..1146173	+	481	16330199	psr	slr0883	-	regulation of penicillin binding protein 5 production
48.22	MEAN

4.98	STD DEV
