IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

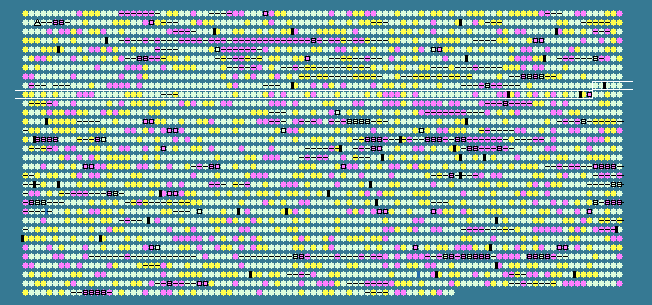

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
896	 49.14	0	984562..985200	+	212	16330064	-	slr1546	-	hypothetical protein
897	 46.55	0	985224..986222	+	332	16330065	-	slr1547	-	hypothetical protein
898	 48.87	0	986492..987733	-	413	16330066	-	sll1466	-	hypothetical protein
899	 46.05	0	987740..987967	-	75	16330067	-	ssl2823	-	hypothetical protein
900	 49.02	0	988072..989505	-	477	16330068	-	sll1464	-	hypothetical protein
901	 51.78	0	989717..991603	-	628	16330069	ftsH	sll1463	-	cell division protein; FtsH
902	 51.73	0	991735..992772	-	345	16330070	hypE	sll1462	-	hydrogenase expression/formation protein; HypE
903	 50.23	0	992821..993483	-	220	16330071	-	sll1461	-	hypothetical protein
904	 51.92	0	993536..994213	-	225	16330072	surE	sll1459	-	stationary phase survival protein SurE
905	 49.11	0	994343..994906	+	187	16330073	def	slr1549	-	peptide deformylase
906	 54.55	+1	995022..995219	+	65	16330074	-	ssr2611	-	hypothetical protein
907	 50.29	0	995275..996807	+	510	16330075	lysS	slr1550	-	lysyl-tRNA synthetase
908	 48.69	0	996850..997806	-	318	16330076	rfbJ	sll1457	-	RfbJ protein
909	 47.52	0	998010..998918	-	302	16330077	-	sll1456	-	hypothetical protein
910	 41.03	-1	999029..1001563	+	844	16330078	-	slr1552	-	hypothetical protein
911	 39.10	-1	1001639..1002106	-	155	16330079	-	sll1455	-	hypothetical protein
912	 43.68	0	1002633..1004777	-	714	16330080	narB	sll1454	-	nitrate reductase
913	 44.94	0	1005181..1006179	-	332	16330081	nrtD	sll1453	-	nitrate transport protein; NrtD
914	 48.04	0	1006234..1008246	-	670	16330082	nrtC	sll1452	-	nitrate transport protein; NrtC
915	 48.67	0	1008321..1009148	-	275	16330083	nrtB	sll1451	-	nitrate transport protein; NrtB
916	 48.02	0	1009234..1010574	-	446	16330084	nrtA	sll1450	-	nitrate transport 45kD protein
917	 50.19	0	1010710..1011759	-	349	16330085	-	sll1634	-	hypothetical protein
918	 55.04	+1	1011975..1012619	+	214	16330086	-	slr1748	-	hypothetical protein
919	 56.04	+1	1012616..1012888	-	90	16330087	repA	ssl3177	-	rare lipoprotein A
920	 51.97	0	1013045..1014337	-	430	16330088	ftsZ	sll1633	-	cell division protein FtsZ
921	 50.25	0	1014587..1015396	-	269	16330089	-	sll1632	-	hypothetical protein
922	 50.71	0	1015511..1016782	+	423	16330090	prc	slr1751	-	carboxyl-terminal protease
923	 47.45	0	1016830..1017495	+	221	16330091	-	slr1752	-	hypothetical protein
924	 50.00	0	1017600..1018493	-	297	161344767	mraW	sll1144	-	S-adenosyl-methyltransferase MraW
925	 49.69	0	1018650..1019126	+	158	16330093	-	slr1218	-	hypothetical protein
926	 52.45	0	1019155..1019583	+	142	16330094	ureE	slr1219	-	urease accessory protein E
927	 50.73	0	1019808..1020761	+	317	16330095	-	slr1220	-	hypothetical protein
928	 48.98	0	1021421..1022008	+	195	16330096	-	slr1222	-	hypothetical protein
929	 46.68	0	1022278..1024659	-	793	16330097	uvrD	sll1143	-	DNA helicase II
930	 50.57	0	1024825..1025346	-	173	16330098	-	sll1142	-	hypothetical protein
931	 50.20	0	1025423..1026442	+	339	16330099	sulA	slr1223	-	cell division inhibitor
932	 50.53	0	1026511..1027737	+	408	16330100	malK	slr1224	-	cytoplasmic membrane protein for maltose uptake
933	 49.26	0	1027844..1029331	+	495	16330101	pknA	slr1225	-	protein kinase; PknA
934	 51.54	0	1029337..1030083	-	248	16330102	-	sll1138	-	hypothetical protein
935	 49.31	0	1030195..1030989	+	264	16330103	purC	slr1226	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
936	 52.71	0	1031202..1033787	+	861	16330104	IAP75	slr1227	-	chloroplast import-associated channel IAP75
937	 49.33	0	1033902..1035545	+	547	16330105	prfC	slr1228	-	peptide chain release factor 3
938	 46.63	0	1035593..1037089	+	498	16330106	-	slr1229	-	hypothetical protein
939	 44.79	0	1037189..1038052	+	287	16330107	-	slr1230	-	hypothetical protein
940	 51.24	0	1038038..1039042	-	334	16330108	-	sll1135	-	hypothetical protein
941	 51.96	0	1039196..1039732	+	178	16330109	-	slr1232	-	hypothetical protein
942	 42.42	-1	1040092..1040355	+	87	16330110	-	ssr2047	-	hypothetical protein
943	 51.56	0	1040531..1042258	+	575	16330111	sdhA	slr1233	-	succinate dehydrogenase flavoprotein subunit
944	 42.86	-1	1042306..1042557	+	83	16330112	bchB	ssr2049	-	protochlorophillide reductase 57 kD subunit
945	 49.86	0	1042609..1042953	+	114	16330113	-	slr1234	-	protein kinase C inhibitor
946	 51.59	0	1042999..1043880	+	293	16330114	-	slr1235	-	hypothetical protein
947	 50.37	0	1043917..1044450	+	177	16330115	-	slr1236	-	hypothetical protein
948	 54.24	+1	1044517..1044693	-	58	16330116	-	ssl2250	-	glycoprotein 64
949	 42.63	-1	1044915..1046366	-	483	16330117	-	sll1132	-	hypothetical protein
950	 46.39	0	1046402..1046830	-	142	16330118	-	sll1131	-	hypothetical protein
951	 50.26	0	1047005..1048357	+	450	16330119	codA	slr1237	-	cytosine deaminase
952	 47.41	0	1048406..1048753	-	115	16330120	-	sll1130	-	hypothetical protein
953	 52.43	0	1048750..1049016	-	88	16330121	-	ssl2245	-	hypothetical protein
954	 49.72	0	1049517..1050407	-	296	16330122	todF	sll1129	-	2-hydroxy-6-oxohepta-2,4-dienoate hydrolase
955	 47.50	0	1050490..1050729	+	79	16330123	-	ssr2060	-	hypothetical protein
956	 47.94	0	1050812..1051078	+	88	16330124	grxC	ssr2061	-	glutaredoxin 3
957	 51.19	0	1051159..1052121	+	320	16330125	gshB	slr1238	-	glutathione synthetase
958	 53.18	0	1052518..1052784	+	88	16330126	-	ssr2062	-	hypothetical protein
959	 51.69	0	1052927..1053754	-	275	16330127	menB	sll1127	-	naphthoate synthase
960	 53.36	+1	1053955..1055547	+	530	16330128	pntA	slr1239	-	NAD(P) transhydrogenase subunit alpha
961	 37.96	-2	1055574..1056113	+	179	16330129	-	slr1240	-	hypothetical protein
962	 38.22	-2	1056119..1056466	+	115	16330130	-	slr1241	-	hypothetical protein
963	 42.86	-1	1056714..1056944	+	76	16330131	-	ssr2067	-	hypothetical protein
964	 51.98	0	1056985..1058427	+	480	16330132	pntB	slr1434	-	pyridine nucleotide transhydrogenase beta subunit
965	 48.13	0	1058537..1059820	+	427	16330133	pmbA	slr1435	-	PmbA protein
966	 39.44	-1	1059922..1060773	+	283	16330134	-	slr1436	-	hypothetical protein
967	 46.02	0	1060901..1061239	+	112	16330135	-	slr1437	-	hypothetical protein
968	 51.61	0	1061242..1062111	+	289	16330136	-	slr1438	-	hypothetical protein
969	 46.28	0	1062238..1065204	-	988	16330137	ileS	sll1362	-	isoleucyl-tRNA synthetase
970	 46.67	0	1065398..1065622	+	74	16330138	-	ssr2406	-	hypothetical protein
971	 48.85	0	1065660..1069010	-	1116	16330139	dnaX	sll1360	-	DNA polymerase III subunit
972	 47.45	0	1069178..1069609	+	143	16330140	-	slr1440	-	hypothetical protein
973	 47.32	0	1069666..1071702	-	678	16330141	-	sll1359	-	hypothetical protein
974	 50.13	0	1071734..1072918	-	394	16330142	-	sll1358	-	hypothetical protein
975	 46.78	0	1073080..1075629	-	849	16330143	glgP	sll1356	-	glycogen phosphorylase
976	 44.36	0	1076065..1076454	+	129	16330144	-	slr1441	-	hypothetical protein
977	 47.07	0	1076474..1077019	-	181	16330145	-	sll1355	-	hypothetical protein
978	 49.07	0	1077755..1078612	+	285	16330146	-	slr1442	-	hypothetical protein
979	 50.95	0	1078657..1080501	+	614	16330147	pknA	slr1443	-	protein kinase
980	 44.31	0	1080695..1081696	+	333	16330148	-	slr1444	-	hypothetical protein
981	 42.75	-1	1081887..1082141	+	84	16330149	-	ssr2422	-	hypothetical protein
982	 51.71	0	1082437..1084716	-	759	16330150	recJ	sll1354	-	single-strand-DNA-specific exonuclease; RecJ
983	 42.01	-1	1084757..1087753	-	998	16330151	-	sll1353	-	sensory transduction histidine kinase
984	 46.30	0	1087772..1089190	-	472	16330152	-	sll1352	-	hypothetical protein
985	 52.81	0	1089400..1090323	+	307	16330153	cscK	slr1448	-	fructokinase
986	 40.00	-1	1090680..1091279	+	199	16330154	-	slr1449	-	hypothetical protein
987	 51.43	0	1091317..1091631	+	104	16330155	-	slr1450	-	hypothetical protein
988	 52.05	0	1091698..1092894	-	398	16330156	-	sll1350	-	hypothetical protein
989	 42.64	-1	1092925..1093590	-	221	16330157	cbbZp	sll1349	-	phosphoglycolate phosphatase
990	 51.26	0	1093626..1094495	-	289	16330158	-	sll1348	-	hypothetical protein
991	 52.32	0	1094649..1095143	-	164	16330159	ribH	sll1282	-	riboflavin synthase subunit beta
992	 47.84	0	1095248..1095571	-	107	16330160	ycf9	sll1281	-	photosystem II reaction center protein Z
993	 51.10	0	1095772..1096683	-	303	16330161	-	sll1280	-	hypothetical protein
994	 52.48	0	1097077..1098063	+	328	16330162	rps1	slr1356	-	30S ribosomal protein S1
995	 36.63	-2	1098323..1099171	+	282	16330163	-	slr1357	-	transposase
48.22	MEAN

4.98	STD DEV
