IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

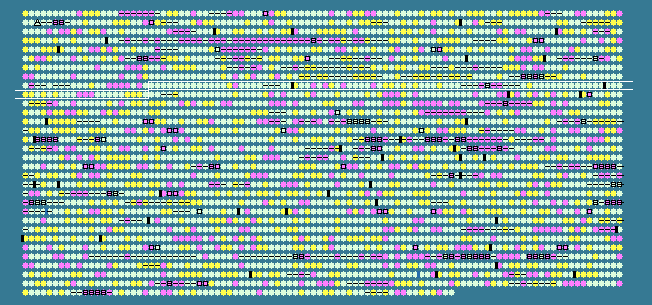

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
822	 48.58	0	903148..903606	-	152	16329990	aroQ	sll1112	-	3-dehydroquinate dehydratase
823	 49.86	0	904115..905506	+	463	16329991	mgtE	slr1216	-	Mg2+ transporter
824	 48.23	0	905575..906789	-	404	16329992	-	sll1971	-	hypothetical protein
825	 50.76	0	906972..907826	+	284	16329993	-	slr2070	-	hypothetical protein
826	 47.53	0	907990..908313	+	107	16329994	-	slr2071	-	hypothetical protein
827	 49.43	0	908353..908961	-	202	16329995	-	sll1969	-	hypothetical protein
828	 48.58	0	908968..909636	-	222	16329996	pmgA	sll1968	-	PmgA
829	 50.65	0	909603..910994	-	463	16329997	-	sll1967	-	hypothetical protein
830	 50.88	0	911357..912883	+	508	16329998	ilvA	slr2072	-	threonine dehydratase
831	 50.27	0	913296..913856	+	186	16329999	-	slr2073	-	hypothetical protein
832	 50.51	0	914052..914441	+	129	16330000	manA	slr2074	-	mannose-6-phosphate isomerase
833	 45.01	0	914780..915190	-	136	16330001	-	sll1965	-	hypothetical protein
834	 48.29	0	915304..915624	+	106	16330002	groES	slr2075	-	co-chaperonin GroES
835	 52.58	0	915721..917346	+	541	16330003	groEL	slr2076	-	chaperonin GroEL
836	 36.11	-2	917816..920014	+	732	16330004	-	slr2077	-	hypothetical protein
837	 45.64	0	920331..920915	+	194	16330005	-	slr2078	-	hypothetical protein
838	 48.63	0	920942..921196	-	84	16330006	-	ssl3712	-	hypothetical protein
839	 51.33	0	921549..922637	-	362	16330007	aroC	sll1747	-	chorismate synthase
840	 48.06	0	922844..923230	-	128	16330008	rplL	sll1746	-	50S ribosomal protein L7/L12
841	 49.04	0	923318..923839	-	173	16330009	rplJ	sll1745	-	50S ribosomal protein L10
842	 51.05	0	924086..924802	-	238	16330010	rplA	sll1744	-	50S ribosomal protein L1
843	 49.06	0	924889..925314	-	141	16330011	rplK	sll1743	-	50S ribosomal protein L11
844	 50.65	0	925416..926033	-	205	16330012	nusG	sll1742	-	transcription antitermination protein NusG
845	 47.15	0	926313..926558	-	81	16330013	secE	ssl3335	-	secretory protein; SecE
846	 52.85	0	926860..927228	-	122	16330014	rplS	sll1740	-	50S ribosomal protein L19
847	 50.23	0	927333..927758	+	141	16330015	-	slr1826	-	hypothetical protein
848	 48.48	0	927959..928750	+	263	16330016	-	slr1827	-	hypothetical protein
849	 42.41	-1	928806..929885	-	359	16330017	-	sll1739	-	hypothetical protein
850	 51.29	0	930148..930843	-	231	16330018	-	sll1738	-	hypothetical protein
851	 43.06	-1	930907..931389	-	160	16330019	-	sll1737	-	hypothetical protein
852	 52.96	0	931639..931959	+	106	16330020	petF	slr1828	-	ferredoxin
853	 47.83	0	932071..933063	+	330	16330021	-	slr1829	-	hypothetical protein
854	 44.24	0	933157..934293	+	378	16330022	phbC	slr1830	-	poly(3-hydroxyalkanoate) synthase
855	 50.78	0	934324..934707	-	127	16330023	-	sll1736	-	hypothetical protein
856	 50.50	0	934835..935236	-	133	16330024	-	sll1735	-	secreted protein MPB70
857	 45.91	0	935409..936704	-	431	16330025	-	sll1734	-	hypothetical protein
858	 47.38	0	936768..938276	-	502	16330026	ndhD3	sll1733	-	NAD(P)H-quinone oxidoreductase subunit M
859	 44.43	0	938393..940240	-	615	16330027	ndhF	sll1732	-	NAD(P)H-quinone oxidoreductase subunit F
860	 50.87	0	940638..941270	-	210	16330028	-	sll1730	-	hypothetical protein
861	 53.77	+1	941686..943941	+	751	16330029	psaA	slr1834	-	photosystem I P700 chlorophyll a apoprotein A1
862	 52.00	0	944187..946382	+	731	16330030	psaB	slr1835	-	photosystem I P700 chlorophyll a apoprotein A2
863	 47.78	0	946522..947511	-	329	16330031	-	sll1726	-	hypothetical protein
864	 52.05	0	947511..949343	-	610	16330032	-	sll1725	-	ABC transporter
865	 51.67	0	949397..950536	-	379	16330033	icsA	sll1724	-	LPS glycosyltransferase; IcsA
866	 52.09	0	950533..951774	-	413	16330034	-	sll1723	-	hypothetical protein
867	 50.54	0	951797..953098	-	433	16330035	-	sll1722	-	hypothetical protein
868	 51.63	0	953752..954456	+	234	16330036	-	slr1837	-	OmpR subfamily
869	 49.64	0	954453..955427	-	324	16330037	pdhB	sll1721	-	pyruvate dehydrogenase E1 beta subunit
870	 54.81	+1	955805..956116	+	103	16330038	ccmK	slr1838	-	carbon dioxide concentrating mechanism protein; CcmK
871	 51.33	0	956275..956613	+	112	16330039	ccmK	slr1839	-	carbon dioxide concentrating mechanism protein; CcmK
872	 49.82	0	956673..957788	+	371	16330040	-	slr1840	-	hypothetical protein
873	 50.71	0	958137..960029	+	630	16330041	-	slr1841	-	hypothetical protein
874	 48.59	0	960099..961094	+	331	16330042	cysK	slr1842	-	cysteine synthase
875	 49.80	0	961201..962730	+	509	16330043	zwf	slr1843	-	glucose-6-phosphate 1-dehydrogenase
876	 46.76	0	962888..965800	+	970	16330044	uvrA	slr1844	-	excinuclease ABC subunit A
877	 44.14	0	965938..967473	-	511	16330045	-	sll1717	-	hypothetical protein
878	 45.93	0	967567..968352	-	261	16330046	-	sll1716	-	transposase
879	 38.82	-1	968487..968960	-	157	16330047	-	sll1715	-	hypothetical protein
880	 38.56	-1	968893..969294	-	133	16330048	-	sll1714	-	hypothetical protein
881	 51.56	0	969762..970820	-	352	16330049	hisC	sll1713	-	threonine-phosphate decarboxylase
882	 47.30	0	970882..971289	-	135	16330050	-	sll1712	-	DNA binding protein HU
883	 48.48	0	971460..972317	-	285	16330051	-	sll1469	-	hypothetical protein
884	 50.27	0	972485..973954	+	489	16330052	-	slr1535	-	hypothetical protein
885	 52.33	0	974053..975489	+	478	16330053	recQ	slr1536	-	ATP-dependent DNA helicase; RecQ
886	 45.75	0	975779..976648	+	289	16330054	-	slr1537	-	hypothetical protein
887	 50.59	0	976748..977842	+	364	16330055	cbiD	slr1538	-	cobalt-precorrin-6A synthase
888	 50.11	0	977932..978867	+	311	16330056	-	slr1540	-	hypothetical protein
889	 46.45	0	978941..979573	+	210	16330057	-	slr1541	-	hypothetical protein
890	 51.65	0	979685..980170	+	161	16330058	ispF	slr1542	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
891	 50.18	0	980276..981694	+	472	16330059	-	slr1543	-	DNA-damage-inducible protein
892	 48.35	0	981691..982629	-	312	16330060	bhy	sll1468	-	b-carotene hydroxylase
893	 48.83	0	982968..983180	+	70	16330061	-	ssr2595	-	high light inducible protein
894	 46.79	0	983229..983540	+	103	16330062	-	slr1544	-	hypothetical protein
895	 51.19	0	983804..984475	+	223	16330063	rpoE	slr1545	-	RNA polymerase sigma factor RpoE
896	 49.14	0	984562..985200	+	212	16330064	-	slr1546	-	hypothetical protein
897	 46.55	0	985224..986222	+	332	16330065	-	slr1547	-	hypothetical protein
898	 48.87	0	986492..987733	-	413	16330066	-	sll1466	-	hypothetical protein
899	 46.05	0	987740..987967	-	75	16330067	-	ssl2823	-	hypothetical protein
900	 49.02	0	988072..989505	-	477	16330068	-	sll1464	-	hypothetical protein
901	 51.78	0	989717..991603	-	628	16330069	ftsH	sll1463	-	cell division protein; FtsH
902	 51.73	0	991735..992772	-	345	16330070	hypE	sll1462	-	hydrogenase expression/formation protein; HypE
903	 50.23	0	992821..993483	-	220	16330071	-	sll1461	-	hypothetical protein
904	 51.92	0	993536..994213	-	225	16330072	surE	sll1459	-	stationary phase survival protein SurE
905	 49.11	0	994343..994906	+	187	16330073	def	slr1549	-	peptide deformylase
906	 54.55	+1	995022..995219	+	65	16330074	-	ssr2611	-	hypothetical protein
907	 50.29	0	995275..996807	+	510	16330075	lysS	slr1550	-	lysyl-tRNA synthetase
908	 48.69	0	996850..997806	-	318	16330076	rfbJ	sll1457	-	RfbJ protein
909	 47.52	0	998010..998918	-	302	16330077	-	sll1456	-	hypothetical protein
910	 41.03	-1	999029..1001563	+	844	16330078	-	slr1552	-	hypothetical protein
911	 39.10	-1	1001639..1002106	-	155	16330079	-	sll1455	-	hypothetical protein
912	 43.68	0	1002633..1004777	-	714	16330080	narB	sll1454	-	nitrate reductase
913	 44.94	0	1005181..1006179	-	332	16330081	nrtD	sll1453	-	nitrate transport protein; NrtD
914	 48.04	0	1006234..1008246	-	670	16330082	nrtC	sll1452	-	nitrate transport protein; NrtC
915	 48.67	0	1008321..1009148	-	275	16330083	nrtB	sll1451	-	nitrate transport protein; NrtB
916	 48.02	0	1009234..1010574	-	446	16330084	nrtA	sll1450	-	nitrate transport 45kD protein
917	 50.19	0	1010710..1011759	-	349	16330085	-	sll1634	-	hypothetical protein
918	 55.04	+1	1011975..1012619	+	214	16330086	-	slr1748	-	hypothetical protein
919	 56.04	+1	1012616..1012888	-	90	16330087	repA	ssl3177	-	rare lipoprotein A
920	 51.97	0	1013045..1014337	-	430	16330088	ftsZ	sll1633	-	cell division protein FtsZ
921	 50.25	0	1014587..1015396	-	269	16330089	-	sll1632	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
