IslandPath Analysis: Synechocystis sp. PCC 6803

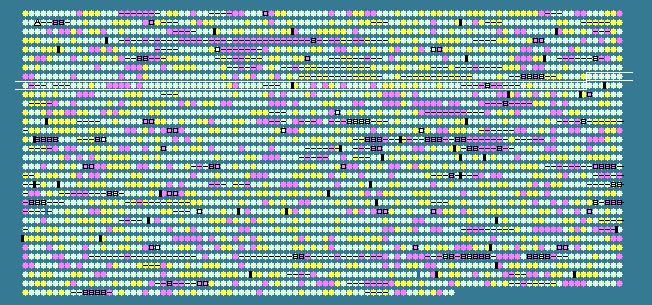

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.22   STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
795	 49.32	0	869668..873270	-	1200	16329963	-	sll1120	-	chromosome segregation protein SMC1
796	 51.20	0	873465..874550	-	361	16329964	-	sll1119	-	hypothetical protein
797	 51.27	0	874693..875361	+	222	16329965	-	slr1194	-	hypothetical protein
798	 46.67	0	875515..875979	+	154	16329966	-	slr1195	-	hypothetical protein
799	 50.39	0	876008..877297	+	429	16329967	-	slr1196	-	hypothetical protein
800	 50.13	0	877325..878521	+	398	16329968	-	slr1197	-	hypothetical protein
801	 50.46	0	878564..878890	-	108	16329969	-	sll1118	-	hypothetical protein
802	 43.96	0	878937..879209	+	90	16329970	-	ssr2009	-	hypothetical protein
803	 49.37	0	879408..880043	+	211	16329971	-	slr1198	-	rehydrin
804	 51.30	0	880147..881838	+	563	16329972	mutL	slr1199	-	DNA mismatch repair protein
805	 51.07	0	882023..883189	+	388	16329973	livH	slr1200	-	high-affinity branched-chain amino acid transport protein
806	 48.50	0	883287..884519	+	410	16329974	-	slr1201	-	hypothetical protein
807	 50.28	0	884635..885531	+	298	16329975	lacF	slr1202	-	lactose transport system permease protein; LacF
808	 46.58	0	885641..886078	+	145	16329976	-	slr1203	-	hypothetical protein
809	 50.70	0	886184..887542	+	452	16329977	htrA	slr1204	-	serine protease; HtrA
810	 50.71	0	887590..888084	+	164	16329978	-	slr1205	-	ferredoxin component
811	 50.47	0	888358..888993	+	211	16329979	-	slr1206	-	hypothetical protein
812	 54.89	+1	889061..890605	+	514	16329980	-	slr1207	-	hypothetical protein
813	 48.99	0	890827..891024	+	65	16329981	-	ssr2016	-	hypothetical protein
814	 48.28	0	891276..893249	+	657	16329982	-	slr1208	-	short chain dehydrogenase
815	 38.48	-1	893261..893590	+	109	16329983	-	slr1209	-	hypothetical protein
816	 29.74	-2	893583..893972	+	129	16329984	-	slr1210	-	hypothetical protein
817	 43.92	0	893984..897262	+	1092	16329985	cobN	slr1211	-	cobaltochelatase
818	 39.17	-1	897354..899888	+	844	16329986	ETR1	slr1212	-	ethylene response sensor protein
819	 45.87	0	899937..900662	+	241	16329987	-	slr1213	-	AraC family transcription regulator
820	 42.90	-1	901197..902315	+	372	16329988	-	slr1214	-	PatA subfamily protein
821	 47.83	0	902387..903055	+	222	16329989	-	slr1215	-	hypothetical protein
822	 48.58	0	903148..903606	-	152	16329990	aroQ	sll1112	-	3-dehydroquinate dehydratase
823	 49.86	0	904115..905506	+	463	16329991	mgtE	slr1216	-	Mg2+ transporter
824	 48.23	0	905575..906789	-	404	16329992	-	sll1971	-	hypothetical protein
825	 50.76	0	906972..907826	+	284	16329993	-	slr2070	-	hypothetical protein
826	 47.53	0	907990..908313	+	107	16329994	-	slr2071	-	hypothetical protein
827	 49.43	0	908353..908961	-	202	16329995	-	sll1969	-	hypothetical protein
828	 48.58	0	908968..909636	-	222	16329996	pmgA	sll1968	-	PmgA
829	 50.65	0	909603..910994	-	463	16329997	-	sll1967	-	hypothetical protein
830	 50.88	0	911357..912883	+	508	16329998	ilvA	slr2072	-	threonine dehydratase
831	 50.27	0	913296..913856	+	186	16329999	-	slr2073	-	hypothetical protein
832	 50.51	0	914052..914441	+	129	16330000	manA	slr2074	-	mannose-6-phosphate isomerase
833	 45.01	0	914780..915190	-	136	16330001	-	sll1965	-	hypothetical protein
834	 48.29	0	915304..915624	+	106	16330002	groES	slr2075	-	co-chaperonin GroES
835	 52.58	0	915721..917346	+	541	16330003	groEL	slr2076	-	chaperonin GroEL
836	 36.11	-2	917816..920014	+	732	16330004	-	slr2077	-	hypothetical protein
837	 45.64	0	920331..920915	+	194	16330005	-	slr2078	-	hypothetical protein
838	 48.63	0	920942..921196	-	84	16330006	-	ssl3712	-	hypothetical protein
839	 51.33	0	921549..922637	-	362	16330007	aroC	sll1747	-	chorismate synthase
840	 48.06	0	922844..923230	-	128	16330008	rplL	sll1746	-	50S ribosomal protein L7/L12
841	 49.04	0	923318..923839	-	173	16330009	rplJ	sll1745	-	50S ribosomal protein L10
842	 51.05	0	924086..924802	-	238	16330010	rplA	sll1744	-	50S ribosomal protein L1
843	 49.06	0	924889..925314	-	141	16330011	rplK	sll1743	-	50S ribosomal protein L11
844	 50.65	0	925416..926033	-	205	16330012	nusG	sll1742	-	transcription antitermination protein NusG
845	 47.15	0	926313..926558	-	81	16330013	secE	ssl3335	-	secretory protein; SecE
846	 52.85	0	926860..927228	-	122	16330014	rplS	sll1740	-	50S ribosomal protein L19
847	 50.23	0	927333..927758	+	141	16330015	-	slr1826	-	hypothetical protein
848	 48.48	0	927959..928750	+	263	16330016	-	slr1827	-	hypothetical protein
849	 42.41	-1	928806..929885	-	359	16330017	-	sll1739	-	hypothetical protein
850	 51.29	0	930148..930843	-	231	16330018	-	sll1738	-	hypothetical protein
851	 43.06	-1	930907..931389	-	160	16330019	-	sll1737	-	hypothetical protein
852	 52.96	0	931639..931959	+	106	16330020	petF	slr1828	-	ferredoxin
853	 47.83	0	932071..933063	+	330	16330021	-	slr1829	-	hypothetical protein
854	 44.24	0	933157..934293	+	378	16330022	phbC	slr1830	-	poly(3-hydroxyalkanoate) synthase
855	 50.78	0	934324..934707	-	127	16330023	-	sll1736	-	hypothetical protein
856	 50.50	0	934835..935236	-	133	16330024	-	sll1735	-	secreted protein MPB70
857	 45.91	0	935409..936704	-	431	16330025	-	sll1734	-	hypothetical protein
858	 47.38	0	936768..938276	-	502	16330026	ndhD3	sll1733	-	NAD(P)H-quinone oxidoreductase subunit M
859	 44.43	0	938393..940240	-	615	16330027	ndhF	sll1732	-	NAD(P)H-quinone oxidoreductase subunit F
860	 50.87	0	940638..941270	-	210	16330028	-	sll1730	-	hypothetical protein
861	 53.77	+1	941686..943941	+	751	16330029	psaA	slr1834	-	photosystem I P700 chlorophyll a apoprotein A1
862	 52.00	0	944187..946382	+	731	16330030	psaB	slr1835	-	photosystem I P700 chlorophyll a apoprotein A2
863	 47.78	0	946522..947511	-	329	16330031	-	sll1726	-	hypothetical protein
864	 52.05	0	947511..949343	-	610	16330032	-	sll1725	-	ABC transporter
865	 51.67	0	949397..950536	-	379	16330033	icsA	sll1724	-	LPS glycosyltransferase; IcsA
866	 52.09	0	950533..951774	-	413	16330034	-	sll1723	-	hypothetical protein
867	 50.54	0	951797..953098	-	433	16330035	-	sll1722	-	hypothetical protein
868	 51.63	0	953752..954456	+	234	16330036	-	slr1837	-	OmpR subfamily
869	 49.64	0	954453..955427	-	324	16330037	pdhB	sll1721	-	pyruvate dehydrogenase E1 beta subunit
870	 54.81	+1	955805..956116	+	103	16330038	ccmK	slr1838	-	carbon dioxide concentrating mechanism protein; CcmK
871	 51.33	0	956275..956613	+	112	16330039	ccmK	slr1839	-	carbon dioxide concentrating mechanism protein; CcmK
872	 49.82	0	956673..957788	+	371	16330040	-	slr1840	-	hypothetical protein
873	 50.71	0	958137..960029	+	630	16330041	-	slr1841	-	hypothetical protein
874	 48.59	0	960099..961094	+	331	16330042	cysK	slr1842	-	cysteine synthase
875	 49.80	0	961201..962730	+	509	16330043	zwf	slr1843	-	glucose-6-phosphate 1-dehydrogenase
876	 46.76	0	962888..965800	+	970	16330044	uvrA	slr1844	-	excinuclease ABC subunit A
877	 44.14	0	965938..967473	-	511	16330045	-	sll1717	-	hypothetical protein
878	 45.93	0	967567..968352	-	261	16330046	-	sll1716	-	transposase
879	 38.82	-1	968487..968960	-	157	16330047	-	sll1715	-	hypothetical protein
880	 38.56	-1	968893..969294	-	133	16330048	-	sll1714	-	hypothetical protein
881	 51.56	0	969762..970820	-	352	16330049	hisC	sll1713	-	threonine-phosphate decarboxylase
882	 47.30	0	970882..971289	-	135	16330050	-	sll1712	-	DNA binding protein HU
883	 48.48	0	971460..972317	-	285	16330051	-	sll1469	-	hypothetical protein
884	 50.27	0	972485..973954	+	489	16330052	-	slr1535	-	hypothetical protein
885	 52.33	0	974053..975489	+	478	16330053	recQ	slr1536	-	ATP-dependent DNA helicase; RecQ
886	 45.75	0	975779..976648	+	289	16330054	-	slr1537	-	hypothetical protein
887	 50.59	0	976748..977842	+	364	16330055	cbiD	slr1538	-	cobalt-precorrin-6A synthase
888	 50.11	0	977932..978867	+	311	16330056	-	slr1540	-	hypothetical protein
889	 46.45	0	978941..979573	+	210	16330057	-	slr1541	-	hypothetical protein
890	 51.65	0	979685..980170	+	161	16330058	ispF	slr1542	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
891	 50.18	0	980276..981694	+	472	16330059	-	slr1543	-	DNA-damage-inducible protein
892	 48.35	0	981691..982629	-	312	16330060	bhy	sll1468	-	b-carotene hydroxylase
893	 48.83	0	982968..983180	+	70	16330061	-	ssr2595	-	high light inducible protein
894	 46.79	0	983229..983540	+	103	16330062	-	slr1544	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
