IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

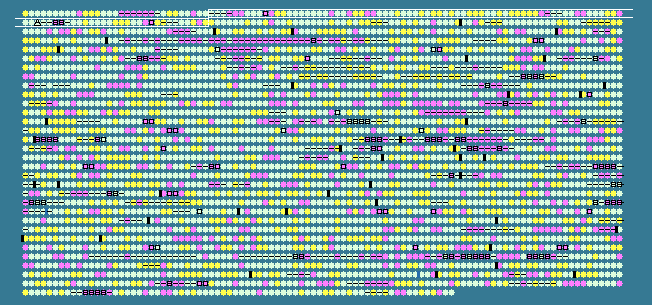

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
32	 49.36	0	43571..44506	+	311	16329203	fecB	slr1492	-	iron(III) dicitrate-binding periplasmic protein
33	 46.62	0	44442..44885	+	147	16329204	-	slr1493	-	hypothetical protein
34	 48.70	0	44948..46789	+	613	16329205	-	slr1494	-	ABC transporter
35	 34.22	-2	47007..48017	-	336	16329206	-	sll1401	-	hypothetical protein
36	 37.13	-2	48067..48408	-	113	16329207	-	sll1400	-	hypothetical protein
37	 41.13	-1	48405..48635	-	76	16329208	-	ssl2733	-	hypothetical protein
38	 50.41	0	48663..49868	-	401	16329209	-	sll1399	-	hypothetical protein
39	 46.90	0	49893..50231	-	112	16329210	psb13	sll1398	-	photosystem II reaction center protein Psb28
40	 50.85	0	50246..51895	+	549	16329211	-	slr1495	-	hypothetical protein
41	 36.75	-2	52260..53108	-	282	16329212	-	sll1397	-	transposase
42	 41.93	-1	53453..54127	-	224	16329213	-	sll1396	-	hypothetical protein
43	 52.27	0	54533..55657	+	374	16329214	hypD	slr1498	-	hydrogenase isoenzyme formation protein; HypD
44	 52.55	0	55669..56511	-	280	16329215	rfbD	sll1395	-	dTDP-6-deoxy-L-mannose-dehydrogenase
45	 49.78	0	56556..57224	-	222	16329216	msrA	sll1394	-	methionine sulfoxide reductase A
46	 48.78	0	57340..58815	-	491	16329217	glgA	sll1393	-	glycogen synthase
47	 51.47	0	59039..59650	-	203	16329218	-	sll1392	-	hypothetical protein
48	 48.97	0	59746..60423	+	225	16329219	-	slr1501	-	hypothetical protein
49	 50.75	0	60524..61522	+	332	16329220	-	slr1113	-	ABC transporter
50	 51.59	0	61834..63591	+	585	16329221	-	slr1114	-	hypothetical protein
51	 49.61	0	63588..64361	+	257	16329222	-	slr1115	-	hypothetical protein
52	 42.53	-1	64393..64914	+	173	16329223	-	slr1116	-	hypothetical protein
53	 44.75	0	64987..65748	+	253	16329224	-	slr1117	-	hypothetical protein
54	 48.21	0	65827..67533	-	568	16329225	-	sll1064	-	hypothetical protein
55	 44.44	0	67606..68361	+	251	16329226	rffM	slr1118	-	UDP-N-acetyl-D-mannosaminuronic acid transferase
56	 51.82	0	68400..69059	-	219	16329227	-	sll1063	-	hypothetical protein
57	 52.42	0	69284..69985	+	233	16329228	-	slr1119	-	hypothetical protein
58	 36.24	-2	70016..70393	-	125	16329229	-	sll1062	-	hypothetical protein
59	 34.11	-2	70420..70935	-	171	16329230	-	sll1061	-	hypothetical protein
60	 47.24	0	70944..74042	-	1032	16329231	-	sll1060	-	hypothetical protein
61	 45.24	0	73978..74229	-	83	16329232	-	ssl2069	-	hypothetical protein
62	 46.88	0	74498..74785	+	95	16329233	-	ssr1853	-	hypothetical protein
63	 52.10	0	74995..75804	+	269	16329234	hofD	slr1120	-	type 4 prepilin peptidase
64	 49.82	0	75955..76500	-	181	16329235	adk	sll1059	-	adenylate kinase
65	 50.85	0	76580..77407	-	275	16329236	dapB	sll1058	-	dihydrodipicolinate reductase
66	 48.03	0	77494..77874	-	126	16329237	trx	sll1057	-	thioredoxin M
67	 52.96	0	78467..80800	-	777	16329238	purL	sll1056	-	phosphoribosylformylglycinamidine synthase II
68	 47.81	0	80938..81690	+	250	16329239	-	slr1122	-	hypothetical protein
69	 51.77	0	81696..82259	-	187	16329240	-	sll1054	-	hypothetical protein
70	 54.19	+1	82291..83853	-	520	16329241	-	sll1053	-	hypothetical protein
71	 51.56	0	84122..84697	+	191	16329242	gmk	slr1123	-	guanylate kinase
72	 51.90	0	85058..86107	+	349	16329243	gpmB	slr1124	-	phosphoglycerate mutase
73	 48.81	0	86159..87418	+	419	16329244	crtX	slr1125	-	zeaxanthin glucosyl transferase
74	 48.00	0	87536..87910	-	124	16329245	-	sll1052	-	hypothetical protein
75	 56.74	+1	88017..88661	-	214	16329246	cpcF	sll1051	-	phycocyanin alpha phycocyanobilin lyase; CpcF
76	 52.51	0	88818..90512	-	564	16329247	-	sll1049	-	hypothetical protein
77	 52.27	0	90620..91411	+	263	16329248	-	slr1127	-	hypothetical protein
78	 47.52	0	91517..92482	+	321	16329249	-	slr1128	-	putative membrane protein
79	 50.81	0	93128..95152	+	674	16329250	rne	slr1129	-	ribonuclease E
80	 52.53	0	95236..95808	+	190	16329251	rhnB	slr1130	-	ribonuclease HII
81	 51.58	0	95818..96228	-	136	16329252	mutT	sll1045	-	mutator MutT protein
82	 53.96	+1	96325..98481	-	718	16329253	pnp	sll1043	-	polynucleotide phosphorylase/polyadenylase
83	 52.79	0	98609..99199	-	196	16329254	lepB	sll0716	-	leader peptidase I
84	 53.16	0	99402..100793	+	463	16329255	me	slr0721	-	malic enzyme
85	 52.76	0	100794..101771	-	325	16329256	cysM	sll0712	-	cysteine synthase A
86	 54.85	+1	101884..102831	-	315	16329257	-	sll0711	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
87	 30.08	-2	102930..105110	-	726	16329258	-	sll0710	-	hypothetical protein
88	 30.38	-2	105151..106539	-	462	16329259	llaI.2	sll0709	-	restriction enzyme LlaI protein
89	 47.95	0	107471..108325	-	284	16329260	ksgA	sll0708	-	dimethyladenosine transferase
90	 51.43	0	108290..109201	+	303	16329261	-	slr0722	-	hypothetical protein
91	 50.00	0	109222..110313	+	363	16329262	-	slr0723	-	hypothetical protein
92	 47.45	0	110392..110724	+	110	16329263	sohA	slr0724	-	putative regulator PrlF
93	 40.29	-1	110808..111224	+	138	16329264	-	slr0725	-	hypothetical protein
94	 31.59	-2	111585..112559	+	324	16329265	-	slr0727	-	hypothetical protein
95	 51.55	0	113025..114188	+	387	16329266	-	slr0728	-	hypothetical protein
96	 50.33	0	114319..114624	+	101	16329267	-	slr0729	-	hypothetical protein
97	 49.87	0	114874..115272	+	132	16329268	-	slr0730	-	hypothetical protein
98	 52.94	0	115269..116477	+	402	16329269	-	slr0731	-	hypothetical protein
99	 54.51	+1	116518..117693	-	391	16329270	nifS	sll0704	-	NifS protein
100	 36.11	-2	117869..118336	+	155	16329271	-	slr0732	-	hypothetical protein
101	 48.92	0	118333..119532	-	399	16329272	-	sll0703	-	hypothetical protein
102	 50.89	0	119570..119962	-	130	16329273	-	sll0702	-	hypothetical protein
103	 49.47	0	120719..121660	+	313	16329274	xerC	slr0733	-	integrase-recombinase protein
104	 45.61	0	121706..121990	-	94	16329275	-	ssl1326	-	hypothetical protein
105	 51.39	0	122287..123405	+	372	16329276	-	slr0734	-	hypothetical protein
106	 36.77	-2	123501..123995	-	164	16329277	-	sll0700	-	transposase
107	 36.39	-2	123989..124348	-	119	16329278	-	sll0699	-	transposase
108	 47.79	0	124452..126443	-	663	16329279	dfr	sll0698	-	drug sensory protein A
109	 50.23	0	126639..127064	+	141	16329280	psaD	slr0737	-	photosystem I subunit II
110	 50.62	0	127186..128712	+	508	16329281	trpE	slr0738	-	anthranilate synthase component I
111	 54.35	+1	128802..129710	+	302	16329282	crtE	slr0739	-	geranylgeranyl pyrophosphate synthase
112	 51.01	0	129791..130186	+	131	16329283	-	slr0740	-	hypothetical protein
113	 49.94	0	130167..131039	-	290	16329284	-	sll0696	-	hypothetical protein
114	 51.41	0	131116..131790	+	224	16329285	phoU	slr0741	-	a negative regulator of pho regulon
115	 50.09	0	131877..132407	+	176	16329286	-	slr0742	-	hypothetical protein
116	 53.52	+1	132483..133859	+	458	16329287	nusA	slr0743	-	transcription elongation factor NusA
117	 54.90	+1	133923..134177	+	84	109150011	-	slr0743a	-	hypothetical protein
118	 55.46	+1	134437..137442	+	1001	16329288	infB	slr0744	-	translation initiation factor IF-2
119	 50.22	0	137444..138112	+	222	16329289	-	slr0236	-	hypothetical protein
120	 51.18	0	138295..140535	+	746	16329290	glgX	slr0237	-	glycogen operon protein; GlgX
121	 44.68	0	140585..141007	+	140	16329291	-	slr0238	-	hypothetical protein
122	 38.44	-1	141123..141416	-	97	16329292	-	ssl0426	-	transposase
123	 51.95	0	141648..142442	+	264	16329293	cbiF	slr0239	-	precorrin methylase
124	 53.90	+1	142559..142981	+	140	16329294	-	slr0240	-	hypothetical protein
125	 49.53	0	142981..143826	+	281	16329295	-	slr0241	-	hypothetical protein
126	 45.13	0	144061..144543	+	160	16329296	bcp	slr0242	-	bacterioferritin comigratory protein
127	 44.89	0	144554..145081	+	175	16329297	-	slr0243	-	hypothetical protein
128	 51.37	0	145164..145529	-	121	16329298	-	sll0230	-	hypothetical protein
129	 51.81	0	145761..146615	+	284	16329299	-	slr0244	-	hypothetical protein
130	 37.96	-2	146724..146831	-	35	16329300	psbM	sml0003	-	photosystem II reaction center protein M
131	 52.79	0	146980..147894	+	304	16329301	-	slr0245	-	acetylpolyamine aminohydolase
48.22	MEAN

4.98	STD DEV
