IslandPath Analysis: Synechocystis sp. PCC 6803

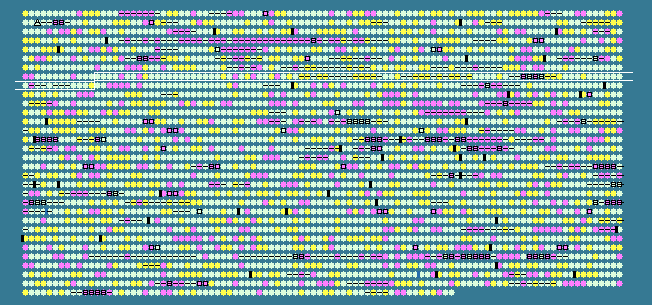

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
713	 47.72	0	793509..794210	+	233	16329882	ctaE	slr1138	-	cytochrome c oxidase subunit III
714	 48.48	0	794362..794691	+	109	16329883	trxA	slr1139	-	thioredoxin
715	 50.22	0	794764..795900	+	378	16329884	-	slr1140	-	3-amino-5-hydroxybenzoic acid synthase
716	 45.57	0	795932..796732	-	266	16329885	nrtD	sll1082	-	nitrate transport protein; NrtD
717	 41.52	-1	796789..797631	-	280	16329886	-	sll1081	-	integral membrane components of other binding-protein-dependent transport system
718	 46.18	0	797734..798792	-	352	16329887	-	sll1080	-	hypothetical protein
719	 44.78	0	798846..799535	-	229	16329888	hypB	sll1079	-	hydrogenase expression/formation protein; HypB
720	 44.63	0	799596..799958	-	120	16329889	-	sll1078	-	hypothetical protein
721	 52.00	0	800034..801206	-	390	16329890	speB	sll1077	-	agmatine ureohydrolase
722	 47.25	0	801643..802152	+	169	16329891	-	slr1142	-	hypothetical protein
723	 47.38	0	802207..803238	+	343	16329892	-	slr1143	-	hypothetical protein
724	 49.19	0	803466..806384	-	972	16329893	ziaA	sll1076	-	Zinc exporter
725	 49.12	0	806716..809325	-	869	16329894	leuS	sll1074	-	leucyl-tRNA synthetase
726	 47.73	0	809450..810658	+	402	16329895	gltS	slr1145	-	glutamate permease
727	 49.63	0	810922..811191	-	89	109150013	-	slr1146	-	hypothetical protein
728	 51.34	0	811489..812793	+	434	16329896	-	slr1147	-	sensory transduction histidine kinase
729	 48.15	0	813028..813594	+	188	16329897	-	slr1148	-	hypothetical protein
730	 49.17	0	813799..815604	+	601	16329898	-	slr1149	-	ABC transporter
731	 50.29	0	815703..816215	+	170	16329899	-	slr1150	-	hypothetical protein
732	 47.02	0	816298..816969	-	223	16329900	-	sll1072	-	hypothetical protein
733	 48.79	0	816983..817810	-	275	16329901	-	sll1071	-	hypothetical protein
734	 52.11	0	817967..819979	-	670	16329902	tktA	sll1070	-	transketolase
735	 50.84	0	820102..821352	-	416	16329903	fabF	sll1069	-	3-oxoacyl-(acyl carrier protein) synthase II
736	 43.59	0	821550..821783	-	77	16329904	acp	ssl2084	-	acyl carrier protein
737	 47.69	0	821993..822424	-	143	16329905	-	sll1068	-	hypothetical protein
738	 52.03	0	822461..822706	-	81	16329906	-	ssl3451	-	hypothetical protein
739	 42.75	-1	822837..823367	+	176	16329907	bfr	slr1890	-	bacterioferritin
740	 51.50	0	823383..824015	-	210	16329908	-	sll1825	-	short chain dehydrogenase
741	 48.21	0	824228..824785	-	185	16329909	-	sll1824	-	50S ribosomal protein L25
742	 52.00	0	824584..825831	-	415	16329910	purA	sll1823	-	adenylosuccinate synthetase
743	 42.22	-1	826070..826249	-	59	16329911	-	ssl3446	-	hypothetical protein
744	 46.34	0	826637..826882	-	81	16329912	rpmE	ssl3445	-	50S ribosomal protein L31
745	 53.38	+1	826935..827348	-	137	16329913	rpsI	sll1822	-	30S ribosomal protein S9
746	 48.90	0	827348..827803	-	151	16329914	rplM	sll1821	-	50S ribosomal protein L13
747	 53.02	0	827868..828695	-	275	16329915	truA	sll1820	-	tRNA pseudouridine synthase A
748	 54.42	+1	828713..829063	-	116	16329916	rplQ	sll1819	-	50S ribosomal protein L17
749	 50.69	0	829141..830085	-	314	16329917	rpoA	sll1818	-	DNA-directed RNA polymerase subunit alpha
750	 56.23	+1	830194..830586	-	130	16329918	rps11	sll1817	-	30S ribosomal protein S11
751	 54.69	+1	830635..831018	-	127	16329919	rpsM	sll1816	-	30S ribosomal protein S13
752	 47.01	0	831101..831217	-	38	16329920	rpl36	sml0006	-	50S ribosomal protein L36
753	 45.59	0	831355..831558	-	67	16329921	infA	ssl3441	-	translation initiation factor IF-1
754	 50.18	0	831702..832265	-	187	16329922	adk	sll1815	-	adenylate kinase
755	 48.76	0	832391..833719	-	442	16329923	secY	sll1814	-	preprotein translocase subunit SecY
756	 55.18	+1	833821..834264	-	147	16329924	rplO	sll1813	-	50S ribosomal protein L15
757	 51.92	0	834333..834854	-	173	16329925	rpsE	sll1812	-	30S ribosomal protein S5
758	 55.65	+1	834894..835256	-	120	16329926	rplR	sll1811	-	50S ribosomal protein L18
759	 54.07	+1	835260..835799	-	179	16329927	rplF	sll1810	-	50S ribosomal protein L6
760	 50.75	0	835859..836260	-	133	16329928	rpsH	sll1809	-	30S ribosomal protein S8
761	 50.25	0	836352..836954	-	200	16329929	rplE	sll1808	-	50S ribosomal protein L5
762	 48.56	0	837001..837348	-	115	16329930	rplX	sll1807	-	50S ribosomal protein L24
763	 53.12	0	837349..837717	-	122	16329931	rpl14	sll1806	-	50S ribosomal protein L14
764	 46.34	0	837741..837986	-	81	16329932	rpsQ	ssl3437	-	30S ribosomal protein S17
765	 50.90	0	837994..838215	-	73	16329933	rpmC	ssl3436	-	50S ribosomal protein L29
766	 54.29	+1	838218..838637	-	139	16329934	rplP	sll1805	-	50S ribosomal protein L16
767	 53.67	+1	838678..839400	-	240	16329935	rpsC	sll1804	-	30S ribosomal protein S3
768	 57.65	+1	839430..839795	-	121	16329936	rplV	sll1803	-	50S ribosomal protein L22
769	 50.18	0	839811..840089	-	92	16329937	rpsS	ssl3432	-	30S ribosomal protein S19
770	 54.15	+1	840122..840952	-	276	16329938	rplB	sll1802	-	50S ribosomal protein L2
771	 48.69	0	841002..841307	-	101	16329939	rplW	sll1801	-	50S ribosomal protein L23
772	 53.55	+1	841300..841932	-	210	16329940	rplD	sll1800	-	50S ribosomal protein L4
773	 53.58	+1	841972..842613	-	213	16329941	rplC	sll1799	-	50S ribosomal protein L3
774	 50.11	0	843105..843575	+	156	16329942	-	slr1894	-	hypothetical protein
775	 53.33	+1	843613..844032	-	139	16329943	ycf21	sll1797	-	ycf21 gene product
776	 50.86	0	844180..845394	+	404	16329944	-	slr1895	-	hypothetical protein
777	 49.36	0	845482..845874	+	130	16329945	-	slr1896	-	hypothetical protein
778	 49.86	0	845966..846328	-	120	16329946	petJ	sll1796	-	cytochrome c553
779	 49.23	0	846509..847810	+	433	16329947	srrA	slr1897	-	SrrA
780	 52.24	0	848074..848967	+	297	16329948	argB	slr1898	-	acetylglutamate kinase
781	 47.40	0	849095..849748	+	217	16329949	ureF	slr1899	-	urease accessory protein F
782	 48.52	0	849802..850545	+	247	16329950	-	slr1900	-	hypothetical protein
783	 49.54	0	850605..851585	+	326	16329951	-	slr1901	-	ABC transporter
784	 43.90	0	851717..852142	+	141	16329952	-	slr1902	-	transposase
785	 46.28	0	852031..852447	+	138	16329953	-	slr1903	-	transposase
786	 44.52	0	852470..852898	-	142	16329954	-	sll1792	-	transposase
787	 49.10	0	852895..853281	-	128	16329955	-	sll1791	-	transposase
788	 54.15	+1	853497..857450	-	1317	16329956	rpoC2	sll1789	-	DNA-directed RNA polymerase subunit beta'
789	 52.95	0	857558..860866	-	1102	16329957	rpoB	sll1787	-	DNA-directed RNA polymerase subunit beta
790	 52.42	0	860952..861737	-	261	16329958	-	sll1786	-	hypothetical protein
791	 50.34	0	861873..862166	-	97	16329959	rpsT	ssl2233	-	30S ribosomal protein S20
792	 51.12	0	862262..866377	-	1371	16329960	-	sll1124	-	sensory transduction histidine kinase
793	 51.36	0	866374..867144	-	256	16329961	-	sll1123	-	hypothetical protein
794	 54.04	+1	867257..869569	-	770	16329962	-	sll1121	-	hypothetical protein
795	 49.32	0	869668..873270	-	1200	16329963	-	sll1120	-	chromosome segregation protein SMC1
796	 51.20	0	873465..874550	-	361	16329964	-	sll1119	-	hypothetical protein
797	 51.27	0	874693..875361	+	222	16329965	-	slr1194	-	hypothetical protein
798	 46.67	0	875515..875979	+	154	16329966	-	slr1195	-	hypothetical protein
799	 50.39	0	876008..877297	+	429	16329967	-	slr1196	-	hypothetical protein
800	 50.13	0	877325..878521	+	398	16329968	-	slr1197	-	hypothetical protein
801	 50.46	0	878564..878890	-	108	16329969	-	sll1118	-	hypothetical protein
802	 43.96	0	878937..879209	+	90	16329970	-	ssr2009	-	hypothetical protein
803	 49.37	0	879408..880043	+	211	16329971	-	slr1198	-	rehydrin
804	 51.30	0	880147..881838	+	563	16329972	mutL	slr1199	-	DNA mismatch repair protein
805	 51.07	0	882023..883189	+	388	16329973	livH	slr1200	-	high-affinity branched-chain amino acid transport protein
806	 48.50	0	883287..884519	+	410	16329974	-	slr1201	-	hypothetical protein
807	 50.28	0	884635..885531	+	298	16329975	lacF	slr1202	-	lactose transport system permease protein; LacF
808	 46.58	0	885641..886078	+	145	16329976	-	slr1203	-	hypothetical protein
809	 50.70	0	886184..887542	+	452	16329977	htrA	slr1204	-	serine protease; HtrA
810	 50.71	0	887590..888084	+	164	16329978	-	slr1205	-	ferredoxin component
811	 50.47	0	888358..888993	+	211	16329979	-	slr1206	-	hypothetical protein
812	 54.89	+1	889061..890605	+	514	16329980	-	slr1207	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
