IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

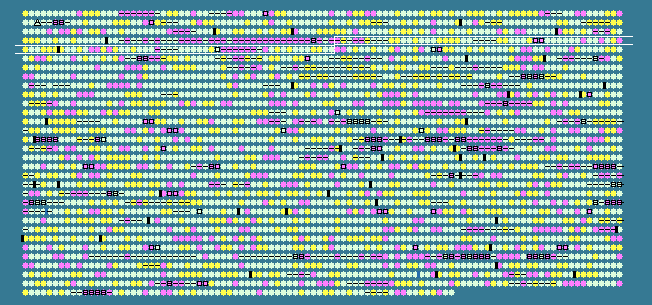

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
353	 39.39	-1	382643..382873	+	76	16329523	-	ssr1766	-	hypothetical protein
354	 54.72	+1	382949..383266	+	105	16329524	galE	slr1078	-	UDP-glucose-4-epimerase
355	 50.10	0	383300..383794	+	164	16329525	-	slr1079	-	hypothetical protein
356	 37.88	-2	384050..384247	+	65	16329526	-	ssr1768	-	hypothetical protein
357	 43.92	0	384343..384975	+	210	16329527	-	slr1081	-	hypothetical protein
358	 52.55	0	384980..385390	+	136	16329528	-	slr1082	-	hypothetical protein
359	 47.25	0	385467..386012	+	181	16329529	-	slr1083	-	hypothetical protein
360	 49.21	0	386177..386617	+	146	16329530	-	slr1084	-	hypothetical protein
361	 49.33	0	386681..387955	+	424	16329531	-	slr1085	-	hypothetical protein
362	 52.21	0	388116..389201	+	361	16329532	-	slr1087	-	hypothetical protein
363	 55.13	+1	389175..390353	-	392	16329533	-	sll1025	-	hypothetical protein
364	 51.42	0	390353..390634	-	93	16329534	-	ssl1972	-	hypothetical protein
365	 49.33	0	390905..391729	-	274	16329535	-	sll1024	-	hypothetical protein
366	 53.73	+1	391899..393104	-	401	16329536	sucC	sll1023	-	succinate--CoA ligase
367	 48.83	0	393121..393849	-	242	16329537	-	sll1022	-	hypothetical protein
368	 48.52	0	393996..396017	-	673	16329538	-	sll1021	-	hypothetical protein
369	 45.42	0	396057..396941	-	294	16329539	-	sll1020	-	hypothetical protein
370	 53.57	+1	397037..398143	+	368	16329540	obgE	slr1090	-	GTPase ObgE
371	 51.72	0	398188..398361	+	57	16329541	hliA	ssr1789	-	high light inducible protein
372	 52.33	0	398441..399214	-	257	16329542	HAGH1	sll1019	-	glyoxalase II
373	 53.02	0	399275..400600	-	441	16329543	pyrC	sll1018	-	dihydroorotase
374	 50.04	0	400720..402048	-	442	16329544	amt2	sll1017	-	ammonium/methylammonium permease
375	 49.69	0	402290..403432	+	380	16329545	-	slr1400	-	hybrid sensory kinase
376	 48.17	0	403552..404427	+	291	16329546	-	slr0670	-	hypothetical protein
377	 50.12	0	404545..410184	-	1879	16329547	nucH	sll0656	-	extracellular nuclease
378	 49.74	0	410315..414544	-	1409	16329548	-	sll0654	-	alkaline phosphatase
379	 50.19	0	414871..415404	+	177	16329549	cysC	slr0676	-	adenylylsulfate kinase
380	 53.22	+1	415562..416245	+	227	16329550	exbB	slr0677	-	biopolymer transport ExbB protein
381	 52.47	0	416356..417165	+	269	16329551	-	slr0678	-	hypothetical protein
382	 49.74	0	417201..418541	+	446	16329552	fmu/fmv	slr0679	-	Fmu and Fmv protein
383	 45.86	0	418704..419126	+	140	16329553	-	slr0680	-	hypothetical protein
384	 45.78	0	418963..420264	+	433	16329554	-	slr0681	-	hypothetical protein
385	 54.23	+1	420502..421731	+	409	16329555	hisD	slr0682	-	histidinol dehydrogenase
386	 36.36	-2	421765..422259	-	164	16329556	-	sll0651	-	transposase
387	 36.11	-2	422253..422612	-	119	16329557	-	sll0650	-	transposase
388	 47.70	0	422772..423509	-	245	16329558	-	sll0649	-	OmpR subfamily
389	 51.44	0	423490..424566	-	358	16329559	lim	sll0648	-	lipophilic protein
390	 49.29	0	424694..425464	-	256	16329560	-	sll0647	-	hypothetical protein
391	 51.56	0	425468..427738	-	756	16329561	cyaA	sll0646	-	adenylate cyclase
392	 49.87	0	427777..428544	-	255	16329562	-	sll0645	-	hypothetical protein
393	 49.60	0	428619..429614	-	331	16329563	-	sll0644	-	esterase
394	 40.28	-1	429810..430169	+	119	16329564	-	slr0686	-	hypothetical protein
395	 48.47	0	430424..431044	-	206	16329565	ureG	sll0643	-	urease accessory protein G
396	 47.51	0	431350..432795	+	481	16329566	pleD	slr0687	-	PleD gene product
397	 44.64	0	432779..434308	-	509	16329567	-	sll0641	-	hypothetical protein
398	 48.78	0	434320..436158	-	612	16329568	Sac1	sll0640	-	sulfur deprivation response regulator
399	 53.49	+1	436234..437265	+	343	16329569	-	slr0688	-	hypothetical protein
400	 44.61	0	437705..437908	+	67	16329570	-	ssr1155	-	hypothetical protein
401	 55.39	+1	437922..439118	+	398	16329571	-	slr0689	-	hypothetical protein
402	 51.04	0	439184..440437	-	417	16329572	-	sll0639	-	hypothetical protein
403	 50.47	0	440610..441986	-	458	16329573	-	sll0638	-	hypothetical protein
404	 54.75	+1	442164..443933	+	589	16329574	ycf45	slr0692	-	hypothetical protein
405	 54.46	+1	443913..444944	-	343	16329575	thiE	sll0635	-	thiamine-phosphate pyrophosphorylase
406	 53.47	+1	445061..445924	-	287	16329576	btpA	sll0634	-	BtpA
407	 51.72	0	446230..446751	+	173	16329577	-	slr0695	-	hypothetical protein
408	 48.65	0	446807..447694	+	295	16329578	-	slr1590	-	hypothetical protein
409	 48.48	0	447831..448979	+	382	16329579	-	slr1591	-	hypothetical protein
410	 52.97	0	449166..450041	+	291	16329580	-	slr1592	-	hypothetical protein
411	 49.56	0	450740..451651	+	303	16329581	-	slr1593	-	hypothetical protein
412	 41.84	-1	451735..452922	+	395	16329582	-	slr1594	-	PatA subfamily protein
413	 42.42	-1	453214..454446	+	410	16329583	-	slr1595	-	Na/H antiporter
414	 53.12	0	454712..456586	-	624	16329584	-	sll1516	-	hypothetical protein
415	 41.72	-1	456975..458297	+	440	16329585	pxcA	slr1596	-	proton extrusion protein PcxA
416	 51.78	0	458408..458857	-	149	16329586	-	sll1515	-	hypothetical protein
417	 46.04	0	459200..460096	+	298	16329587	-	slr1597	-	hypothetical protein
418	 48.07	0	460250..460690	-	146	16329588	hsp17	sll1514	-	putative chaperone
419	 52.64	0	460956..461960	-	334	16329589	ccsA	sll1513	-	c-type cytochrome synthesis protein
420	 48.77	0	462147..462554	-	135	16329590	-	sll1512	-	hypothetical protein
421	 49.20	0	462809..463678	+	289	16329591	lipA	slr1598	-	lipoyl synthase
422	 44.98	0	463690..464307	-	205	16329592	-	sll1511	-	hypothetical protein
423	 39.14	-1	464437..465177	-	246	16329593	-	sll1510	-	hypothetical protein
424	 45.15	0	465232..465561	-	109	16329594	ycf20	sll1509	-	hypothetical protein
425	 46.38	0	465927..466493	+	188	16329595	-	slr1599	-	hypothetical protein
426	 49.56	0	466588..467037	+	149	16329596	-	slr1600	-	hypothetical protein
427	 50.00	0	467201..467296	+	31	16329597	psaM	smr0005	-	photosystem I reaction center subunit XII
428	 48.94	0	467436..467813	+	125	16329598	-	slr1601	-	hypothetical protein
429	 51.02	0	467836..468666	-	276	16329599	lpxC	sll1508	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
430	 49.08	0	469001..469546	-	181	16329600	-	sll1507	-	hypothetical protein
431	 50.26	0	469592..470914	+	440	16329601	-	slr1603	-	hypothetical protein
432	 52.24	0	471080..472930	+	616	16329602	ftsH	slr1604	-	cell division protein; FtsH
433	 46.99	0	473414..473662	+	82	16329603	-	ssr2699	-	transposase
434	 36.90	-2	473953..474204	-	83	16329604	vapC	ssl2923	-	virulence associated protein C
435	 34.21	-2	474205..474432	-	75	16329605	vapB	ssl2922	-	virulence associated protein B
436	 32.88	-2	474789..475007	-	72	16329606	-	ssl2920	-	hypothetical protein
437	 37.20	-2	475110..475445	-	111	16329607	-	sll1505	-	hypothetical protein
438	 37.54	-2	475435..475743	-	102	16329608	-	sll1504	-	hypothetical protein
439	 32.15	-2	475873..477399	-	508	16329609	-	sll1503	-	hypothetical protein
440	 50.59	0	477668..482320	-	1550	16329610	gltB	sll1502	-	glutamate synthase (ferredoxin)
441	 43.83	0	482542..482703	+	53	16329611	-	ssr2708	-	hypothetical protein
442	 49.80	0	482945..483199	+	84	16329612	-	ssr2711	-	hypothetical protein
443	 52.14	0	483326..484564	+	412	16329613	gdhB	slr1608	-	glucose dehydrogenase-B
444	 49.90	0	484799..486247	-	482	16329614	cbiA	sll1501	-	cobyrinic acid a,c-diamide synthase
445	 52.34	0	486244..487353	-	369	16329615	-	sll1500	-	hypothetical protein
446	 50.45	0	487287..489377	+	696	16329616	-	slr1609	-	long-chain-fatty-acid CoA ligase
447	 49.79	0	489722..490888	+	388	16329617	-	slr1041	-	PatA subfamily protein
448	 50.00	0	491006..491449	+	147	16329618	-	slr1042	-	CheY family protein
449	 52.84	0	491496..492059	+	187	16329619	-	slr1043	-	hypothetical protein
450	 53.49	+1	492130..494739	+	869	16329620	mcpA	slr1044	-	methyl-accepting chemotaxis protein
451	 49.75	0	494828..495619	+	263	16329621	-	slr1045	-	hypothetical protein
452	 45.41	0	495626..496006	+	126	16329622	-	slr1046	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
