IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

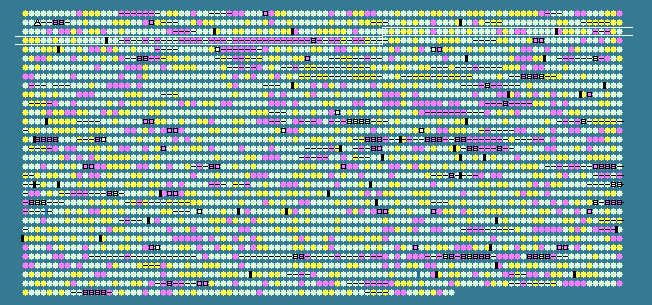

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
261	 48.13	0	287929..289104	-	391	16329431	-	sll1200	-	hypothetical protein
262	 53.15	0	289322..290845	+	507	16329432	-	slr1293	-	hypothetical protein
263	 50.55	0	290902..291174	+	90	16329433	ycf19	ssr2142	-	hypothetical protein
264	 51.99	0	291626..292708	+	360	16329434	sufA	slr1295	-	iron transport protein
265	 52.30	0	292790..293485	-	231	16329435	trmD	sll1198	-	tRNA (guanine-N(1)-)-methyltransferase
266	 47.70	0	293496..293669	-	57	16329436	-	ssl2384	-	hypothetical protein
267	 53.22	+1	293878..294963	-	361	16329437	pfkA	sll1196	-	phosphofructokinase
268	 45.94	0	295076..297343	+	755	16329438	-	slr1298	-	hypothetical protein
269	 44.19	0	297493..297888	-	131	16329439	psbU	sll1194	-	photosystem II complex extrinsic protein precursor U
270	 47.99	0	298083..298580	-	165	16329440	-	sll1193	-	hypothetical protein
271	 49.49	0	299522..300883	+	453	16329441	-	slr1299	-	UDP-glucose dehydrogenase
272	 53.65	+1	301110..302354	+	414	16329442	ubiH	slr1300	-	2-octaprenyl-6-methoxyphenyl hydroxylase
273	 50.12	0	302367..302789	-	140	16329443	-	sll1192	-	hypothetical protein
274	 51.60	0	302786..303190	-	134	16329444	-	sll1191	-	hypothetical protein
275	 55.56	+1	303424..303621	+	65	16329445	-	ssr2153	-	hypothetical protein
276	 48.57	0	303939..305546	+	535	16329446	-	slr1301	-	hypothetical protein
277	 48.70	0	305595..306824	+	409	16329447	-	slr1302	-	hypothetical protein
278	 50.45	0	306844..308076	+	410	16329448	-	slr1303	-	hypothetical protein
279	 51.19	0	308114..309418	-	434	16329449	glcE	sll1189	-	glycolate oxidase subunit; GlcE
280	 44.31	0	309649..312171	+	840	16329450	-	slr1305	-	regulatory components of sensory transduction system
281	 52.54	0	312258..313715	+	485	16329451	-	slr1306	-	hypothetical protein
282	 45.45	0	313705..314199	-	164	16329452	-	sll1188	-	hypothetical protein
283	 44.37	0	314255..315106	-	283	16329453	lgt	sll1187	-	prolipoprotein diacylglyceryl transferase
284	 44.55	0	315134..315784	-	216	16329454	-	sll1186	-	hypothetical protein
285	 51.12	0	315882..316904	-	340	16329455	hemF	sll1185	-	coproporphyrinogen III oxidase
286	 50.48	0	317127..317849	-	240	16329456	ho1	sll1184	-	heme oxygenase
287	 49.49	0	317984..318571	+	195	16329457	-	slr1307	-	hypothetical protein
288	 48.95	0	318661..318897	+	78	16329458	rpmB	ssr1604	-	50S ribosomal protein L28
289	 48.68	0	319096..320529	+	477	16329459	-	slr0962	-	hypothetical protein
290	 44.34	0	320785..321447	-	220	16329460	-	sll0943	-	hypothetical protein
291	 52.57	0	321699..323606	+	635	16329461	sir	slr0963	-	sulfite reductase subunit beta
292	 53.51	+1	323805..324731	+	308	16329462	-	slr0964	-	hypothetical protein
293	 51.62	0	324831..326006	+	391	16329463	dnaN	slr0965	-	DNA polymerase III subunit beta
294	 52.33	0	326150..326944	+	264	16329464	trpA	slr0966	-	tryptophan synthase subunit alpha
295	 49.67	0	327100..327552	+	150	16329465	-	slr0967	-	hypothetical protein
296	 43.39	0	327604..327981	-	125	16329466	-	sll0939	-	hypothetical protein
297	 49.40	0	328006..329181	-	391	16329467	-	sll0938	-	succinyldiaminopimelate transaminase
298	 38.33	-1	329222..329521	-	99	16329468	-	ssl1792	-	hypothetical protein
299	 52.12	0	329555..331060	-	501	16329469	-	sll0936	-	hypothetical protein
300	 50.64	0	331144..333027	+	627	16329470	cbiH	slr0969	-	precorrin methylase
301	 55.31	+1	333130..334485	+	451	16329471	-	slr0971	-	hypothetical protein
302	 54.45	+1	334568..335623	-	351	16329472	ccmA	sll0934	-	3-deoxy-7-phosphoheptulonate synthase
303	 53.25	+1	335819..336295	-	158	16329473	-	sll0933	-	hypothetical protein
304	 50.37	0	336313..336582	-	89	16329474	rps15	ssl1784	-	30S ribosomal protein S15
305	 50.30	0	336747..337760	-	337	16329475	-	sll0932	-	hypothetical protein
306	 54.14	+1	337861..338331	-	156	16329476	-	sll0931	-	hypothetical protein
307	 47.47	0	338503..339096	-	197	16329477	-	sll0930	-	hypothetical protein
308	 47.74	0	339140..339625	-	161	16329478	apcD	sll0928	-	allophycocyanin-B
309	 52.18	0	339737..340999	-	420	161344769	metX	sll0927	-	S-adenosylmethionine synthetase
310	 48.36	0	341135..342139	-	334	16329480	-	sll0926	-	tRNA-dihydrouridine synthase A
311	 47.62	0	342151..342759	-	202	16329481	-	sll0925	-	hypothetical protein
312	 51.12	0	343026..343559	+	177	16329482	infC	slr0974	-	translation initiation factor IF-3
313	 51.28	0	343863..344720	+	285	16329483	-	slr0975	-	hypothetical protein
314	 50.45	0	344744..345298	-	184	16329484	-	sll0924	-	hypothetical protein
315	 49.80	0	345536..347806	-	756	16329485	epsB	sll0923	-	exopolysaccharide export protein
316	 47.86	0	348384..348734	-	116	16329486	-	sll0922	-	hypothetical protein
317	 49.66	0	348701..349429	+	242	16329487	-	slr0976	-	hypothetical protein
318	 44.52	0	349468..350298	+	276	16329488	-	slr0977	-	ABC transporter
319	 49.51	0	350509..350916	+	135	16329489	-	slr0978	-	hypothetical protein
320	 45.83	0	351036..351467	+	143	16329490	-	slr0980	-	hypothetical protein
321	 44.68	0	351538..352101	+	187	16329491	-	slr0981	-	hypothetical protein
322	 46.48	0	352263..353555	+	430	16329492	rfbB	slr0982	-	ABC transporter
323	 42.41	-1	353552..354322	+	256	16329493	rfbF	slr0983	-	alpha-D-glucose-1-phosphate cytidylyltransferase
324	 49.95	0	354323..355405	+	360	16329494	rfbG	slr0984	-	CDP-glucose-4,6-dehydratase
325	 49.47	0	355424..355993	+	189	16329495	rfbC	slr0985	-	dTDP-6-deoxy-L-mannose-dehydrogenase
326	 46.01	0	355909..357210	+	433	16329496	-	slr1610	-	hypothetical protein
327	 42.38	-1	357245..357697	+	150	16329497	-	slr1611	-	hypothetical protein
328	 42.74	-1	357748..358608	+	286	16329498	-	slr1612	-	hypothetical protein
329	 36.38	-2	358760..359350	+	196	16329499	-	slr1613	-	hypothetical protein
330	 36.93	-2	359668..359973	+	101	16329500	-	slr1614	-	hypothetical protein
331	 46.26	0	360030..361166	+	378	16329501	rfbE	slr1615	-	perosamine synthetase
332	 38.79	-1	361163..362188	+	341	16329502	-	slr1616	-	putative carbamoyl phosphate synthase large subunit
333	 37.70	-2	362185..363420	+	411	16329503	-	slr1617	-	hypothetical protein
334	 40.59	-1	363433..364218	+	261	16329504	-	slr1618	-	hypothetical protein
335	 45.20	0	364247..364996	+	249	16329505	-	slr1619	-	hypothetical protein
336	 41.38	-1	365274..365621	+	115	16329506	-	slr1062	-	hypothetical protein
337	 30.72	-2	365716..367785	+	689	16329507	-	slr1063	-	hypothetical protein
338	 38.68	-1	367807..368910	+	367	16329508	rfbU	slr1064	-	mannosyltransferase B
339	 36.60	-2	369149..370219	+	356	16329509	-	slr1065	-	hypothetical protein
340	 33.91	-2	370285..371490	+	401	16329510	-	slr1066	-	hypothetical protein
341	 41.15	-1	371487..372509	+	340	16329511	galE	slr1067	-	UDP-glucose-4-epimerase
342	 32.49	-2	372811..373167	+	118	16329512	-	slr1068	-	hypothetical protein
343	 32.85	-2	373231..373644	+	137	16329513	-	slr1069	-	hypothetical protein
344	 34.97	-2	373654..374511	+	285	16329514	-	slr1070	-	hypothetical protein
345	 34.20	-2	374646..375452	+	268	16329515	-	slr1071	-	hypothetical protein
346	 44.34	0	375470..376432	+	320	16329516	yefA	slr1072	-	GDP-D-mannose dehydratase
347	 36.97	-2	376485..377639	+	384	16329517	-	slr1073	-	hypothetical protein
348	 33.63	-2	377620..378951	+	443	16329518	-	slr1074	-	hypothetical protein
349	 36.51	-2	379065..379913	+	282	16329519	-	slr1075	-	transposase
350	 40.23	-1	380030..381175	+	381	16329520	-	slr1076	-	hypothetical protein
351	 48.06	0	381177..382337	+	386	16329521	-	slr1077	-	hypothetical protein
352	 39.22	-1	382392..382646	+	84	16329522	-	ssr1765	-	hypothetical protein
353	 39.39	-1	382643..382873	+	76	16329523	-	ssr1766	-	hypothetical protein
354	 54.72	+1	382949..383266	+	105	16329524	galE	slr1078	-	UDP-glucose-4-epimerase
355	 50.10	0	383300..383794	+	164	16329525	-	slr1079	-	hypothetical protein
356	 37.88	-2	384050..384247	+	65	16329526	-	ssr1768	-	hypothetical protein
357	 43.92	0	384343..384975	+	210	16329527	-	slr1081	-	hypothetical protein
358	 52.55	0	384980..385390	+	136	16329528	-	slr1082	-	hypothetical protein
359	 47.25	0	385467..386012	+	181	16329529	-	slr1083	-	hypothetical protein
360	 49.21	0	386177..386617	+	146	16329530	-	slr1084	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
