IslandPath Analysis: Synechocystis sp. PCC 6803

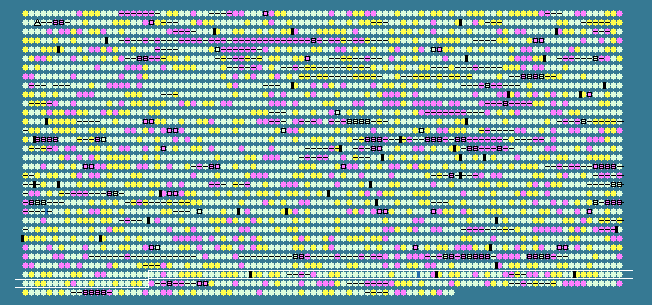

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2922	 47.71	0	3271699..3272178	+	159	16332088	-	slr1419	-	hypothetical protein
2923	 45.23	0	3272165..3273442	+	425	16332089	-	slr1420	-	hypothetical protein
2924	 39.81	-1	3273693..3274016	+	107	16332090	-	slr1421	-	hypothetical protein
2925	 47.24	0	3274546..3275307	-	253	16332091	-	sll1344	-	hypothetical protein
2926	 47.09	0	3275314..3277923	-	869	16332092	ape2	sll1343	-	aminopeptidase
2927	 51.78	0	3278122..3279135	-	337	16332093	gap2	sll1342	-	glyceraldehyde-3-phosphate dehydrogenase
2928	 52.31	0	3279390..3280907	+	505	16332094	murC	slr1423	-	UDP-N-acetylmuramate--L-alanine ligase
2929	 51.89	0	3280979..3281932	+	317	16332095	-	slr1424	-	hypothetical protein
2930	 55.37	+1	3281954..3282307	+	117	16332096	-	slr1425	-	hypothetical protein
2931	 47.98	0	3282442..3282912	-	156	16332097	bfr	sll1341	-	bacterioferritin
2932	 50.17	0	3283104..3283406	-	100	16332098	-	sll1340	-	hypothetical protein
2933	 51.65	0	3283467..3284165	+	232	16332099	recR	slr1426	-	recombination protein RecR
2934	 53.90	+1	3284283..3284846	-	187	16332100	-	sll1338	-	hypothetical protein
2935	 52.79	0	3285051..3287168	-	705	16332101	-	sll1336	-	hypothetical protein
2936	 52.54	0	3287354..3289264	+	636	16332102	-	slr1428	-	hypothetical protein
2937	 47.25	0	3289256..3290785	-	509	16332103	-	sll1334	-	hypothetical protein
2938	 51.03	0	3291097..3291966	+	289	16332104	-	slr1429	-	hypothetical protein
2939	 52.68	0	3292177..3292884	-	235	16332105	-	sll1333	-	hypothetical protein
2940	 53.50	+1	3293078..3294505	+	475	16332106	-	slr1431	-	hypothetical protein
2941	 51.13	0	3294498..3295250	-	250	16332107	-	sll1330	-	OmpR subfamily
2942	 52.20	0	3295580..3296443	-	287	16332108	-	sll1329	-	monophosphatase
2943	 52.54	0	3296462..3297247	+	261	16332109	-	slr1451	-	hypothetical protein
2944	 45.42	0	3297312..3298097	-	261	16332110	-	sll1367	-	hypothetical protein
2945	 47.69	0	3298326..3299384	+	352	16332111	sbpA	slr1452	-	sulfate binding protein; SbpA
2946	 46.94	0	3299421..3299714	+	97	16332112	-	ssr2439	-	hypothetical protein
2947	 44.02	0	3299716..3300576	+	286	16332113	cysT	slr1453	-	sulfate transport system permease protein
2948	 44.89	0	3300563..3301393	+	276	16332114	cysW	slr1454	-	sulfate transport system permease protein
2949	 44.19	0	3301555..3302622	+	355	16332115	cysA	slr1455	-	sulfate transport system permease protein
2950	 48.67	0	3302812..3303339	+	175	16332116	-	slr1456	-	general secretion pathway protein G
2951	 51.17	0	3303481..3304680	+	399	16332117	chrA	slr1457	-	chromate transport protein
2952	 51.96	0	3304872..3305381	+	169	16332118	apcF	slr1459	-	phycobilisome core component
2953	 52.34	0	3305654..3308773	-	1039	16332119	-	sll1366	-	Snf2/Rad54 family helicase
2954	 47.74	0	3308878..3309474	+	198	16332120	-	slr1461	-	hypothetical protein
2955	 48.95	0	3309530..3311431	-	633	16332121	-	sll1365	-	hypothetical protein
2956	 50.12	0	3311660..3313345	+	561	16332122	-	slr1462	-	hypothetical protein
2957	 51.25	0	3313667..3315754	+	695	16332123	fus	slr1463	-	elongation factor G
2958	 50.00	0	3315938..3316735	+	265	16332124	-	slr1464	-	hypothetical protein
2959	 47.19	0	3317363..3317593	-	76	16332125	-	ssl2667	-	NifU protein
2960	 50.00	0	3317701..3318804	-	367	16332126	ilvC	sll1363	-	ketol-acid reductoisomerase
2961	 48.96	0	3318829..3319212	+	127	16332127	-	slr0651	-	hypothetical protein
2962	 52.40	0	3319281..3320051	+	256	16332128	hisA	slr0652	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2963	 51.68	0	3320075..3321736	-	553	16332129	nadB	sll0631	-	L-aspartate oxidase
2964	 48.86	0	3321844..3322281	-	145	16332130	-	sll0630	-	hypothetical protein
2965	 48.58	0	3322377..3322763	-	128	16332131	psaK	sll0629	-	photosystem I subunit X
2966	 49.37	0	3323275..3324552	+	425	16332132	rpoDI	slr0653	-	RNA polymerase sigma factor RpoD
2967	 48.69	0	3330281..3331042	+	253	16332133	-	slr0654	-	hypothetical protein
2968	 50.64	0	3331045..3331587	+	180	16332134	-	slr0655	-	hypothetical protein
2969	 43.19	-1	3331625..3332821	+	398	16332135	-	slr0656	-	hypothetical protein
2970	 53.36	+1	3333244..3335046	+	600	16332136	lysC	slr0657	-	aspartate kinase
2971	 46.89	0	3335247..3336242	+	331	16332137	-	slr0658	-	hypothetical protein
2972	 51.77	0	3336407..3338548	+	713	16332138	prlC	slr0659	-	oligopeptidase A
2973	 55.10	+1	3338682..3339485	+	267	16332139	proC	slr0661	-	pyrroline-5-carboxylate reductase
2974	 49.80	0	3339500..3340969	-	489	16332140	lim17	sll0626	-	LIM17 protein
2975	 48.23	0	3341166..3341843	-	225	16332141	-	sll0625	-	hypothetical protein
2976	 42.45	-1	3342125..3342442	-	105	16332142	-	sll0624	-	hypothetical protein
2977	 49.09	0	3342857..3344944	+	695	16332143	speA	slr0662	-	arginine decarboxylase
2978	 52.47	0	3345027..3345815	-	262	16332144	-	sll0623	-	hypothetical protein
2979	 49.74	0	3345861..3346817	-	318	16332145	nadA	sll0622	-	quinolinate synthetase
2980	 51.67	0	3346910..3347656	-	248	16332146	dsbD	sll0621	-	thiol:disulfide interchange protein; DsbD
2981	 38.31	-1	3347941..3348201	+	86	16332147	-	ssr1114	-	hypothetical protein
2982	 35.26	-2	3348191..3348553	+	120	16332148	-	slr0664	-	hypothetical protein
2983	 52.32	0	3348690..3351296	+	868	16332149	-	slr0665	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
2984	 45.05	0	3351526..3352353	+	275	16332150	-	slr0666	-	hypothetical protein
2985	 33.14	-2	3352682..3353203	+	173	16332151	-	slr0667	-	hypothetical protein
2986	 31.47	-2	3353196..3353732	+	178	16332152	-	slr0668	-	hypothetical protein
2987	 49.97	0	3354192..3358862	-	1556	16332153	gltB	sll1499	-	ferredoxin-dependent glutamate synthase
2988	 41.72	-1	3359578..3360579	+	333	16332154	ddh	slr1556	-	D-lactate dehydrogenase
2989	 53.42	+1	3360732..3361886	-	384	161344749	carA	sll1498	-	carbamoyl phosphate synthase small subunit
2990	 52.43	0	3362057..3363166	+	369	16332156	-	slr1557	-	hypothetical protein
2991	 50.67	0	3363266..3365797	-	843	16332157	-	sll1496	-	mannose-1-phosphate guanyltransferase
2992	 46.31	0	3365944..3367137	-	397	16332158	-	sll1495	-	hypothetical protein
2993	 52.23	0	3367417..3368289	+	290	16332159	aroE	slr1559	-	shikimate 5-dehydrogenase
2994	 53.48	+1	3368416..3369621	+	401	16332160	hisZ	slr1560	-	ATP phosphoribosyltransferase regulatory subunit
2995	 52.73	0	3369699..3370028	+	109	16332161	grxC	slr1562	-	glutaredoxin
2996	 52.93	0	3370059..3370946	+	295	16332162	-	slr1563	-	hypothetical protein
2997	 49.68	0	3371247..3372023	+	258	16332163	rpoF	slr1564	-	RNA polymerase sigma factor SigF
2998	 50.00	0	3372152..3372493	+	113	16332164	-	slr1565	-	hypothetical protein
2999	 50.67	0	3372502..3373689	+	395	16332165	-	slr1566	-	hypothetical protein
3000	 50.24	0	3373719..3374765	-	348	16332166	-	sll1491	-	beta transducin-like protein
3001	 45.56	0	3375291..3377588	+	765	16332167	-	slr1567	-	hypothetical protein
3002	 49.64	0	3377869..3378279	+	136	16332168	-	slr1568	-	hypothetical protein
3003	 54.40	+1	3378247..3379086	-	279	16332169	-	sll1489	-	hypothetical protein
3004	 54.65	+1	3379102..3379767	-	221	16332170	-	sll1488	-	hypothetical protein
3005	 51.36	0	3380130..3380789	+	219	16332171	-	slr1570	-	hypothetical protein
3006	 49.63	0	3380809..3381489	+	226	16332172	-	slr1571	-	hypothetical protein
3007	 47.37	0	3381543..3382397	+	284	16332173	-	slr1572	-	hypothetical protein
3008	 52.58	0	3382575..3383369	+	264	16332174	-	slr1573	-	hypothetical protein
3009	 42.96	-1	3383577..3383846	-	89	16332175	-	ssl2874	-	hypothetical protein
3010	 48.61	0	3384151..3385590	+	479	16332176	-	slr1575	-	hypothetical protein
3011	 51.09	0	3385642..3385962	+	106	16332177	-	slr1576	-	hypothetical protein
3012	 51.94	0	3386005..3386493	+	162	16332178	-	slr1577	-	hypothetical protein
3013	 49.73	0	3386777..3388465	+	562	16332179	-	slr1579	-	hypothetical protein
3014	 50.50	0	3388694..3389491	-	265	16332180	-	sll1486	-	hypothetical protein
3015	 50.92	0	3389395..3389883	-	162	16332181	-	sll1485	-	hypothetical protein
3016	 52.76	0	3390028..3391602	-	524	16332182	ndh	sll1484	-	NADH dehydrogenase
3017	 50.64	0	3391645..3392187	-	180	16332183	-	sll1483	-	transforming growth factor induced protein
3018	 50.17	0	3392302..3393453	-	383	16332184	-	sll1482	-	ABC-transporter DevC-like protein
3019	 53.10	0	3393495..3394850	-	451	16332185	-	sll1481	-	ABC-transporter DevB-like protein
3020	 53.99	+1	3394954..3395718	-	254	16332186	devB	sll1479	-	6-phosphogluconolactonase
3021	 51.26	0	3395763..3398261	-	832	16332187	-	sll1477	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
