IslandPath Analysis: Synechocystis sp. PCC 6803

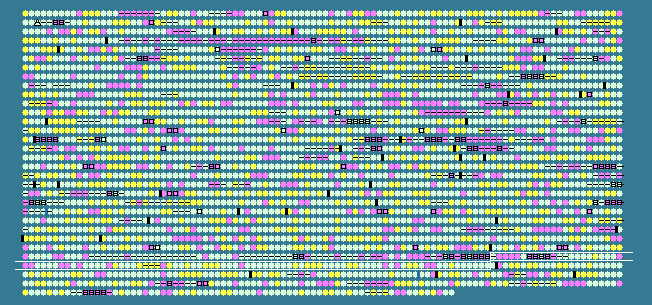

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2779	 47.32	0	3098729..3101566	-	945	16331945	-	sll0672	-	cation-transporting ATPase; E1-E2 ATPase
2780	 34.38	-2	3101820..3102962	-	380	16331946	-	sll0671	-	magnesium and cobalt transport protein
2781	 40.00	-1	3103070..3103579	-	169	16331947	-	sll0670	-	hypothetical protein
2782	 43.30	0	3103784..3104104	-	106	16331948	-	sll0669	-	hypothetical protein
2783	 44.31	0	3104142..3107102	+	986	16331949	polA	slr0707	-	DNA polymerase I
2784	 50.62	0	3107285..3108493	+	402	16331950	-	slr0708	-	hypothetical protein
2785	 34.38	-2	3108643..3109023	-	126	16331951	-	sll0668	-	transposase
2786	 35.00	-2	3109036..3109695	-	219	16331952	-	sll0667	-	transposase
2787	 45.00	0	3109733..3110152	-	139	16331953	-	sll0666	-	transposase
2788	 44.06	0	3110216..3110560	-	114	16331954	-	sll0665	-	transposase
2789	 32.03	-2	3110910..3111830	-	306	16331955	-	sll0664	-	hypothetical protein
2790	 50.13	0	3111996..3112388	+	130	16331956	-	slr0709	-	hypothetical protein
2791	 50.66	0	3112517..3113803	+	428	16331957	gdhA	slr0710	-	glutamate dehydrogenase (NADP+)
2792	 47.34	0	3113874..3114287	+	137	16331958	-	slr0711	-	hypothetical protein
2793	 48.61	0	3114479..3115447	+	322	16331959	-	slr0712	-	hypothetical protein
2794	 51.00	0	3115572..3115973	-	133	16331960	-	sll0662	-	ferredoxin
2795	 48.84	0	3115973..3116359	-	128	16331961	ycf35	sll0661	-	Ycf35
2796	 53.09	0	3116440..3116682	-	80	16331962	-	ssl1263	-	hypothetical protein
2797	 50.86	0	3117042..3118091	-	349	16331963	pdxA	sll0660	-	4-hydroxythreonine-4-phosphate dehydrogenase
2798	 45.05	0	3118192..3118302	+	36	16331964	petM	smr0003	-	cytochrome b6-f complex subunit; PetM
2799	 50.93	0	3118391..3119515	+	374	16331965	tgt	slr0713	-	queuine tRNA-ribosyltransferase
2800	 42.57	-1	3119608..3121176	-	522	16331966	-	sll0659	-	hypothetical protein
2801	 39.80	-1	3121193..3121687	-	164	16331967	-	sll0658	-	hypothetical protein
2802	 40.00	-1	3121684..3121953	-	89	16331968	-	ssl1255	-	hypothetical protein
2803	 49.91	0	3121972..3123069	-	365	16331969	mraY	sll0657	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
2804	 48.38	0	3123182..3125035	+	617	16331970	-	slr0765	-	hypothetical protein
2805	 45.80	0	3125045..3126199	-	384	16331971	pfkA	sll0745	-	phosphofructokinase
2806	 45.35	0	3126311..3127342	-	343	16331972	-	sll0744	-	dihydroorotate dehydrogenase 2
2807	 32.71	-2	3127364..3127846	-	160	16331973	-	sll0743	-	hypothetical protein
2808	 39.56	-1	3127864..3128313	-	149	16331974	-	sll0742	-	hypothetical protein
2809	 51.25	0	3128387..3131986	-	1199	16331975	nifJ	sll0741	-	pyruvate oxidoreductase
2810	 39.97	-1	3132577..3133284	-	235	16331976	-	sll0740	-	hypothetical protein
2811	 49.40	0	3133291..3135138	-	615	16331977	-	sll0739	-	ABC transporter
2812	 47.36	0	3135185..3135997	-	270	16331978	modA	sll0738	-	molybdate-binding periplasmic protein
2813	 47.02	0	3136019..3138604	-	861	16331979	-	sll0737	-	hypothetical protein
2814	 49.84	0	3138917..3139855	-	312	16331980	-	sll0048	-	hypothetical protein
2815	 44.55	0	3140045..3140356	-	103	16331981	-	sll0047	-	hypothetical protein
2816	 51.88	0	3140307..3140678	+	123	16331982	-	slr0022	-	hypothetical protein
2817	 49.01	0	3140713..3142875	-	720	16331983	sps	sll0045	-	sucrose phosphate synthase
2818	 45.85	0	3142957..3143571	+	204	16331984	-	slr0023	-	hypothetical protein
2819	 49.79	0	3143696..3144181	-	161	16331985	-	sll0044	-	hypothetical protein
2820	 55.29	+1	3144213..3148421	-	1402	16331986	-	sll0043	-	CheA like protein
2821	 54.07	+1	3148438..3148929	-	163	16331987	tar	sll0042	-	methyl-accepting chemotaxis protein II
2822	 53.81	+1	3148975..3151977	-	1000	16331988	-	sll0041	-	tsr or; CheD
2823	 53.01	0	3152239..3152787	-	182	16331989	-	sll0040	-	hypothetical protein
2824	 44.44	0	3152955..3153314	-	119	16331990	-	sll0039	-	CheY family protein
2825	 52.44	0	3153452..3154660	-	402	16331991	-	sll0038	-	PatA subfamily protein
2826	 48.66	0	3154910..3156664	+	584	16331992	-	slr0031	-	hypothetical protein
2827	 49.24	0	3156760..3157677	+	305	16331993	ilvE	slr0032	-	branched-chain amino acid aminotransferase
2828	 53.02	0	3157734..3158048	+	104	16331994	-	slr0033	-	hypothetical protein
2829	 51.14	0	3158106..3159116	-	336	16331995	-	sll0037	-	hypothetical protein
2830	 50.77	0	3159350..3160651	-	433	16331996	-	sll0036	-	methylglyoxal synthase
2831	 51.97	0	3160717..3161886	+	389	16331997	aspC	slr0036	-	aspartate aminotransferase
2832	 52.12	0	3161899..3162675	-	258	16331998	-	sll0034	-	hypothetical protein
2833	 52.06	0	3162738..3164243	-	501	16331999	-	sll0033	-	hypothetical protein
2834	 51.68	0	3164404..3165591	-	395	16332000	-	sll0031	-	hypothetical protein
2835	 46.87	0	3166050..3166448	+	132	16332001	-	slr0038	-	hypothetical protein
2836	 50.93	0	3166607..3167680	+	357	16332002	-	slr0039	-	hypothetical protein
2837	 42.84	-1	3167887..3168801	-	304	16332003	cmpR	sll0030	-	CmpR
2838	 48.79	0	3169054..3170412	+	452	16332004	cmpA	slr0040	-	bicarbonate transporter
2839	 46.03	0	3170475..3171317	+	280	16332005	cmpB	slr0041	-	hypothetical protein
2840	 50.49	0	3171428..3173158	+	576	16332006	-	slr0042	-	hypothetical protein
2841	 51.65	0	3173335..3175338	+	667	16332007	nrtC	slr0043	-	nitrate transport protein; NrtC
2842	 51.00	0	3175411..3176259	+	282	16332008	nrtD	slr0044	-	nitrate transport protein; NrtD
2843	 48.88	0	3176543..3178066	-	507	16332009	ndhD	sll0027	-	NAD(P)H-quinone oxidoreductase subunit D4
2844	 50.18	0	3178231..3180135	-	634	16332010	ndhF	sll0026	-	NAD(P)H-quinone oxidoreductase subunit F
2845	 49.05	0	3180380..3181537	-	385	16332011	-	sll0518	-	hypothetical protein
2846	 53.27	+1	3181708..3182013	-	101	16332012	rbpA	sll0517	-	RNA binding protein
2847	 50.65	0	3182315..3183007	+	230	16332013	chlM	slr0525	-	Mg-protoporphyrin IX methyl transferase
2848	 54.79	+1	3183014..3183796	+	260	16332014	panB	slr0526	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
2849	 52.45	0	3183756..3184571	+	271	16332015	exsB	slr0527	-	ExsB protein
2850	 54.61	+1	3184733..3186250	+	505	16332016	murE	slr0528	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
2851	 51.23	0	3186379..3188043	-	554	16332017	-	sll0514	-	hypothetical protein
2852	 50.32	0	3188483..3189748	+	421	16332018	-	slr0529	-	hypothetical protein
2853	 46.07	0	3189929..3190768	+	279	16332019	-	slr0530	-	membrane bound sugar transport protein
2854	 47.60	0	3190768..3191664	+	298	16332020	-	slr0531	-	membrane bound sugar transport protein
2855	 52.40	0	3191661..3192494	-	277	16332021	-	sll0513	-	hypothetical protein
2856	 51.81	0	3192683..3193900	+	405	16332022	-	slr0533	-	sensory transduction histidine kinase
2857	 50.51	0	3193999..3196542	+	847	16332023	slt	slr0534	-	soluble lytic transglycosylase
2858	 50.98	0	3196783..3198624	+	613	16332024	-	slr0535	-	serine proteinase
2859	 51.19	0	3198731..3199783	+	350	16332025	hemE	slr0536	-	uroporphyrinogen decarboxylase
2860	 45.10	0	3199930..3200838	-	302	16332026	-	sll0509	-	AP-4-A phosphorylase II
2861	 44.44	0	3200940..3201452	-	170	16332027	-	sll0508	-	hypothetical protein
2862	 50.50	0	3201688..3202689	+	333	16332028	-	slr0537	-	hypothetical protein
2863	 43.13	-1	3202699..3203862	-	387	16332029	-	sll0507	-	magnesium and cobalt transport protein
2864	 50.80	0	3203994..3204743	-	249	16332030	-	sll0506	-	hypothetical protein
2865	 51.97	0	3204740..3205651	-	303	16332031	-	sll0505	-	hypothetical protein
2866	 52.84	0	3205694..3207103	-	469	16332032	lysA	sll0504	-	diaminopimelate decarboxylase
2867	 45.96	0	3207272..3208696	-	474	16332033	-	sll0503	-	hypothetical protein
2868	 44.44	0	3208698..3210452	-	584	16332034	argS	sll0502	-	arginyl-tRNA synthetase
2869	 41.48	-1	3210650..3211606	-	318	16332035	-	sll0501	-	hypothetical protein
2870	 50.21	0	3211808..3212518	+	236	16332036	-	slr0541	-	hypothetical protein
2871	 50.25	0	3212598..3213194	+	198	16332037	clpP	slr0542	-	ATP-dependent protease; ClpP
2872	 52.30	0	3213272..3214510	+	412	16332038	trpB	slr0543	-	tryptophan synthase subunit beta
2873	 45.80	0	3214581..3217427	-	948	16332039	-	sll0499	-	hypothetical protein
2874	 51.06	0	3217855..3218655	+	266	16332040	-	slr0544	-	ABC transporter
2875	 45.70	0	3218679..3219131	-	150	16332041	-	sll0498	-	hypothetical protein
2876	 50.72	0	3219158..3219985	-	275	16332042	-	sll0497	-	hypothetical protein
2877	 50.48	0	3220162..3221106	+	314	16332043	-	slr0545	-	auxin-induced protein
2878	 45.49	0	3221251..3222435	-	394	16332044	-	sll0496	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
