IslandPath Analysis: Synechocystis sp. PCC 6803

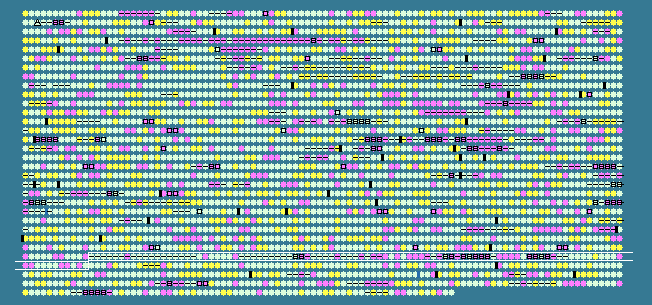

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2712	 45.92	0	3026236..3027657	+	473	16331878	-	slr0309	-	P-methylase
2713	 49.95	0	3028501..3029481	-	326	16331879	-	sll0282	-	hypothetical protein
2714	 47.23	0	3029483..3030655	-	390	16331880	-	sll0281	-	hypothetical protein
2715	 47.28	0	3030725..3031828	-	367	16331881	-	sll0280	-	hypothetical protein
2716	 47.41	0	3032496..3034775	+	759	16331882	-	slr0311	-	sensory transduction histidine kinase
2717	 46.67	0	3034783..3035412	+	209	16331883	-	slr0312	-	NarL subfamily protein
2718	 43.19	-1	3035634..3036191	+	185	16331884	-	slr0313	-	hypothetical protein
2719	 48.38	0	3036234..3037064	+	276	16331885	-	slr0314	-	bromoperoxidase
2720	 48.98	0	3037310..3038044	+	244	16331886	-	slr0315	-	hypothetical protein
2721	 45.45	0	3038375..3039166	+	263	16331887	-	slr0316	-	hypothetical protein
2722	 50.23	0	3039858..3040721	+	287	16331888	-	slr0317	-	hypothetical protein
2723	 50.16	0	3040804..3041415	+	203	16331889	-	slr0318	-	hypothetical protein
2724	 46.12	0	3041494..3042408	+	304	16331890	blaOXA-3	slr0319	-	beta-lactamase
2725	 47.98	0	3042487..3042684	-	65	16331891	-	ssl0511	-	hypothetical protein
2726	 47.64	0	3042789..3043613	+	274	16331892	map	slr0786	-	methionine aminopeptidase
2727	 45.11	0	3043528..3043926	-	132	16331893	-	sll0800	-	hypothetical protein
2728	 48.73	0	3044833..3045852	+	339	16331894	-	slr0787	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
2729	 48.24	0	3045877..3047265	+	462	16331895	-	slr0788	-	putative nicotinate phosphoribosyltransferase
2730	 47.13	0	3047714..3048271	+	185	16331896	-	slr0789	-	hypothetical protein
2731	 43.87	0	3048285..3048635	+	116	16331897	umuC	slr0790	-	UmuC protein
2732	 49.01	0	3048902..3050266	-	454	16331898	-	sll0798	-	sensory transduction histidine kinase
2733	 45.96	0	3050263..3050967	-	234	16331899	-	sll0797	-	OmpR subfamily
2734	 51.70	0	3051086..3051733	+	215	16331900	-	slr0793	-	hypothetical protein
2735	 50.14	0	3051772..3054936	+	1054	16331901	-	slr0794	-	cation or drug efflux system protein
2736	 39.86	-1	3054872..3055699	+	275	16331902	-	slr0795	-	hypothetical protein
2737	 50.67	0	3055814..3057151	+	445	16331903	nreB	slr0796	-	nickel resistance
2738	 50.85	0	3057217..3058329	-	370	16331904	merR	sll0794	-	mercuric resistance operon regulatory protein; precorrin isomerase
2739	 51.43	0	3058411..3060339	+	642	16331905	-	slr0797	-	cation-transporting ATPase; E1-E2 ATPase
2740	 46.79	0	3060469..3060795	-	108	16331906	-	sll0793	-	hypothetical protein
2741	 48.37	0	3060807..3061205	-	132	16331907	smtB	sll0792	-	transcriptional repressor; SmtB
2742	 48.80	0	3061357..3063522	+	721	16331908	-	slr0798	-	hypothetical protein
2743	 46.84	0	3063549..3064925	-	458	16331909	-	sll0790	-	sensory transduction histidine kinase
2744	 48.64	0	3064912..3065610	-	232	16331910	-	sll0789	-	OmpR subfamily
2745	 46.02	0	3065617..3066207	-	196	16331911	-	sll0788	-	hypothetical protein
2746	 49.69	0	3066429..3066752	+	107	16331912	-	slr0799	-	transposase
2747	 44.29	0	3066749..3067177	+	142	16331913	-	slr0800	-	transposase
2748	 44.33	0	3067358..3067648	-	96	16331914	-	ssl1464	-	hypothetical protein
2749	 48.30	0	3067652..3068620	-	322	16331915	-	sll0787	-	hypothetical protein
2750	 44.91	0	3068630..3069208	-	192	16331916	-	sll0786	-	hypothetical protein
2751	 50.23	0	3069162..3070250	-	362	16331917	-	sll0785	-	hypothetical protein
2752	 48.61	0	3070281..3071321	-	346	16331918	merR	sll0784	-	nitrilase
2753	 43.69	0	3071459..3071941	-	160	16331919	-	sll0783	-	hypothetical protein
2754	 45.56	0	3072406..3073656	+	416	16331920	-	slr0801	-	hypothetical protein
2755	 44.86	0	3073629..3074738	-	369	16331921	-	sll0782	-	putative protein kinase
2756	 46.79	0	3075110..3075577	-	155	16331922	-	sll0781	-	hypothetical protein
2757	 40.26	-1	3075546..3075848	-	100	16331923	-	sll0780	-	hypothetical protein
2758	 49.53	0	3075896..3078550	-	884	16331924	-	sll0779	-	PleD-like protein
2759	 42.23	-1	3078838..3081210	-	790	16331925	-	sll0778	-	ABC transporter
2760	 38.24	-2	3081264..3082181	-	305	16331926	-	sll0777	-	hypothetical protein
2761	 39.59	-1	3082151..3083668	-	505	16331927	pknA	sll0776	-	protein kinase
2762	 46.30	0	3083746..3084123	-	125	16331928	-	sll0775	-	hypothetical protein
2763	 43.33	0	3084346..3084585	+	79	16331929	ESI3	ssr1169	-	salt-stress induced hydrophobic peptide
2764	 47.14	0	3084677..3088435	+	1252	16331930	-	slr0697	-	hypothetical protein
2765	 43.87	0	3088419..3088883	+	154	16331931	-	slr0698	-	hypothetical protein
2766	 35.70	-2	3089093..3089515	+	140	16331932	-	slr0699	-	hypothetical protein
2767	 44.00	0	3089656..3091014	+	452	16331933	-	slr0700	-	hypothetical protein
2768	 42.75	-1	3091244..3091657	+	137	16331934	merR	slr0701	-	mercuric resistance operon regulatory protein
2769	 48.17	0	3091764..3093017	+	417	16331935	-	slr0702	-	hypothetical protein
2770	 36.30	-2	3093408..3093845	-	145	16331936	-	sll0678	-	hypothetical protein
2771	 45.80	0	3093908..3094693	-	261	16331937	-	sll0677	-	transposase
2772	 36.36	-2	3094773..3094970	-	65	16331938	-	ssl1277	-	transposase
2773	 40.88	-1	3095044..3095586	-	180	16331939	-	sll0676	-	hypothetical protein
2774	 38.60	-1	3096048..3096332	+	94	16331940	-	ssr1175	-	transposase
2775	 45.67	0	3096388..3097173	+	261	16331941	-	slr0703	-	transposase
2776	 31.43	-2	3097275..3097379	+	34	16331942	-	smr0002	-	transposase
2777	 36.63	-2	3097436..3098284	+	282	16331943	-	slr0704	-	transposase
2778	 37.07	-2	3098425..3098718	+	97	16331944	-	ssr1176	-	transposase
2779	 47.32	0	3098729..3101566	-	945	16331945	-	sll0672	-	cation-transporting ATPase; E1-E2 ATPase
2780	 34.38	-2	3101820..3102962	-	380	16331946	-	sll0671	-	magnesium and cobalt transport protein
2781	 40.00	-1	3103070..3103579	-	169	16331947	-	sll0670	-	hypothetical protein
2782	 43.30	0	3103784..3104104	-	106	16331948	-	sll0669	-	hypothetical protein
2783	 44.31	0	3104142..3107102	+	986	16331949	polA	slr0707	-	DNA polymerase I
2784	 50.62	0	3107285..3108493	+	402	16331950	-	slr0708	-	hypothetical protein
2785	 34.38	-2	3108643..3109023	-	126	16331951	-	sll0668	-	transposase
2786	 35.00	-2	3109036..3109695	-	219	16331952	-	sll0667	-	transposase
2787	 45.00	0	3109733..3110152	-	139	16331953	-	sll0666	-	transposase
2788	 44.06	0	3110216..3110560	-	114	16331954	-	sll0665	-	transposase
2789	 32.03	-2	3110910..3111830	-	306	16331955	-	sll0664	-	hypothetical protein
2790	 50.13	0	3111996..3112388	+	130	16331956	-	slr0709	-	hypothetical protein
2791	 50.66	0	3112517..3113803	+	428	16331957	gdhA	slr0710	-	glutamate dehydrogenase (NADP+)
2792	 47.34	0	3113874..3114287	+	137	16331958	-	slr0711	-	hypothetical protein
2793	 48.61	0	3114479..3115447	+	322	16331959	-	slr0712	-	hypothetical protein
2794	 51.00	0	3115572..3115973	-	133	16331960	-	sll0662	-	ferredoxin
2795	 48.84	0	3115973..3116359	-	128	16331961	ycf35	sll0661	-	Ycf35
2796	 53.09	0	3116440..3116682	-	80	16331962	-	ssl1263	-	hypothetical protein
2797	 50.86	0	3117042..3118091	-	349	16331963	pdxA	sll0660	-	4-hydroxythreonine-4-phosphate dehydrogenase
2798	 45.05	0	3118192..3118302	+	36	16331964	petM	smr0003	-	cytochrome b6-f complex subunit; PetM
2799	 50.93	0	3118391..3119515	+	374	16331965	tgt	slr0713	-	queuine tRNA-ribosyltransferase
2800	 42.57	-1	3119608..3121176	-	522	16331966	-	sll0659	-	hypothetical protein
2801	 39.80	-1	3121193..3121687	-	164	16331967	-	sll0658	-	hypothetical protein
2802	 40.00	-1	3121684..3121953	-	89	16331968	-	ssl1255	-	hypothetical protein
2803	 49.91	0	3121972..3123069	-	365	16331969	mraY	sll0657	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
2804	 48.38	0	3123182..3125035	+	617	16331970	-	slr0765	-	hypothetical protein
2805	 45.80	0	3125045..3126199	-	384	16331971	pfkA	sll0745	-	phosphofructokinase
2806	 45.35	0	3126311..3127342	-	343	16331972	-	sll0744	-	dihydroorotate dehydrogenase 2
2807	 32.71	-2	3127364..3127846	-	160	16331973	-	sll0743	-	hypothetical protein
2808	 39.56	-1	3127864..3128313	-	149	16331974	-	sll0742	-	hypothetical protein
2809	 51.25	0	3128387..3131986	-	1199	16331975	nifJ	sll0741	-	pyruvate oxidoreductase
2810	 39.97	-1	3132577..3133284	-	235	16331976	-	sll0740	-	hypothetical protein
2811	 49.40	0	3133291..3135138	-	615	16331977	-	sll0739	-	ABC transporter
48.22	MEAN

4.98	STD DEV
