IslandPath Analysis: Synechocystis sp. PCC 6803

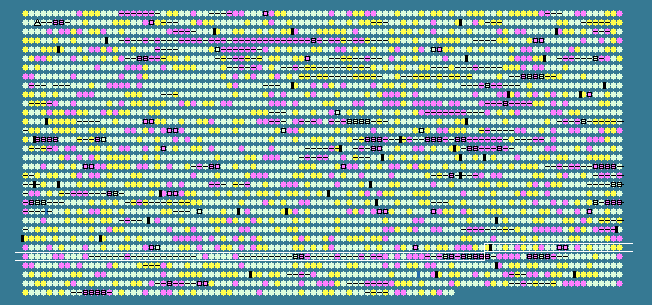

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2678	 52.90	0	2983695..2984747	-	350	16331844	-	sll0098	-	hypothetical protein
2679	 49.24	0	2984985..2986241	+	418	16331845	-	slr0108	-	hypothetical protein
2680	 46.39	0	2986238..2987194	+	318	16331846	-	slr0109	-	hypothetical protein
2681	 52.19	0	2987263..2988609	-	448	16331847	-	sll0096	-	hypothetical protein
2682	 47.59	0	2988807..2990510	-	567	16331848	-	sll0095	-	ABC1-like
2683	 43.45	0	2990525..2991898	-	457	16331849	-	sll0094	-	sensory transduction histidine kinase
2684	 53.14	0	2992055..2992690	+	211	16331850	-	slr0110	-	hypothetical protein
2685	 46.55	0	2992802..2993323	+	173	16331851	-	slr0111	-	hypothetical protein
2686	 52.33	0	2993505..2994062	+	185	16331852	-	slr0112	-	hypothetical protein
2687	 43.90	0	2994185..2995717	+	510	16331853	-	slr0114	-	hypothetical protein
2688	 50.55	0	2995908..2996633	+	241	16331854	-	slr0115	-	OmpR subfamily
2689	 47.79	0	2996695..2997441	+	248	16331855	-	slr0116	-	phycocyanobilin:ferredoxin oxidoreductase
2690	 32.59	-2	2997811..2998080	-	89	16331856	-	ssl0172	-	transposase
2691	 32.02	-2	2998239..2998925	-	228	16331857	-	sll0092	-	transposase
2692	 50.51	0	2999181..3000560	+	459	16331858	thiC	slr0118	-	thiamine biosynthesis protein ThiC
2693	 39.18	-1	3000786..3001742	+	318	16331859	brkB	slr0119	-	serum resistance locus; BrkB
2694	 50.76	0	3002075..3002797	+	240	16331860	-	slr0120	-	hypothetical protein
2695	 53.70	+1	3002966..3004453	+	495	16331861	-	slr0121	-	hypothetical protein
2696	 49.98	0	3004454..3006640	-	728	16331862	ppk	sll0290	-	polyphosphate kinase
2697	 48.98	0	3007280..3007573	-	97	16331863	minE	ssl0546	-	septum site-determining protein; MinE
2698	 47.69	0	3007631..3008431	-	266	16331864	minD	sll0289	-	septum site-determining protein; MinD
2699	 55.78	+1	3008508..3009251	-	247	16331865	minC	sll0288	-	septum formation inhibitor
2700	 54.03	+1	3009463..3010095	+	210	16331866	fraH	slr0298	-	heterocyst to vegetative cell connection protein
2701	 42.66	-1	3010157..3010864	+	235	16331867	-	slr0299	-	hypothetical protein
2702	 45.30	0	3010840..3011424	+	194	16331868	-	slr0300	-	hypothetical protein
2703	 49.00	0	3011672..3014128	+	818	16331869	ppsA	slr0301	-	phosphoenolpyruvate synthase
2704	 46.90	0	3014390..3016696	+	768	16331870	-	slr0302	-	PleD-like protein
2705	 47.27	0	3017183..3018151	+	322	16331871	-	slr0303	-	hypothetical protein
2706	 39.27	-1	3018204..3019214	+	336	16331872	-	slr0304	-	hypothetical protein
2707	 44.29	0	3019261..3019890	+	209	16331873	-	slr0305	-	hypothetical protein
2708	 50.82	0	3020301..3021821	+	506	16331874	-	slr0306	-	hypothetical protein
2709	 51.36	0	3021893..3022408	-	171	16331875	-	sll0286	-	hypothetical protein
2710	 45.69	0	3022532..3024271	-	579	16331876	-	sll0284	-	hypothetical protein
2711	 34.14	-2	3024508..3025746	-	412	16331877	-	sll0283	-	hypothetical protein
2712	 45.92	0	3026236..3027657	+	473	16331878	-	slr0309	-	P-methylase
2713	 49.95	0	3028501..3029481	-	326	16331879	-	sll0282	-	hypothetical protein
2714	 47.23	0	3029483..3030655	-	390	16331880	-	sll0281	-	hypothetical protein
2715	 47.28	0	3030725..3031828	-	367	16331881	-	sll0280	-	hypothetical protein
2716	 47.41	0	3032496..3034775	+	759	16331882	-	slr0311	-	sensory transduction histidine kinase
2717	 46.67	0	3034783..3035412	+	209	16331883	-	slr0312	-	NarL subfamily protein
2718	 43.19	-1	3035634..3036191	+	185	16331884	-	slr0313	-	hypothetical protein
2719	 48.38	0	3036234..3037064	+	276	16331885	-	slr0314	-	bromoperoxidase
2720	 48.98	0	3037310..3038044	+	244	16331886	-	slr0315	-	hypothetical protein
2721	 45.45	0	3038375..3039166	+	263	16331887	-	slr0316	-	hypothetical protein
2722	 50.23	0	3039858..3040721	+	287	16331888	-	slr0317	-	hypothetical protein
2723	 50.16	0	3040804..3041415	+	203	16331889	-	slr0318	-	hypothetical protein
2724	 46.12	0	3041494..3042408	+	304	16331890	blaOXA-3	slr0319	-	beta-lactamase
2725	 47.98	0	3042487..3042684	-	65	16331891	-	ssl0511	-	hypothetical protein
2726	 47.64	0	3042789..3043613	+	274	16331892	map	slr0786	-	methionine aminopeptidase
2727	 45.11	0	3043528..3043926	-	132	16331893	-	sll0800	-	hypothetical protein
2728	 48.73	0	3044833..3045852	+	339	16331894	-	slr0787	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
2729	 48.24	0	3045877..3047265	+	462	16331895	-	slr0788	-	putative nicotinate phosphoribosyltransferase
2730	 47.13	0	3047714..3048271	+	185	16331896	-	slr0789	-	hypothetical protein
2731	 43.87	0	3048285..3048635	+	116	16331897	umuC	slr0790	-	UmuC protein
2732	 49.01	0	3048902..3050266	-	454	16331898	-	sll0798	-	sensory transduction histidine kinase
2733	 45.96	0	3050263..3050967	-	234	16331899	-	sll0797	-	OmpR subfamily
2734	 51.70	0	3051086..3051733	+	215	16331900	-	slr0793	-	hypothetical protein
2735	 50.14	0	3051772..3054936	+	1054	16331901	-	slr0794	-	cation or drug efflux system protein
2736	 39.86	-1	3054872..3055699	+	275	16331902	-	slr0795	-	hypothetical protein
2737	 50.67	0	3055814..3057151	+	445	16331903	nreB	slr0796	-	nickel resistance
2738	 50.85	0	3057217..3058329	-	370	16331904	merR	sll0794	-	mercuric resistance operon regulatory protein; precorrin isomerase
2739	 51.43	0	3058411..3060339	+	642	16331905	-	slr0797	-	cation-transporting ATPase; E1-E2 ATPase
2740	 46.79	0	3060469..3060795	-	108	16331906	-	sll0793	-	hypothetical protein
2741	 48.37	0	3060807..3061205	-	132	16331907	smtB	sll0792	-	transcriptional repressor; SmtB
2742	 48.80	0	3061357..3063522	+	721	16331908	-	slr0798	-	hypothetical protein
2743	 46.84	0	3063549..3064925	-	458	16331909	-	sll0790	-	sensory transduction histidine kinase
2744	 48.64	0	3064912..3065610	-	232	16331910	-	sll0789	-	OmpR subfamily
2745	 46.02	0	3065617..3066207	-	196	16331911	-	sll0788	-	hypothetical protein
2746	 49.69	0	3066429..3066752	+	107	16331912	-	slr0799	-	transposase
2747	 44.29	0	3066749..3067177	+	142	16331913	-	slr0800	-	transposase
2748	 44.33	0	3067358..3067648	-	96	16331914	-	ssl1464	-	hypothetical protein
2749	 48.30	0	3067652..3068620	-	322	16331915	-	sll0787	-	hypothetical protein
2750	 44.91	0	3068630..3069208	-	192	16331916	-	sll0786	-	hypothetical protein
2751	 50.23	0	3069162..3070250	-	362	16331917	-	sll0785	-	hypothetical protein
2752	 48.61	0	3070281..3071321	-	346	16331918	merR	sll0784	-	nitrilase
2753	 43.69	0	3071459..3071941	-	160	16331919	-	sll0783	-	hypothetical protein
2754	 45.56	0	3072406..3073656	+	416	16331920	-	slr0801	-	hypothetical protein
2755	 44.86	0	3073629..3074738	-	369	16331921	-	sll0782	-	putative protein kinase
2756	 46.79	0	3075110..3075577	-	155	16331922	-	sll0781	-	hypothetical protein
2757	 40.26	-1	3075546..3075848	-	100	16331923	-	sll0780	-	hypothetical protein
2758	 49.53	0	3075896..3078550	-	884	16331924	-	sll0779	-	PleD-like protein
2759	 42.23	-1	3078838..3081210	-	790	16331925	-	sll0778	-	ABC transporter
2760	 38.24	-2	3081264..3082181	-	305	16331926	-	sll0777	-	hypothetical protein
2761	 39.59	-1	3082151..3083668	-	505	16331927	pknA	sll0776	-	protein kinase
2762	 46.30	0	3083746..3084123	-	125	16331928	-	sll0775	-	hypothetical protein
2763	 43.33	0	3084346..3084585	+	79	16331929	ESI3	ssr1169	-	salt-stress induced hydrophobic peptide
2764	 47.14	0	3084677..3088435	+	1252	16331930	-	slr0697	-	hypothetical protein
2765	 43.87	0	3088419..3088883	+	154	16331931	-	slr0698	-	hypothetical protein
2766	 35.70	-2	3089093..3089515	+	140	16331932	-	slr0699	-	hypothetical protein
2767	 44.00	0	3089656..3091014	+	452	16331933	-	slr0700	-	hypothetical protein
2768	 42.75	-1	3091244..3091657	+	137	16331934	merR	slr0701	-	mercuric resistance operon regulatory protein
2769	 48.17	0	3091764..3093017	+	417	16331935	-	slr0702	-	hypothetical protein
2770	 36.30	-2	3093408..3093845	-	145	16331936	-	sll0678	-	hypothetical protein
2771	 45.80	0	3093908..3094693	-	261	16331937	-	sll0677	-	transposase
2772	 36.36	-2	3094773..3094970	-	65	16331938	-	ssl1277	-	transposase
2773	 40.88	-1	3095044..3095586	-	180	16331939	-	sll0676	-	hypothetical protein
2774	 38.60	-1	3096048..3096332	+	94	16331940	-	ssr1175	-	transposase
2775	 45.67	0	3096388..3097173	+	261	16331941	-	slr0703	-	transposase
2776	 31.43	-2	3097275..3097379	+	34	16331942	-	smr0002	-	transposase
2777	 36.63	-2	3097436..3098284	+	282	16331943	-	slr0704	-	transposase
48.22	MEAN

4.98	STD DEV
