IslandPath Analysis: Synechocystis sp. PCC 6803

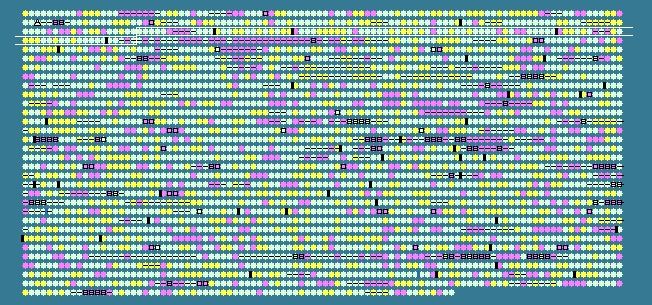

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
220	 46.45	0	244160..244708	-	182	16329390	-	sll1678	-	spore maturation protein A
221	 46.79	0	244783..245436	-	217	16329391	-	sll1677	-	spore maturation protein B
222	 51.52	0	245502..247019	-	505	16329392	malQ	sll1676	-	4-alpha-glucanotransferase
223	 50.55	0	247117..247569	-	150	16329393	-	sll1675	-	hypothetical protein
224	 50.96	0	247619..248713	+	364	16329394	-	slr1787	-	thiamine monophosphate kinase
225	 41.76	-1	249062..250117	+	351	16329395	-	slr1788	-	hypothetical protein
226	 41.23	-1	250160..251641	+	493	16329396	-	slr1789	-	hypothetical protein
227	 40.54	-1	251758..253116	-	452	16329397	-	sll1673	-	regulatory components of sensory transduction system
228	 38.56	-1	253125..255629	-	834	16329398	-	sll1672	-	hybrid sensory kinase
229	 49.07	0	255823..256305	-	160	16329399	-	sll1671	-	hypothetical protein
230	 47.08	0	256647..257279	+	210	16329400	-	slr1790	-	hypothetical protein
231	 49.87	0	257426..258175	+	249	16329401	cysH	slr1791	-	phosphoadenosine phosphosulfate reductase
232	 48.37	0	258227..259363	-	378	16329402	hrcA	sll1670	-	heat-inducible transcription repressor
233	 53.33	+1	259702..260271	-	189	16329403	aroK	sll1669	-	shikimate kinase
234	 50.00	0	260463..261638	+	391	16329404	talB	slr1793	-	transaldolase/EF-hand domain-containing protein
235	 46.97	0	261863..262060	+	65	16329405	-	ssr2998	-	hypothetical protein
236	 53.54	+1	262177..263265	+	362	16329406	-	slr1794	-	hypothetical protein
237	 52.87	0	263321..263965	+	214	16329407	msrA	slr1795	-	methionine sulfoxide reductase A
238	 46.18	0	264190..264477	+	95	16329408	-	ssr3000	-	hypothetical protein
239	 48.69	0	264516..265316	-	266	16329409	mom72	sll1667	-	mitochondrial outer membrane 72K protein
240	 53.14	0	265414..265938	-	174	16329410	dnaJ	sll1666	-	DnaJ protein
241	 47.03	0	265995..266600	+	201	16329411	-	slr1796	-	hypothetical protein
242	 51.86	0	266702..268471	-	589	16329412	-	sll1665	-	hypothetical protein
243	 49.09	0	268789..269727	-	312	16329413	-	sll1664	-	hypothetical protein
244	 53.54	+1	269773..270435	-	220	16329414	-	sll1663	-	hypothetical protein
245	 53.02	0	270476..271369	-	297	16329415	pheA	sll1662	-	prephenate dehydratase
246	 43.57	0	271600..273357	+	585	16329416	pleD	slr1798	-	PleD gene product
247	 50.26	0	273802..274386	-	194	16329417	-	sll1660	-	hypothetical protein
248	 50.64	0	274502..275680	-	392	16329418	-	sll1659	-	FO synthase subunit 2
249	 48.43	0	275807..276283	-	158	16329419	-	sll1658	-	hypothetical protein
250	 52.51	0	276429..278342	+	637	16329420	-	slr1799	-	hypothetical protein
251	 52.43	0	278494..279561	+	355	16329421	-	slr1800	-	hypothetical protein
252	 53.12	0	279512..280087	-	191	16329422	-	sll1656	-	hypothetical protein
253	 52.85	0	280127..280951	-	274	16329423	birA	sll1655	-	biotin [acetyl-CoA-carboxylase] ligase
254	 53.38	+1	280970..281443	-	157	16329424	-	sll1654	-	hypothetical protein
255	 51.19	0	281507..282223	-	238	16329425	ubiE	sll1653	-	ubiquinone/menaquinone biosynthesis methyltransferase
256	 41.61	-1	282290..282700	-	136	16329426	-	sll1652	-	hypothetical protein
257	 50.21	0	283060..284487	+	475	16329427	icd	slr1289	-	isocitrate dehydrogenase
258	 45.55	0	284508..285080	+	190	16329428	-	slr1290	-	hypothetical protein
259	 45.79	0	285144..285938	-	264	16329429	-	sll1201	-	hypothetical protein
260	 51.61	0	286164..287843	+	559	16329430	ndhD2	slr1291	-	NAD(P)H-quinone oxidoreductase subunit 4
261	 48.13	0	287929..289104	-	391	16329431	-	sll1200	-	hypothetical protein
262	 53.15	0	289322..290845	+	507	16329432	-	slr1293	-	hypothetical protein
263	 50.55	0	290902..291174	+	90	16329433	ycf19	ssr2142	-	hypothetical protein
264	 51.99	0	291626..292708	+	360	16329434	sufA	slr1295	-	iron transport protein
265	 52.30	0	292790..293485	-	231	16329435	trmD	sll1198	-	tRNA (guanine-N(1)-)-methyltransferase
266	 47.70	0	293496..293669	-	57	16329436	-	ssl2384	-	hypothetical protein
267	 53.22	+1	293878..294963	-	361	16329437	pfkA	sll1196	-	phosphofructokinase
268	 45.94	0	295076..297343	+	755	16329438	-	slr1298	-	hypothetical protein
269	 44.19	0	297493..297888	-	131	16329439	psbU	sll1194	-	photosystem II complex extrinsic protein precursor U
270	 47.99	0	298083..298580	-	165	16329440	-	sll1193	-	hypothetical protein
271	 49.49	0	299522..300883	+	453	16329441	-	slr1299	-	UDP-glucose dehydrogenase
272	 53.65	+1	301110..302354	+	414	16329442	ubiH	slr1300	-	2-octaprenyl-6-methoxyphenyl hydroxylase
273	 50.12	0	302367..302789	-	140	16329443	-	sll1192	-	hypothetical protein
274	 51.60	0	302786..303190	-	134	16329444	-	sll1191	-	hypothetical protein
275	 55.56	+1	303424..303621	+	65	16329445	-	ssr2153	-	hypothetical protein
276	 48.57	0	303939..305546	+	535	16329446	-	slr1301	-	hypothetical protein
277	 48.70	0	305595..306824	+	409	16329447	-	slr1302	-	hypothetical protein
278	 50.45	0	306844..308076	+	410	16329448	-	slr1303	-	hypothetical protein
279	 51.19	0	308114..309418	-	434	16329449	glcE	sll1189	-	glycolate oxidase subunit; GlcE
280	 44.31	0	309649..312171	+	840	16329450	-	slr1305	-	regulatory components of sensory transduction system
281	 52.54	0	312258..313715	+	485	16329451	-	slr1306	-	hypothetical protein
282	 45.45	0	313705..314199	-	164	16329452	-	sll1188	-	hypothetical protein
283	 44.37	0	314255..315106	-	283	16329453	lgt	sll1187	-	prolipoprotein diacylglyceryl transferase
284	 44.55	0	315134..315784	-	216	16329454	-	sll1186	-	hypothetical protein
285	 51.12	0	315882..316904	-	340	16329455	hemF	sll1185	-	coproporphyrinogen III oxidase
286	 50.48	0	317127..317849	-	240	16329456	ho1	sll1184	-	heme oxygenase
287	 49.49	0	317984..318571	+	195	16329457	-	slr1307	-	hypothetical protein
288	 48.95	0	318661..318897	+	78	16329458	rpmB	ssr1604	-	50S ribosomal protein L28
289	 48.68	0	319096..320529	+	477	16329459	-	slr0962	-	hypothetical protein
290	 44.34	0	320785..321447	-	220	16329460	-	sll0943	-	hypothetical protein
291	 52.57	0	321699..323606	+	635	16329461	sir	slr0963	-	sulfite reductase subunit beta
292	 53.51	+1	323805..324731	+	308	16329462	-	slr0964	-	hypothetical protein
293	 51.62	0	324831..326006	+	391	16329463	dnaN	slr0965	-	DNA polymerase III subunit beta
294	 52.33	0	326150..326944	+	264	16329464	trpA	slr0966	-	tryptophan synthase subunit alpha
295	 49.67	0	327100..327552	+	150	16329465	-	slr0967	-	hypothetical protein
296	 43.39	0	327604..327981	-	125	16329466	-	sll0939	-	hypothetical protein
297	 49.40	0	328006..329181	-	391	16329467	-	sll0938	-	succinyldiaminopimelate transaminase
298	 38.33	-1	329222..329521	-	99	16329468	-	ssl1792	-	hypothetical protein
299	 52.12	0	329555..331060	-	501	16329469	-	sll0936	-	hypothetical protein
300	 50.64	0	331144..333027	+	627	16329470	cbiH	slr0969	-	precorrin methylase
301	 55.31	+1	333130..334485	+	451	16329471	-	slr0971	-	hypothetical protein
302	 54.45	+1	334568..335623	-	351	16329472	ccmA	sll0934	-	3-deoxy-7-phosphoheptulonate synthase
303	 53.25	+1	335819..336295	-	158	16329473	-	sll0933	-	hypothetical protein
304	 50.37	0	336313..336582	-	89	16329474	rps15	ssl1784	-	30S ribosomal protein S15
305	 50.30	0	336747..337760	-	337	16329475	-	sll0932	-	hypothetical protein
306	 54.14	+1	337861..338331	-	156	16329476	-	sll0931	-	hypothetical protein
307	 47.47	0	338503..339096	-	197	16329477	-	sll0930	-	hypothetical protein
308	 47.74	0	339140..339625	-	161	16329478	apcD	sll0928	-	allophycocyanin-B
309	 52.18	0	339737..340999	-	420	161344769	metX	sll0927	-	S-adenosylmethionine synthetase
310	 48.36	0	341135..342139	-	334	16329480	-	sll0926	-	tRNA-dihydrouridine synthase A
311	 47.62	0	342151..342759	-	202	16329481	-	sll0925	-	hypothetical protein
312	 51.12	0	343026..343559	+	177	16329482	infC	slr0974	-	translation initiation factor IF-3
313	 51.28	0	343863..344720	+	285	16329483	-	slr0975	-	hypothetical protein
314	 50.45	0	344744..345298	-	184	16329484	-	sll0924	-	hypothetical protein
315	 49.80	0	345536..347806	-	756	16329485	epsB	sll0923	-	exopolysaccharide export protein
316	 47.86	0	348384..348734	-	116	16329486	-	sll0922	-	hypothetical protein
317	 49.66	0	348701..349429	+	242	16329487	-	slr0976	-	hypothetical protein
318	 44.52	0	349468..350298	+	276	16329488	-	slr0977	-	ABC transporter
319	 49.51	0	350509..350916	+	135	16329489	-	slr0978	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
