IslandPath Analysis: Synechocystis sp. PCC 6803

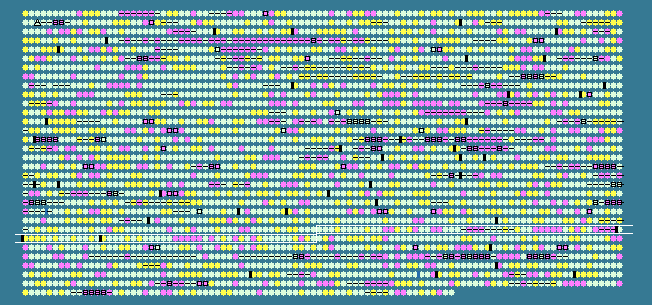

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2450	 50.54	0	2726089..2726640	+	183	16331616	-	slr0195	-	hypothetical protein
2451	 47.92	0	2726676..2727059	+	127	16331617	-	slr0196	-	hypothetical protein
2452	 48.01	0	2727047..2728708	+	553	16331618	-	slr0197	-	ComE ORF1
2453	 52.62	0	2728812..2730071	-	419	16331619	-	sll0185	-	hypothetical protein
2454	 47.65	0	2730649..2731563	+	304	16331620	-	slr0199	-	hypothetical protein
2455	 51.19	0	2731560..2732774	-	404	16331621	rpoD	sll0184	-	RNA polymerase sigma factor SigC
2456	 50.00	0	2733081..2733986	+	301	16331622	hdrB	slr0201	-	heterodisulfide reductase subunit B
2457	 50.68	0	2734030..2734323	-	97	16331623	-	ssl0353	-	hypothetical protein
2458	 51.79	0	2734522..2735301	-	259	16331624	-	sll0183	-	hypothetical protein
2459	 45.76	0	2735422..2735598	-	58	16331625	-	ssl0352	-	hypothetical protein
2460	 48.49	0	2735806..2737791	-	661	16331626	-	sll0182	-	ABC transporter
2461	 32.85	-2	2737929..2738552	-	207	16331627	-	sll0181	-	hypothetical protein
2462	 36.27	-2	2738712..2738915	-	67	16331628	-	ssl0350	-	hypothetical protein
2463	 53.45	+1	2739149..2740654	-	501	16331629	-	sll0180	-	hypothetical protein
2464	 50.36	0	2740911..2741327	+	138	16331630	-	slr0204	-	hypothetical protein
2465	 51.86	0	2741674..2743125	-	483	16331631	gltX	sll0179	-	glutamyl-tRNA synthetase
2466	 41.84	-1	2743295..2744917	+	540	16331632	-	slr0207	-	hypothetical protein
2467	 48.21	0	2744987..2745766	+	259	16331633	-	slr0208	-	hypothetical protein
2468	 48.25	0	2745934..2746161	+	75	16331634	ftrV	ssr0330	-	ferredoxin-thioredoxin reductase, variable chain
2469	 39.54	-1	2746288..2747334	+	348	16331635	-	slr0209	-	hypothetical protein
2470	 43.46	0	2747604..2748857	+	417	16331636	-	slr0210	-	sensory transduction histidine kinase
2471	 49.30	0	2748946..2749158	+	70	16331637	-	ssr0332	-	hypothetical protein
2472	 50.00	0	2749230..2750441	+	403	16331638	-	slr0211	-	hypothetical protein
2473	 46.25	0	2750577..2750816	-	79	16331639	-	ssl0331	-	hypothetical protein
2474	 46.96	0	2751026..2754613	+	1195	16331640	metH	slr0212	-	5-methyltetrahydrofolate--homocysteine methyltransferase
2475	 36.71	-2	2754850..2755086	+	78	16331641	-	ssr0336	-	hypothetical protein
2476	 37.15	-2	2755703..2759662	-	1319	16331642	-	sll0178	-	hypothetical protein
2477	 42.76	-1	2759808..2760380	-	190	16331643	-	sll0888	-	hypothetical protein
2478	 44.95	0	2760435..2760632	+	65	16331644	-	ssr1513	-	hypothetical protein
2479	 51.23	0	2760689..2762029	-	446	16331645	-	sll0887	-	hypothetical protein
2480	 51.31	0	2762114..2762953	-	279	16331646	-	sll0886	-	hypothetical protein
2481	 52.48	0	2763170..2763733	+	187	16331647	-	slr0895	-	hypothetical protein
2482	 49.57	0	2763867..2765252	+	461	16331648	-	slr0896	-	hypothetical protein
2483	 52.94	0	2765554..2768766	+	1070	16331649	-	slr0897	-	endo-1,4-beta-glucanase
2484	 50.50	0	2769125..2770633	+	502	16331650	nirA	slr0898	-	ferredoxin-nitrite reductase
2485	 47.33	0	2770857..2771306	+	149	16331651	cynS	slr0899	-	cyanate hydratase
2486	 42.88	-1	2771322..2772494	+	390	16331652	moeA	slr0900	-	molybdopterin biosynthesis; MoeA
2487	 39.02	-1	2772470..2773453	+	327	16331653	moaA	slr0901	-	molybdenum cofactor biosynthesis protein A
2488	 40.04	-1	2773454..2774497	+	347	16331654	moaC	slr0902	-	bifunctional molybdenum cofactor biosynthesis protein C/molybdopterin-guanine dinucleotide biosynthesis protein A
2489	 37.40	-2	2774481..2774726	+	81	16331655	-	ssr1527	-	hypothetical protein
2490	 41.78	-1	2774732..2775169	+	145	16331656	moaE	slr0903	-	molybdopterin (MPT) converting factor, subunit 2
2491	 49.47	0	2775324..2775608	+	94	16331657	-	ssr1528	-	hypothetical protein
2492	 52.61	0	2775767..2777296	+	509	16331658	-	slr0904	-	hypothetical protein
2493	 42.87	-1	2777447..2778946	+	499	16331659	bchE	slr0905	-	Mg-protoporphyrin IX monomethyl ester oxidative cyclase 66 kD subunit
2494	 52.56	0	2779510..2781033	+	507	16331660	psbB	slr0906	-	photosystem II CP47 protein
2495	 47.75	0	2781403..2784447	+	1014	16331661	-	slr0907	-	hypothetical protein
2496	 41.09	-1	2784503..2785855	+	450	16331662	-	slr0909	-	hypothetical protein
2497	 40.41	-1	2785941..2786717	+	258	16331663	-	slr0912	-	hypothetical protein
2498	 32.47	-2	2786798..2788417	+	539	16331664	-	slr0913	-	hypothetical protein
2499	 35.11	-2	2788450..2790246	+	598	16331665	-	slr0914	-	hypothetical protein
2500	 46.14	0	2791074..2791526	+	150	16331666	-	slr0915	-	putative endonuclease
2501	 52.20	0	2791820..2793001	+	393	161344752	bioF	slr0917	-	8-amino-7-oxononanoate synthase
2502	 51.84	0	2793159..2793920	+	253	16331668	map	slr0918	-	methionine aminopeptidase
2503	 51.75	0	2793926..2794381	+	151	16331669	-	slr0919	-	hypothetical protein
2504	 53.78	+1	2794431..2794880	+	149	16331670	-	slr0920	-	hypothetical protein
2505	 47.72	0	2794938..2795375	-	145	16331671	panD	sll0892	-	aspartate alpha-decarboxylase
2506	 54.15	+1	2795426..2796400	-	324	16331672	citH	sll0891	-	2-ketoacid dehydrogenase; malate dehydrogenase; lactate dehydrogenase
2507	 49.32	0	2796438..2796656	-	72	16331673	-	ssl1690	-	hypothetical protein
2508	 51.68	0	2797039..2797425	+	128	16331674	-	slr0921	-	hypothetical protein
2509	 52.65	0	2797422..2798006	+	194	16331675	pth	slr0922	-	peptidyl-tRNA hydrolase
2510	 51.33	0	2798072..2798410	+	112	16331676	-	slr0923	-	hypothetical protein
2511	 48.08	0	2798613..2799473	+	286	16331677	-	slr0924	-	hypothetical protein
2512	 54.29	+1	2799650..2801014	+	454	16331678	natB	slr0559	-	periplasmic binding protein of ABC transporter for natural amino acids
2513	 50.47	0	2801140..2803035	-	631	16331679	-	sll0556	-	hypothetical protein
2514	 56.11	+1	2803366..2804208	-	280	161344751	map	sll0555	-	methionine aminopeptidase
2515	 48.18	0	2804228..2804584	-	118	16331681	ftrC	sll0554	-	ferredoxin-thioredoxin reductase, catalytic chain
2516	 50.39	0	2804655..2805692	-	345	16331682	-	sll0553	-	hypothetical protein
2517	 46.15	0	2805608..2806114	-	168	16331683	-	sll0552	-	hypothetical protein
2518	 51.84	0	2806082..2807059	+	325	16331684	-	slr0565	-	hypothetical protein
2519	 50.29	0	2807211..2808932	-	573	16331685	-	sll0550	-	flavoprotein
2520	 52.80	0	2809055..2809804	-	249	16331686	-	sll0549	-	hypothetical protein
2521	 47.86	0	2810100..2811593	+	497	16331687	-	slr0569	-	hypothetical protein
2522	 48.27	0	2811628..2812290	-	220	16331688	-	sll0547	-	hypothetical protein
2523	 49.40	0	2812385..2812720	-	111	16331689	-	sll0546	-	translation initiation factor Sui1
2524	 45.09	0	2812914..2813636	-	240	16331690	-	sll0545	-	hypothetical protein
2525	 49.20	0	2813654..2814655	-	333	16331691	-	sll0544	-	DNA polymerase III subunit delta
2526	 40.14	-1	2815069..2815509	+	146	16331692	-	slr0572	-	hypothetical protein
2527	 43.62	0	2815567..2816013	-	148	16331693	-	sll0543	-	hypothetical protein
2528	 43.14	-1	2816066..2816320	-	84	16331694	-	ssl1046	-	hypothetical protein
2529	 33.56	-2	2816517..2816960	+	147	16331695	-	slr0573	-	hypothetical protein
2530	 43.33	0	2816991..2817110	-	39	16331696	-	sgl0001	-	hypothetical protein
2531	 45.61	0	2817226..2817453	-	75	16331697	-	ssl1045	-	hypothetical protein
2532	 41.20	-1	2817862..2819196	+	444	16331698	cyp	slr0574	-	cytochrome P450
2533	 50.27	0	2819323..2819877	+	184	16331699	-	slr0575	-	hypothetical protein
2534	 53.01	0	2819894..2821855	-	653	16331700	acs	sll0542	-	acetyl-CoA synthetase
2535	 47.18	0	2822101..2822454	+	117	16331701	-	slr0579	-	hypothetical protein
2536	 43.47	0	2822579..2823535	-	318	16331702	desC(des9)	sll0541	-	acyl-CoA desaturase 1
2537	 53.37	+1	2823646..2824893	+	415	16331703	-	slr0580	-	hypothetical protein
2538	 49.55	0	2825023..2825355	+	110	16331704	-	slr0581	-	hypothetical protein
2539	 41.73	-1	2825331..2825711	+	126	16331705	-	slr0582	-	hypothetical protein
2540	 52.38	0	2825718..2826641	-	307	16331706	-	sll0540	-	hypothetical protein
2541	 45.56	0	2826754..2827947	-	397	16331707	-	sll0539	-	hypothetical protein
2542	 47.91	0	2828140..2829072	+	310	16331708	-	slr0583	-	hypothetical protein
2543	 51.67	0	2829098..2831011	+	637	16331709	-	slr0825	-	hypothetical protein
2544	 48.99	0	2831106..2831303	+	65	16331710	rpmG	ssr1398	-	50S ribosomal protein L33
2545	 47.22	0	2831400..2831615	+	71	16331711	rpsR	ssr1399	-	30S ribosomal protein S18
2546	 53.62	+1	2831881..2833083	+	400	16331712	alr	slr0827	-	alanine racemase
2547	 43.13	-1	2833378..2835867	+	829	16331713	-	slr0829	-	PleD-like protein
2548	 52.09	0	2835816..2837510	-	564	16331714	bicA	sll0834	-	bicarbonate transporter
2549	 50.18	0	2837795..2838910	-	371	16331715	-	sll0833	-	OppC in a binding protein-dependent transport system
48.22	MEAN

4.98	STD DEV
