IslandPath Analysis: Synechocystis sp. PCC 6803

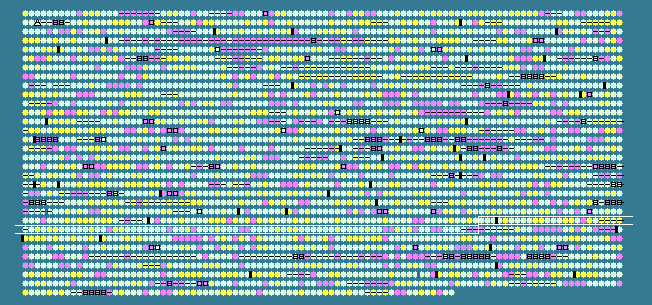

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2377	 50.95	0	2640662..2641813	-	383	16331543	pstS	sll0680	-	phosphate-binding periplasmic protein precursor
2378	 48.17	0	2642135..2643145	-	336	16331544	sphX	sll0679	-	SphX protein precursor
2379	 50.30	0	2643403..2644569	+	388	16331545	-	slr0719	-	hypothetical protein
2380	 51.16	0	2644795..2645097	+	100	16331546	rpsN	slr0628	-	30S ribosomal protein S14
2381	 53.36	+1	2645271..2646074	-	267	16331547	im30	sll0617	-	chloroplast membrane-associated 30 kD protein
2382	 51.36	0	2646623..2647282	+	219	16331548	-	slr0630	-	hypothetical protein
2383	 49.12	0	2647386..2650184	-	932	16331549	secA	sll0616	-	preprotein translocase subunit SecA
2384	 47.02	0	2650377..2650997	-	206	16331550	-	sll0615	-	transmembrane protein FT27
2385	 48.37	0	2651440..2651838	-	132	16331551	-	sll0614	-	hypothetical protein
2386	 51.84	0	2651866..2652951	-	361	16331552	ruvB	sll0613	-	Holliday junction DNA helicase B
2387	 55.25	+1	2653153..2655123	+	656	16331553	thiG	slr0633	-	ThiG protein
2388	 47.50	0	2655459..2656037	+	192	16331554	-	slr0634	-	hypothetical protein
2389	 49.84	0	2656139..2657077	+	312	16331555	-	slr0635	-	hypothetical protein
2390	 46.53	0	2657148..2657594	-	148	16331556	-	sll0611	-	hypothetical protein
2391	 51.98	0	2657850..2658632	+	260	16331557	cobS	slr0636	-	cobalamin synthase
2392	 52.80	0	2659080..2659865	+	261	16331558	-	slr0637	-	hypothetical protein
2393	 49.67	0	2659905..2660804	+	299	16331559	glyQ	slr0638	-	glycyl-tRNA synthetase subunit alpha
2394	 40.85	-1	2660854..2661744	+	296	16331560	-	slr0639	-	hypothetical protein
2395	 51.96	0	2661959..2663284	+	441	16331561	-	slr0640	-	sensory transduction histidine kinase
2396	 47.81	0	2663366..2663731	-	121	16331562	-	sll0609	-	hypothetical protein
2397	 54.60	+1	2663686..2664000	-	104	16331563	-	sll0608	-	hypothetical protein
2398	 51.99	0	2664403..2665887	+	494	16331564	-	slr0642	-	integral membrane protein
2399	 51.42	0	2666040..2667521	+	493	16331565	-	slr0643	-	hypothetical protein
2400	 52.41	0	2667542..2668972	-	476	16331566	-	sll0606	-	hypothetical protein
2401	 51.40	0	2669089..2670156	+	355	16331567	-	slr0644	-	hypothetical protein
2402	 47.76	0	2670115..2671902	-	595	16331568	menD	sll0603	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
2403	 52.36	0	2671895..2673970	-	691	16331569	-	sll0602	-	hypothetical protein
2404	 48.95	0	2674101..2674721	+	206	16331570	-	slr0645	-	hypothetical protein
2405	 52.36	0	2674736..2676196	+	486	16331571	dacB	slr0646	-	penicillin-binding protein 4
2406	 53.72	+1	2676937..2677755	-	272	16331572	-	sll0601	-	hypothetical protein
2407	 48.34	0	2678140..2679738	+	532	16331573	metG	slr0649	-	methionyl-tRNA synthetase
2408	 47.52	0	2679884..2680489	+	201	16331574	-	slr0650	-	hypothetical protein
2409	 49.06	0	2680550..2681872	-	440	16331575	dgt	sll0398	-	dGTP triphosphohydrolase
2410	 48.32	0	2681894..2682547	-	217	16331576	-	sll0397	-	hypothetical protein
2411	 51.56	0	2682552..2683226	-	224	16331577	-	sll0396	-	OmpR subfamily
2412	 52.43	0	2683443..2684081	-	212	16331578	-	sll0395	-	hypothetical protein
2413	 49.60	0	2684198..2684824	-	208	16331579	-	sll0394	-	hypothetical protein
2414	 51.36	0	2684959..2687055	+	698	16331580	napA	slr0415	-	Na(+)/H(+) antiporter
2415	 43.08	-1	2687109..2687549	+	146	16331581	-	slr0416	-	hypothetical protein
2416	 53.31	+1	2687952..2690534	+	860	16331582	gyrA	slr0417	-	DNA gyrase subunit A
2417	 53.73	+1	2690534..2691445	+	303	16331583	-	slr0418	-	hypothetical protein
2418	 49.82	0	2691528..2692382	-	284	16331584	-	sll0385	-	ABC transporter
2419	 49.74	0	2692304..2693077	-	257	16331585	-	sll0384	-	hypothetical protein
2420	 51.47	0	2693080..2693724	-	214	16331586	cbiM	sll0383	-	cobalt transport protein CbiM
2421	 51.60	0	2693725..2694255	-	176	16331587	-	sll0382	-	hypothetical protein
2422	 50.51	0	2694261..2695145	-	294	16331588	-	sll0381	-	hypothetical protein
2423	 50.00	0	2695620..2695775	+	51	16331589	-	ssr0692	-	hypothetical protein
2424	 48.23	0	2696125..2696406	-	93	16331590	-	ssl0750	-	hypothetical protein
2425	 41.67	-1	2696549..2696836	+	95	16331591	-	ssr0693	-	hypothetical protein
2426	 48.36	0	2697151..2698248	-	365	16331592	rfbW	sll0380	-	mannosyl transferase
2427	 50.45	0	2698258..2699145	-	295	16331593	lpxA	sll0379	-	UDP-N-acetylglucosamine acyltransferase
2428	 51.75	0	2699172..2699855	+	227	16331594	-	slr0420	-	hypothetical protein
2429	 40.00	-1	2700069..2700818	+	249	16331595	-	slr0421	-	hypothetical protein
2430	 50.38	0	2700944..2701735	-	263	16331596	cysG	sll0378	-	uroporphyrin-III C-methyltransferase
2431	 47.19	0	2701931..2705530	-	1199	16331597	mfd	sll0377	-	transcription-repair coupling factor
2432	 49.35	0	2705678..2705983	-	101	16331598	-	sll0376	-	hypothetical protein
2433	 53.52	+1	2706733..2707698	+	321	16331599	rlpA	slr0423	-	rare lipoprotein A
2434	 48.67	0	2708257..2709006	-	249	16331600	braG	sll0374	-	high-affinity branched-chain amino acid transport ATP-binding protein
2435	 51.15	0	2709084..2710385	-	433	16331601	proA	sll0373	-	gamma-glutamyl phosphate reductase
2436	 48.07	0	2710511..2711107	-	198	16331602	-	sll0372	-	hypothetical protein
2437	 42.01	-1	2711419..2711637	-	72	16331603	-	ssl0738	-	hypothetical protein
2438	 31.42	-2	2711740..2713305	-	521	16331604	-	sll0371	-	hypothetical protein
2439	 51.39	0	2713371..2716616	-	1081	161344753	carB	sll0370	-	carbamoyl phosphate synthase large subunit
2440	 46.62	0	2716735..2717163	-	142	16331606	-	sll0369	-	hypothetical protein
2441	 49.35	0	2717177..2717713	-	178	16331607	pyrR	sll0368	-	pyrimidine regulatory protein PyrR
2442	 46.10	0	2718050..2718754	+	234	16331608	folE	slr0426	-	GTP cyclohydrolase I
2443	 52.84	0	2718963..2720213	+	416	16331609	-	slr0427	-	competence damage-inducible protein A
2444	 51.66	0	2720250..2720702	-	150	16331610	-	sll0189	-	hypothetical protein
2445	 56.18	+1	2720729..2722234	-	501	16331611	-	sll0188	-	hypothetical protein
2446	 53.67	+1	2722431..2724038	+	535	16331612	lytB	slr0191	-	amidase enhancer
2447	 50.72	0	2724075..2724419	+	114	16331613	-	slr0192	-	hypothetical protein
2448	 49.34	0	2724648..2725103	+	151	16331614	-	slr0193	-	RNA-binding protein
2449	 49.72	0	2725326..2726033	+	235	16331615	rpiA	slr0194	-	ribose-5-phosphate isomerase A
2450	 50.54	0	2726089..2726640	+	183	16331616	-	slr0195	-	hypothetical protein
2451	 47.92	0	2726676..2727059	+	127	16331617	-	slr0196	-	hypothetical protein
2452	 48.01	0	2727047..2728708	+	553	16331618	-	slr0197	-	ComE ORF1
2453	 52.62	0	2728812..2730071	-	419	16331619	-	sll0185	-	hypothetical protein
2454	 47.65	0	2730649..2731563	+	304	16331620	-	slr0199	-	hypothetical protein
2455	 51.19	0	2731560..2732774	-	404	16331621	rpoD	sll0184	-	RNA polymerase sigma factor SigC
2456	 50.00	0	2733081..2733986	+	301	16331622	hdrB	slr0201	-	heterodisulfide reductase subunit B
2457	 50.68	0	2734030..2734323	-	97	16331623	-	ssl0353	-	hypothetical protein
2458	 51.79	0	2734522..2735301	-	259	16331624	-	sll0183	-	hypothetical protein
2459	 45.76	0	2735422..2735598	-	58	16331625	-	ssl0352	-	hypothetical protein
2460	 48.49	0	2735806..2737791	-	661	16331626	-	sll0182	-	ABC transporter
2461	 32.85	-2	2737929..2738552	-	207	16331627	-	sll0181	-	hypothetical protein
2462	 36.27	-2	2738712..2738915	-	67	16331628	-	ssl0350	-	hypothetical protein
2463	 53.45	+1	2739149..2740654	-	501	16331629	-	sll0180	-	hypothetical protein
2464	 50.36	0	2740911..2741327	+	138	16331630	-	slr0204	-	hypothetical protein
2465	 51.86	0	2741674..2743125	-	483	16331631	gltX	sll0179	-	glutamyl-tRNA synthetase
2466	 41.84	-1	2743295..2744917	+	540	16331632	-	slr0207	-	hypothetical protein
2467	 48.21	0	2744987..2745766	+	259	16331633	-	slr0208	-	hypothetical protein
2468	 48.25	0	2745934..2746161	+	75	16331634	ftrV	ssr0330	-	ferredoxin-thioredoxin reductase, variable chain
2469	 39.54	-1	2746288..2747334	+	348	16331635	-	slr0209	-	hypothetical protein
2470	 43.46	0	2747604..2748857	+	417	16331636	-	slr0210	-	sensory transduction histidine kinase
2471	 49.30	0	2748946..2749158	+	70	16331637	-	ssr0332	-	hypothetical protein
2472	 50.00	0	2749230..2750441	+	403	16331638	-	slr0211	-	hypothetical protein
2473	 46.25	0	2750577..2750816	-	79	16331639	-	ssl0331	-	hypothetical protein
2474	 46.96	0	2751026..2754613	+	1195	16331640	metH	slr0212	-	5-methyltetrahydrofolate--homocysteine methyltransferase
2475	 36.71	-2	2754850..2755086	+	78	16331641	-	ssr0336	-	hypothetical protein
2476	 37.15	-2	2755703..2759662	-	1319	16331642	-	sll0178	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
