IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

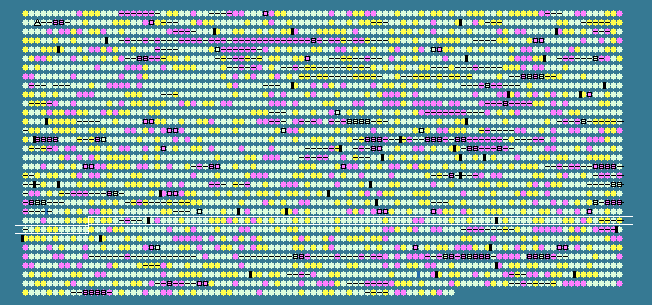

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2312	 54.50	+1	2576092..2576280	+	62	16331479	-	ssr0109	-	hypothetical protein
2313	 50.56	0	2576285..2576824	+	179	16331480	-	slr0053	-	putative metalloprotease
2314	 53.03	0	2576889..2577416	+	175	16331481	dgkA	slr0054	-	diacylglycerol kinase
2315	 54.47	+1	2577552..2578043	+	163	16331482	trpG	slr0055	-	anthranilate synthase component II
2316	 51.18	0	2578187..2579161	+	324	16331483	chlG	slr0056	-	bacteriochlorophyll/chlorophyll a synthase
2317	 50.00	0	2579308..2580135	-	275	16331484	-	sll0064	-	hypothetical protein
2318	 40.07	-1	2580291..2580557	-	88	109150012	-	sll0063a	-	hypothetical protein
2319	 51.26	0	2580710..2581897	-	395	16331485	-	sll0063	-	hypothetical protein
2320	 50.00	0	2581944..2582393	-	149	16331486	-	sll0062	-	hypothetical protein
2321	 48.25	0	2582441..2582869	+	142	16331487	-	slr0058	-	hypothetical protein
2322	 45.10	0	2583030..2583335	+	101	16331488	-	slr0059	-	hypothetical protein
2323	 41.71	-1	2583410..2584519	+	369	16331489	-	slr0060	-	hypothetical protein
2324	 46.40	0	2584793..2585458	+	221	16331490	-	slr0061	-	hypothetical protein
2325	 45.41	0	2585489..2586523	-	344	16331491	-	sll0060	-	hypothetical protein
2326	 50.55	0	2586572..2588650	-	692	16331492	dnaK	sll0058	-	molecular chaperone DnaK
2327	 52.67	0	2588884..2589633	-	249	16331493	grpE	sll0057	-	heat shock protein; GrpE
2328	 51.56	0	2589851..2591869	+	672	16331494	gspE	slr0063	-	general secretion pathway protein E
2329	 50.22	0	2591953..2593107	+	384	16331495	-	slr0064	-	hypothetical protein
2330	 50.08	0	2593329..2593967	+	212	16331496	-	slr0065	-	hypothetical protein
2331	 51.13	0	2594055..2595161	+	368	16331497	ribG	slr0066	-	riboflavin biosynthesis protein
2332	 51.75	0	2595280..2596566	-	428	16331498	-	sll0055	-	processing protease
2333	 54.14	+1	2596787..2597848	+	353	16331499	-	slr0067	-	put. ATPase
2334	 52.04	0	2597851..2599197	-	448	16331500	accC	sll0053	-	acetyl-CoA carboxylase biotin carboxylase subunit
2335	 41.97	-1	2599315..2599974	+	219	16331501	-	slr0069	-	hypothetical protein
2336	 52.08	0	2600012..2600491	-	159	16331502	-	sll0051	-	hypothetical protein
2337	 50.96	0	2600705..2601697	+	330	16331503	fmt	slr0070	-	methionyl-tRNA formyltransferase
2338	 51.87	0	2601733..2602536	+	267	16331504	natA	slr0467	-	component of ABC transporter for natural amino acids
2339	 35.39	-2	2602472..2603782	+	436	16331505	-	slr0468	-	hypothetical protein
2340	 51.72	0	2603947..2604555	+	202	16331506	rpsD	slr0469	-	30S ribosomal protein S4
2341	 49.50	0	2604794..2605894	-	366	16331507	-	sll0462	-	hypothetical protein
2342	 52.81	0	2606095..2607357	-	420	16331508	proA	sll0461	-	gamma-glutamyl phosphate reductase
2343	 50.11	0	2607812..2610058	+	748	16331509	phy	slr0473	-	phytochrome
2344	 45.95	0	2610073..2610516	+	147	16331510	-	slr0474	-	CheY family protein
2345	 44.93	0	2610706..2612715	-	669	16331511	uvrB	sll0459	-	excinuclease ABC subunit B
2346	 55.96	+1	2612907..2613317	+	136	16331512	-	slr0476	-	hypothetical protein
2347	 49.17	0	2613481..2613600	-	39	16331513	psbX	sml0002	-	photosystem II PsbX protein
2348	 52.29	0	2613717..2614370	+	217	16331514	purN	slr0477	-	phosphoribosylglycinamide formyltransferase
2349	 50.90	0	2614367..2615089	+	240	16331515	-	slr0479	-	hypothetical protein
2350	 51.13	0	2615100..2616599	+	499	16331516	ycf46	slr0480	-	hypothetical protein
2351	 49.67	0	2616624..2617382	+	252	16331517	-	slr0482	-	hypothetical protein
2352	 46.89	0	2617440..2617889	+	149	16331518	-	slr0483	-	hypothetical protein
2353	 51.92	0	2618067..2620094	+	675	16331519	-	slr0484	-	sensory transduction histidine kinase
2354	 50.81	0	2620171..2620662	+	163	16331520	-	slr0487	-	hypothetical protein
2355	 51.25	0	2620798..2622399	+	533	16331521	-	slr0488	-	hypothetical protein
2356	 49.12	0	2622526..2622981	+	151	16331522	-	slr0489	-	hypothetical protein
2357	 50.57	0	2622968..2623402	+	144	16331523	-	slr0491	-	hypothetical protein
2358	 49.26	0	2623414..2624907	+	497	16331524	menE	slr0492	-	O-succinylbenzoic acid--CoA ligase
2359	 50.65	0	2625095..2625481	+	128	16331525	rfbM	slr0493	-	phosphomannose isomerase
2360	 49.70	0	2625478..2626479	-	333	16331526	-	sll0456	-	hypothetical protein
2361	 53.07	0	2626573..2627874	-	433	16331527	thrA	sll0455	-	homoserine dehydrogenase
2362	 46.83	0	2628002..2628742	+	246	16331528	-	slr0495	-	lipopeptide antibiotics iturin a biosynthesis protein
2363	 48.79	0	2628783..2629112	+	109	16331529	-	slr0496	-	hypothetical protein
2364	 50.50	0	2629271..2630266	-	331	16331530	pheS	sll0454	-	phenylalanyl-tRNA synthetase subunit alpha
2365	 48.26	0	2630469..2631071	-	200	16331531	-	sll0691	-	hypothetical protein
2366	 40.05	-1	2631207..2631608	-	133	16331532	vapC	sll0690	-	virulence associated protein C
2367	 38.76	-1	2631611..2631868	-	85	16331533	-	ssl1300	-	PEMI-like protein
2368	 51.30	0	2632124..2633509	-	461	16331534	-	sll0689	-	Na/H+ antiporter
2369	 48.38	0	2633852..2634655	-	267	16331535	-	sll0688	-	hypothetical protein
2370	 50.18	0	2634660..2635217	-	185	16331536	-	sll0687	-	RNA polymerase sigma factor
2371	 50.60	0	2635219..2636046	-	275	16331537	-	sll0686	-	hypothetical protein
2372	 51.74	0	2636236..2636724	-	162	16331538	-	sll0685	-	hypothetical protein
2373	 50.31	0	2636828..2637628	-	266	16331539	pstB	sll0684	-	phosphate transport ATP-binding protein; PstB
2374	 48.02	0	2637743..2638552	-	269	16331540	pstB	sll0683	-	phosphate transport ATP-binding protein; PstB
2375	 53.24	+1	2638578..2639441	-	287	16331541	pstA	sll0682	-	phosphate transport system permease protein; PstA
2376	 48.64	0	2639627..2640580	-	317	16331542	pstC	sll0681	-	phosphate transport system permease protein; PstC
2377	 50.95	0	2640662..2641813	-	383	16331543	pstS	sll0680	-	phosphate-binding periplasmic protein precursor
2378	 48.17	0	2642135..2643145	-	336	16331544	sphX	sll0679	-	SphX protein precursor
2379	 50.30	0	2643403..2644569	+	388	16331545	-	slr0719	-	hypothetical protein
2380	 51.16	0	2644795..2645097	+	100	16331546	rpsN	slr0628	-	30S ribosomal protein S14
2381	 53.36	+1	2645271..2646074	-	267	16331547	im30	sll0617	-	chloroplast membrane-associated 30 kD protein
2382	 51.36	0	2646623..2647282	+	219	16331548	-	slr0630	-	hypothetical protein
2383	 49.12	0	2647386..2650184	-	932	16331549	secA	sll0616	-	preprotein translocase subunit SecA
2384	 47.02	0	2650377..2650997	-	206	16331550	-	sll0615	-	transmembrane protein FT27
2385	 48.37	0	2651440..2651838	-	132	16331551	-	sll0614	-	hypothetical protein
2386	 51.84	0	2651866..2652951	-	361	16331552	ruvB	sll0613	-	Holliday junction DNA helicase B
2387	 55.25	+1	2653153..2655123	+	656	16331553	thiG	slr0633	-	ThiG protein
2388	 47.50	0	2655459..2656037	+	192	16331554	-	slr0634	-	hypothetical protein
2389	 49.84	0	2656139..2657077	+	312	16331555	-	slr0635	-	hypothetical protein
2390	 46.53	0	2657148..2657594	-	148	16331556	-	sll0611	-	hypothetical protein
2391	 51.98	0	2657850..2658632	+	260	16331557	cobS	slr0636	-	cobalamin synthase
2392	 52.80	0	2659080..2659865	+	261	16331558	-	slr0637	-	hypothetical protein
2393	 49.67	0	2659905..2660804	+	299	16331559	glyQ	slr0638	-	glycyl-tRNA synthetase subunit alpha
2394	 40.85	-1	2660854..2661744	+	296	16331560	-	slr0639	-	hypothetical protein
2395	 51.96	0	2661959..2663284	+	441	16331561	-	slr0640	-	sensory transduction histidine kinase
2396	 47.81	0	2663366..2663731	-	121	16331562	-	sll0609	-	hypothetical protein
2397	 54.60	+1	2663686..2664000	-	104	16331563	-	sll0608	-	hypothetical protein
2398	 51.99	0	2664403..2665887	+	494	16331564	-	slr0642	-	integral membrane protein
2399	 51.42	0	2666040..2667521	+	493	16331565	-	slr0643	-	hypothetical protein
2400	 52.41	0	2667542..2668972	-	476	16331566	-	sll0606	-	hypothetical protein
2401	 51.40	0	2669089..2670156	+	355	16331567	-	slr0644	-	hypothetical protein
2402	 47.76	0	2670115..2671902	-	595	16331568	menD	sll0603	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
2403	 52.36	0	2671895..2673970	-	691	16331569	-	sll0602	-	hypothetical protein
2404	 48.95	0	2674101..2674721	+	206	16331570	-	slr0645	-	hypothetical protein
2405	 52.36	0	2674736..2676196	+	486	16331571	dacB	slr0646	-	penicillin-binding protein 4
2406	 53.72	+1	2676937..2677755	-	272	16331572	-	sll0601	-	hypothetical protein
2407	 48.34	0	2678140..2679738	+	532	16331573	metG	slr0649	-	methionyl-tRNA synthetase
2408	 47.52	0	2679884..2680489	+	201	16331574	-	slr0650	-	hypothetical protein
2409	 49.06	0	2680550..2681872	-	440	16331575	dgt	sll0398	-	dGTP triphosphohydrolase
2410	 48.32	0	2681894..2682547	-	217	16331576	-	sll0397	-	hypothetical protein
2411	 51.56	0	2682552..2683226	-	224	16331577	-	sll0396	-	OmpR subfamily
48.22	MEAN

4.98	STD DEV
